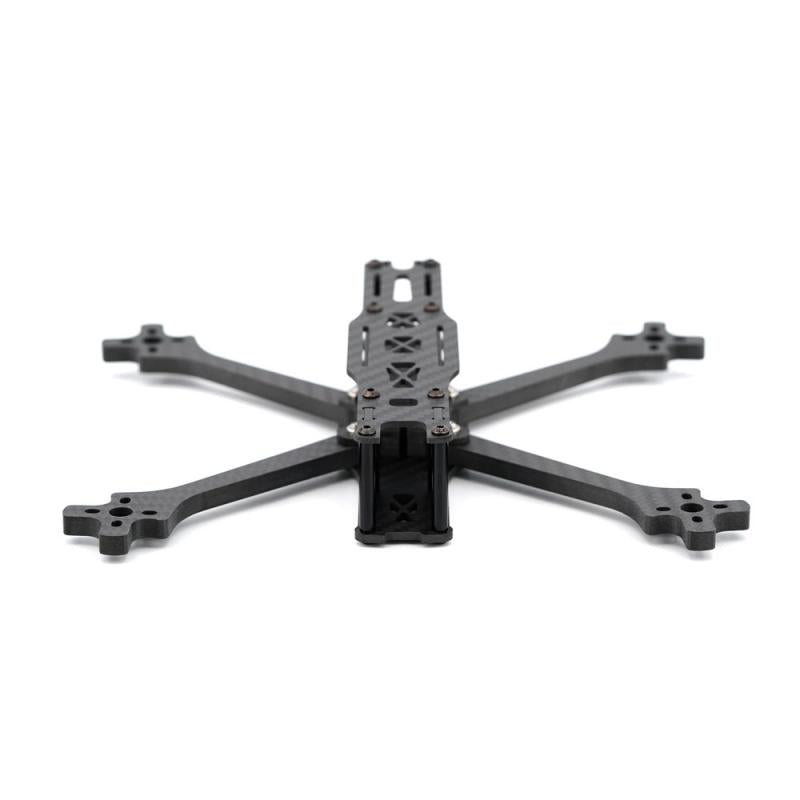

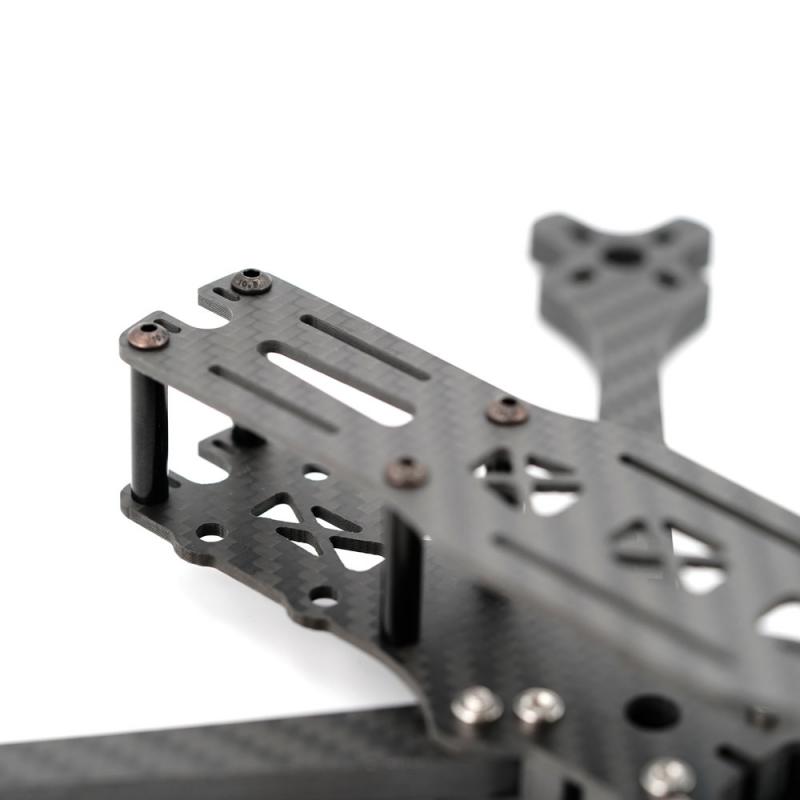

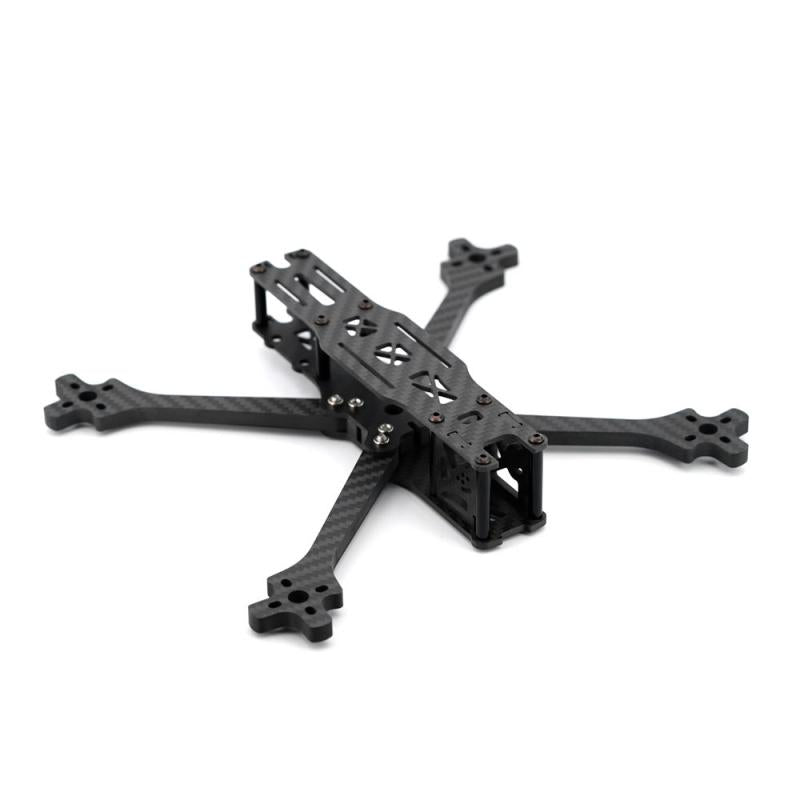

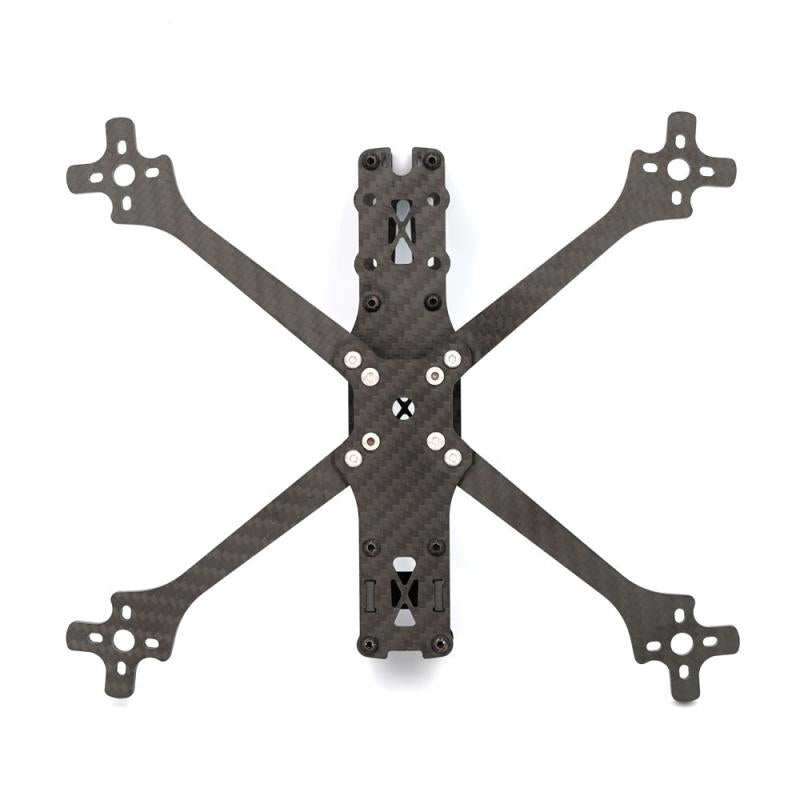

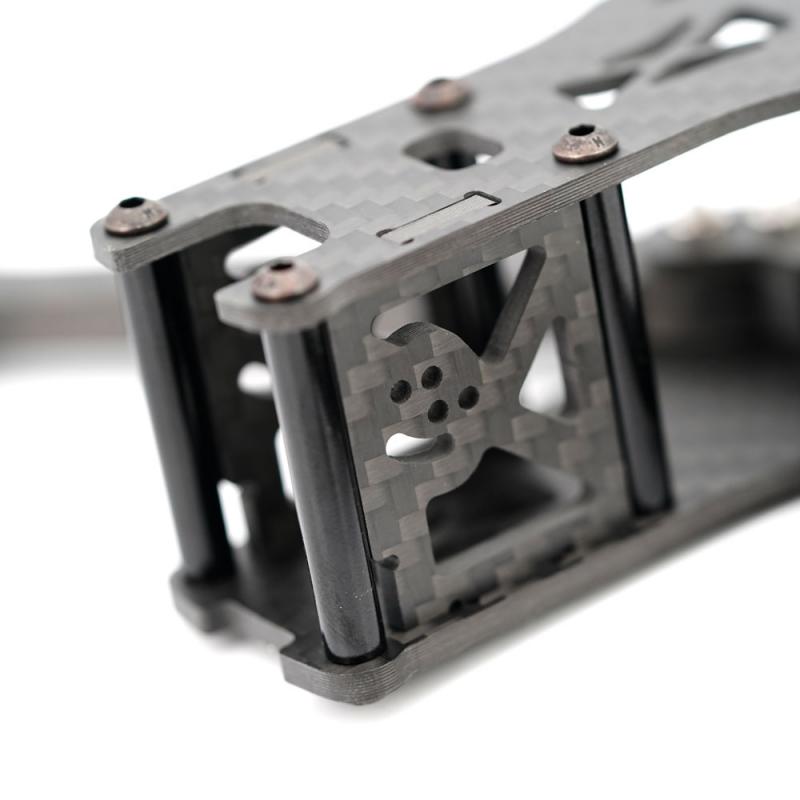

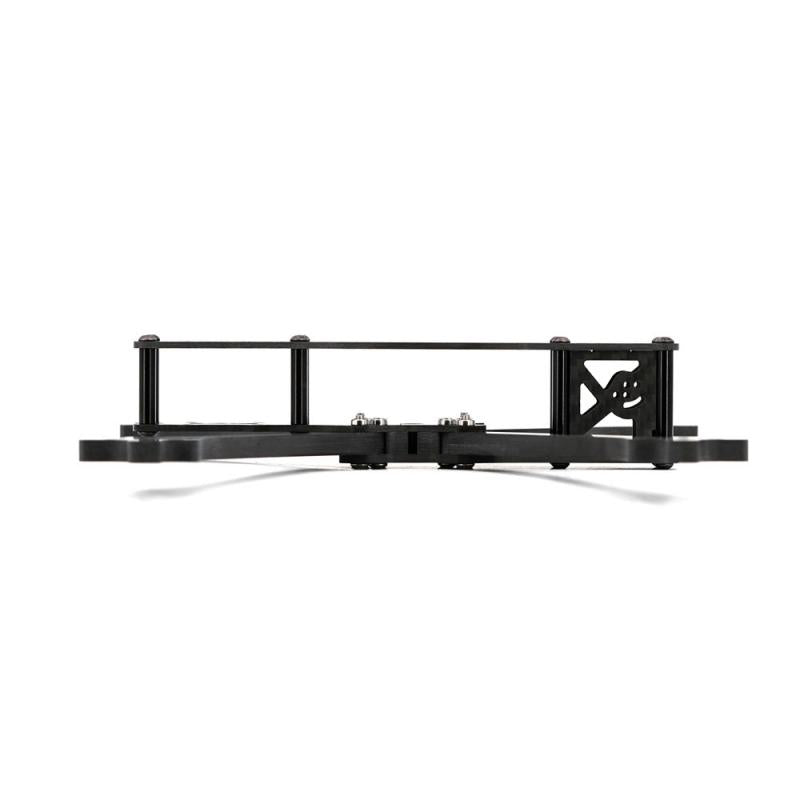

SOURCE ONE FPV Frame
SOURCE ONE is a durable and versatile X-configuration frame that is very popular among freestyle pilots and FPV acrobatics enthusiasts. Designed to withstand harsh drops and extreme flight conditions, this frame offers excellent protection for your FPV components while maintaining a lightweight construction. Whether you are into recreational flying or competitive freestyle, SOURCE ONE is your everyday workhorse.
Key features:
- Wide X-configuration: Optimized for freestyle and aerobatic flying with a balanced and stable design.
- Built to last: Durable construction designed to withstand impact and heavy use, providing reliable protection for all your FPV components.
- Lightweight and functional: Streamlined frame optimized for light weight without compromising strength or performance, ideal for any FPV setup.
- Suitable for all skill levels: Suitable for both recreational pilots and competitive freestylers.
About the SOURCE ONE project: The SOURCE ONE project is a groundbreaking initiative by the BlackSheep team that promotes collaboration in the FPV community. This frame design is dedicated to the public to support creators and manufacturers and enable faster integration of best practices and trends into the manufacturing process. By getting affordable access to this frame, local distributors can stay competitive in a tough market.
The goal of the project is to make FPV accessible to everyone, with low cost, excellent documentation and broad compatibility with FPV components, while respecting intellectual property rights.
Package contents:
- 1x Frame (Upper, middle and lower plate, reinforcement, 2x plate camera, 4x arms, 1x shoulder spacer)
- 1x Set of screws and spacers
Technical specifications:
- Wheel base (5" version): 226 mm
- Thickness of the top plate: 2 mm
- Thickness of the middle plate: 2 mm
- Bottom plate thickness: 2.5 mm
- Shoulder spacer thickness: 6 mm
- Thickness of camera plates: 2 mm
- Height of spacer posts: 30 mm and 22 mm
- Thickness of arms (version 5"): 6 mm
- Mounting holes: 30.5 x 30.5 mm and 20 x 20 mm
- Weight (5" version): 123.5 g
