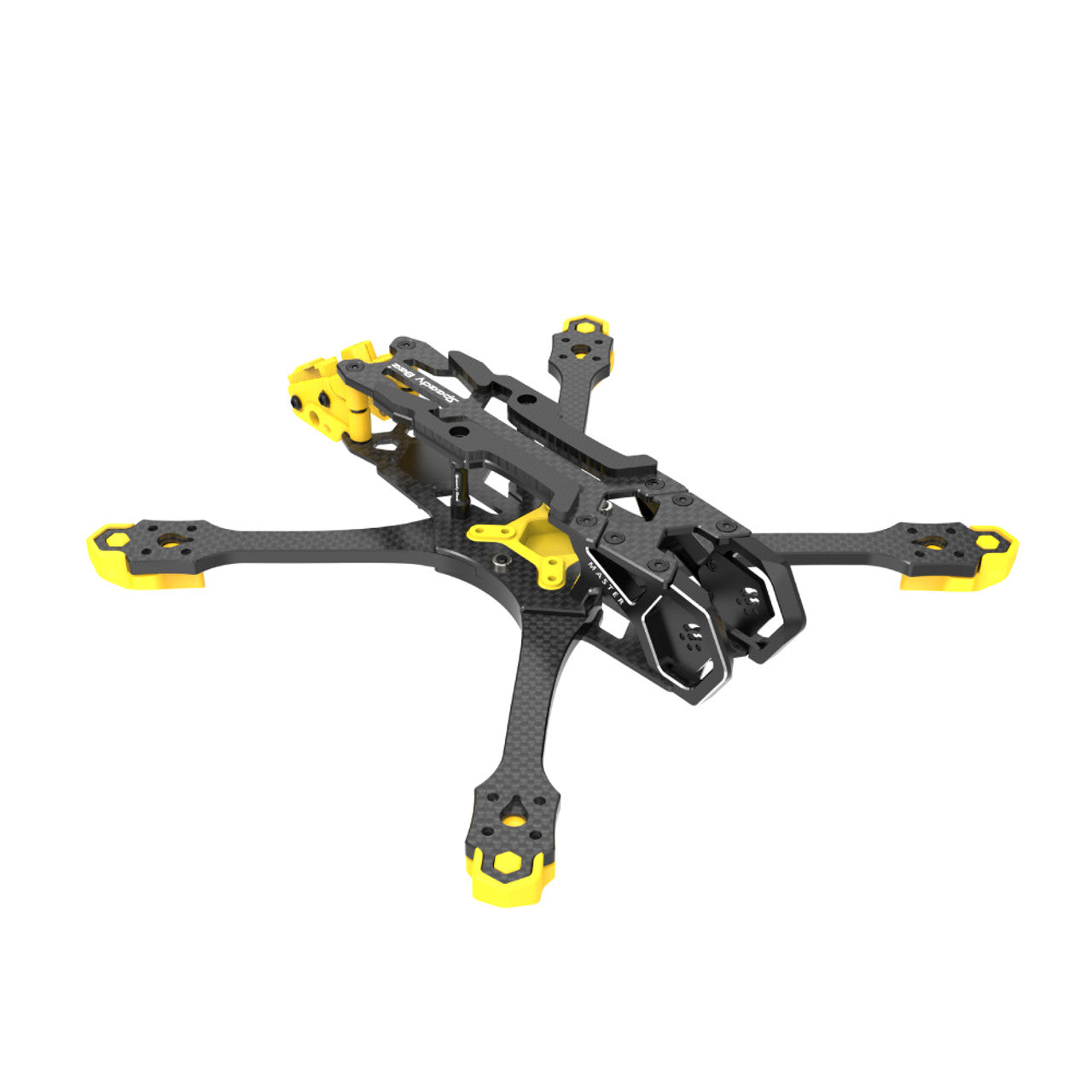

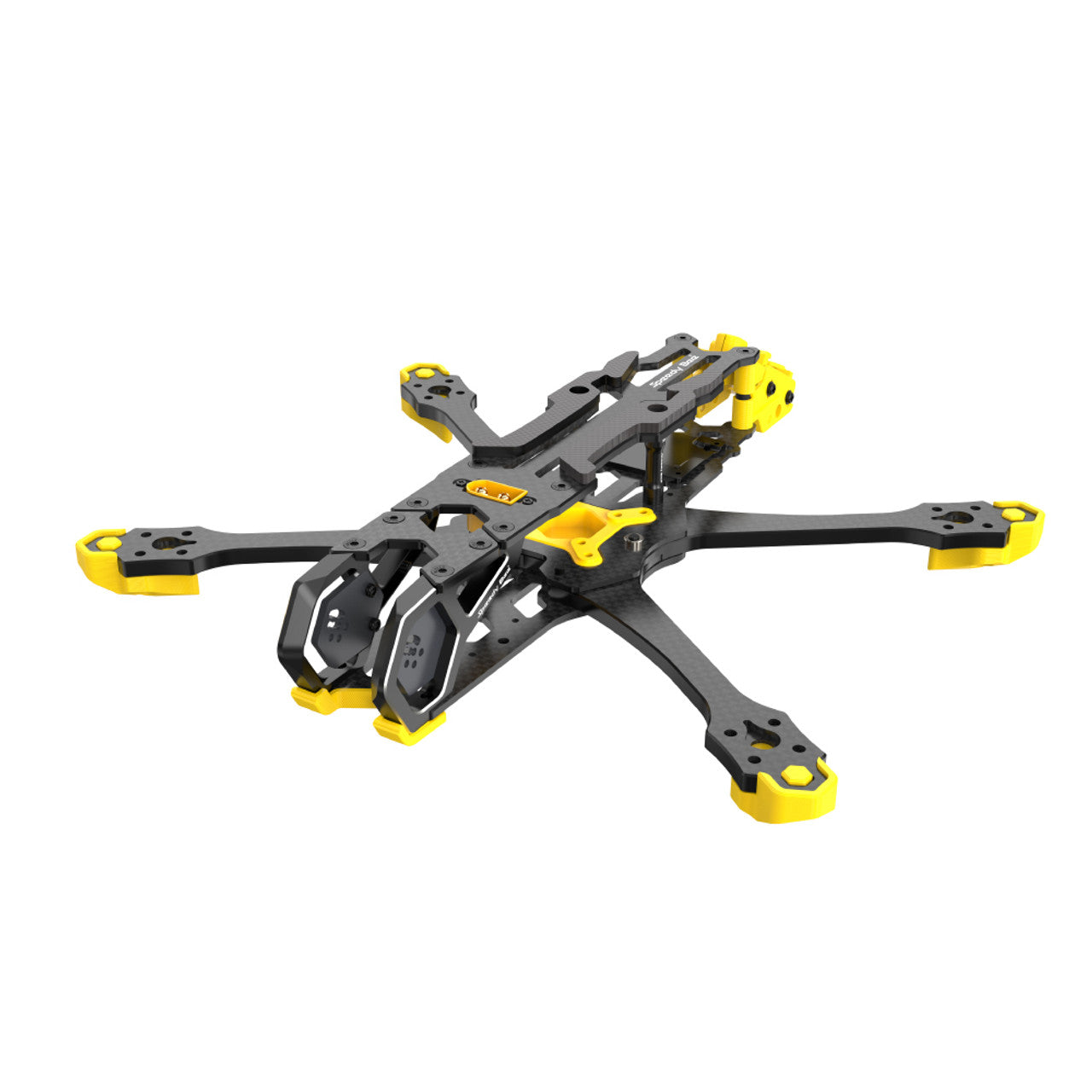

    SpeedyBee Master 5 Frame (Yellow)

The Master 5 series is designed for freestyle. The innovative anti-shock stack structure mitigates the vibrations transmitted to the Gyro FC. Additionally, the removable camera mounting plate is open for customization and supports multiple mounting holes for different cameras.

Specifications:
Model: SpeedyBee Master 5 Frame
Color: Yellow
Wheelbase: Compact model, 222 mm
Weight: 130g (3DTPU parts not included)
View Status: DJI O3 with props in view
DJI O3 Air Unit Coaxial Cable: Factory Custom Length
Thickness of the top plate: 2.5 mm
Bottom plate thickness: 2.5 mm
Middle plate thickness: 2 mm
Arm thickness: 5 mm
Camera width: 19-20 mm
Anti-shock stack hardness: yellow HB50 TPU, white HB30 TPU
Motor mount: 16x16mm, hole diameter 8mm
Suitable propeller size: 5-5.1 inches
FC mounting holes: 30.5x30.5mm (M3), 20x20mm (M3)
VTX mounting holes: 20x20mm (M2)
Camera mount material: 7075 aluminum alloy
Internal installation height: 23-30mm
Standard antenna installation support: DJI O3 4mm/SMA double hole
Standard GPS base size: 18x18x6mm
DJI Air Unit: not supported
RunCam Link Wasp: Adaptation
XT-60E M: no support
