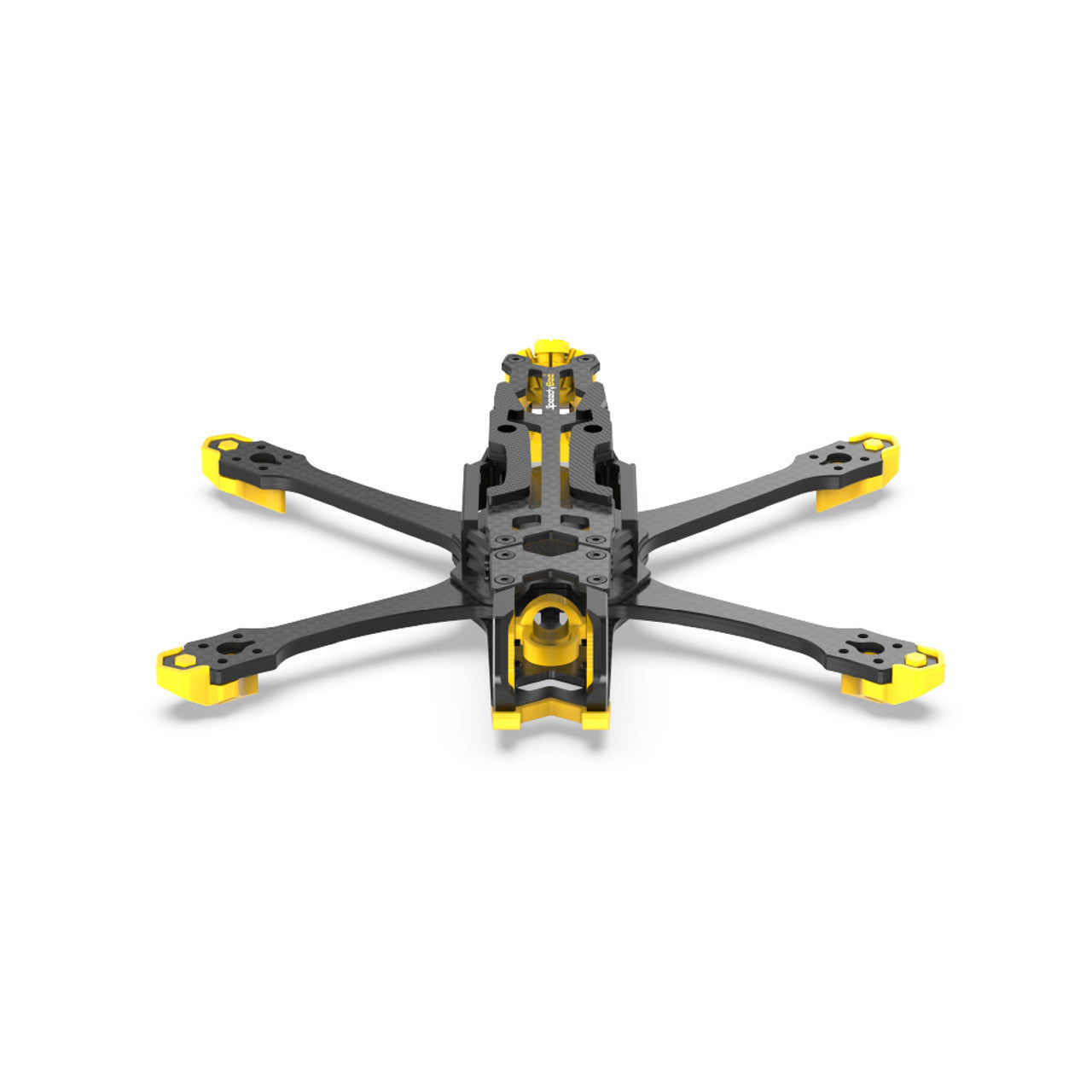

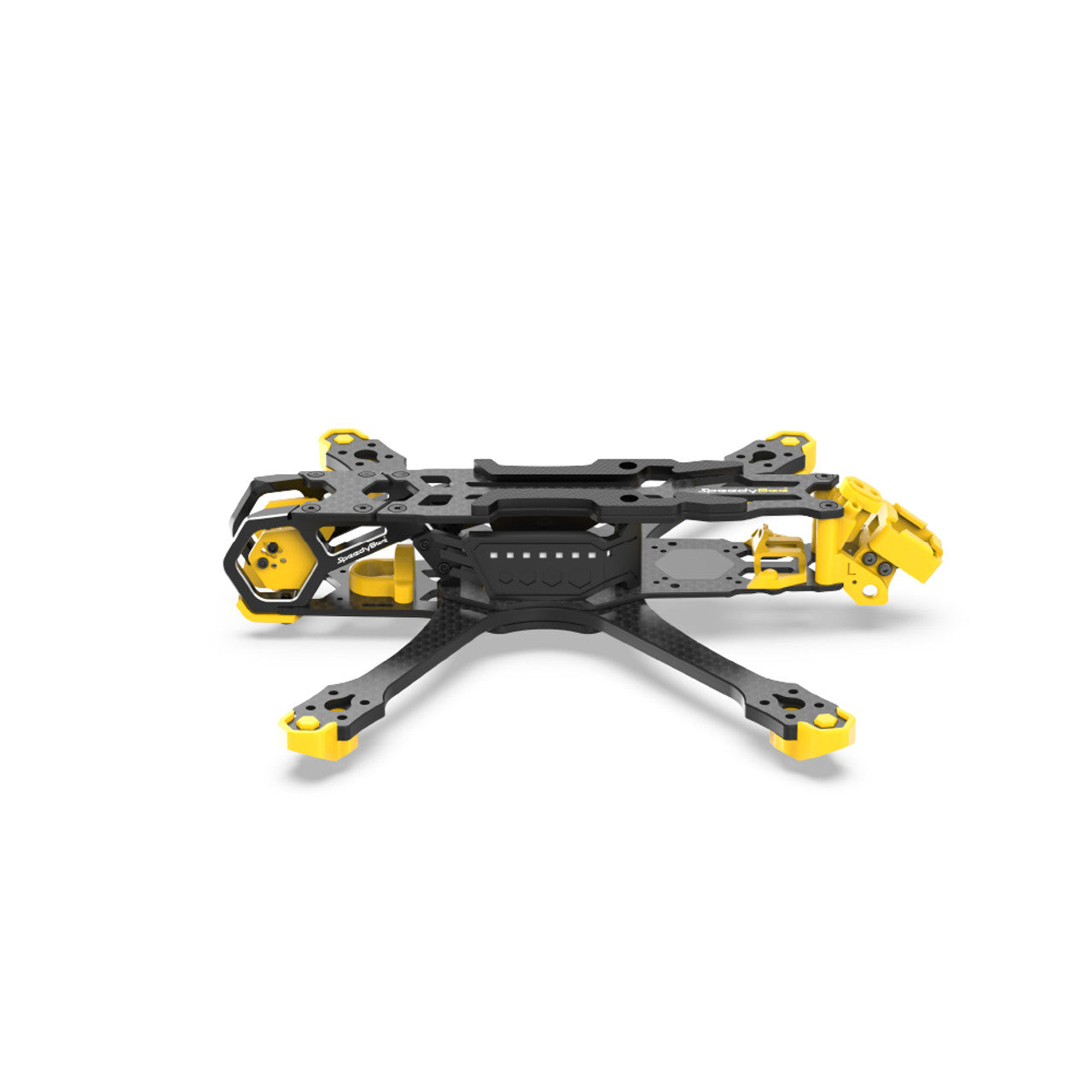

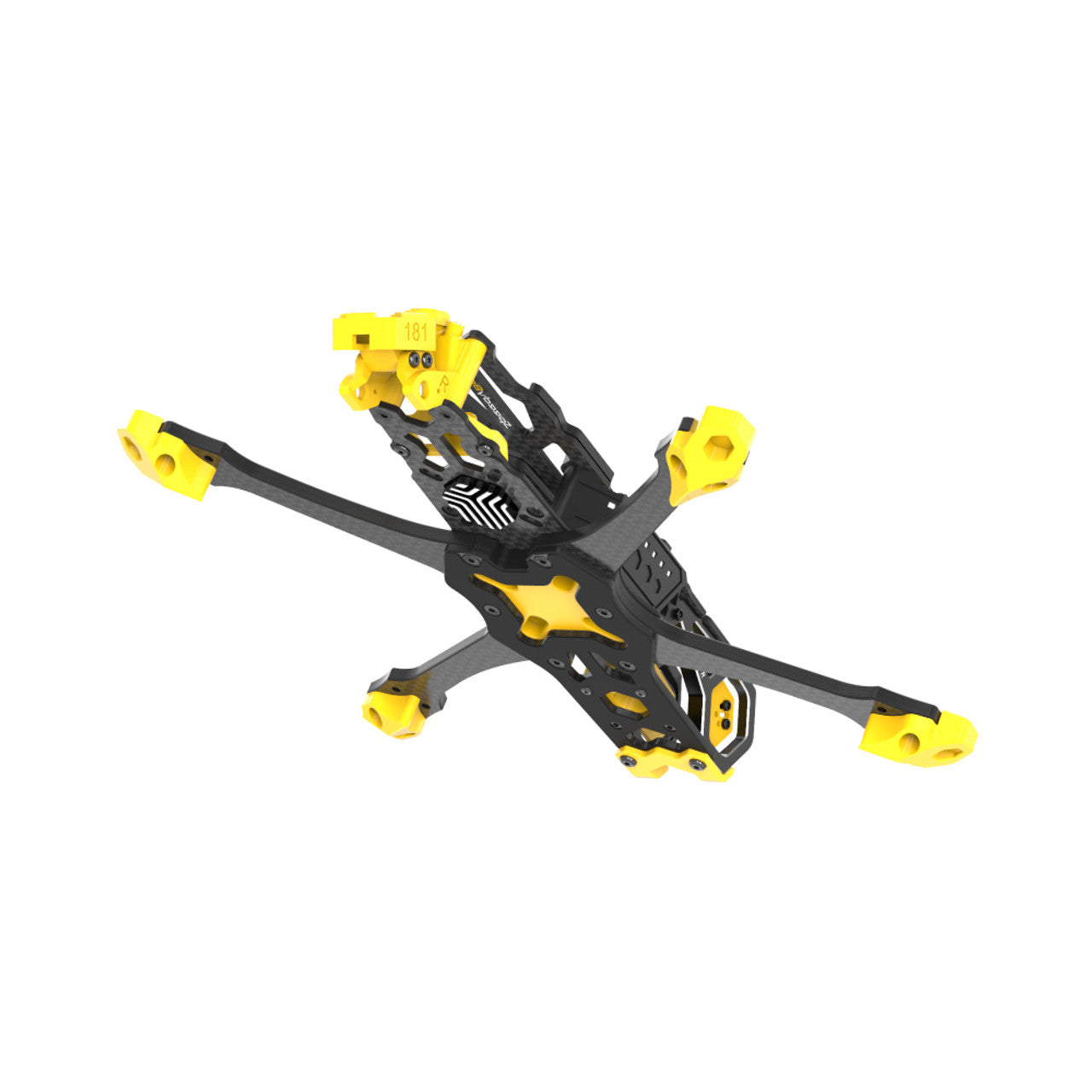

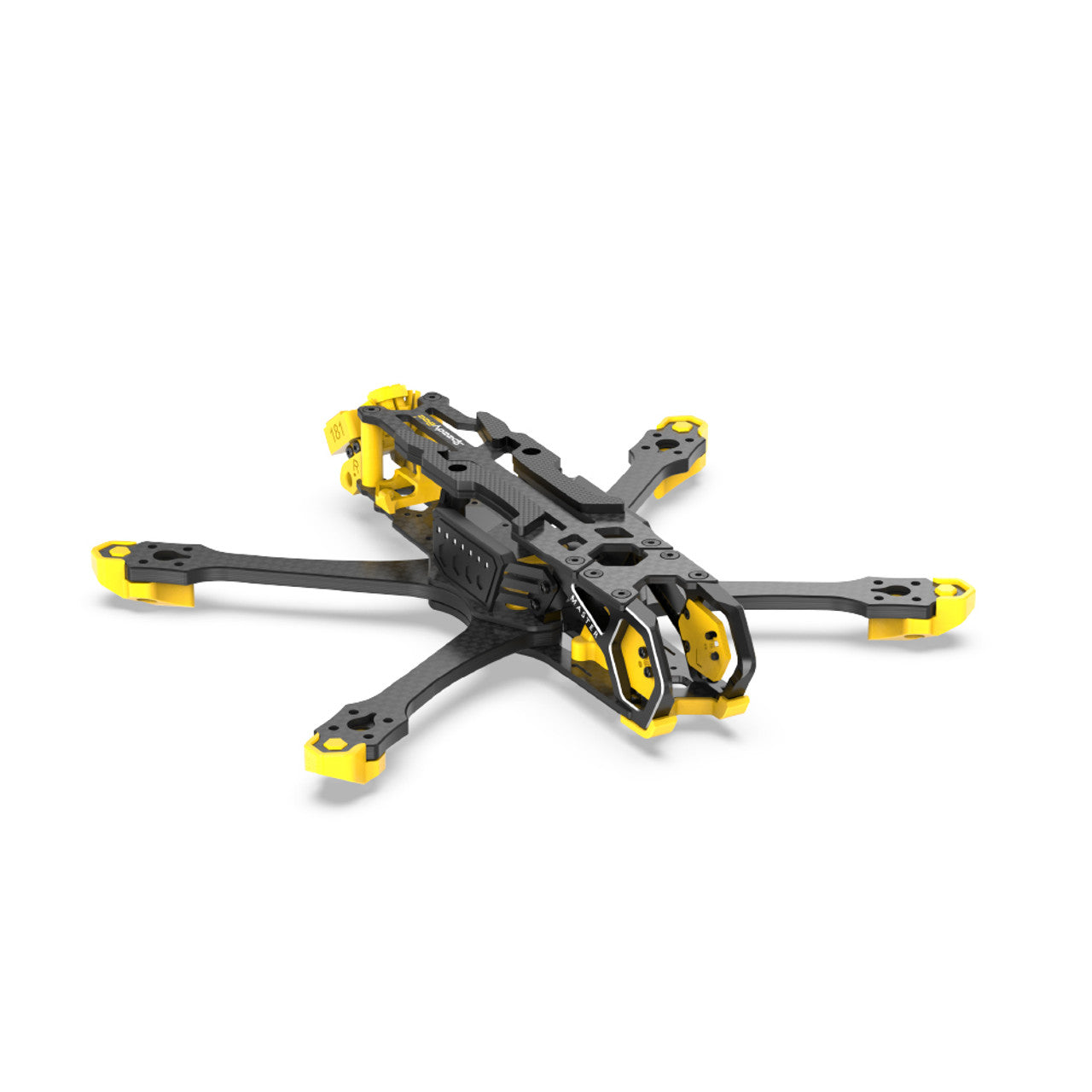

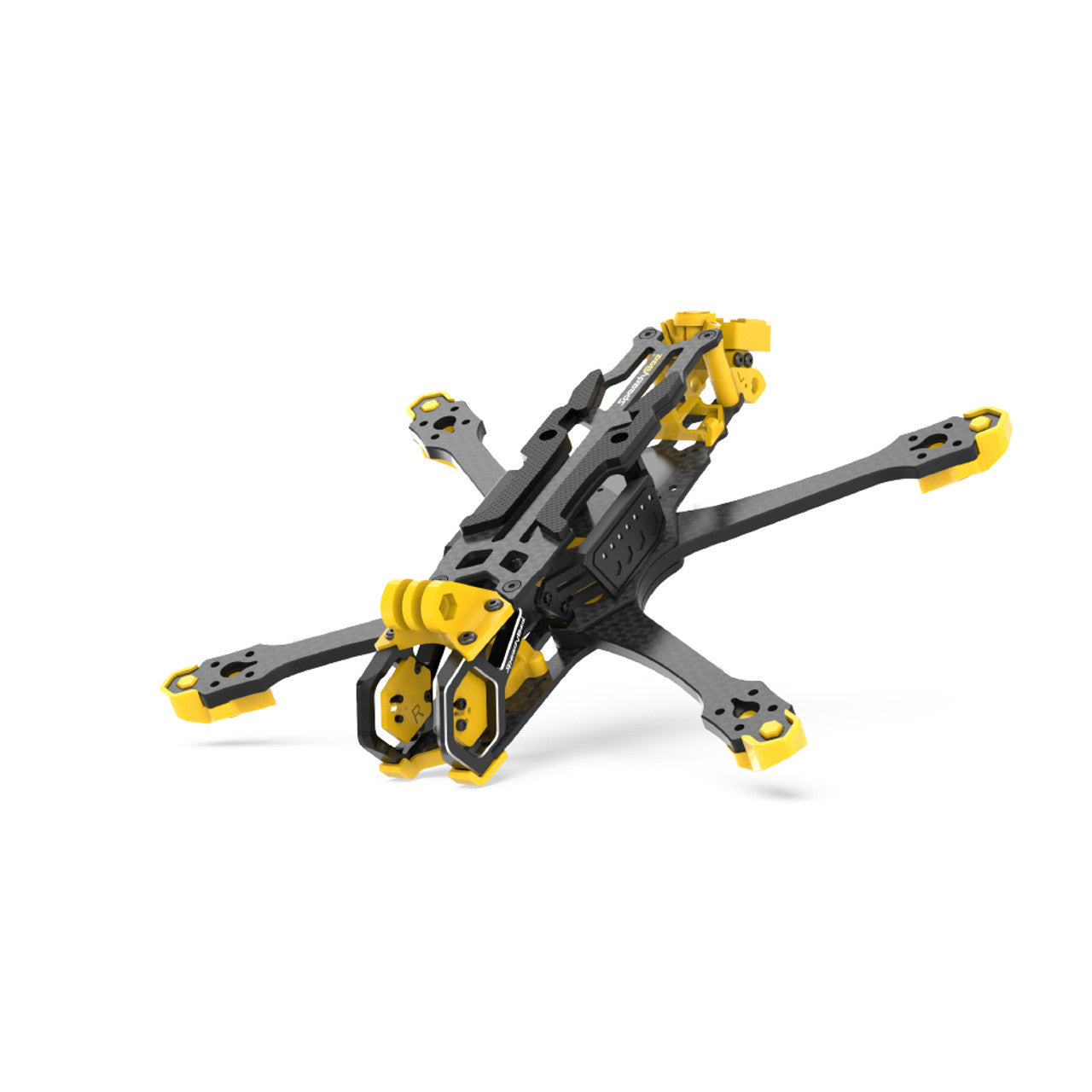

SpeedyBee Master 5 V2 frame
Designed for film and free-flying, the SpeedyBee Master 5 V2 frameset with Deadcat geometry places the flight controller closer to the center of gravity than other DC frames. The innovative anti-vibration structure dampens the effect of engine noise on the gyroscope and offers a stabilized operating environment. CNC aluminum alloy honeycomb drone head ensures better strength and appearance, while the H-FOV 130° section provides a larger field of view. The built-in configuration of the DJI O3 air unit also supports ND filters and a replaceable side plate mount. The TPU side plate inside the CNC part helps dampen vibration on the camera, and pilots can adjust it themselves to be compatible with multiple mounting holes and eliminate vignetting for a clean image. Beneath the VTX is a honeycomb aluminum alloy heatsink to improve the operational stability of the FPV and high-performance analog VTX.
Function:
- Removable switchable camera side plates
- 7075-T aluminum alloy front side plates
- Anti-Shock Fixed Stack Structure
- Designed for DJI O3 air unit
- Rubber carbon protection
- Versatile GPS mount design
- Arm guards/landing gear
- DeadCat geometry
- No props in sight
- 226 wheelbase
- VTX cooler
- 130° H-FOV
Specifications:
Standard antenna installation support: SMA (single), O3 4mm, RunCam Link
FC (Flight Controller) mounting hole: 30.5 x 30.5 mm (M3) & 20 x 20 mm (M3)
Anti-vibration layer hardness structure: yellow HB80, translucent HB50
Rear support mounting holes: 2020 mm - 25.525.5 mm - 30.5 x 30.5 mm
Aluminum spacers: 7075 M323mm (6mm/4.7mm), M323mm (4.6mm)

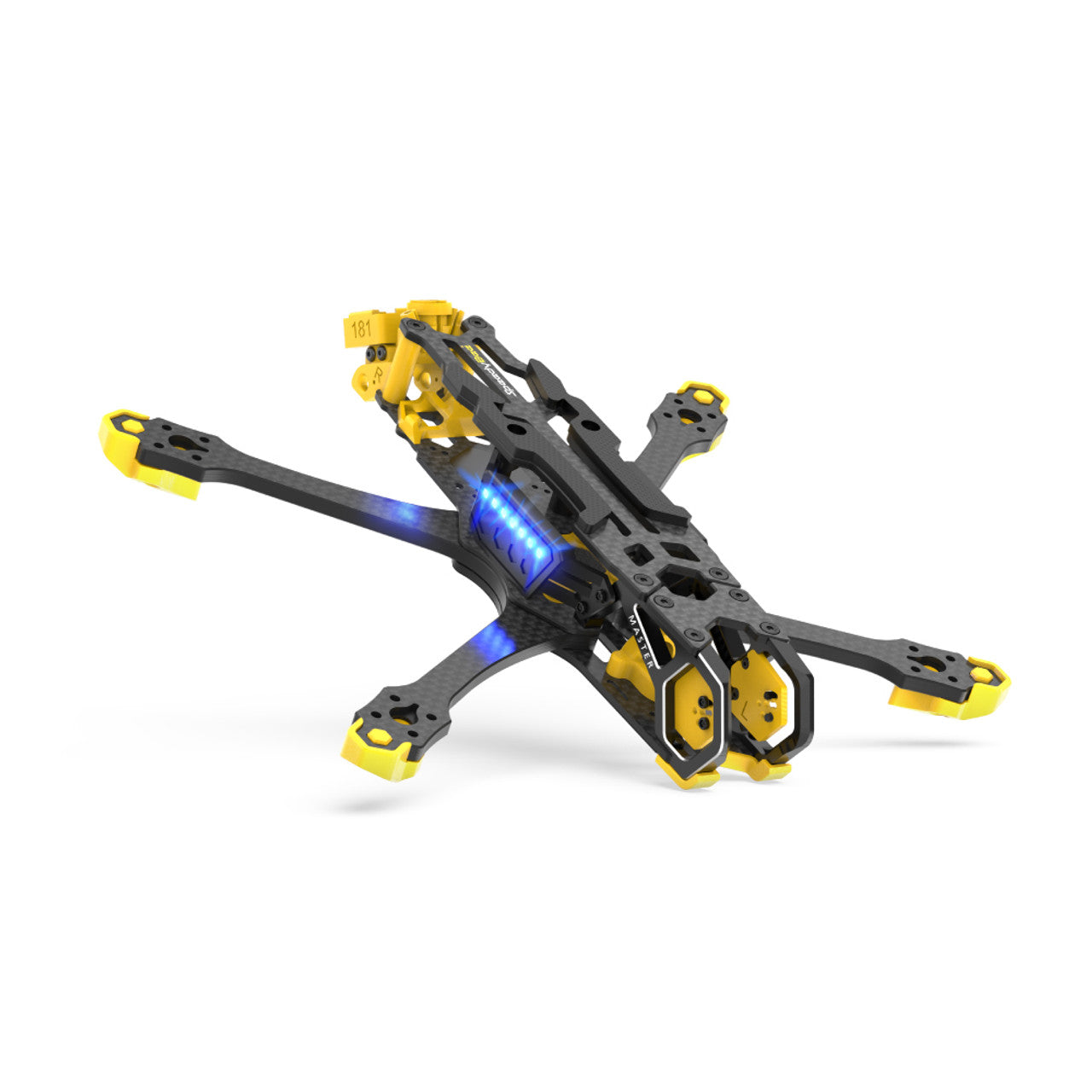

Removable stackable protective plate with RGB LED: included
Weight: Approximately 140g (including non-3D printed parts)
Bottom plate thickness: 2.5mm (T300 3K)
Camera side plate thickness: 2mm TUPC
Drone head: 7075 CNC aluminum alloy
Middle plate thickness: 2mm (T300 3K)
Top plate thickness: 2.5mm (T300 3K)
Internal installation height: 23-30mm
Standard GPS base size: 18188 mm
Compatible propellers: 5-5.1 inches
Arm thickness: 5mm (T300 3K)
Engine circlip spacing: 8mm
Wheelbase: 226 mm
Buzzer: TMB12A05
