Code: SKU:SB-MASTER5-HD

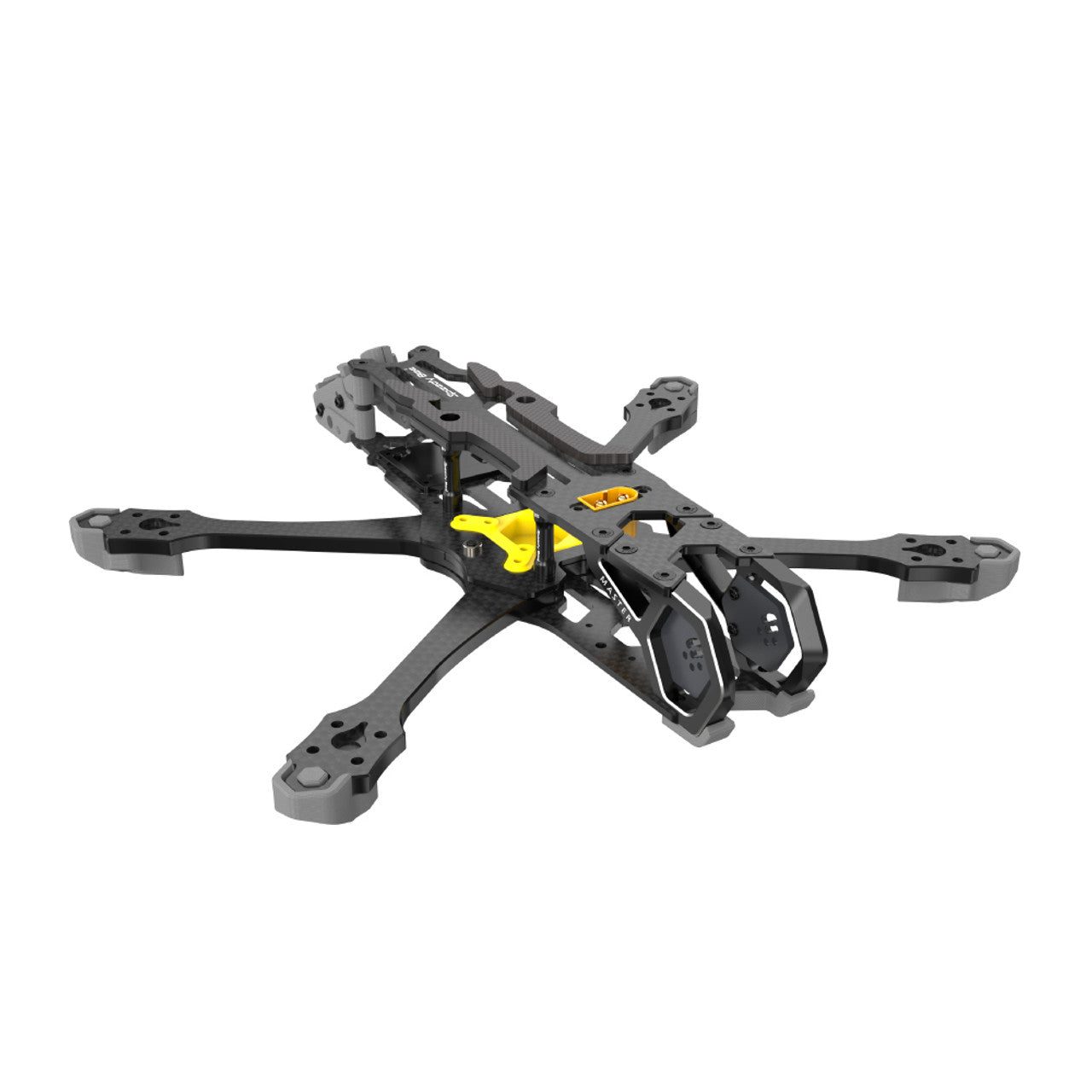

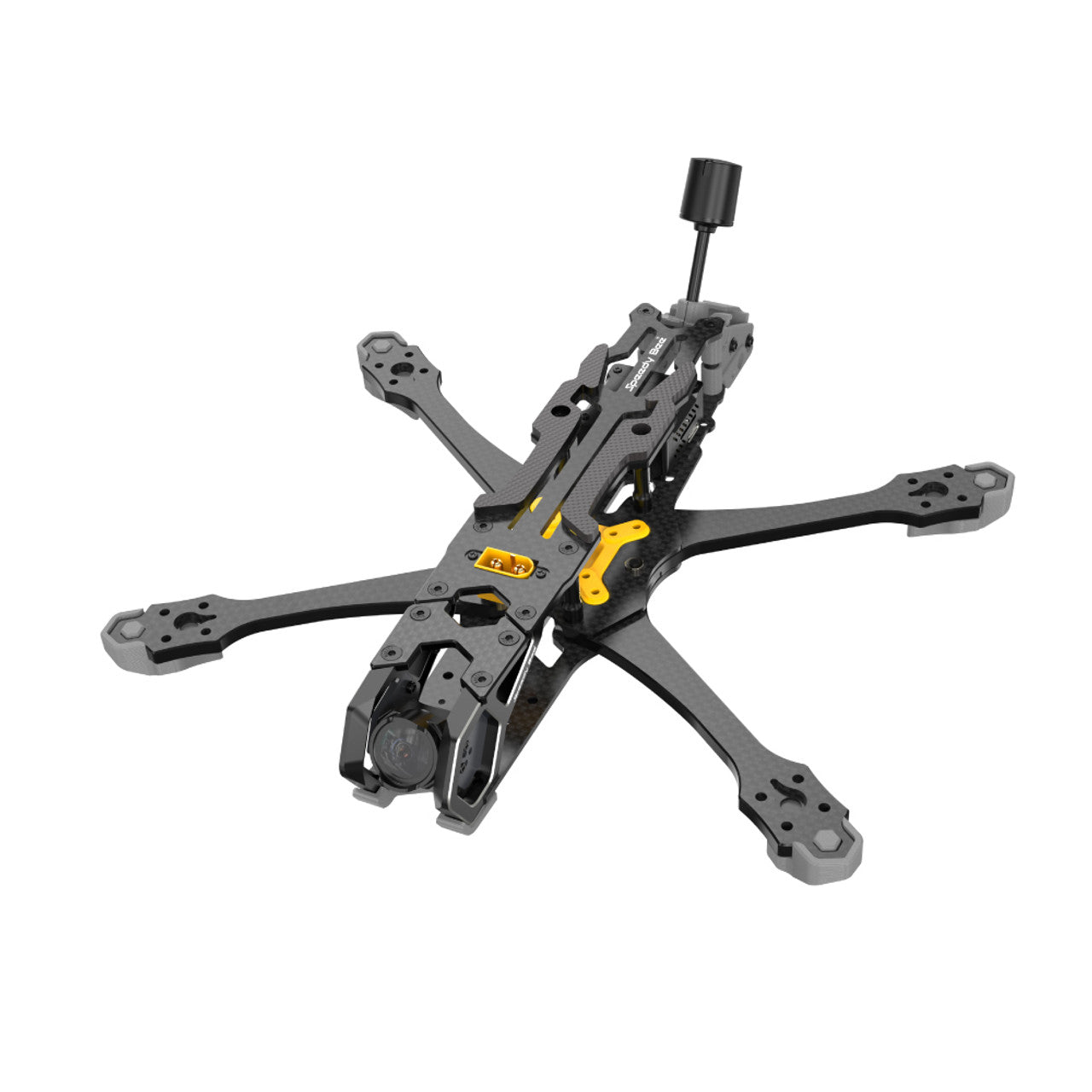

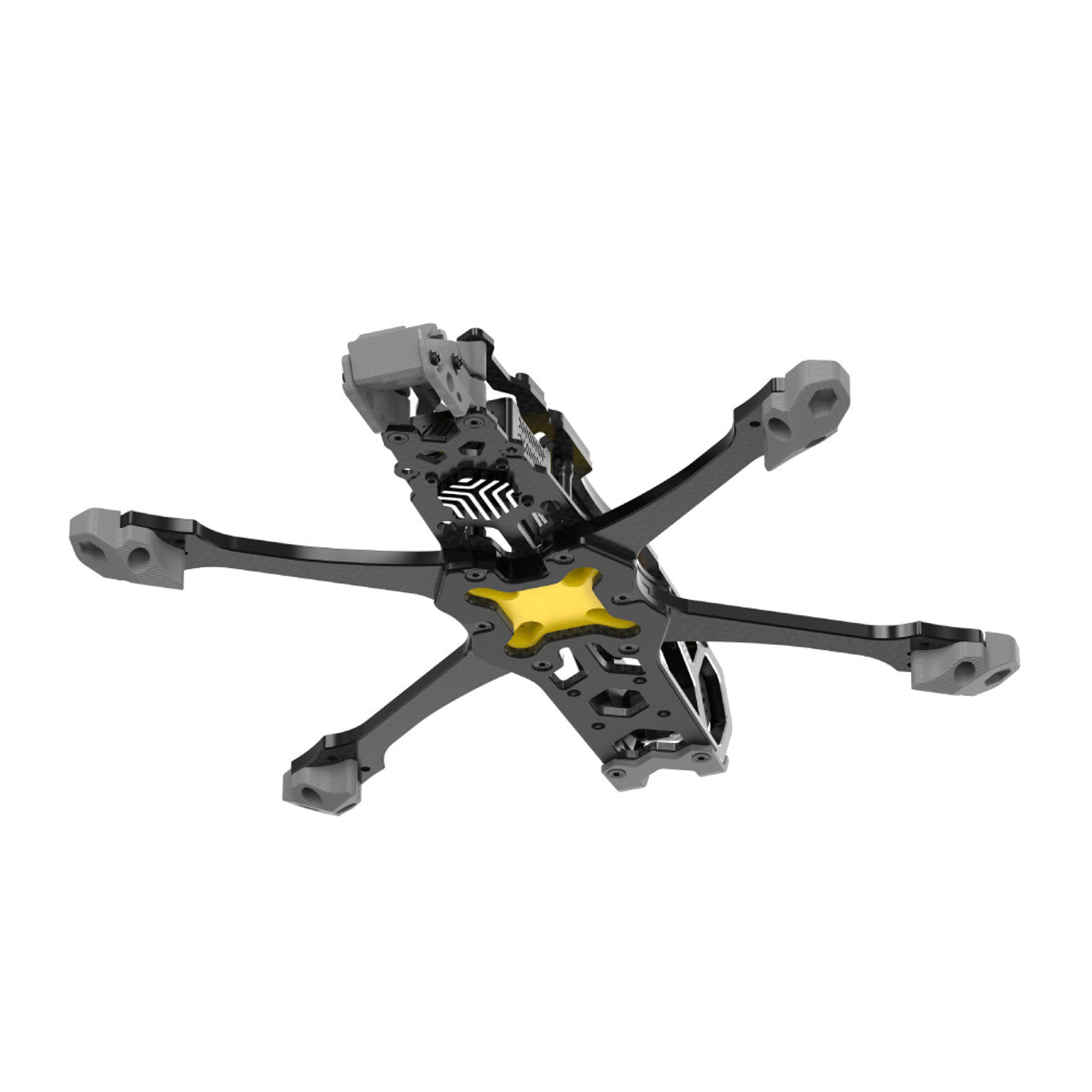

Frame SpeedyBee Master 5 HD (Gray, without cable)
Frame SpeedyBee Master 5 HD (Gray, without cable)
Brand: SpeedyBee
Regular price
€74,99
Regular price
€74,99
Sale price
€74,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
SpeedyBee Master 5 HD Frame (grey, without cable) The Master 5 series is designed for freestyle. The innovative anti-shock stack structure mitigates the vibrations transmitted to the Gyro FC. Additionally, the removable camera mounting plate is open for customization and supports multiple mounting holes for different cameras. Note: This item does not include the extra 170/200mm cable (longer than the original DJI air unit cable). Specifications: Model: SpeedyBee Master 5 HD Frame Color: Grey Wheelbase: Wide X, 225 mm Weight: 143g (3DTPU parts not included) View status: DJI O3 without props DJI O3 Air Unit CNC holder: included in delivery DJI O3 Air Unit Coaxial Cable: Extended Coaxial Cable Thickness of the top plate: 2.5 mm Bottom plate thickness: 2.5 mm Middle plate thickness: 2 mm Arm thickness: 5 mm Camera width: 19-20 mm Anti-shock stack hardness: yellow HB50 TPU, white HB30 TPU Motor mount: 16x16mm, hole diameter 8mm Suitable propeller size: 5-5.1 inches FC mounting holes: 30.5x30.5mm (M3), 20x20mm (M3) VTX mounting holes: 30.5x30.5mm (M3), 20x20mm (M2) Camera mount material: 7075 aluminum alloy Internal installation height: 23-30mm Standard antenna installation support: DJI O3 4mm/SMA double hole Standard GPS base size: 20x22x6mm DJI Air Unit: Optional 3D TPU printed mounting parts RunCam Link Wasp: Adaptation XT-60E M: Adaptation
