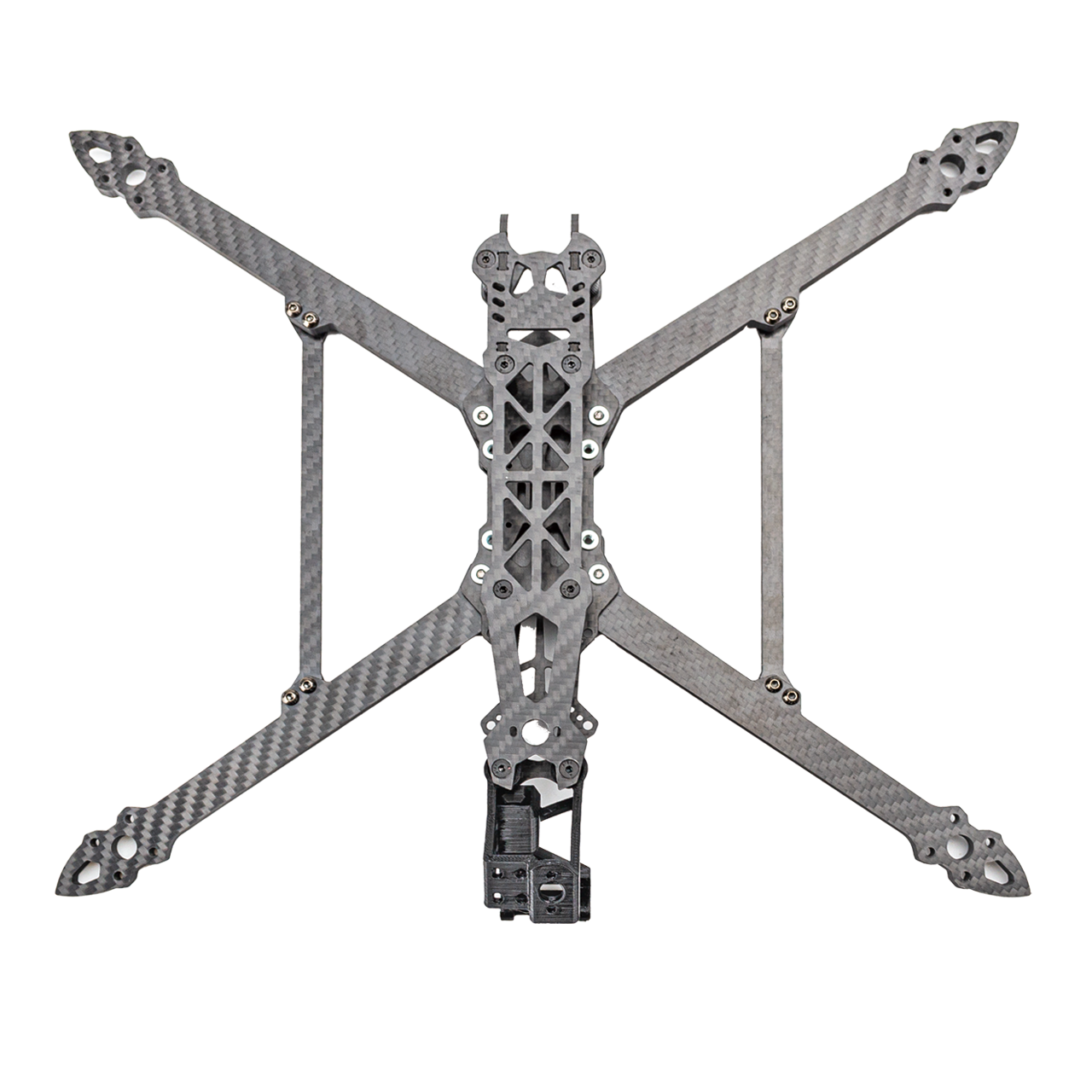

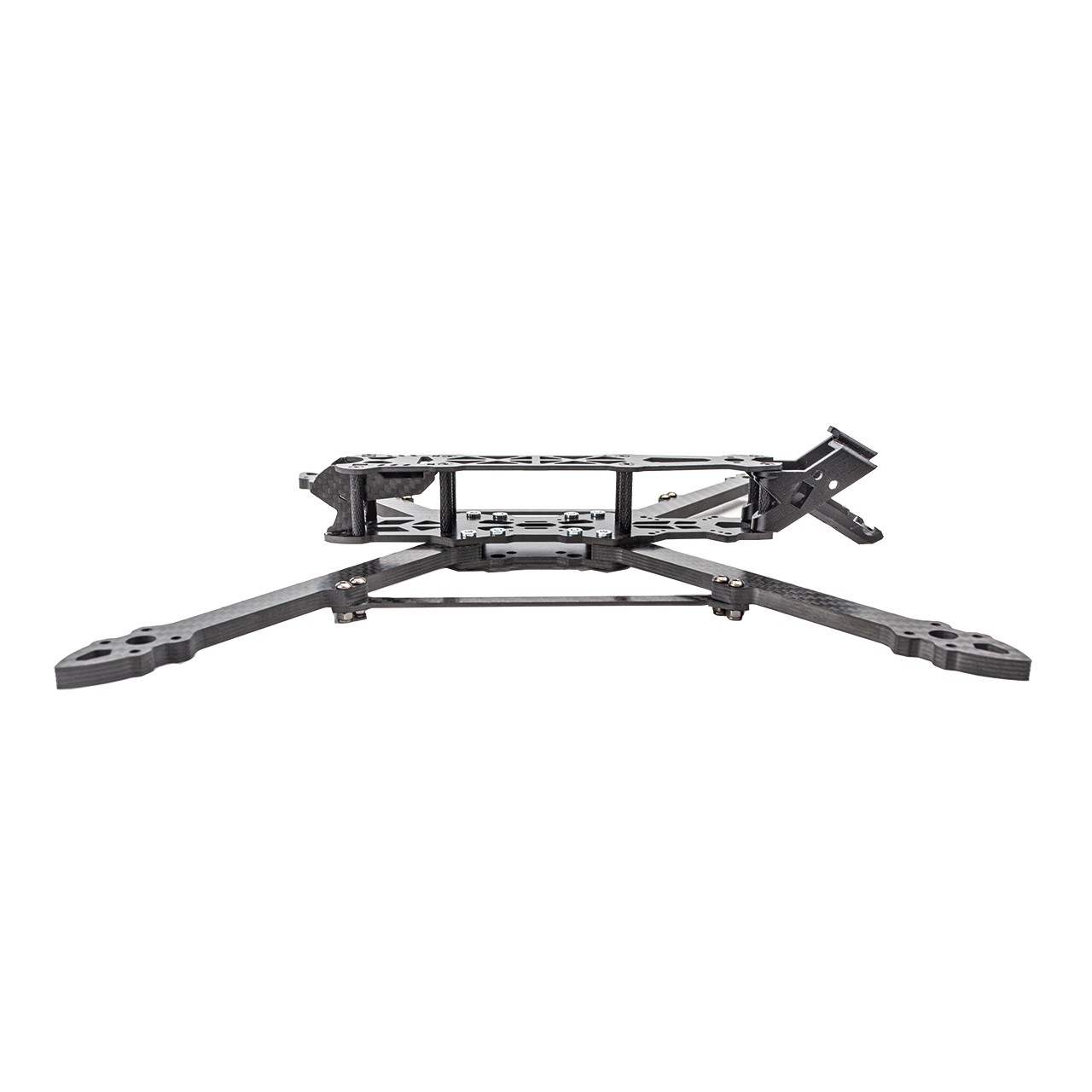

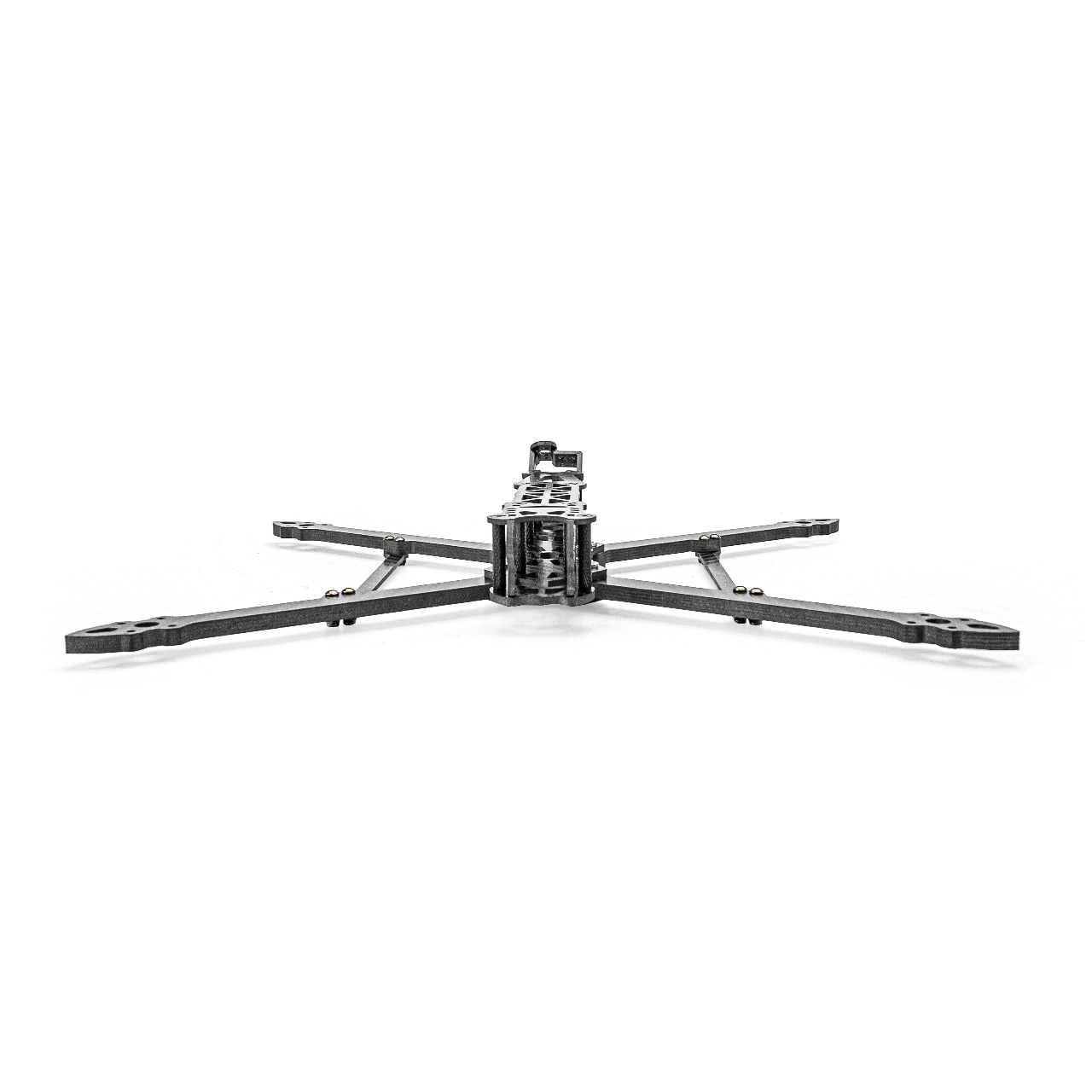

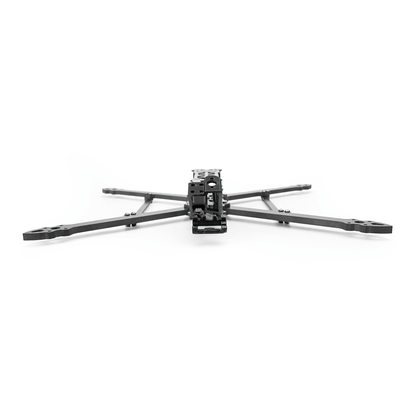

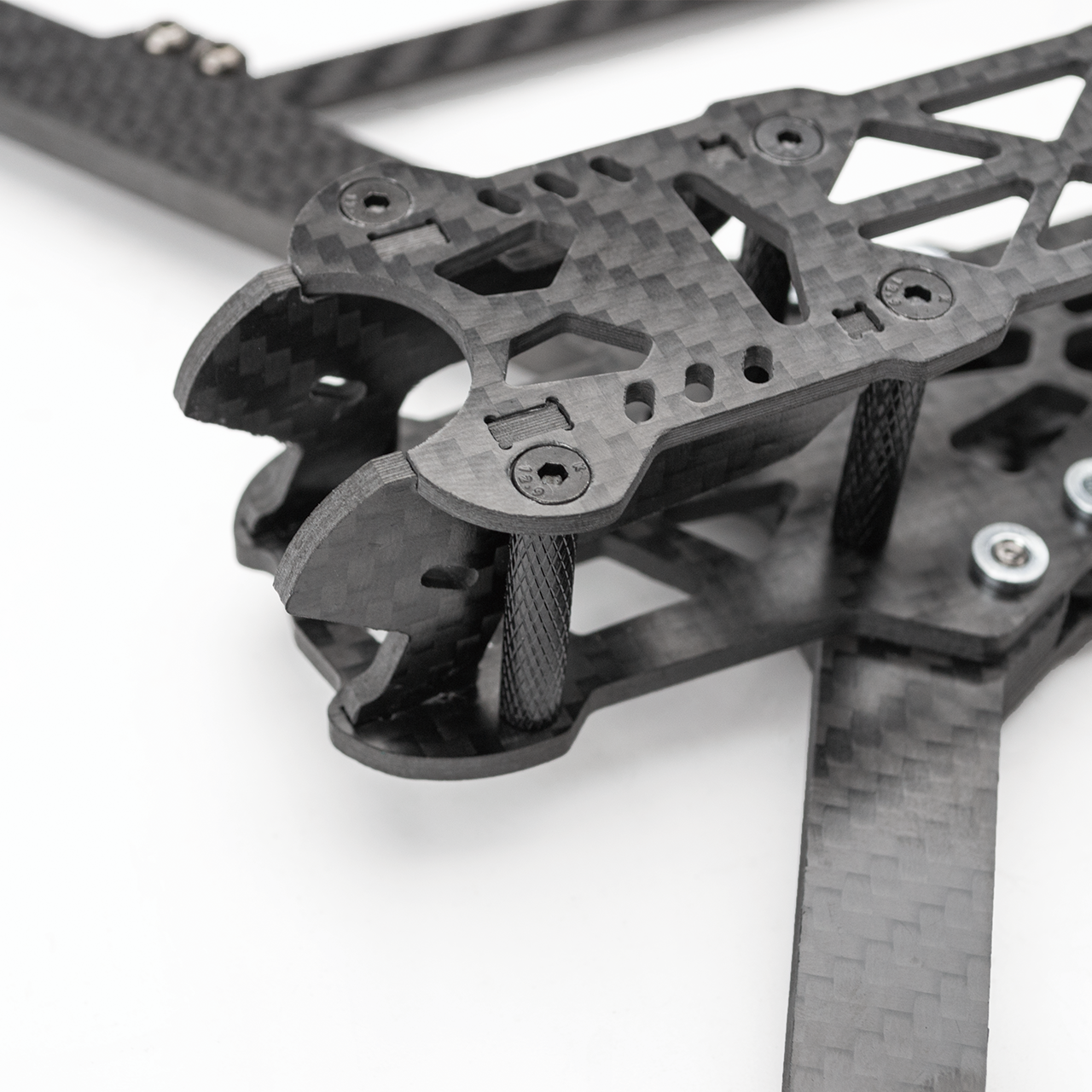

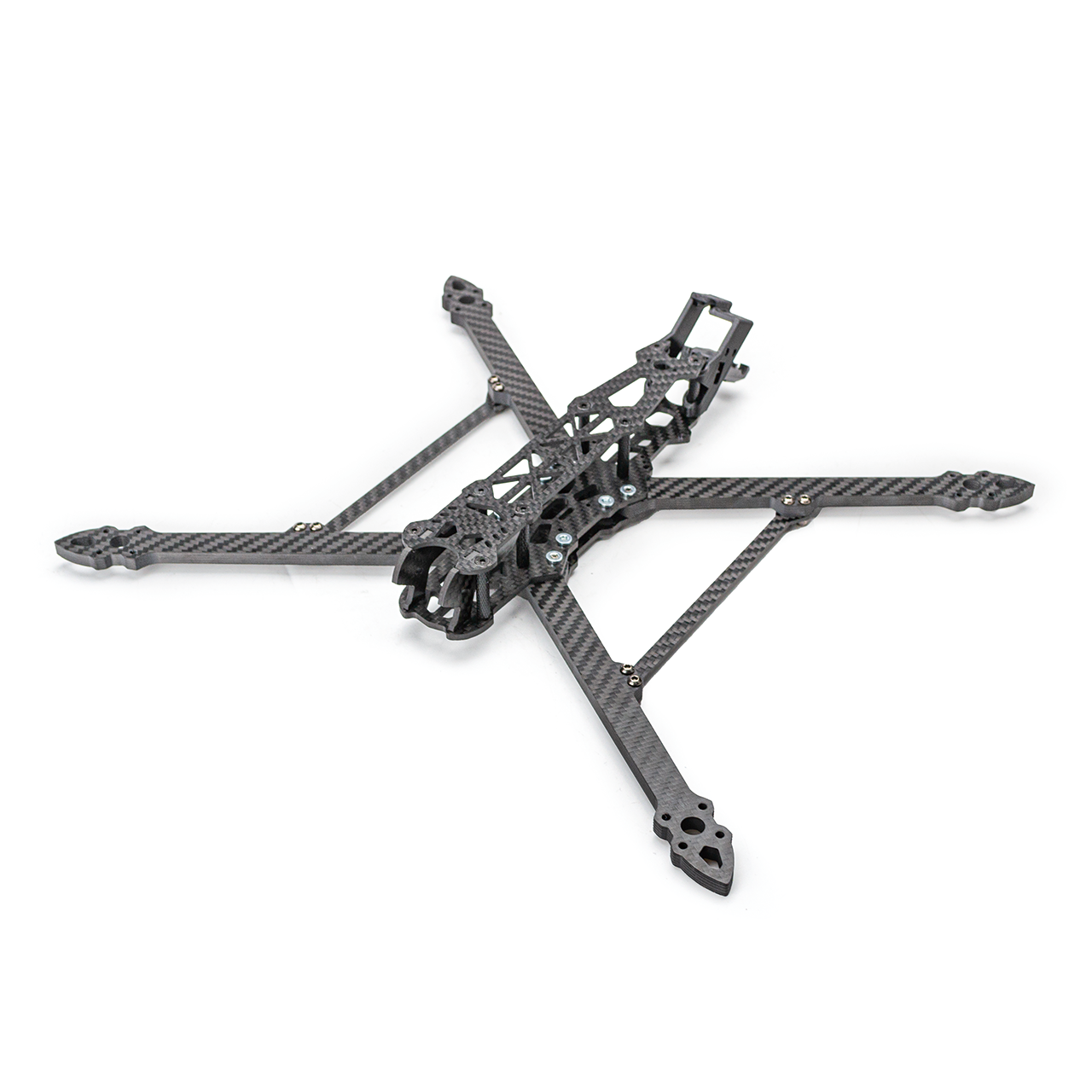

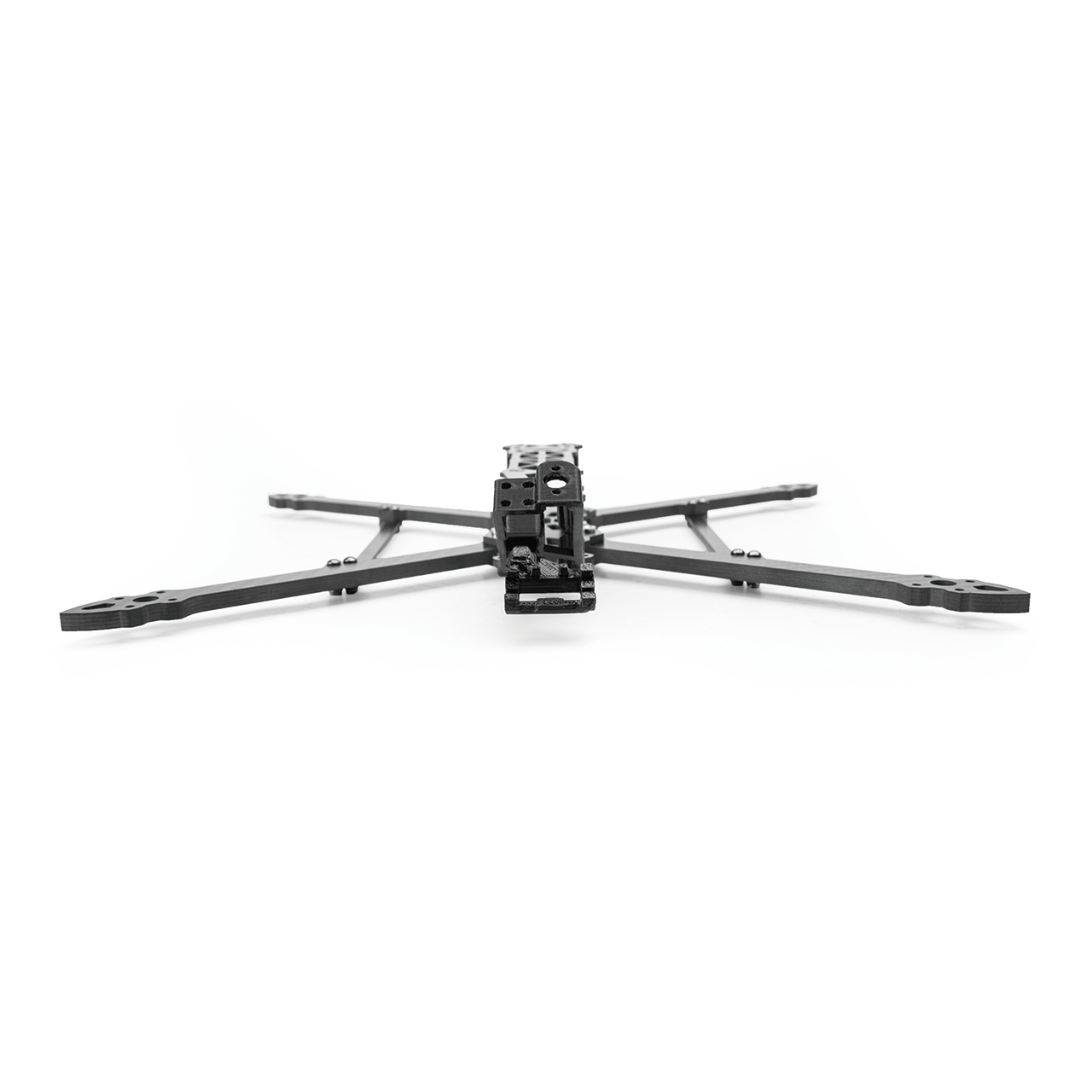

Pilotix Mark4-8 V2 Partizan Edition frame
Pilotix Mark4-8 V2 Partizan Edition is a durable and lightweight FPV drone frame designed for pilots who value reliability, functionality and customization options.
Features:
Size: 8-inch carbon fiber frame optimized for long-range and FPV missions.
Construction: Improved geometry to reduce vibration and increase flight stability.
Mounting: Universal stack-mounting option for 30.5x30.5mm and 20x20mm flight controllers.
Motor mounting: Compatible with motors with 16x16mm mounting patterns and 19x19 mm.

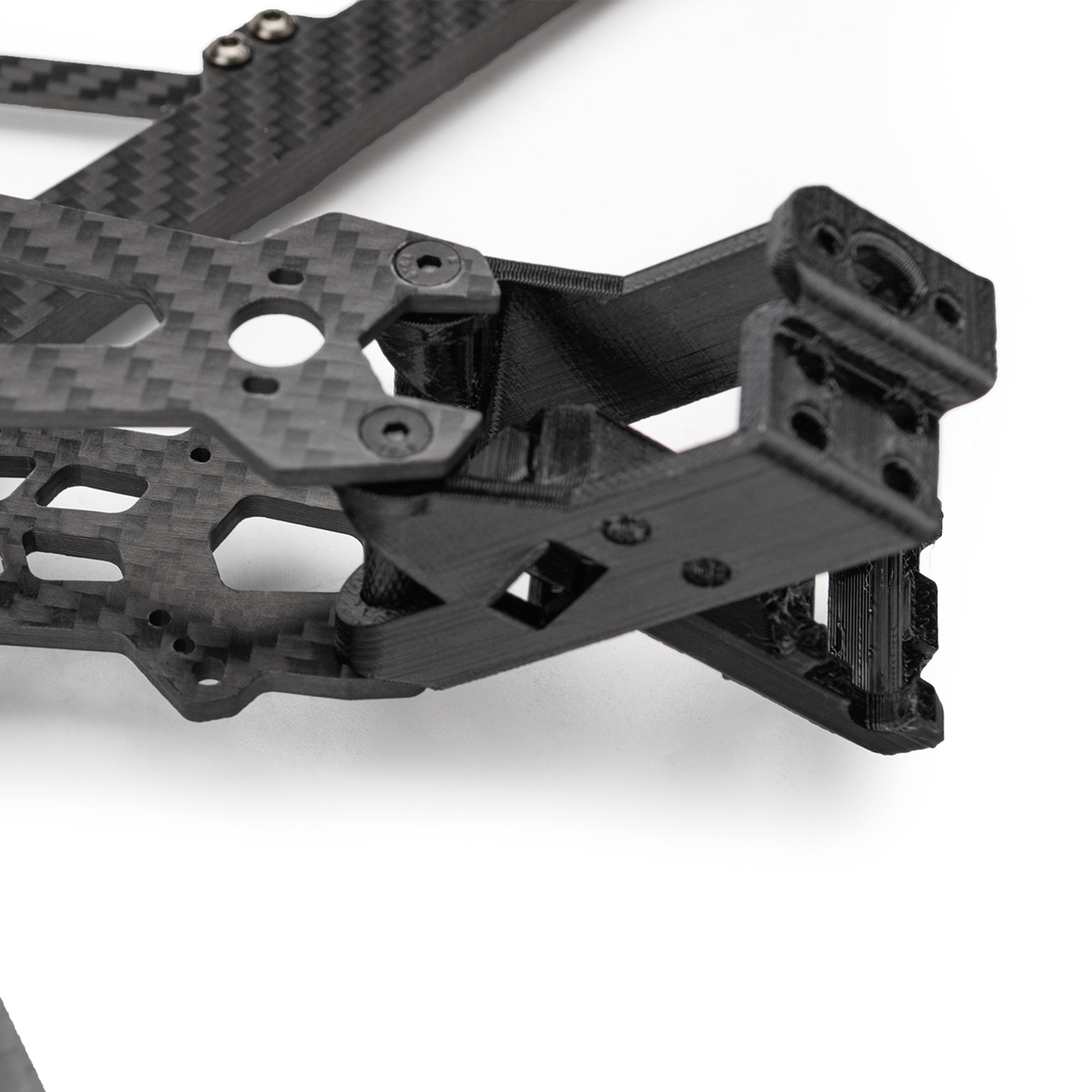

Camera support: Protection for FPV cameras of Micro size (19 mm).
Modular design: Allows quick replacement of individual components without the need for complete disassembly.
Frame Pilotix Mark4-8 V2 Partizan Edition is an excellent choice for FPV pilots looking for a combination of durability, performance and distinctive design.
Specifications:
Model: Mark4-8 V2 Partizan Edition
Wheelbase: 367mm
Arm: 6mm
Top plate: 2.5mm
Bottom plate: 2mm
Camera side panel thickness: 2.5mm
Motor mounting hole spacing: 16x16mm and 19x19mm
Mounting hole spacing: 20x20mm and 30.5x30.5mm
Interior height: 35mm
FC mounting holes: 30.5mm
Camera mounting: 19mm
Weight: 214g
Package includes:
1x Frame Pilotix Mark4-8 V2 Partizan Edition
8x Square Cube
1x Set of Aluminum Post
1x Set of Screws
1x Set of Nuts
1x Set for Printing
1x Battery Pad
2x Battery Strap
