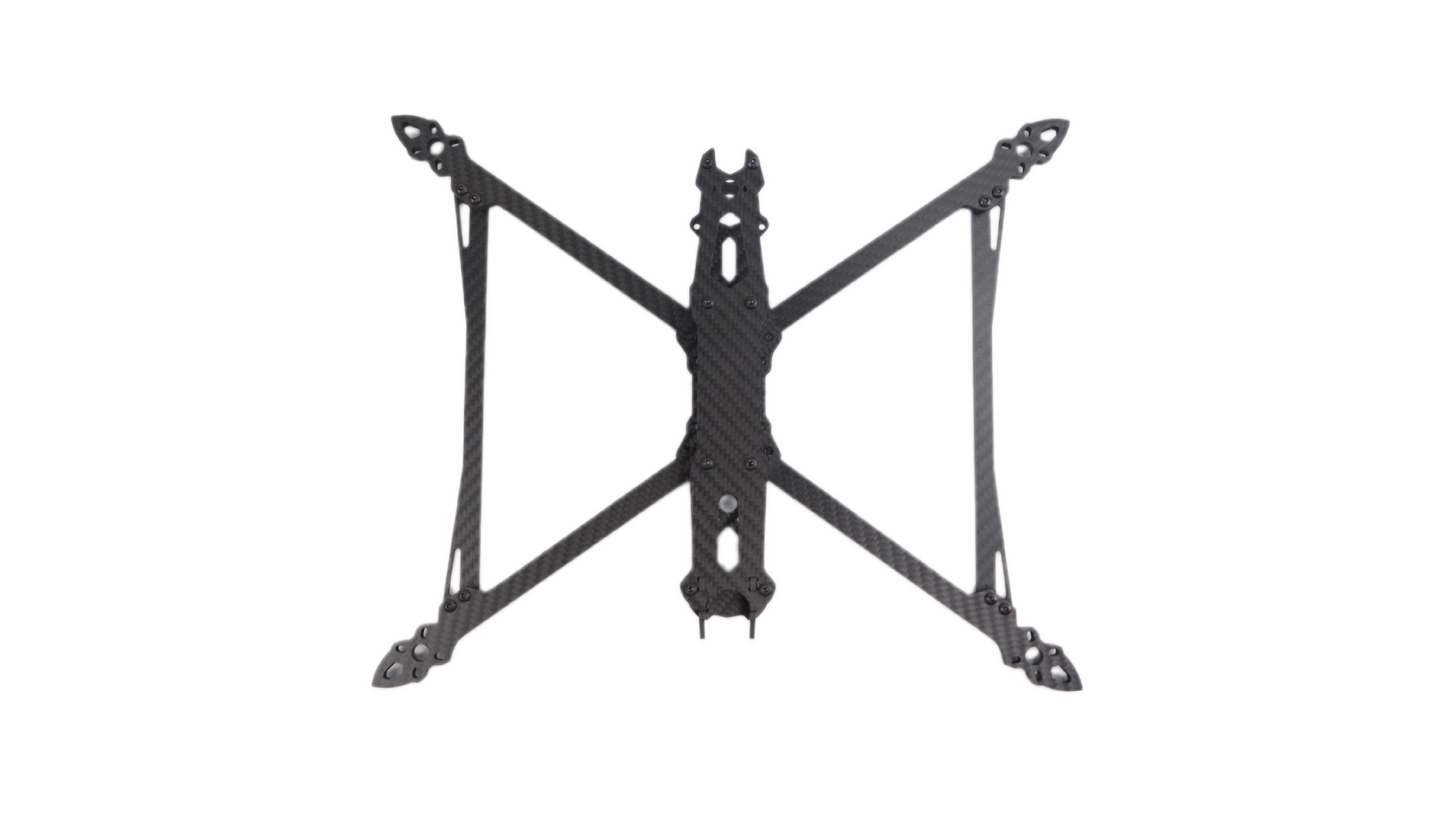

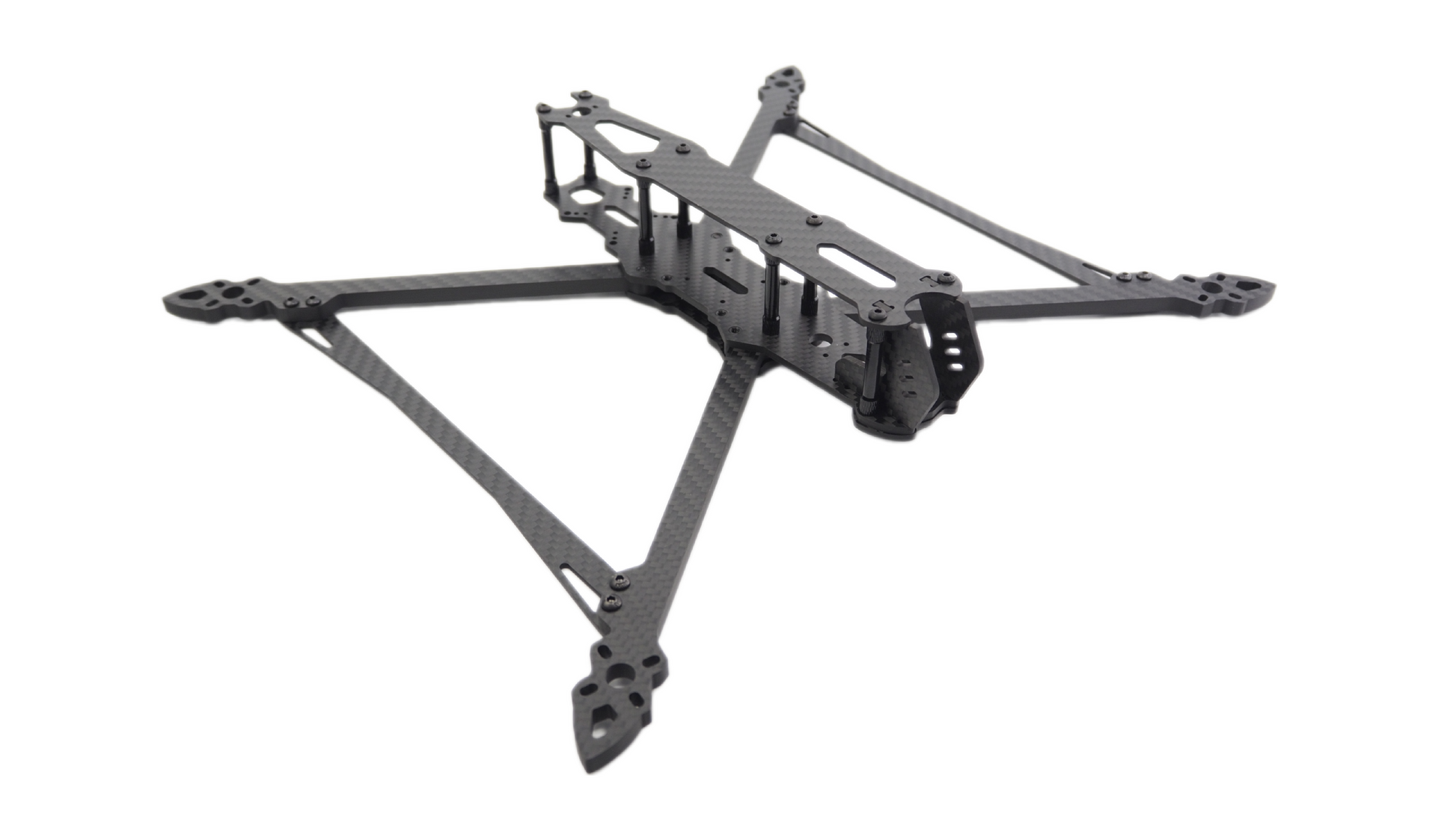

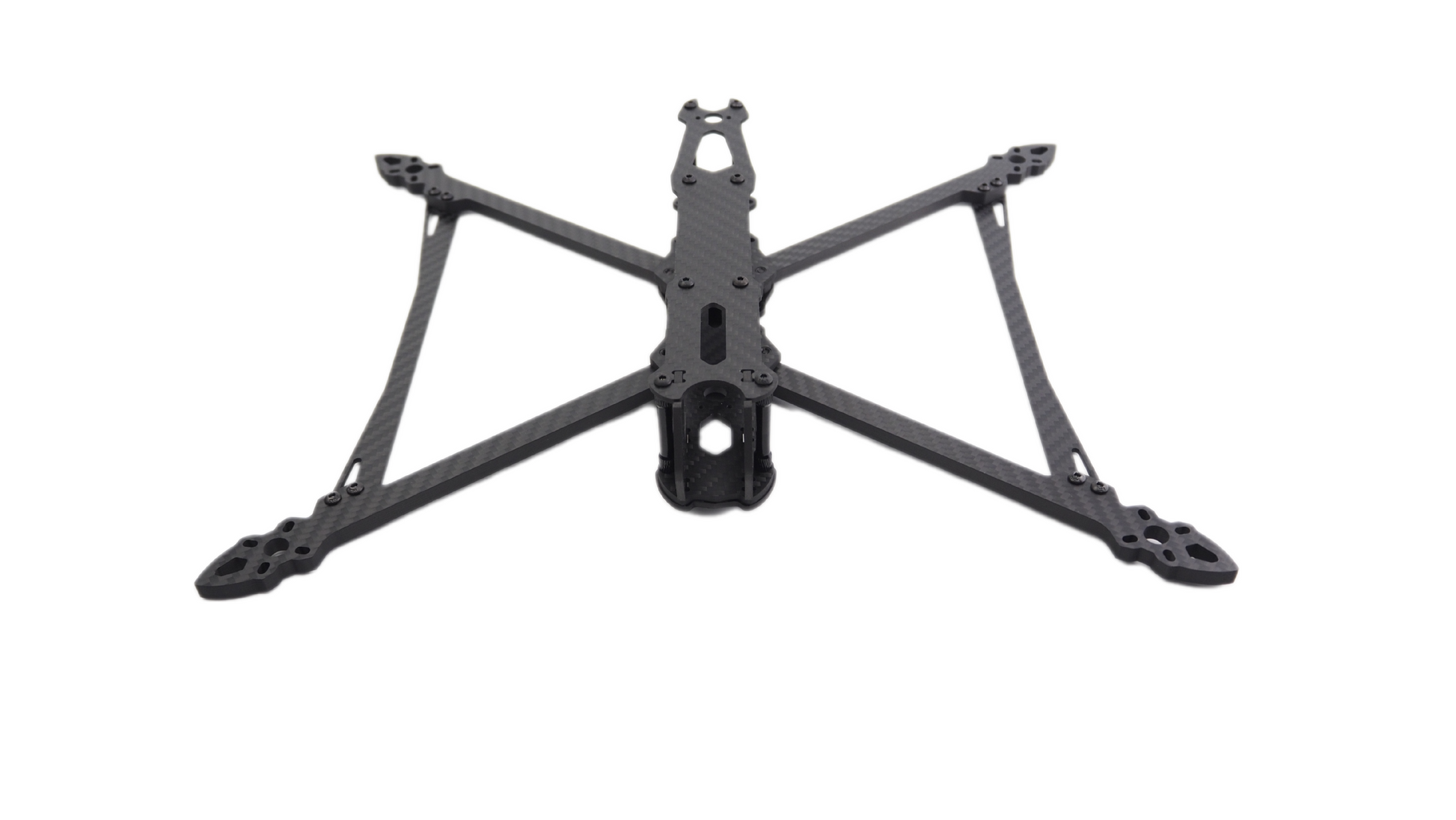

    Pilotix Mark4-8 Partizan Edition frame

The Pilotix Mark4-8 Partizan Edition frame is a lightweight 8-inch carbon fiber drone frame that offers a rugged construction ideal for long flights. Thanks to its universal design, it allows the use of different configurations and components, which ensures optimal stability and agility during flight.

Specifications:

Model: Mark4-8 Partizan Edition
Wheelbase: 370 mm
Arm thickness: 6 mm
Length of the top plate: 202 mm
Width of the top plate: 40 mm
Thickness of the top plate: 2 mm
Bottom plate length: 206 mm
Bottom plate width: 50 mm
Bottom plate thickness: 3 mm
Camera mount: 19 mm
Propeller Size: 8 inches
Compatible motor size: 2812
Width: 325 mm
Length: 270 mm
Weight: 199 g

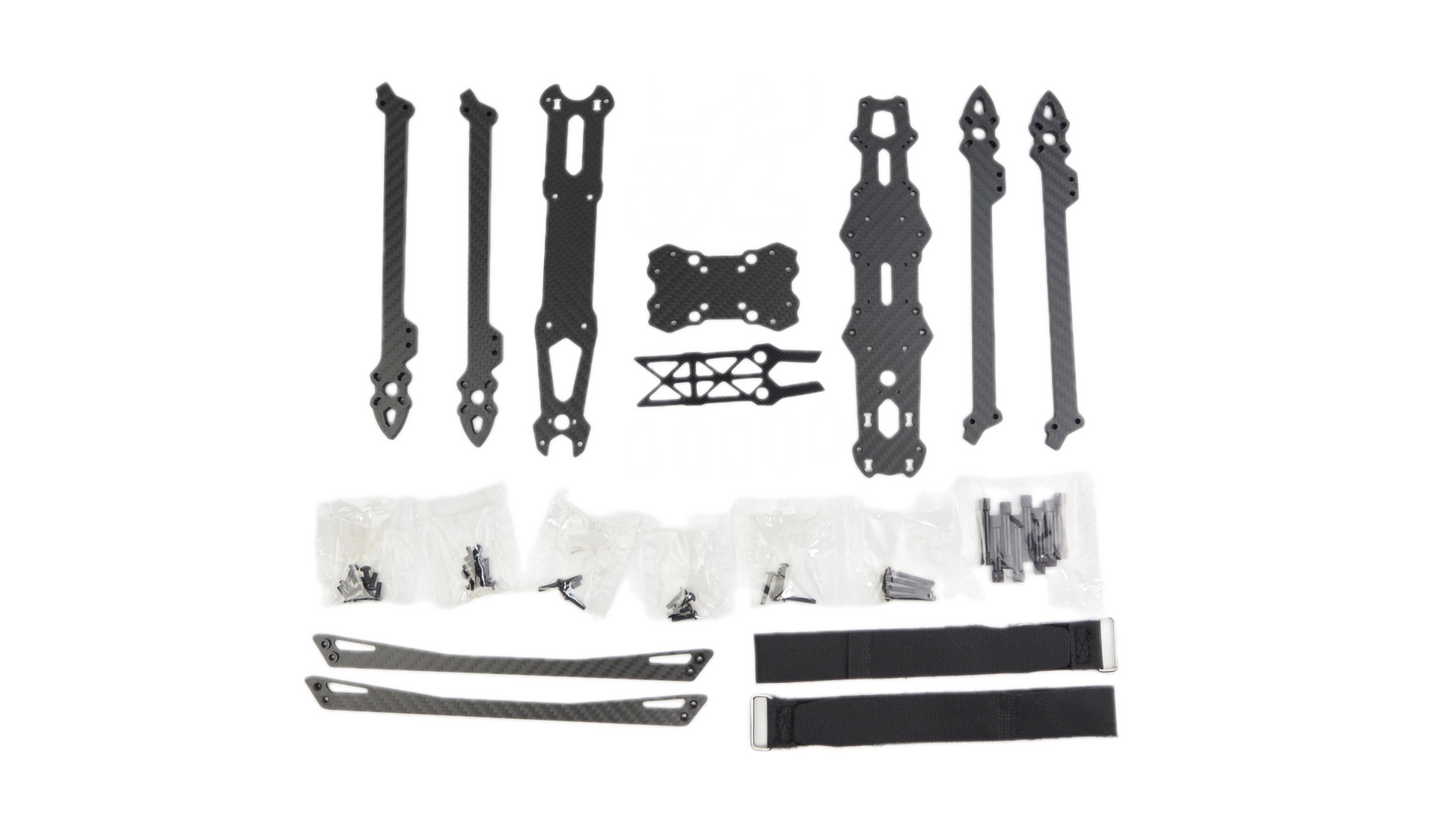

The package contains:
1x Pilotix Mark4-8 Partizan Edition frame
