  • Frame Partizan PT8 V2
    1 3

    Code: 4510

    Frame Partizan PT8 V2

    Frame Partizan PT8 V2

    Brand: Partizan

    €41,00
    €41,00 €41,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

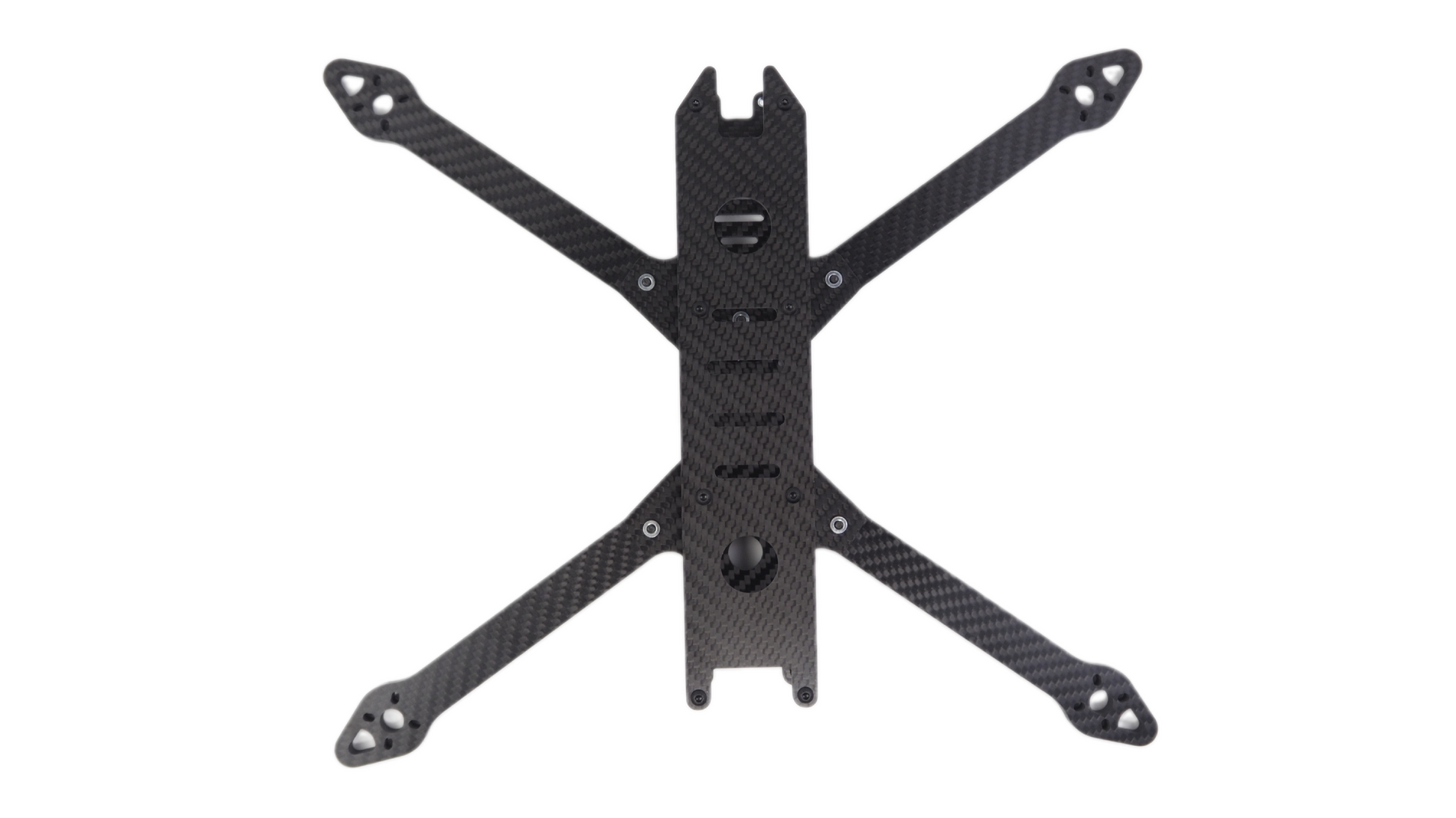

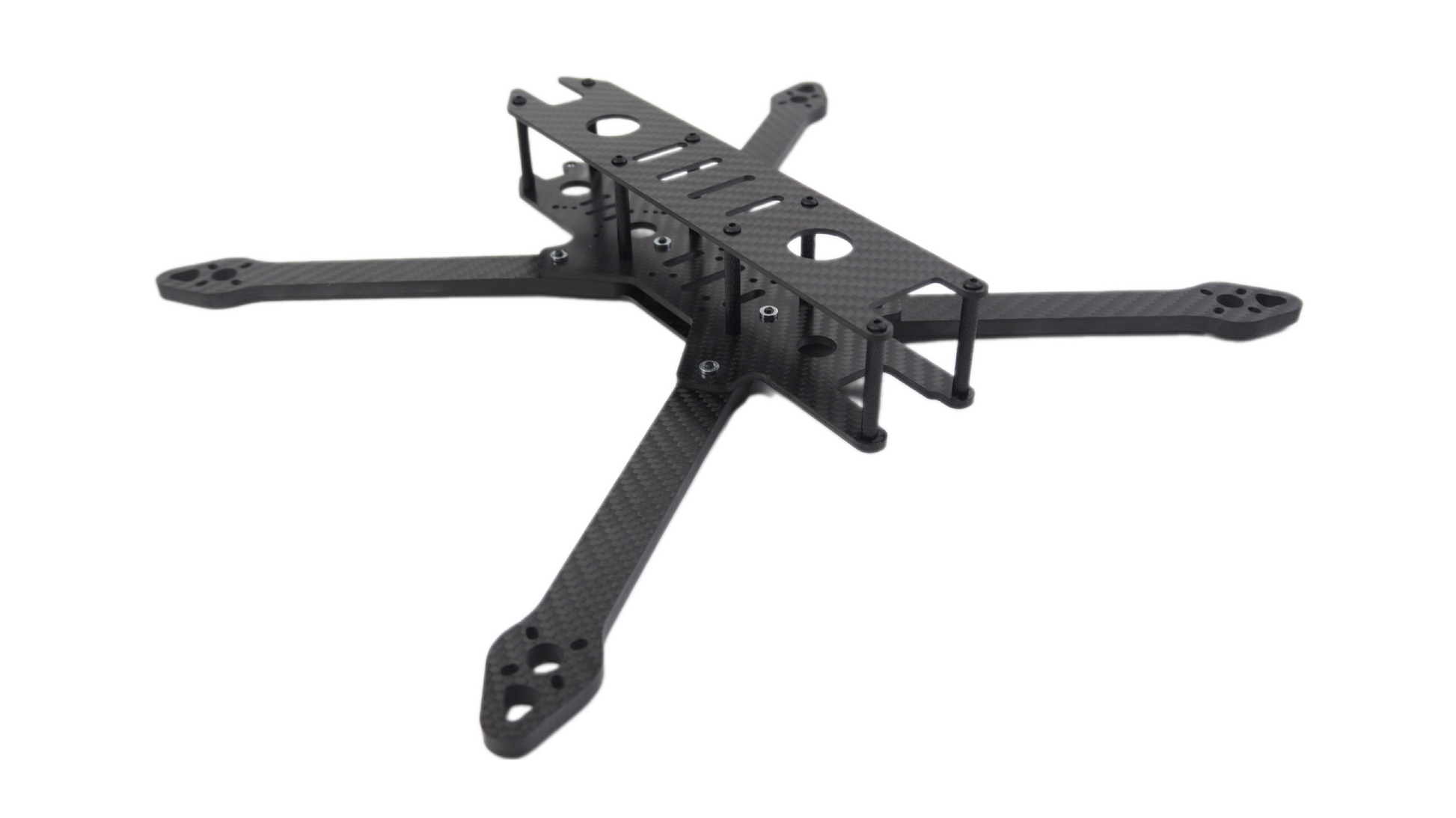

    Frame Partizan PT8 V2

The Partizan PT8 V2 is a top-tier carbon fiber frame for building 8-inch long-range drones. This frame combines exceptional strength with a lightweight design, ensuring optimal performance for extended flights.

Specifications:

Model: Partizan PT8 V2
Wheelbase: 360mm
Arm thickness: 6mm
Top plate length: 225mm
Top plate width: 47mm
Top plate thickness: 2mm
Bottom plate length: 226mm
Bottom plate width: 92mm
Bottom plate thickness: 3mm
Camera mounting: 19mm
Propeller size: 8 inch
Compatible motor size: 2812
Width: 315mm
Length: 270mm
Weight: 243g

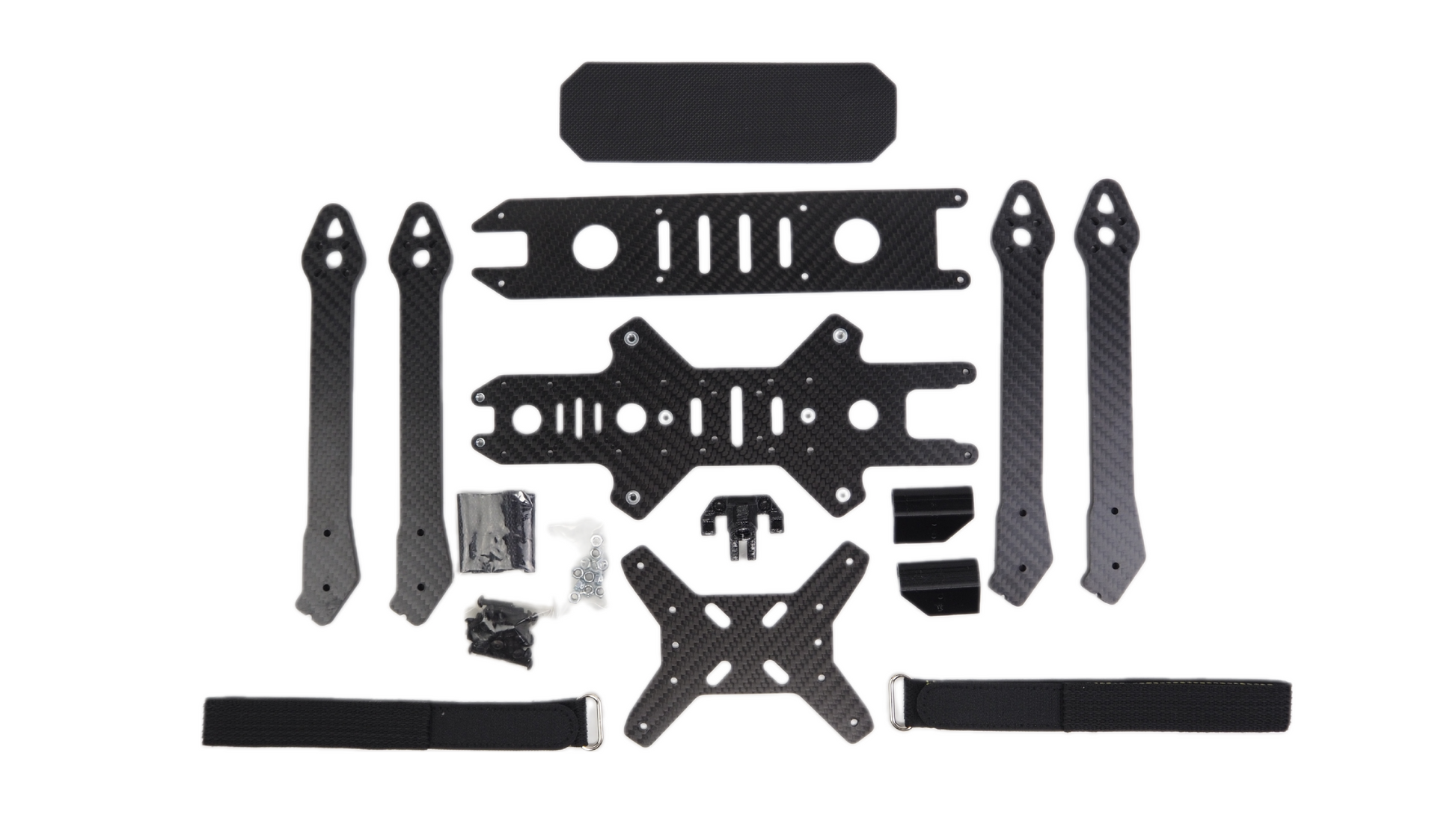

Package Includes:
1x Frame Partizan PT8 V2
