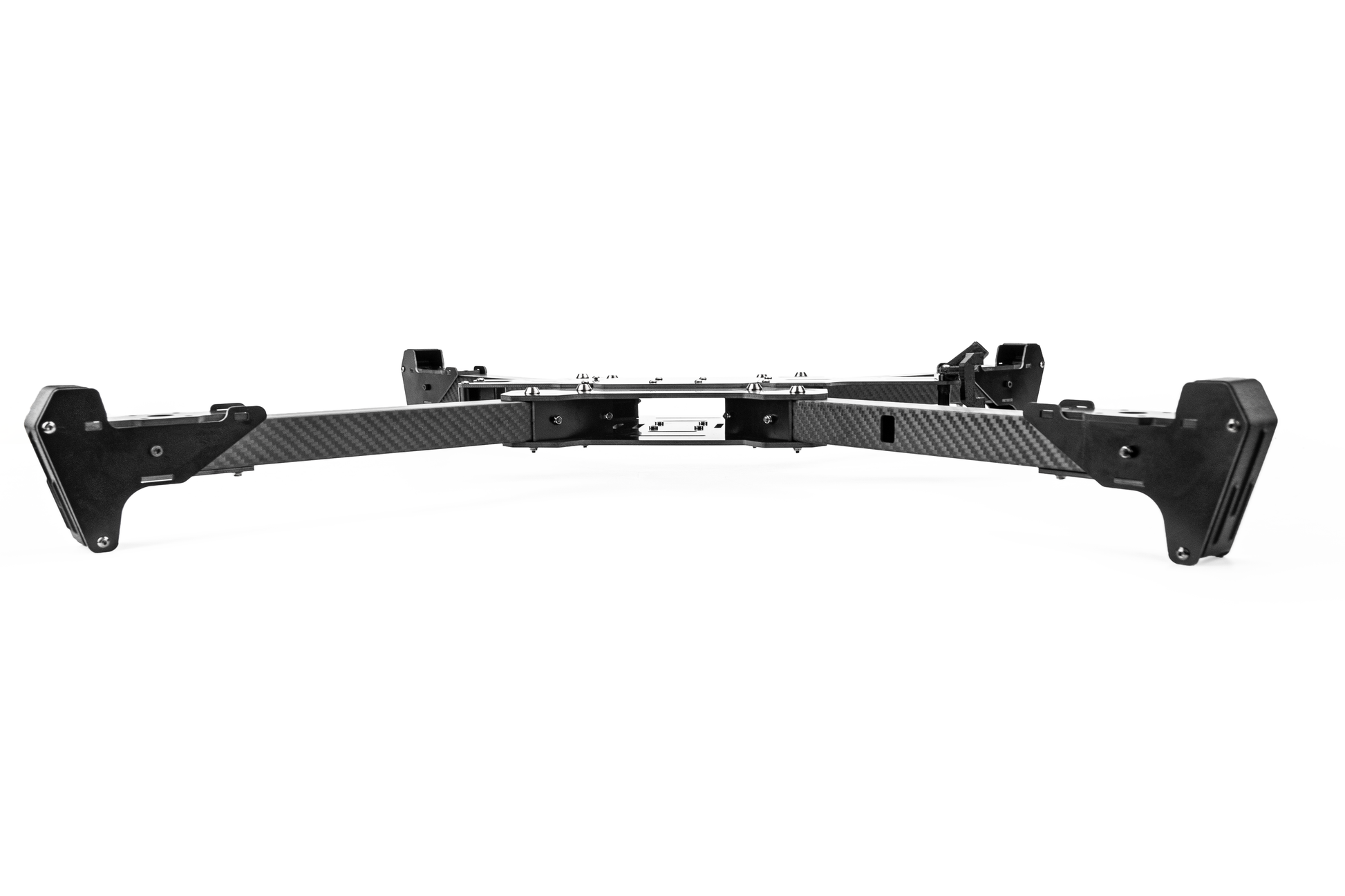

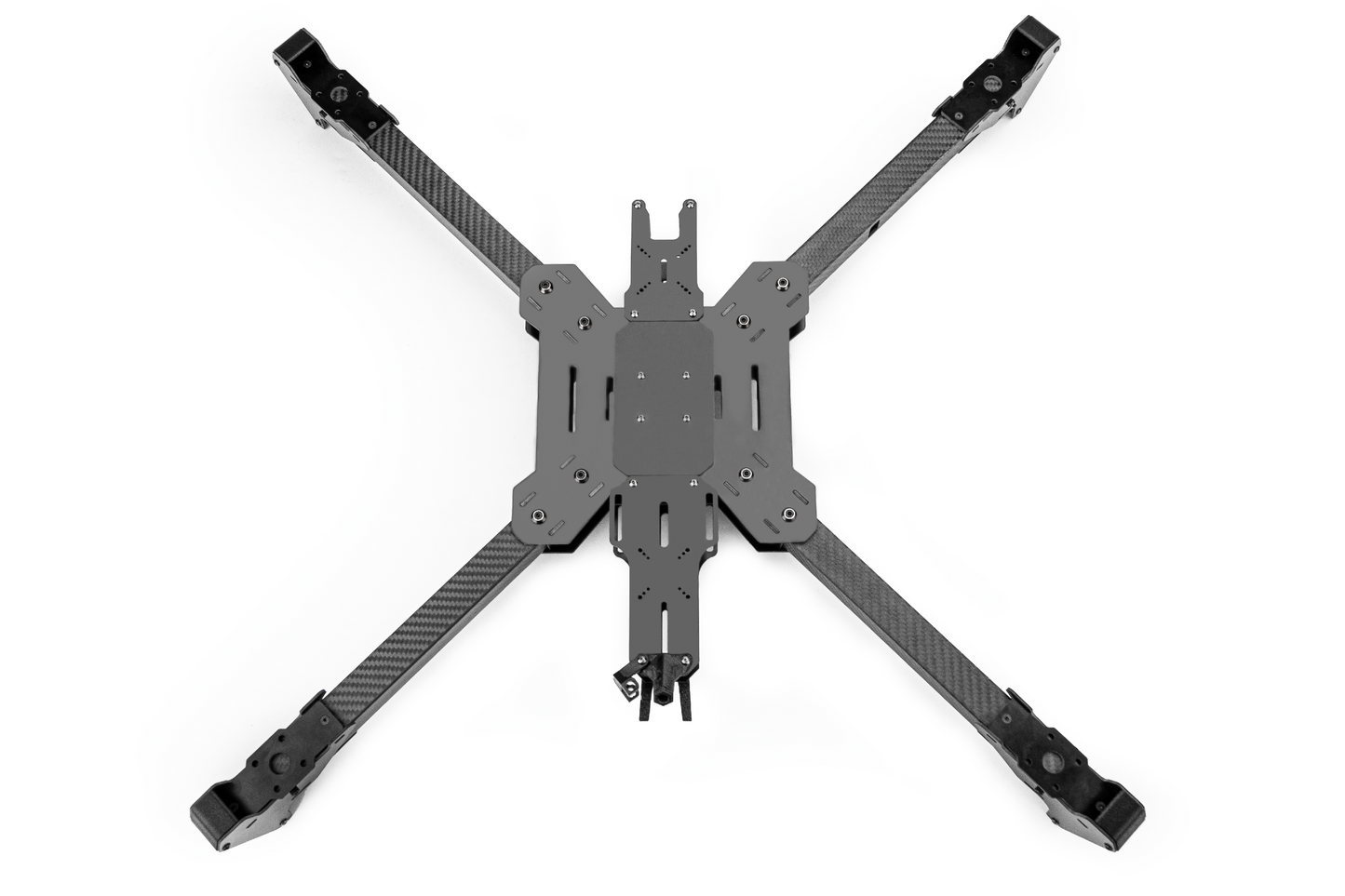

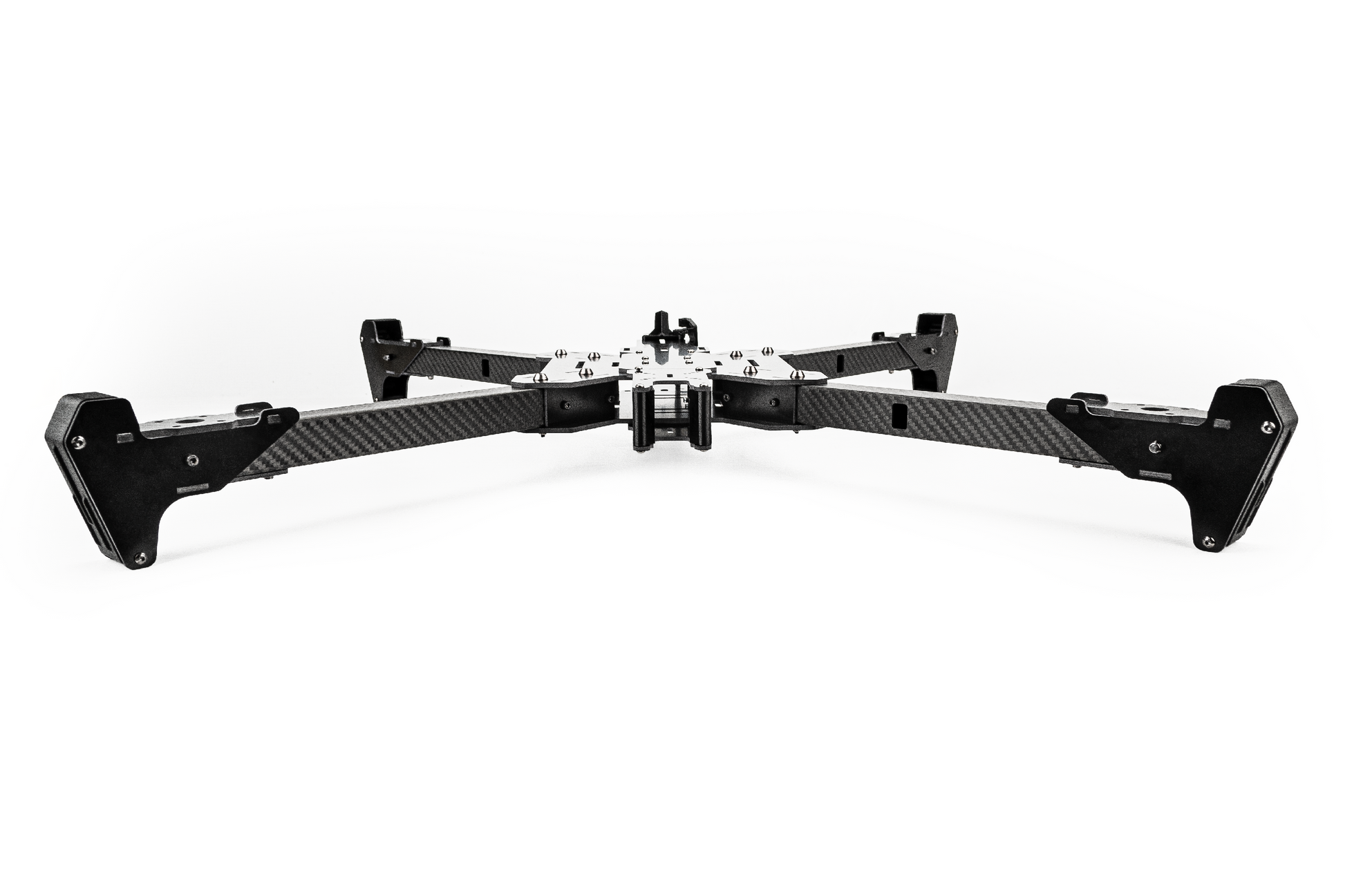

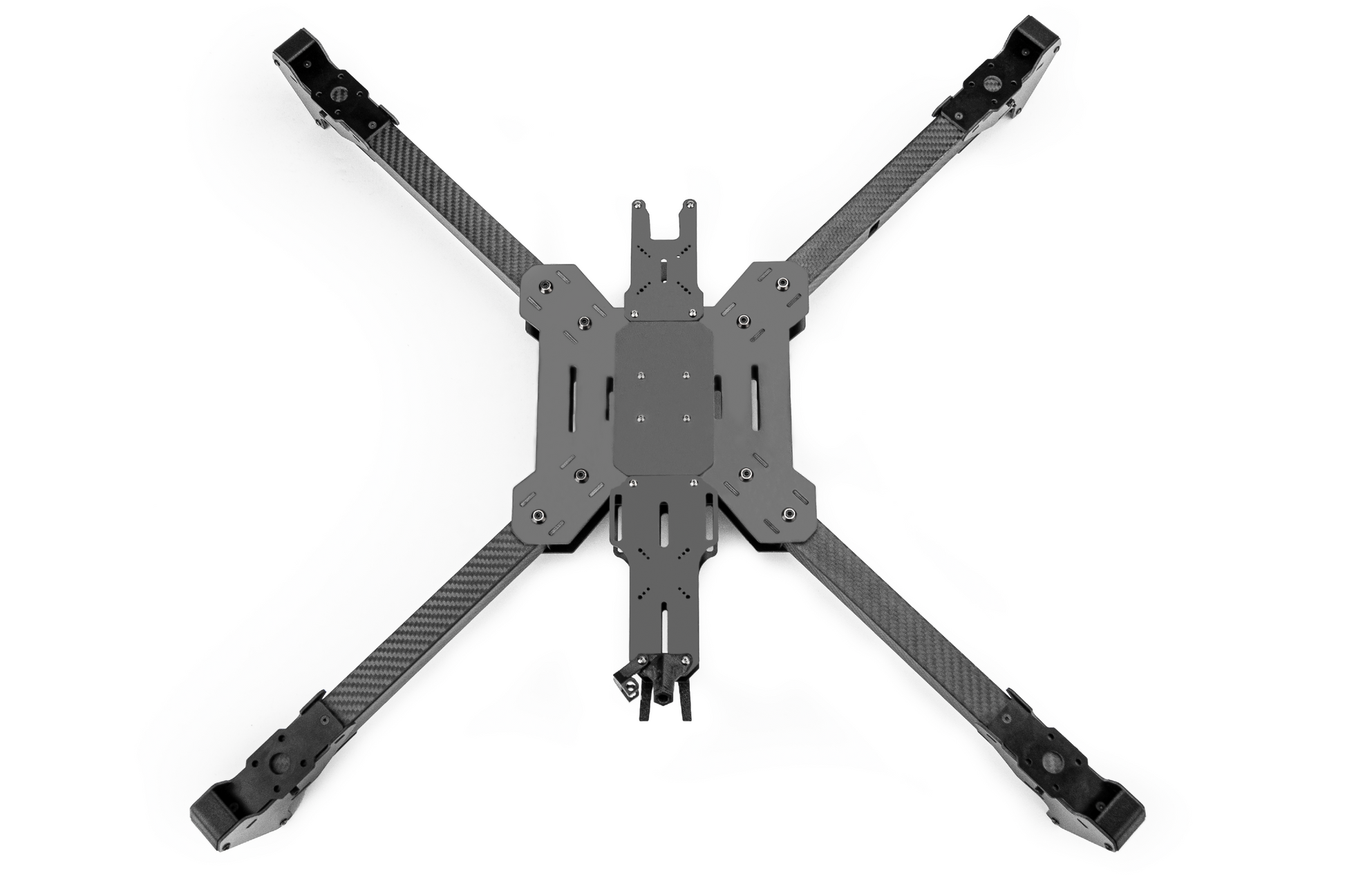

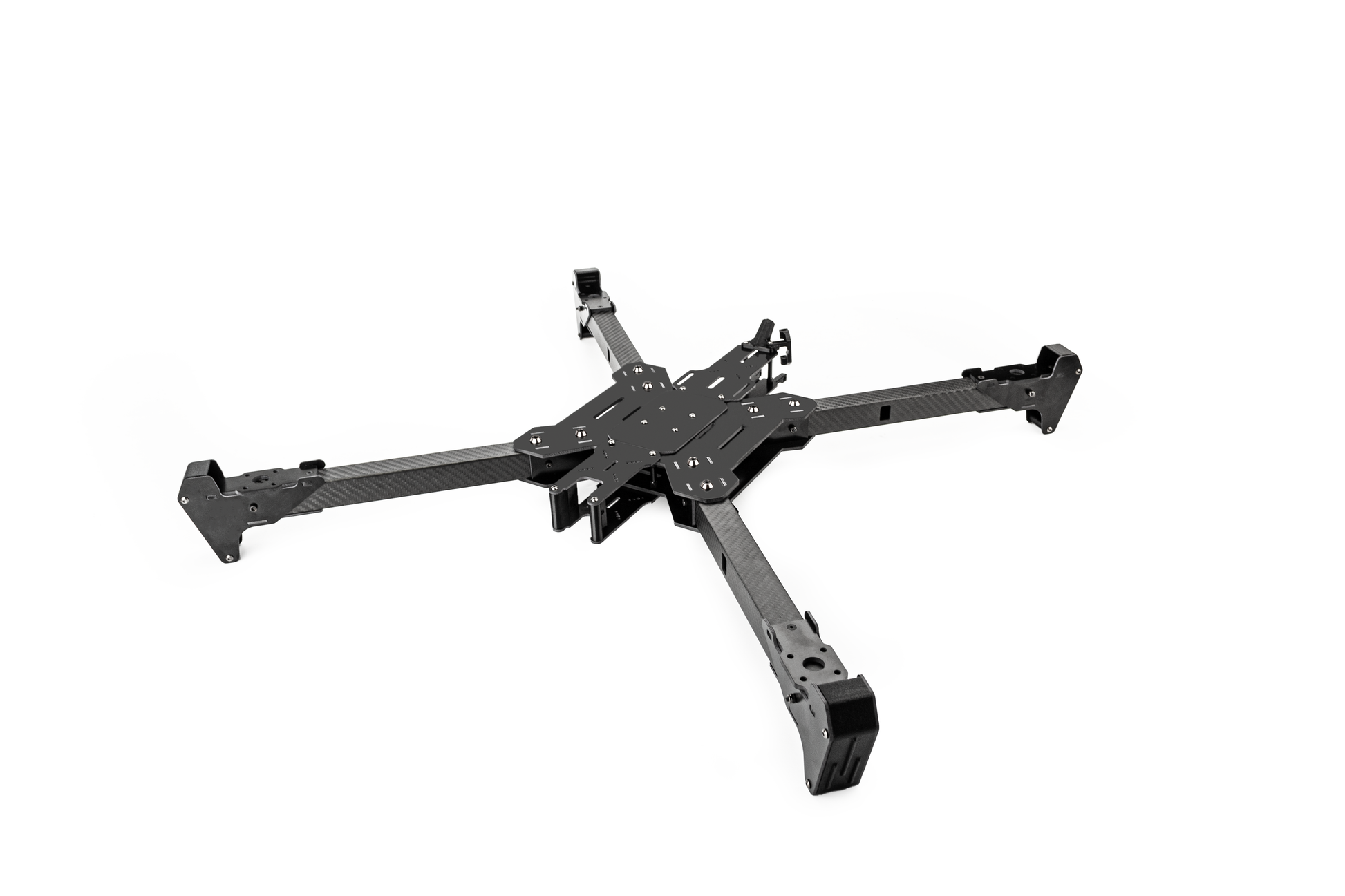

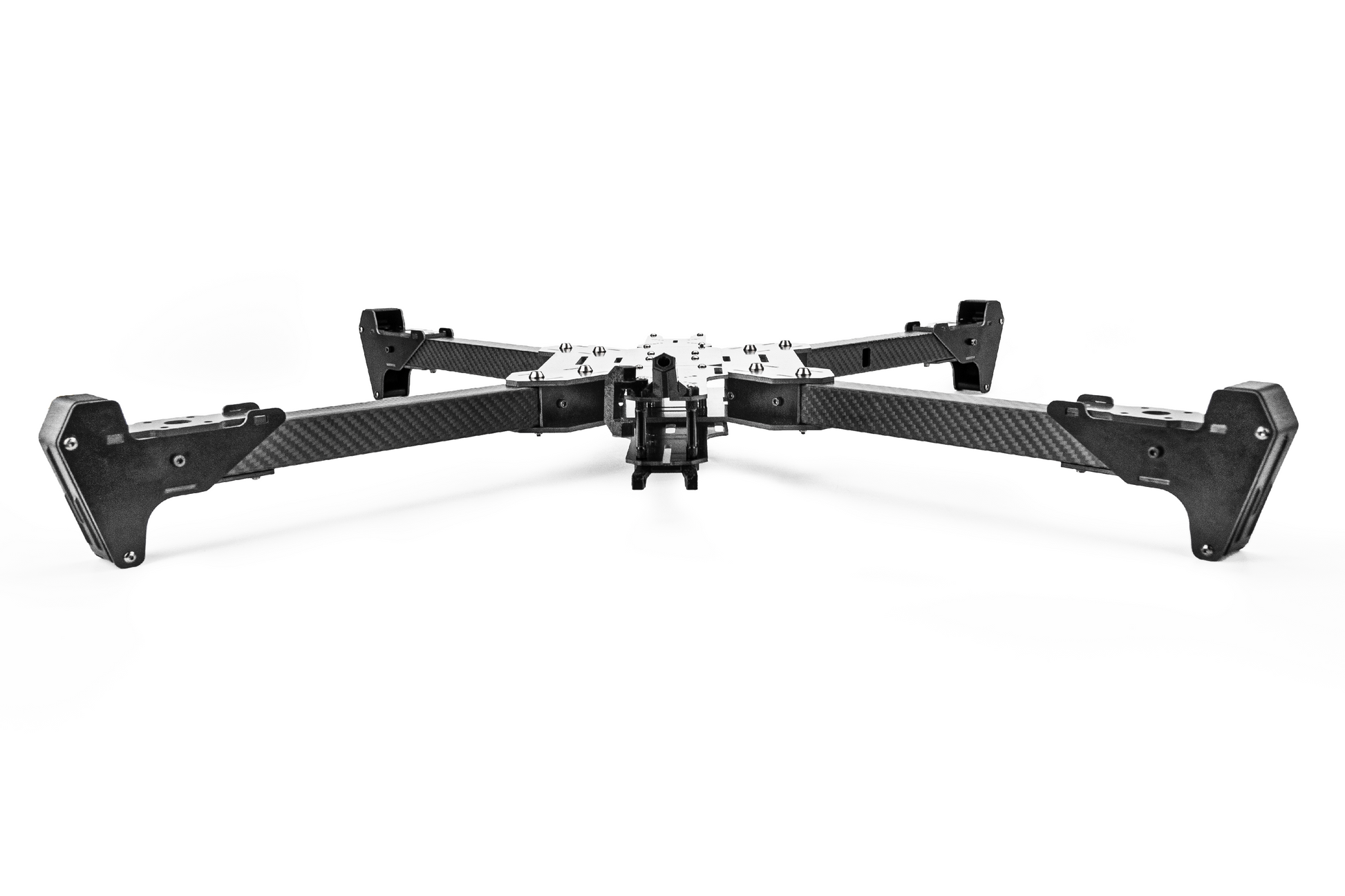

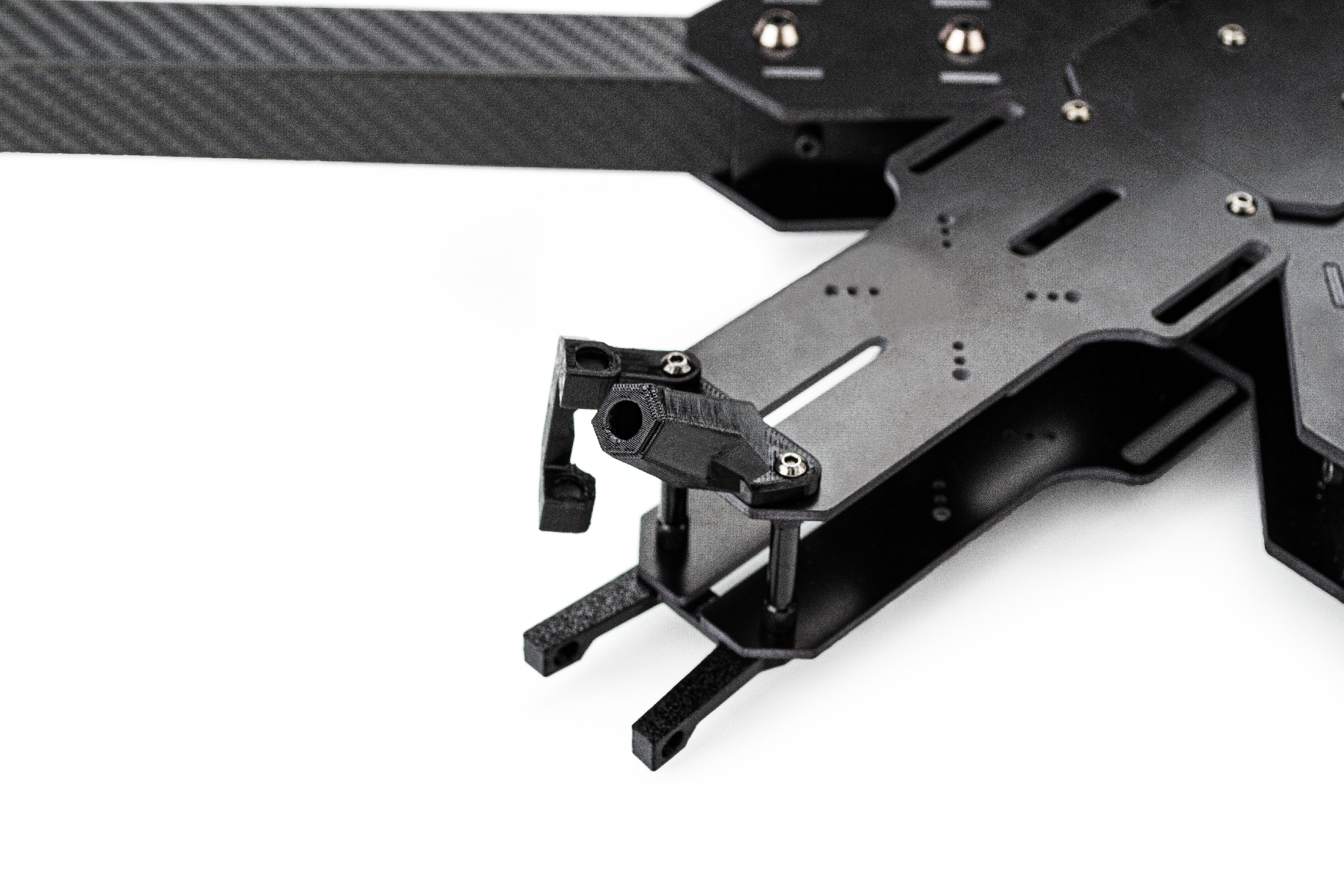

Partizan Edition PT-15 frame
The PT-15 Partizan Edition frame is a highly reliable frameset for heavy duty missions. Its high-strength fuselage design effectively reduces unnecessary shocks and resonances during flight.
Specifications:
Model: PT-15 Partizan Edition (square carbon tube)
Wheelbase: 670mm

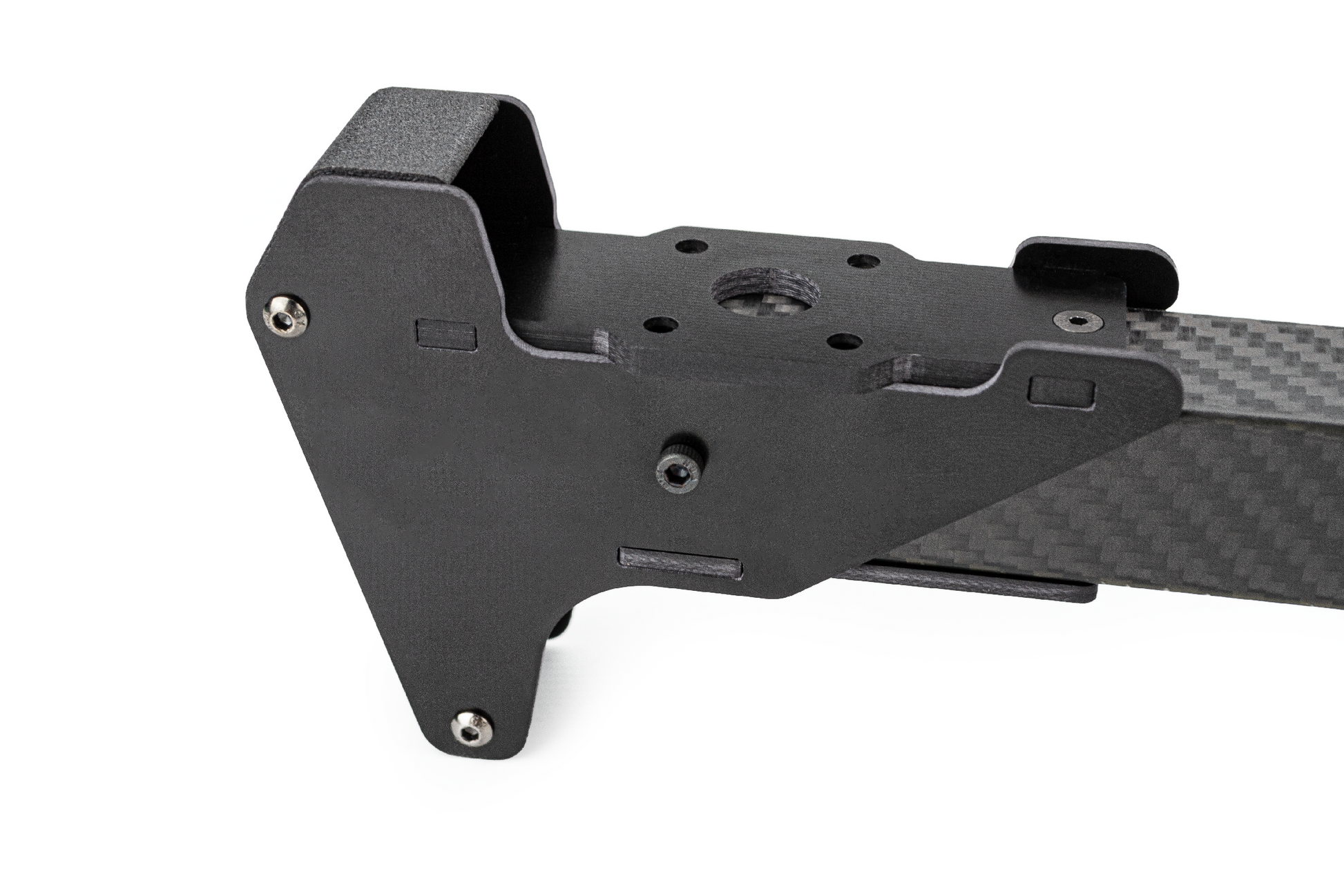

Arm: 25*25mm square carbon tube

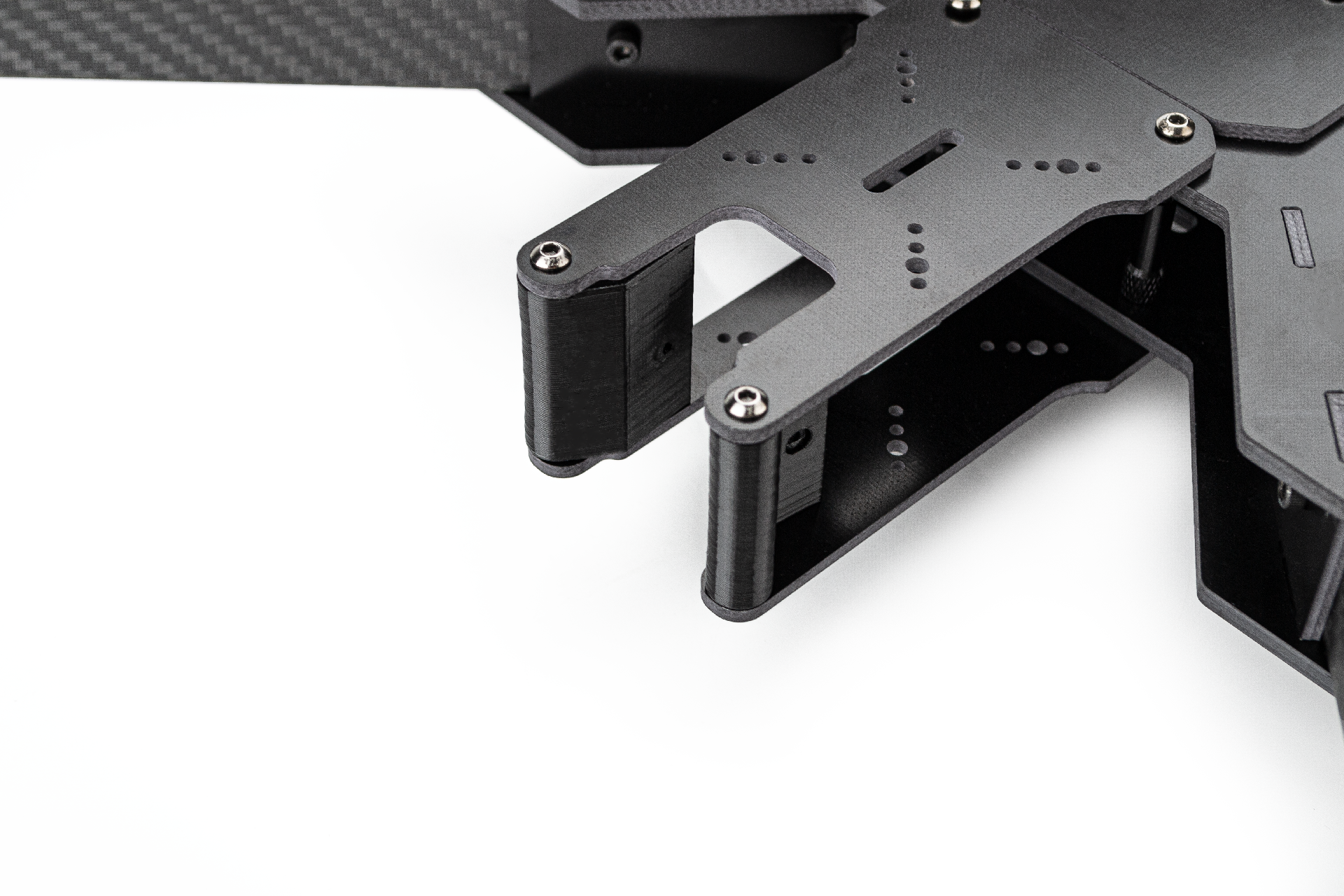

Top plate: 3.5mm
Bottom plate: 3.5mm
Dimensions: 578x578x90mm
FC mounting holes: 30.5mm
Camera mount: 19mm
Weight: 1.3kg
Recommended Parts:
Flight Control: F722 ICM42688P FC
ESC: BLS 100A(burst 120A) 4IN1 ESC
Motor: 4720 480KV(8S)
Camera: Ratel 2 Night Vision 1500TVL
VTX: 4.9-6.2Ghz 3W
Receiver: ELRS 915Mhz Diversity
Antenna: 4.9-6.2Ghz RHCP SMA 150mm
Propeller: 1507-3 blades
Battery: 8S10P 40000mah 10C Li-ion battery
Package includes:
1x Partizan Edition PT-15 Frame
4x Square Cube
1x Set of Aluminum Post
1x Set of Screws
1x Set of Nuts
1x Set for Printing
1x Battery Pad
4x Battery Strap
