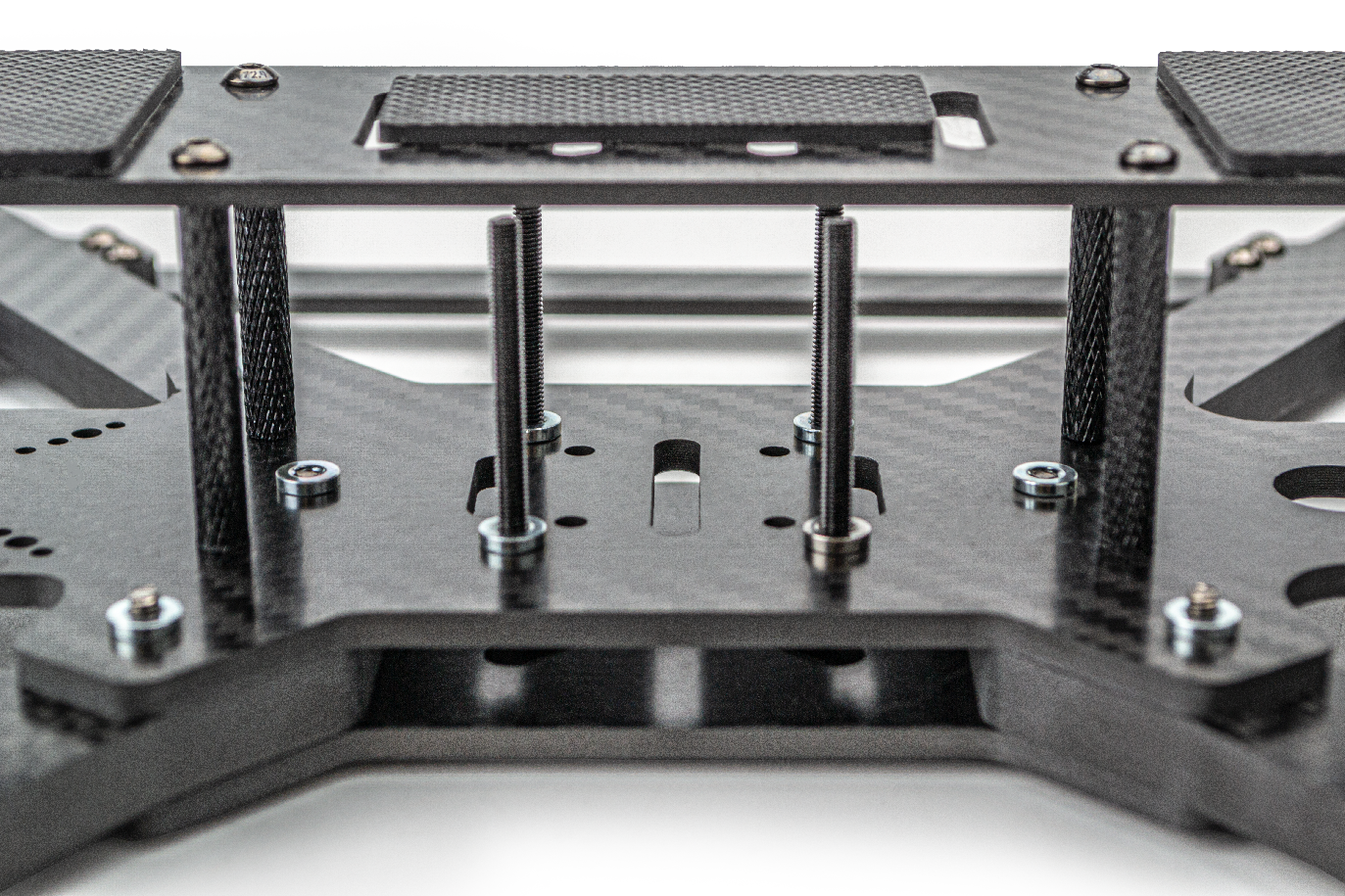

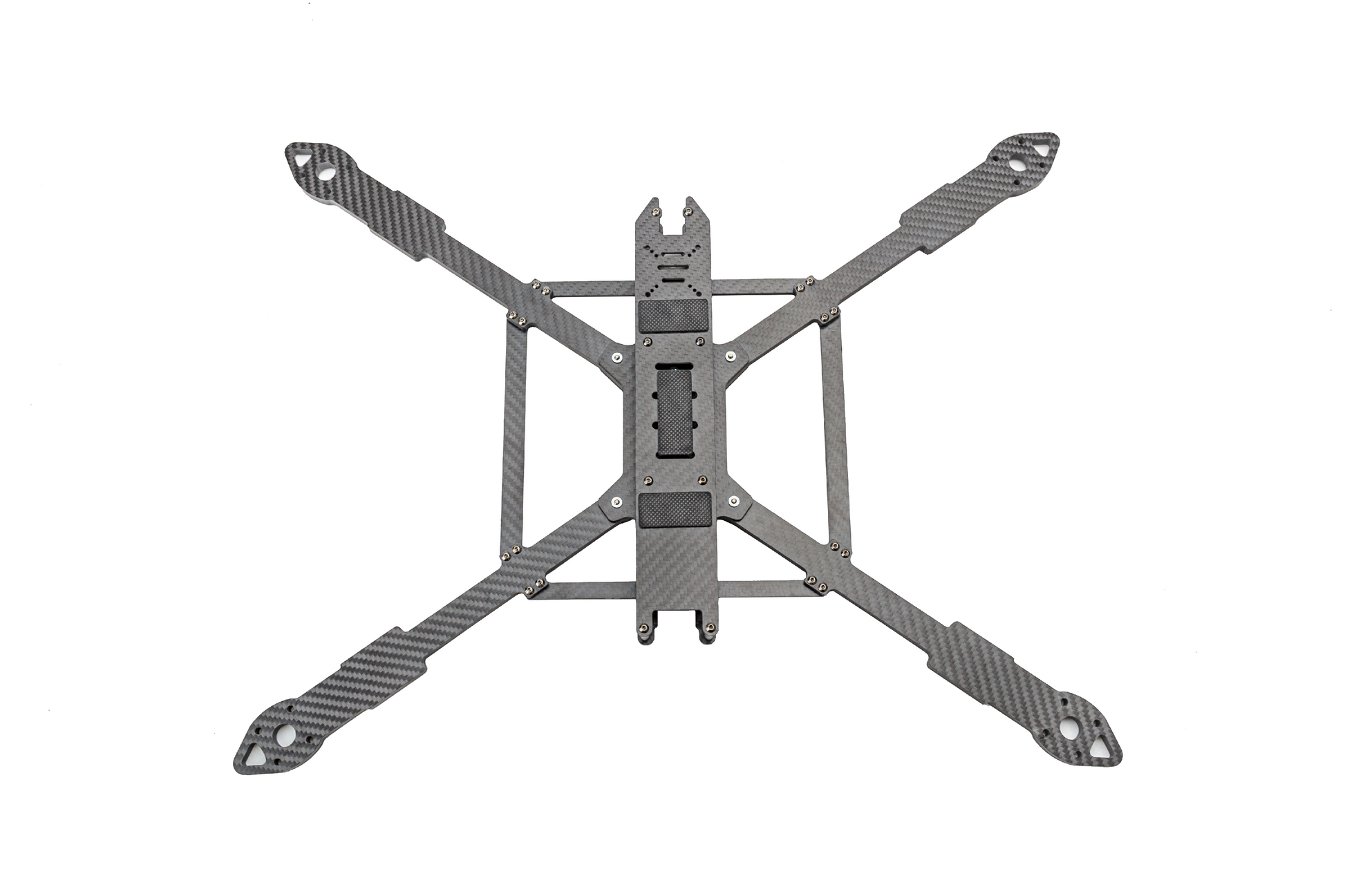

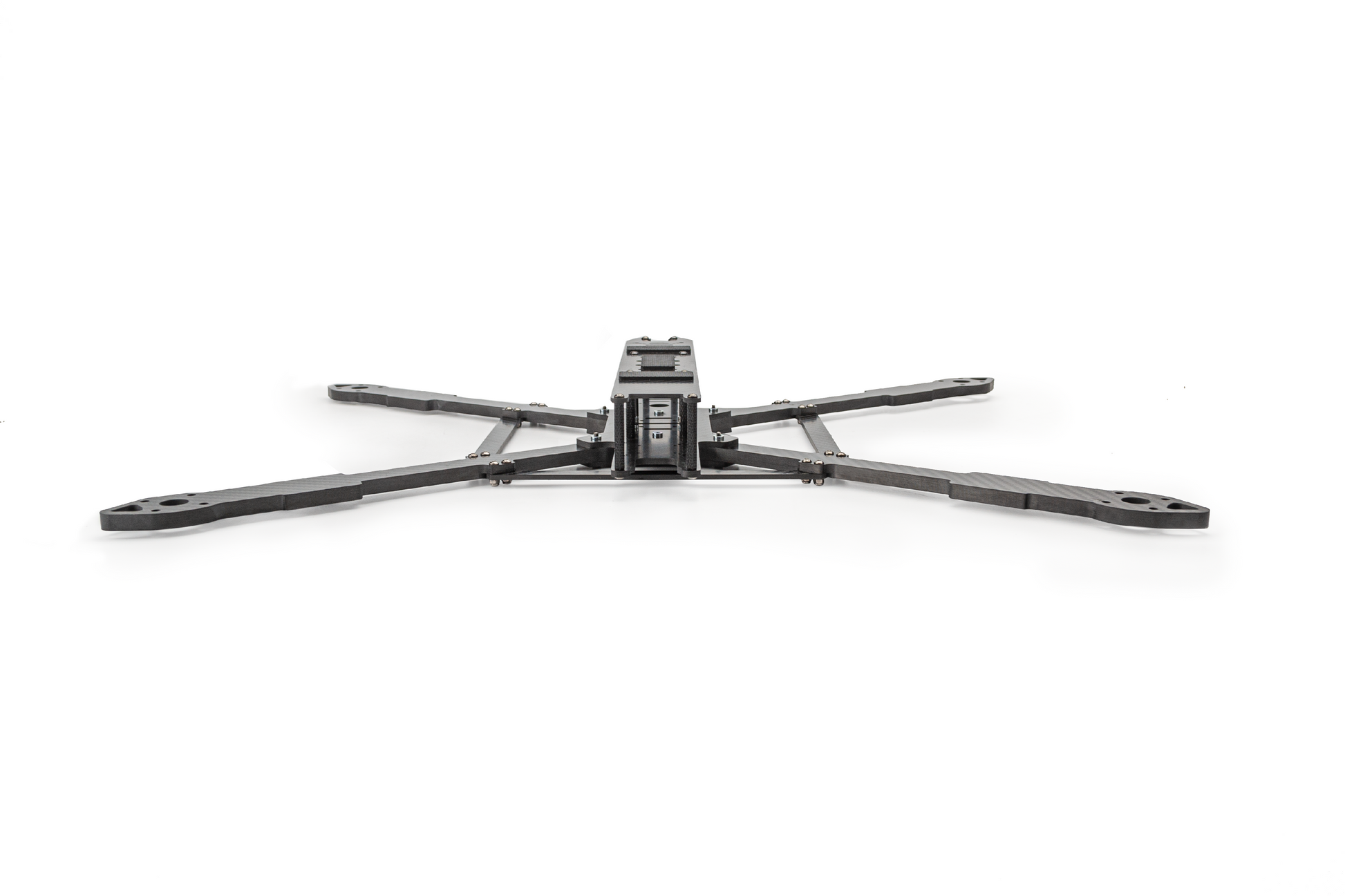

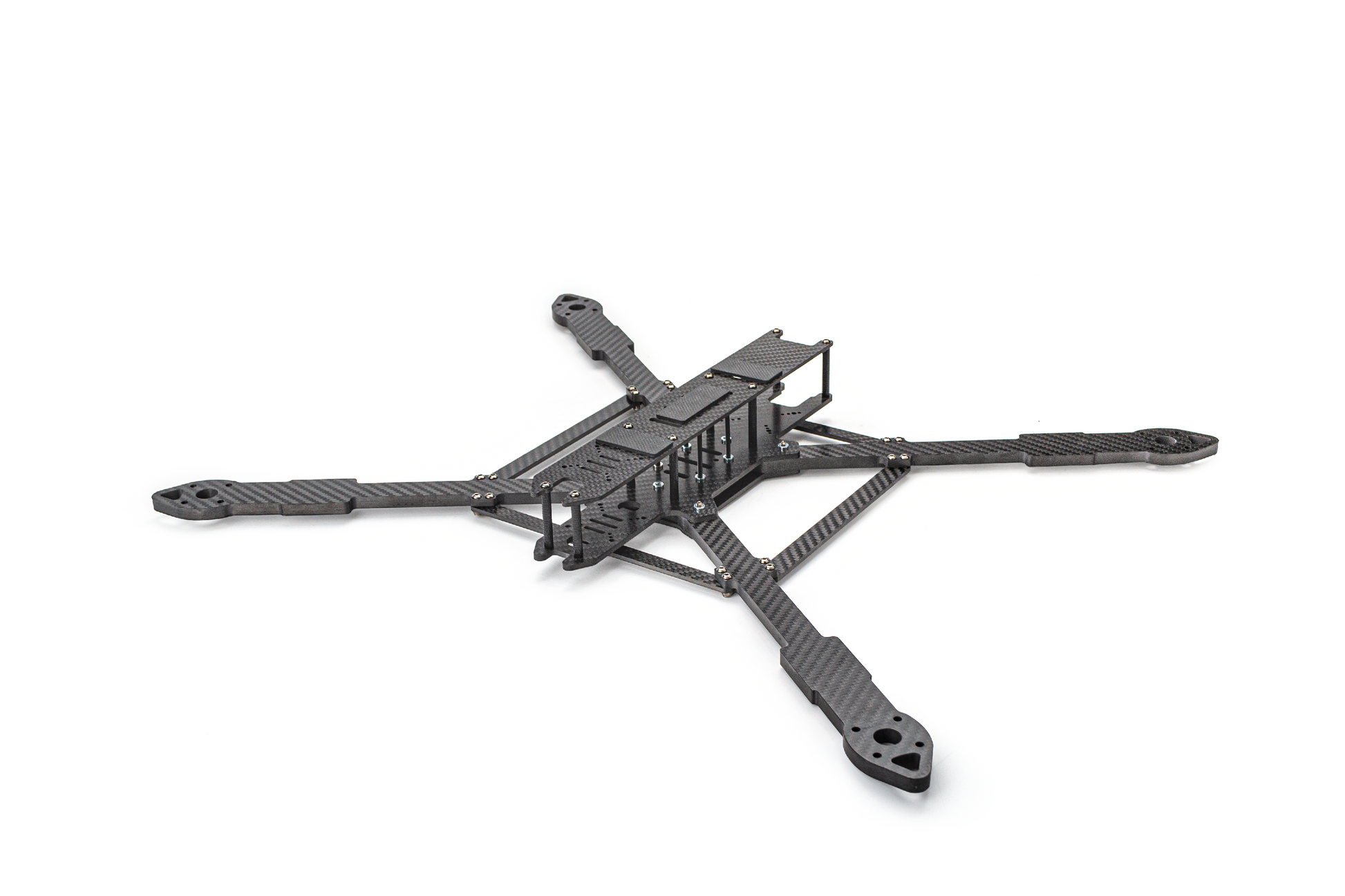

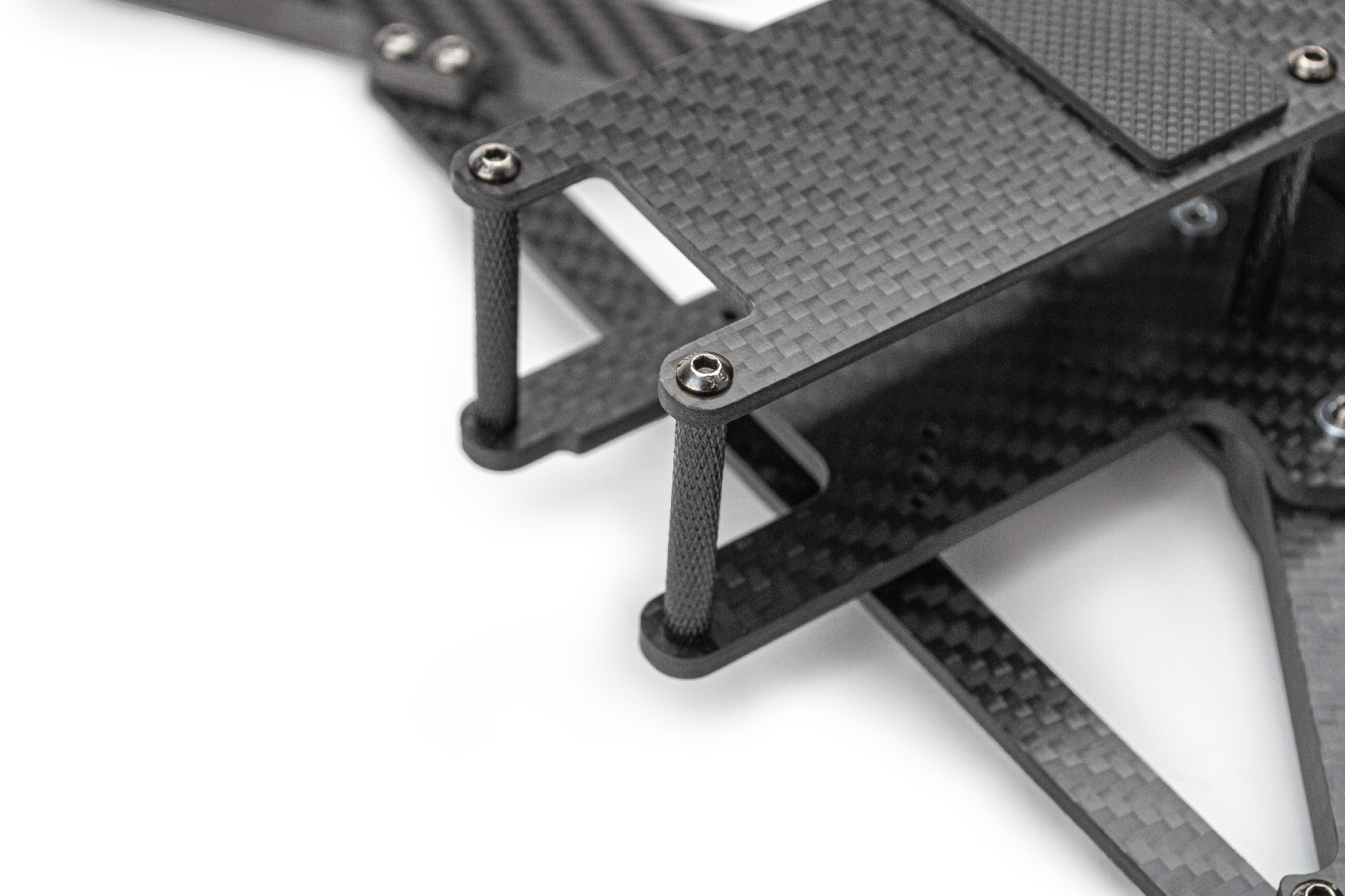

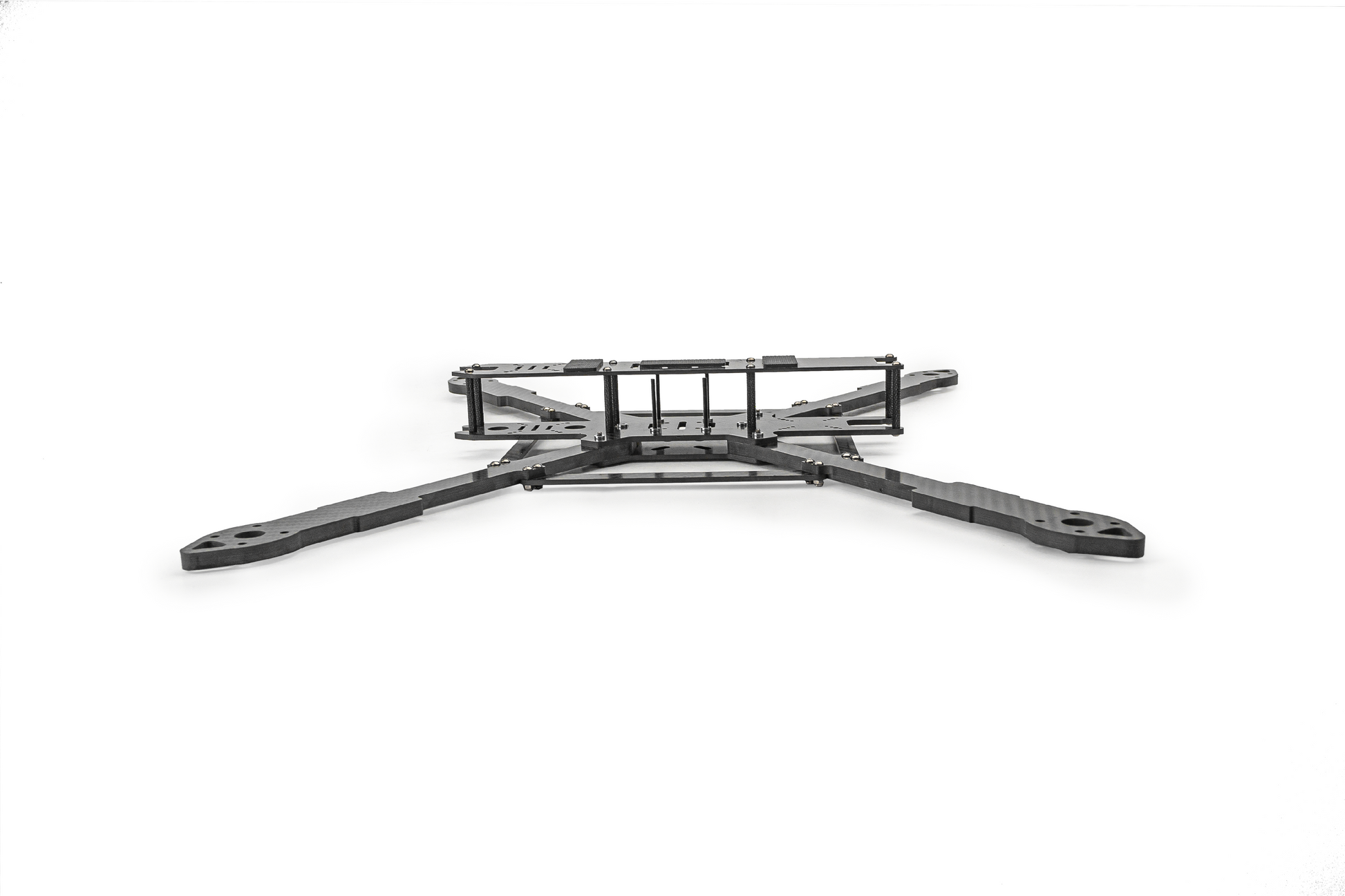

Partizan Edition PT-13 frame
The PT-13 Partizan Edition frame is a highly reliable frameset for heavy duty missions. Its high-strength fuselage design effectively reduces unnecessary shocks and resonances during flight.
Specifications:
Model: PT-13 Partizan Edition
Wheelbase: 575mm
Arm: 8mm
Top plate: 2.5mm
Bottom plate: 5mm 3.5mm
Dimensions: 507x403x52mm
FC mounting holes: 30.5mm
Camera mounting: 19 mm
Weight: 0.6 kg
Recommended Parts:
Flight Control: F405 V4 ICM42688P / F722
ELECTRONIC CONTROL SYSTEM (ESC): AM32 80A 4v1 ESC
Motor: 4214-660KV
Camera: Ratel2 Night Version/ Ratel Pro
VTX: 4.9-6.2Ghz 3W
Receiver: ELRS 915Mhz Diversity
Antenna: RHCP SMA 160mm
Propeller: 1309-3 blades
Battery: 6S 30000mah Semi Solid Battery
Package includes:
1x Partizan Edition PT-13 frame
1x set of aluminum post
1x set of screws
1x set of nuts
1x set for printing
1x PT battery pad
2x battery strap
