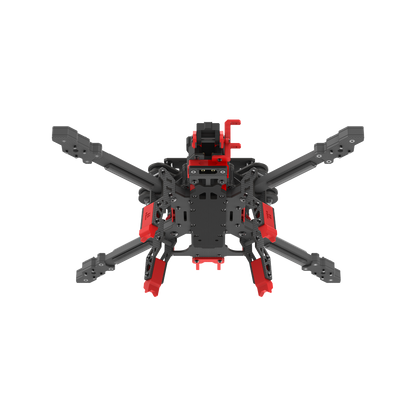

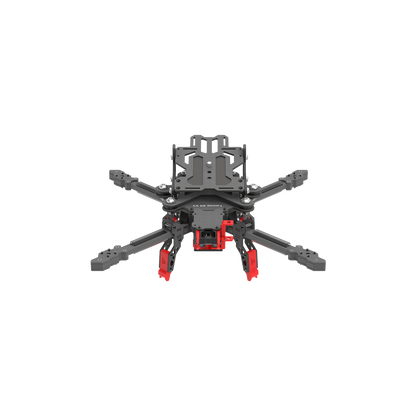

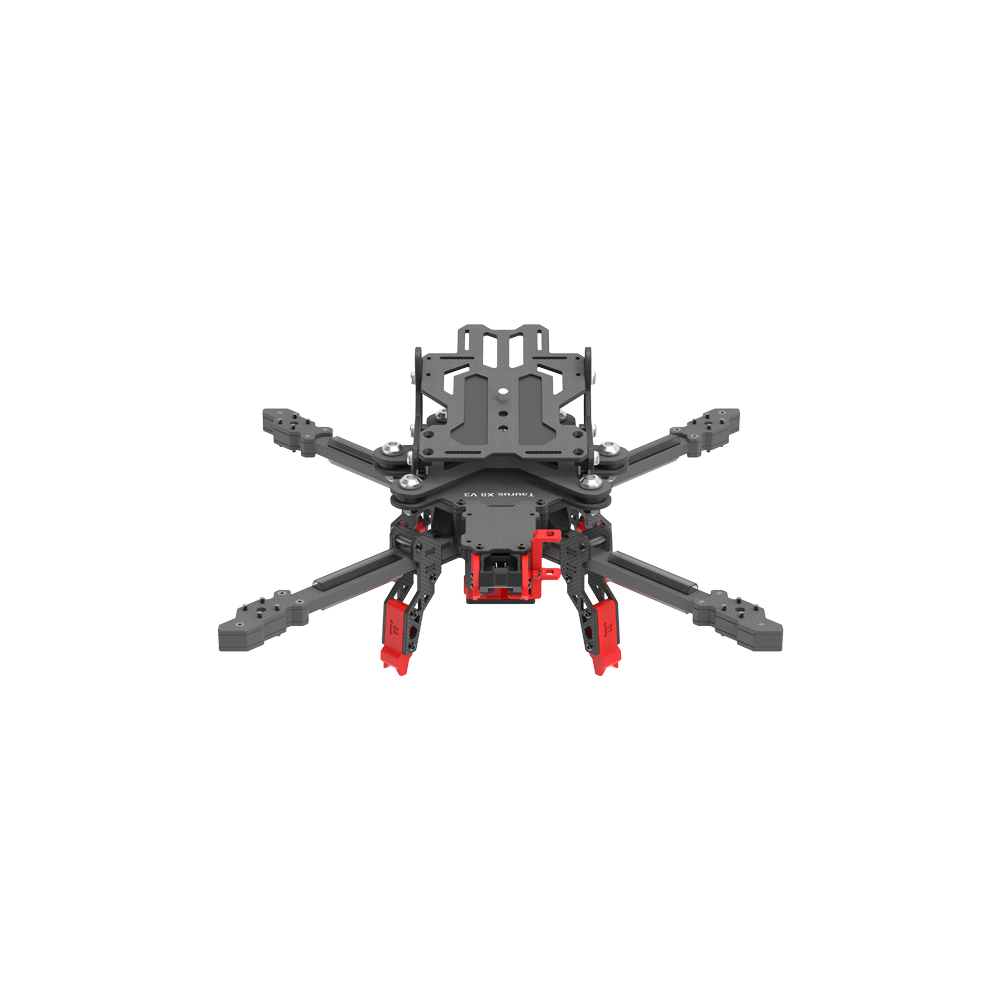

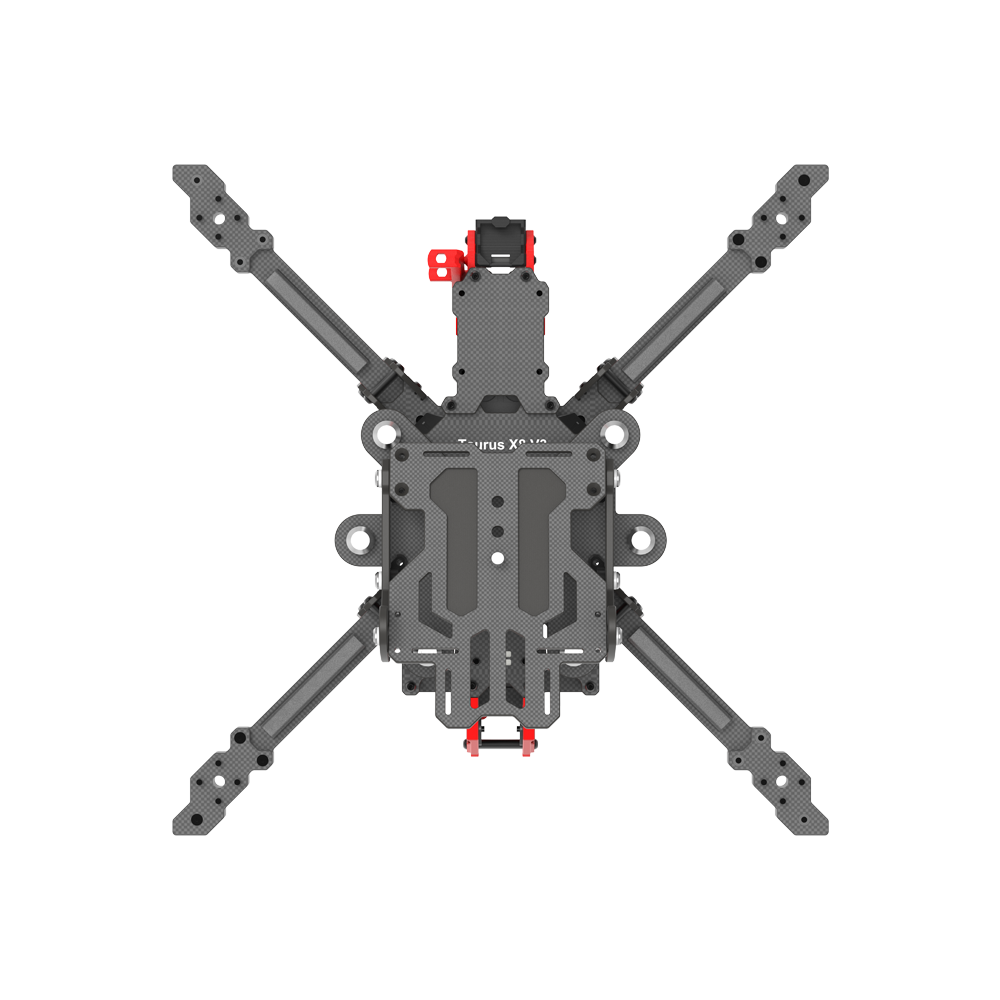

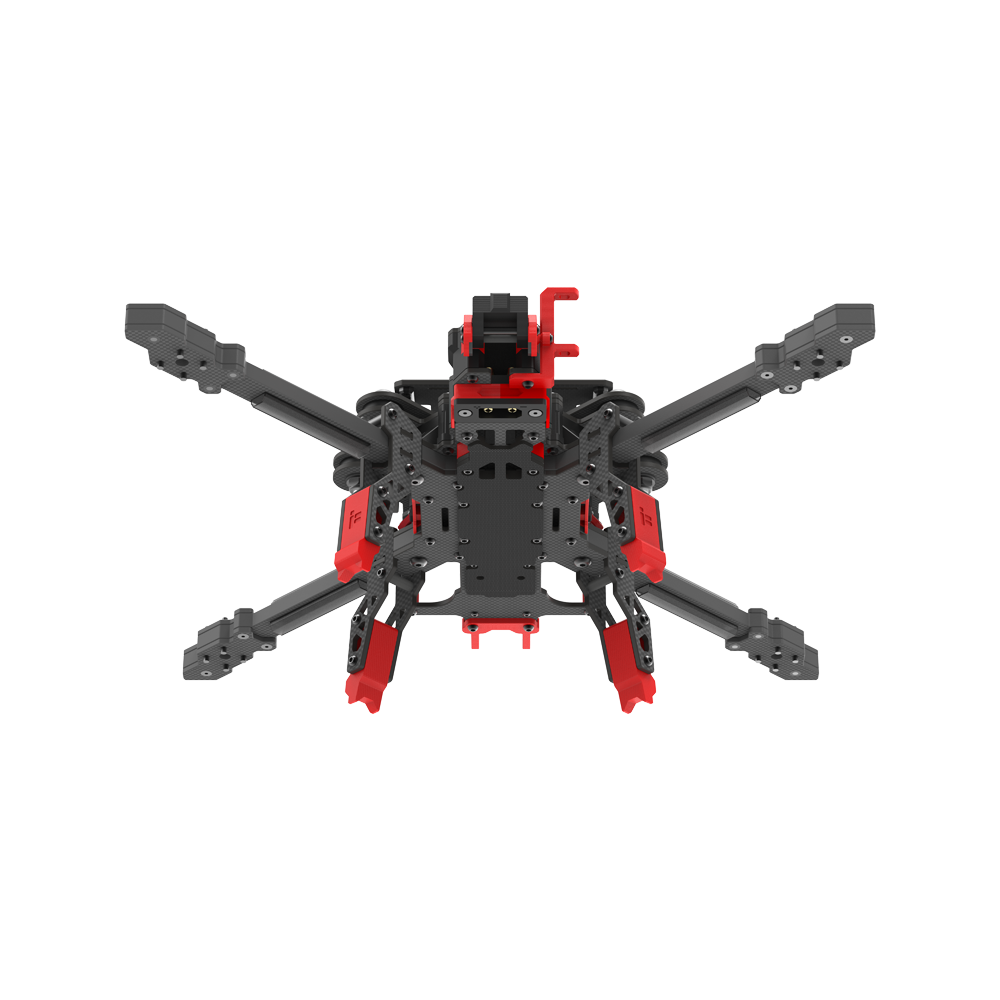

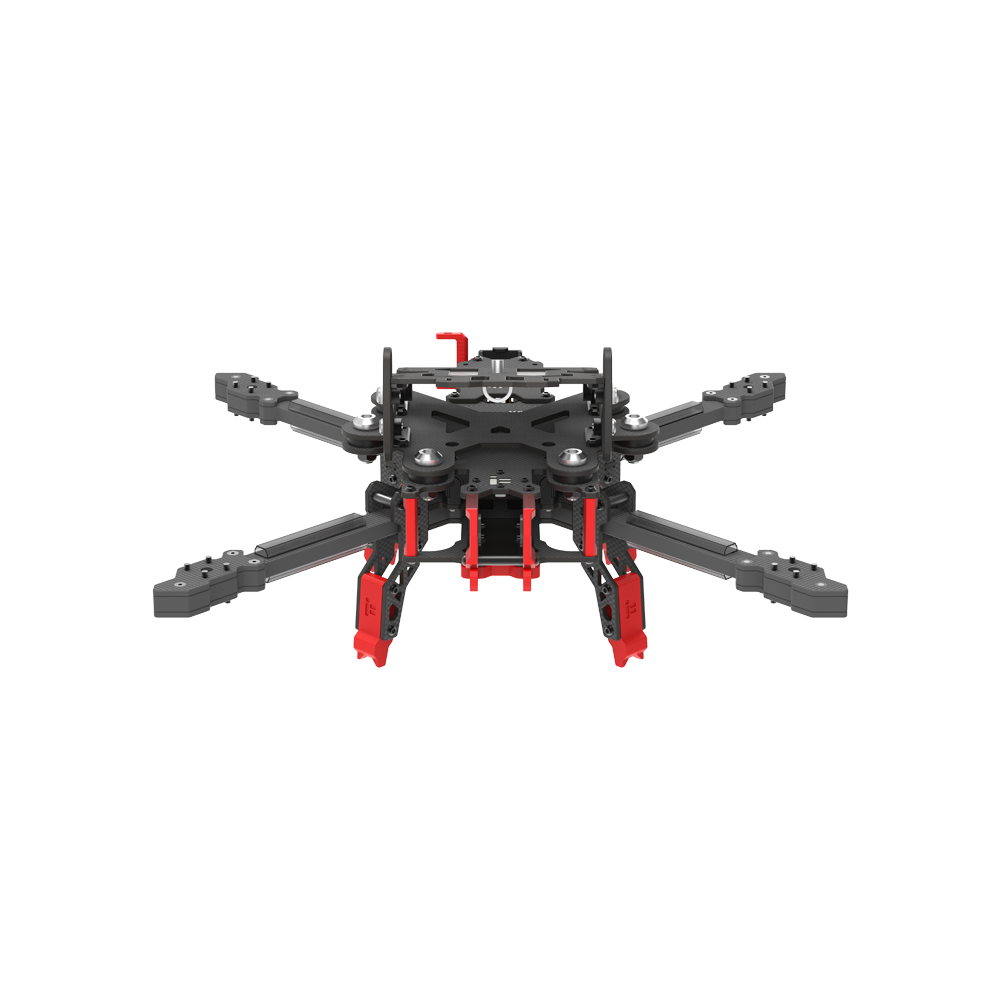

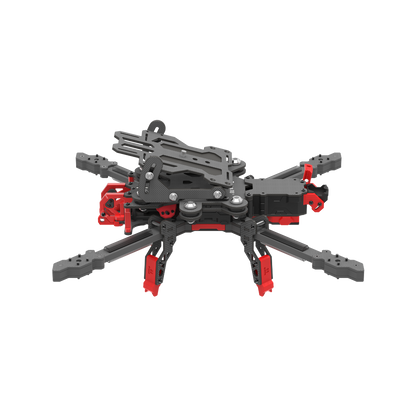

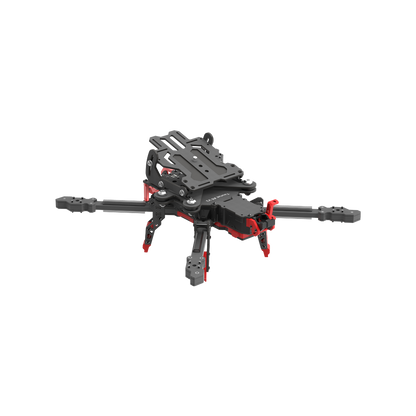

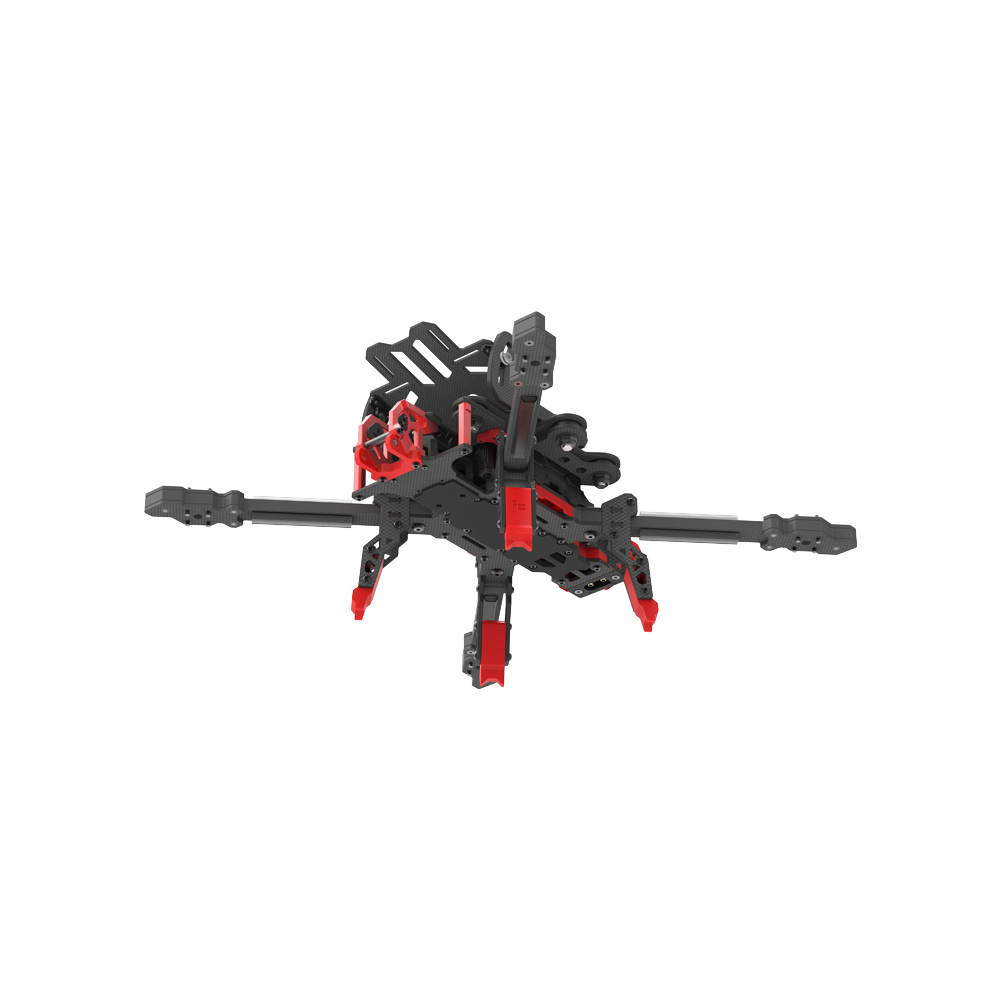

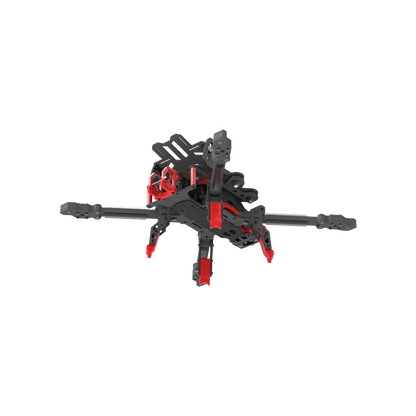

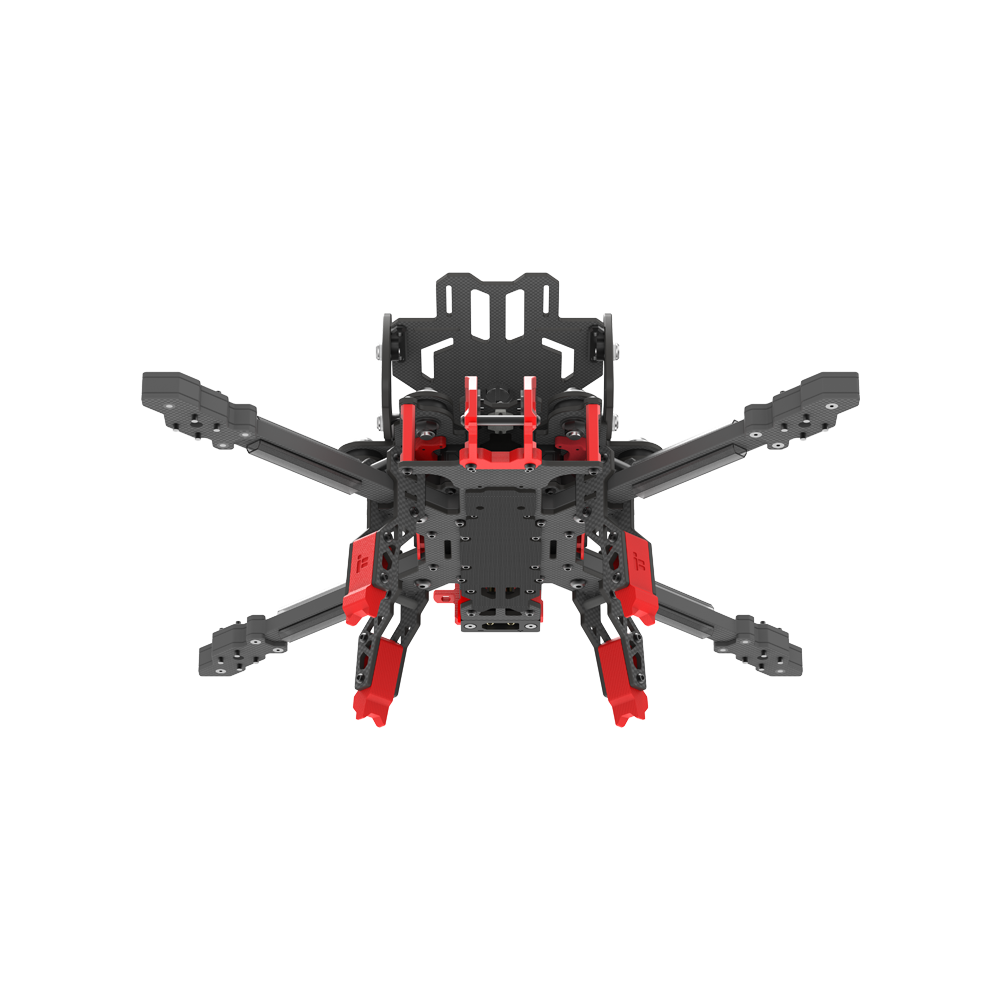

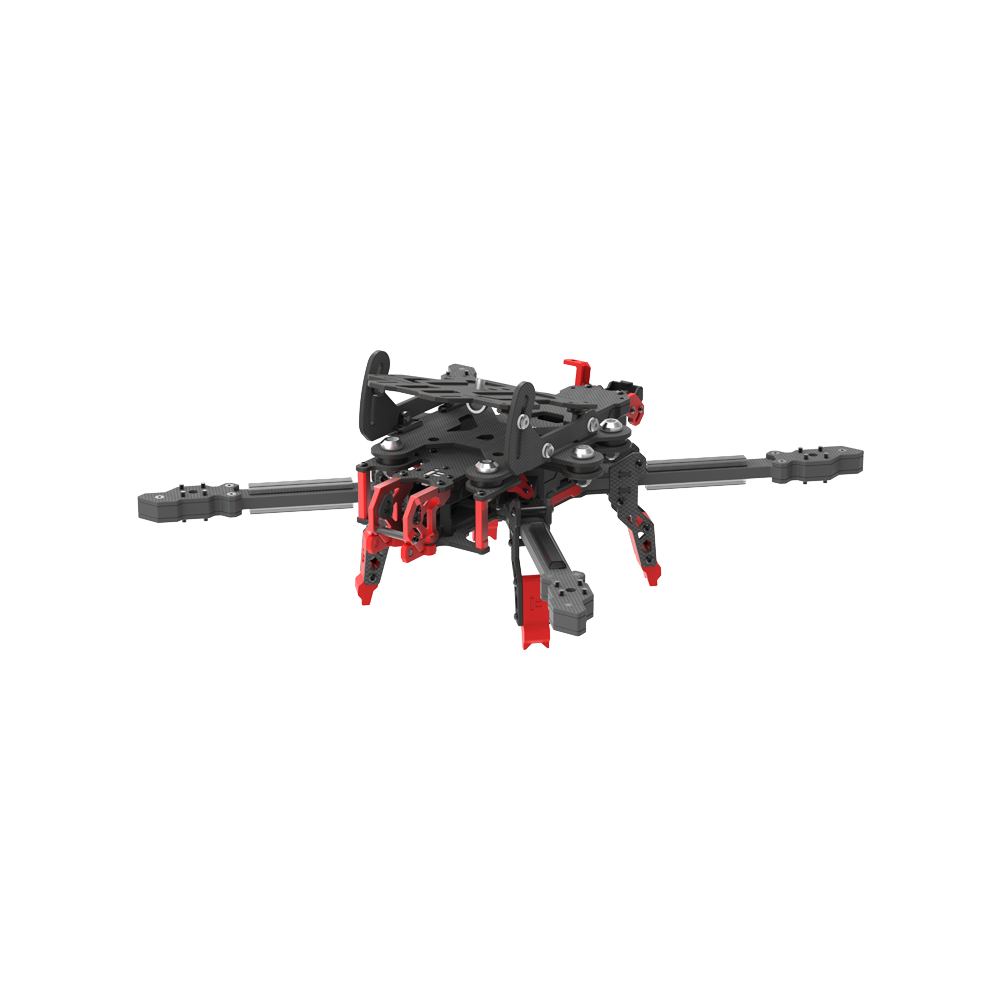

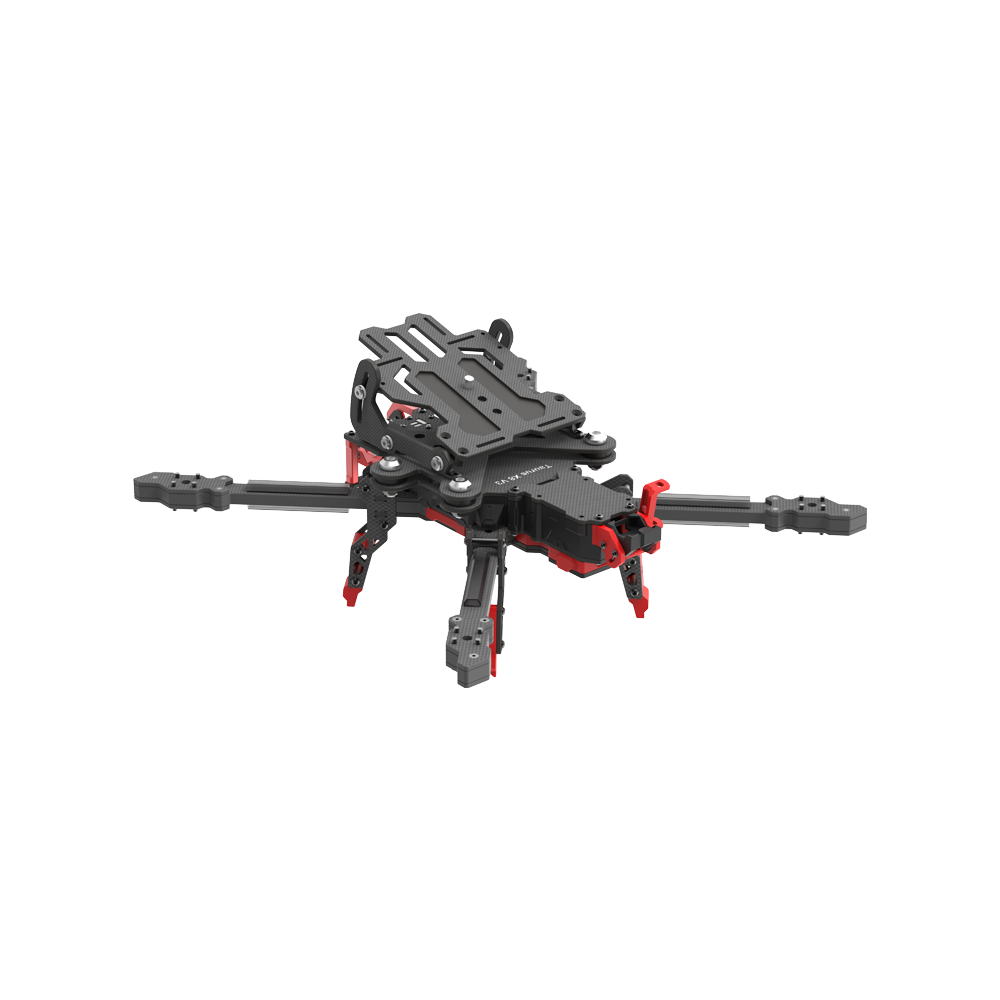

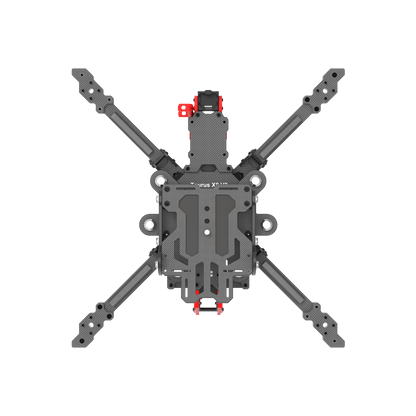

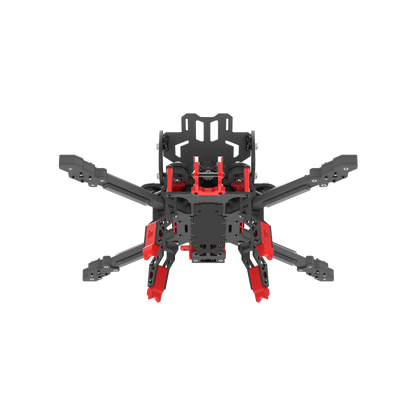

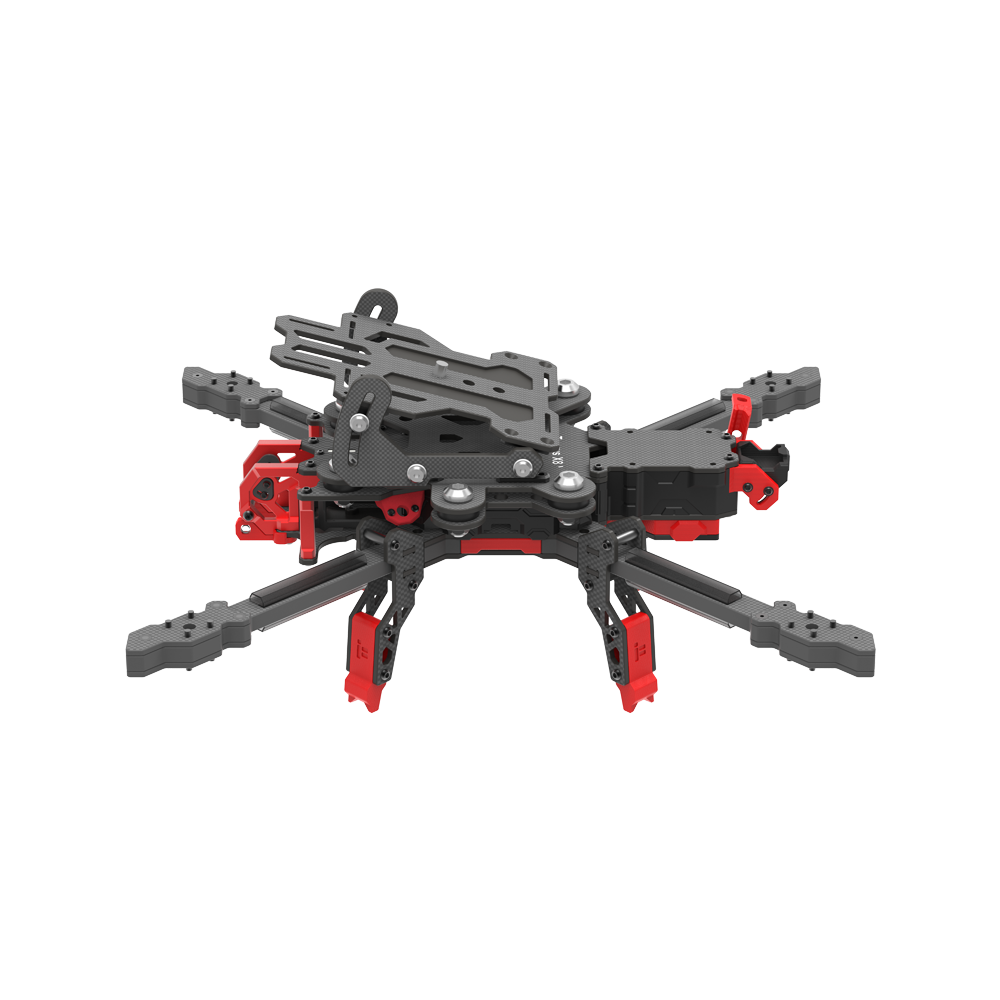

Taurus X8 V3 O3 Cinelifter Frame Kit
The Taurus X8 V3 BNF Cinelifter Frame Kit is designed for heavy payloads and provides a stable platform for DSLR or cinema cameras such as Red Komodo, Zcam, BMPCC and more. As of March 25, 2023, this frame kit is compatible with the DJI O3 air unit.
Function
- Optimized CG with adjustable camera and battery holder
- Stable holder for a CNC camera with a separate silicone ball
- Redundant ESC and motor configuration
- Maximum payload 2kg for various cinema and DSLR cameras
- Lightweight side panels - Keep your rig clean
Specifications
Product name: Taurus V3 X8 HD Cinelifter Frame
Wheelbase: 320 mm
Diagonal Distance: 120 mm
Frame size: L283*W393*H30 mm
Arm thickness: 8 mm
Bottom plate thickness: 3 mm
Thickness of the top plate: 3 mm
Thickness of the top plate: 3 mm
Camera plate thickness: 3mm
Motor mounting: 19x19mm
VTX mounting: 30.5*30.5mm
Weight: 940 grams (without TPU parts)
Packaging included in the price
1 x Taurus V3 X8 HD Cinelifter Frame
2 x 20 x 300mm battery strap (color may vary)
2 x 20 x 400mm battery strap (color may vary)
2 x 20 x 500mm battery strap (color may vary)
1 x Aluminum Quick Release Camera Clip
1 x Taurus X8 Hardware Accessory Kit
1 x CNC aluminum alloy cam holder
1 x DJI Air TPU Unit Holder
1 x set of 3D printed parts
2 x battery pad
1x LED holder
10x Dampers
2 x batteries Anti-slip mats
