    Code: NR12195

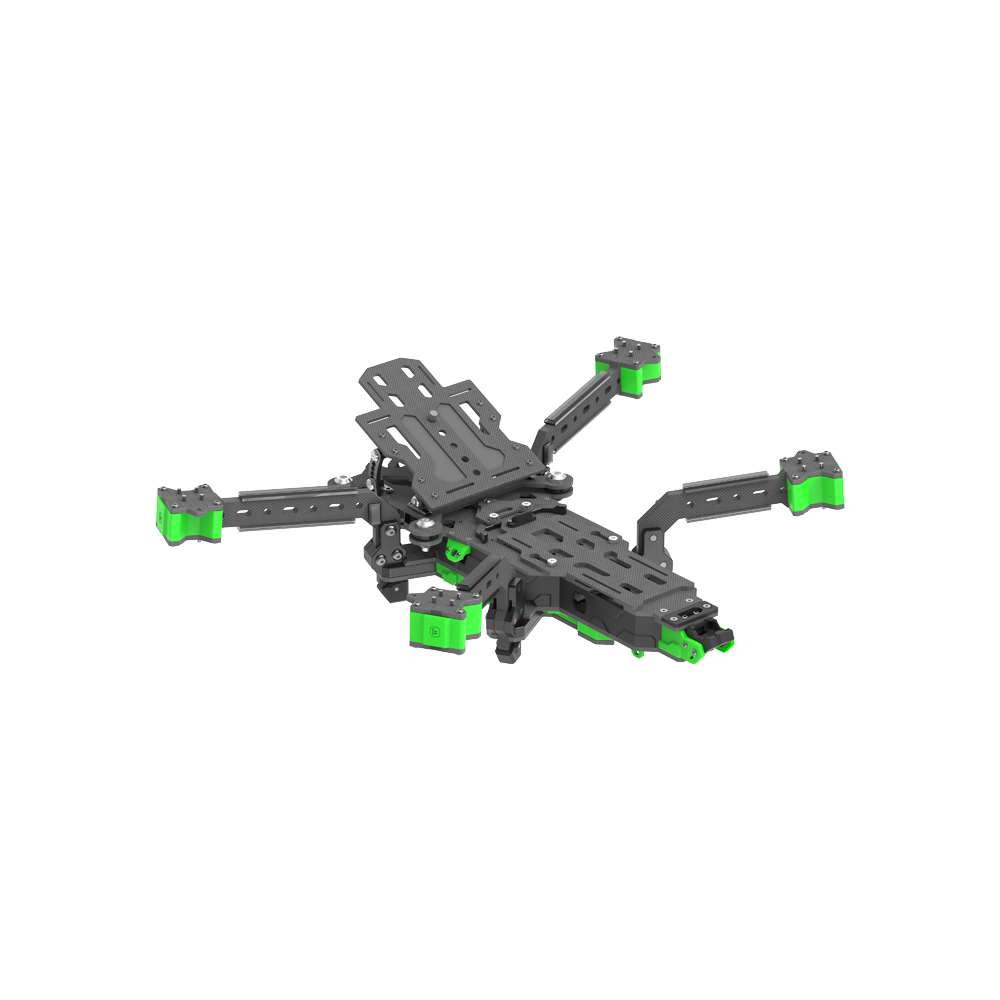

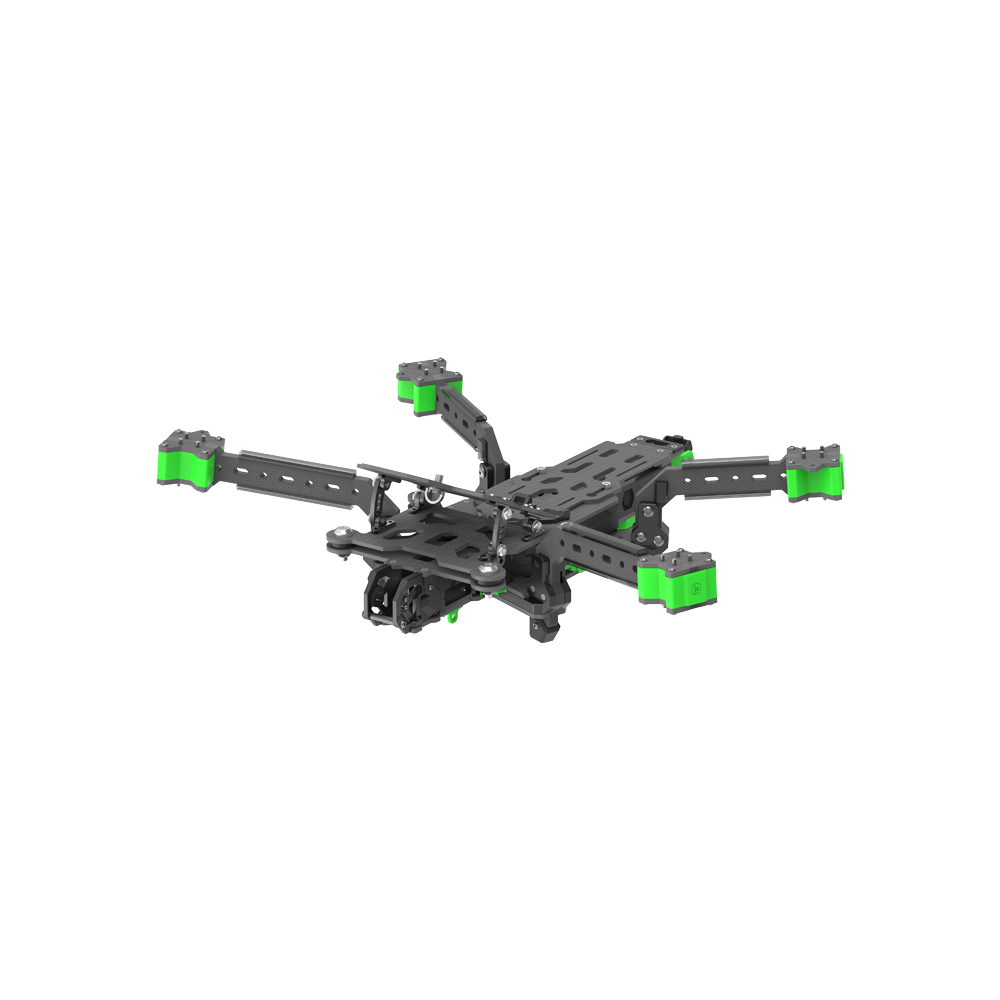

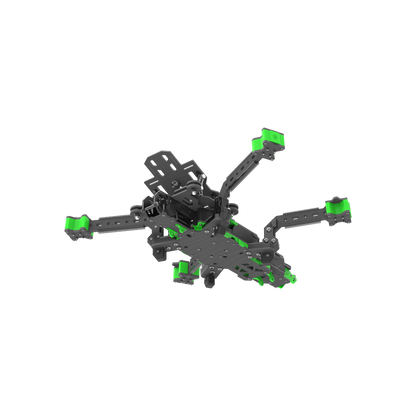

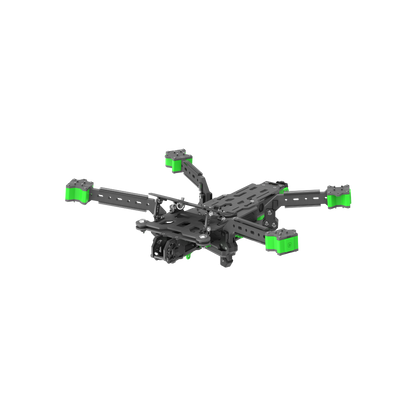

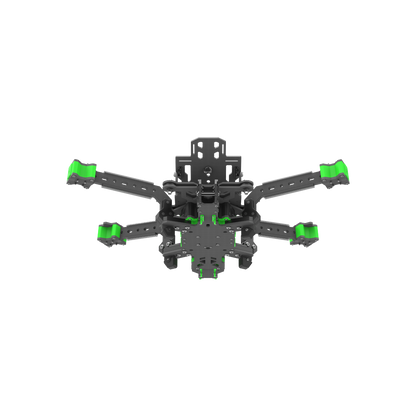

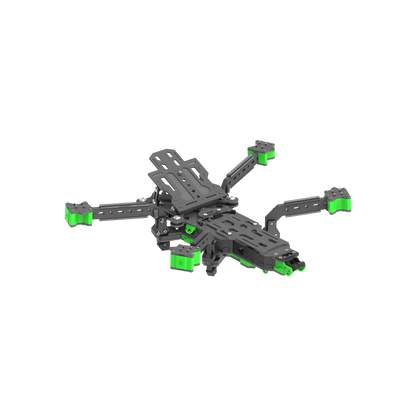

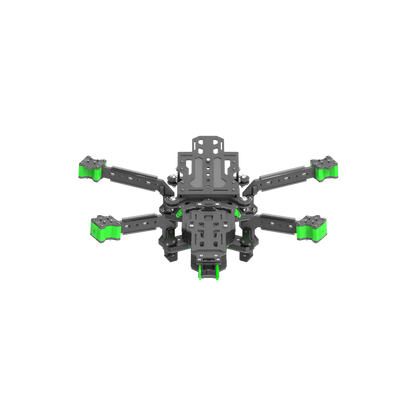

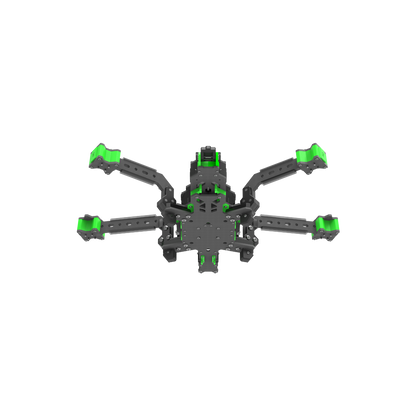

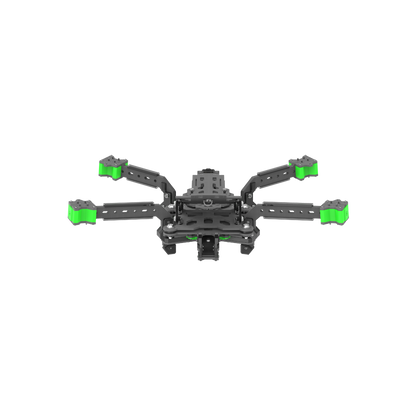

    Frame iFlight Taurus X8 Pro O3

    Frame iFlight Taurus X8 Pro O3

    Brand: iFlight

    €499,99
    €499,99 €499,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Taurus X8 Pro O3 Frame Kit

Function
- Optimized CG with adjustable camera and battery holder
- Stable holder for a CNC camera with a separate silicone ball
- Redundant ESC and motor configuration
- Maximum payload 2kg for various cinema and DSLR cameras

List of changes
March 25, 2023: This frame kit is compatible with the DJI O3 air unit.

Specifications
Product Name: Taurus X8 Pro HD Cinelifter Frame
Wheelbase: 450 mm
Frame size: 428*249 (body size)
Arm thickness: 8 mm
Bottom plate thickness: 3.5 mm
Thickness of the top plate: 3 mm
Thickness of the top plate: 3 mm
Camera plate thickness: 3mm
Motor mounting: 19x19mm
VTX mounting: 30.5*30.5mm/35*35mm
Weight: 1400 grams (without TPU parts)

Packaging included in the price
1 x Taurus V8 Pro HD Cinelifter Frame
2 x 20 x 400mm battery strap (color may vary)
2 x 20 x 410mm battery strap (color may vary)
2 x 20 x 500mm battery strap (color may vary)
1 x Taurus X8 Hardware Accessory Kit
1 x CNC aluminum alloy cam holder
1 x DJI Air TPU Unit Holder
1 x set of 3D printed parts
2 x batteries Anti-slip mats
