Code: SKU:FQ13588

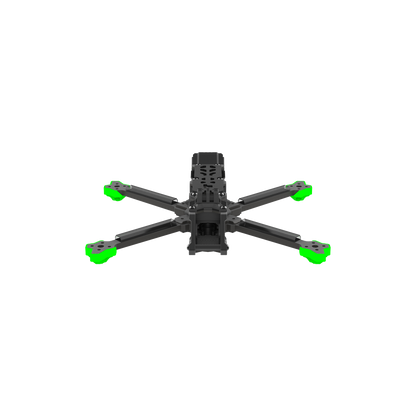

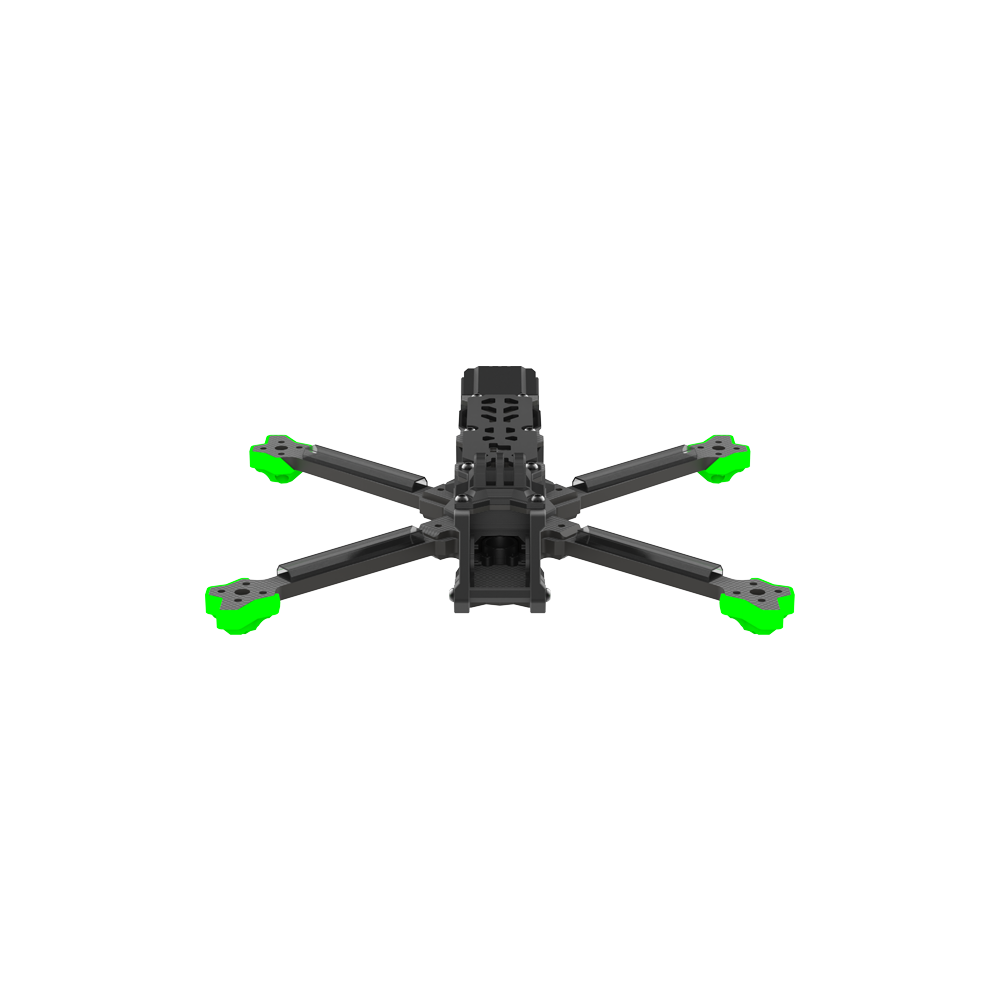

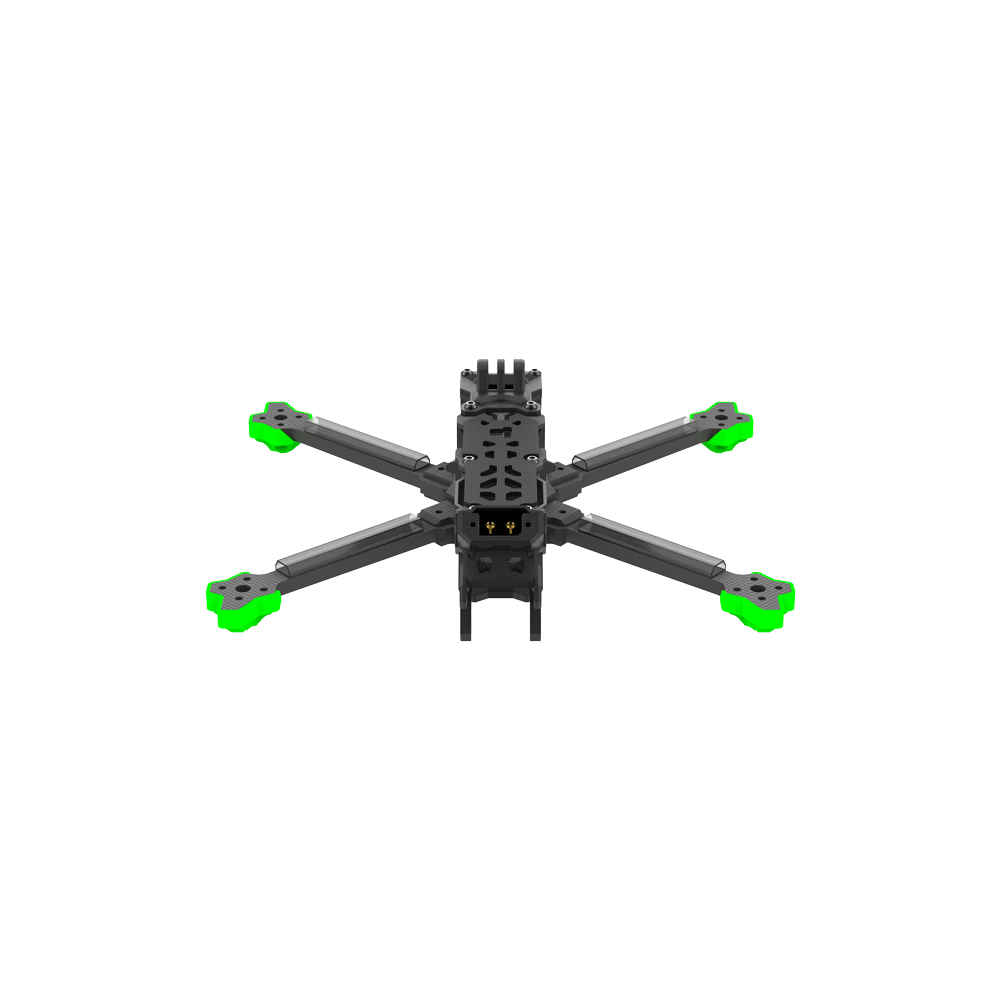

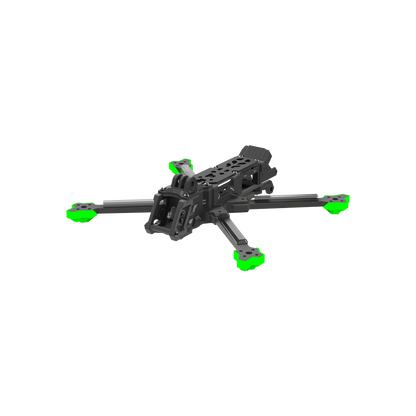

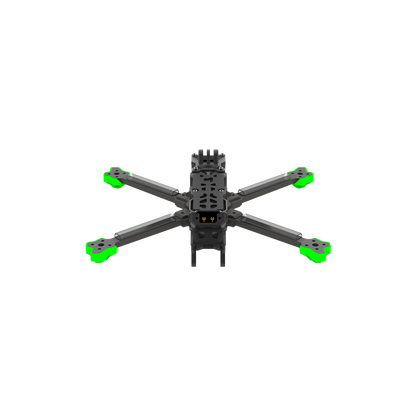

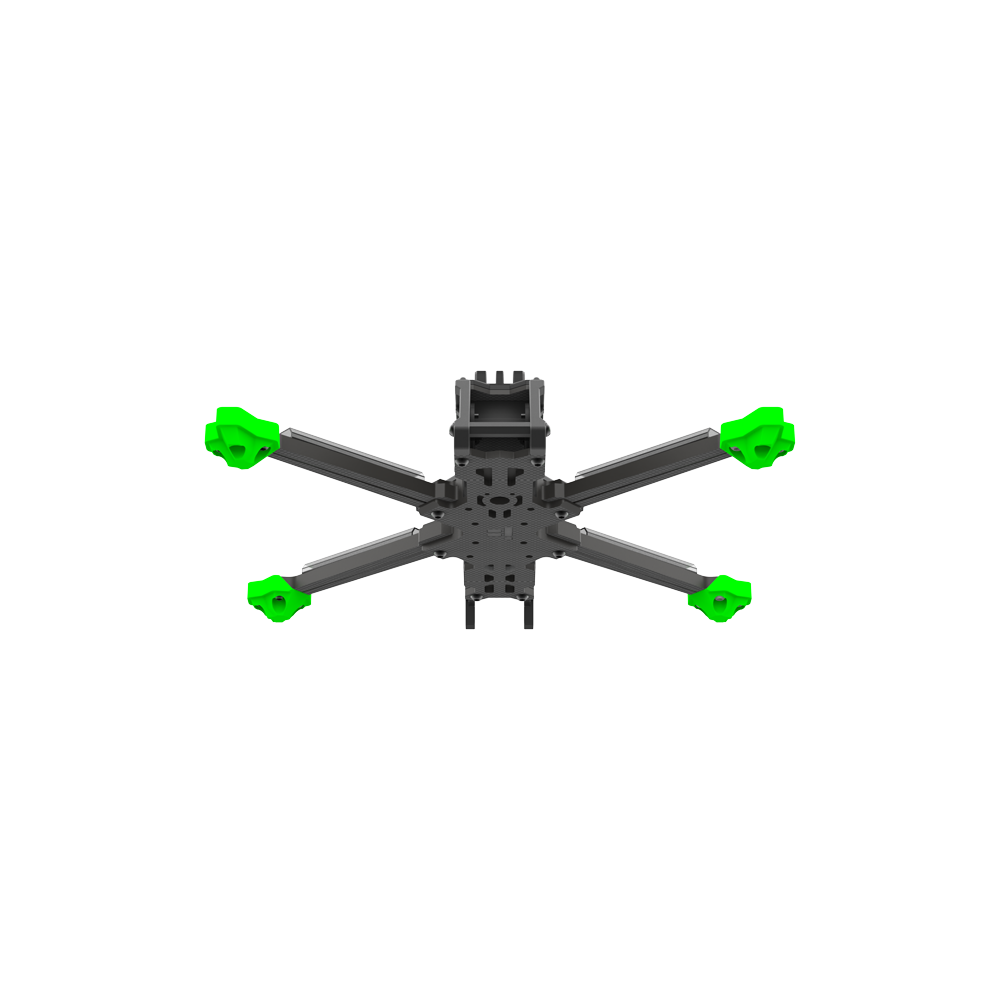

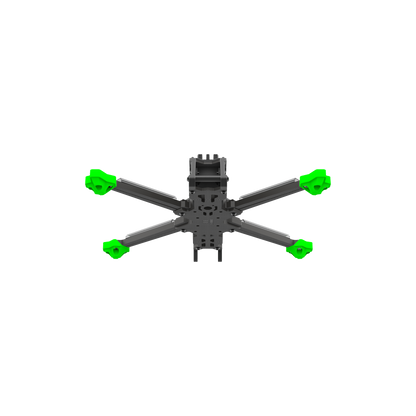

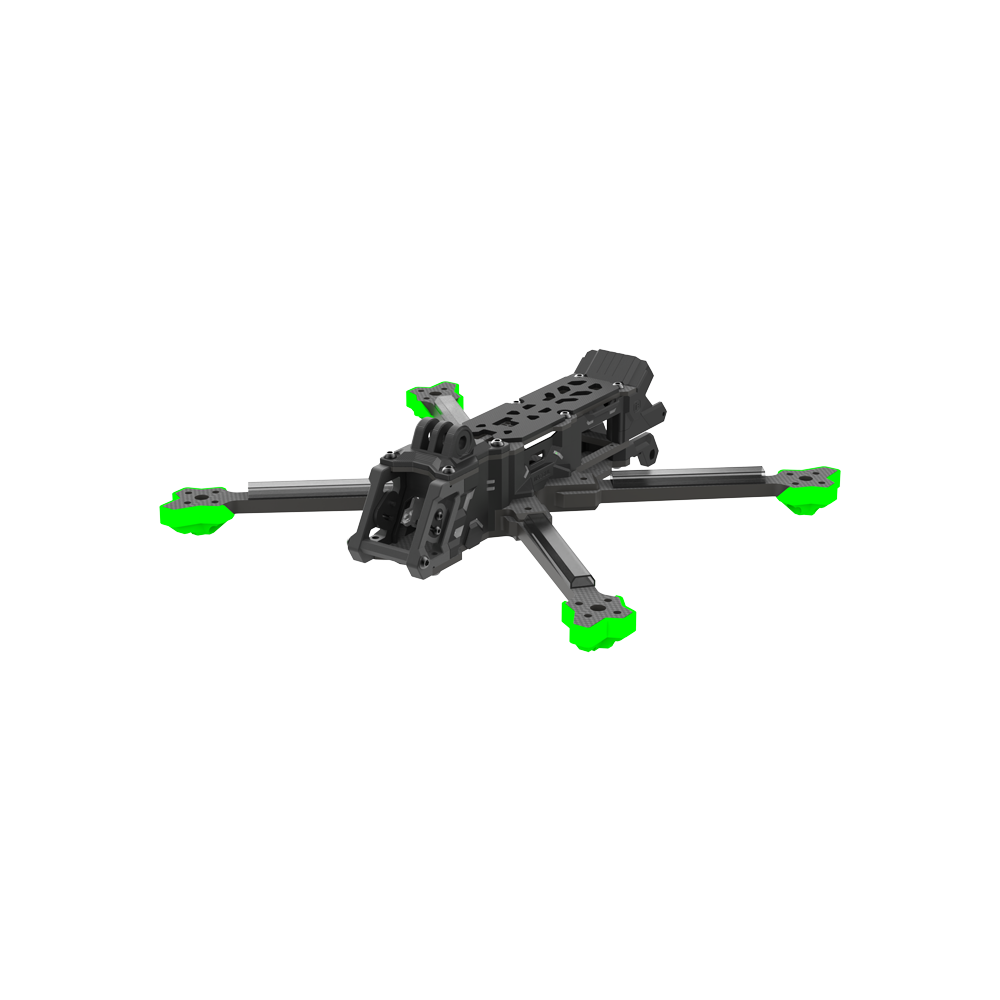

Frame iFlight Nazgul Evoque F6X V2
Frame iFlight Nazgul Evoque F6X V2
Brand: iFlight
Regular price
€98,00
Regular price
€98,00
Sale price
€98,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Nazgul Evoque F6X V2 Frame Kit Function: - V2 version has been upgraded for DJI O3 HD air unit digital transmission. - Specially designed cooler for DJI O3 air unit. - New camera mount for wider camera FOV with cushioning TPU inserts. - New side panels that perfectly fit the O3 air unit in the back. - New dual 5.8G VTX antenna TPU holder. - Latest Nazgul frame upgrades for maximum protection. Specifications: Product Name: Evoque F6 V2 Frame Kit Frame wheelbase: 255mm (Squashed X) Frame size: L196*W164*H36mm (squeezed X) Frame body size: 36mm Arm thickness: 6 mm Bottom plate thickness: 3 mm Thickness of the top plate: 2 mm Thickness of the top plate: 3 mm Camera plate thickness: 3mm Maximum magazine height: 22 mm Maximum height of VTX: 23 mm FC Mounting: 20*20/Φ3mm Motor mounting: 16*16/Φ3mm VTX mounting: 25.5*25.5 φ1.6mm Weight: 252 g The package includes: 1 x Evoque F6 V2 Frame Kit 1 x O3 air unit cooler 2 x O3 IPEX to RP-SMA antenna pigtails 1 x O3 dual antenna TPU 1 x GoPro TPU Base Mount 1 x bag of screws 4 x TPU arm protector 1x TPU front bumper 1x TPU rear bumper 2 x non-slip battery mat 2 x battery strap (20*250 mm) 1 x battery strap (20*250mm)
