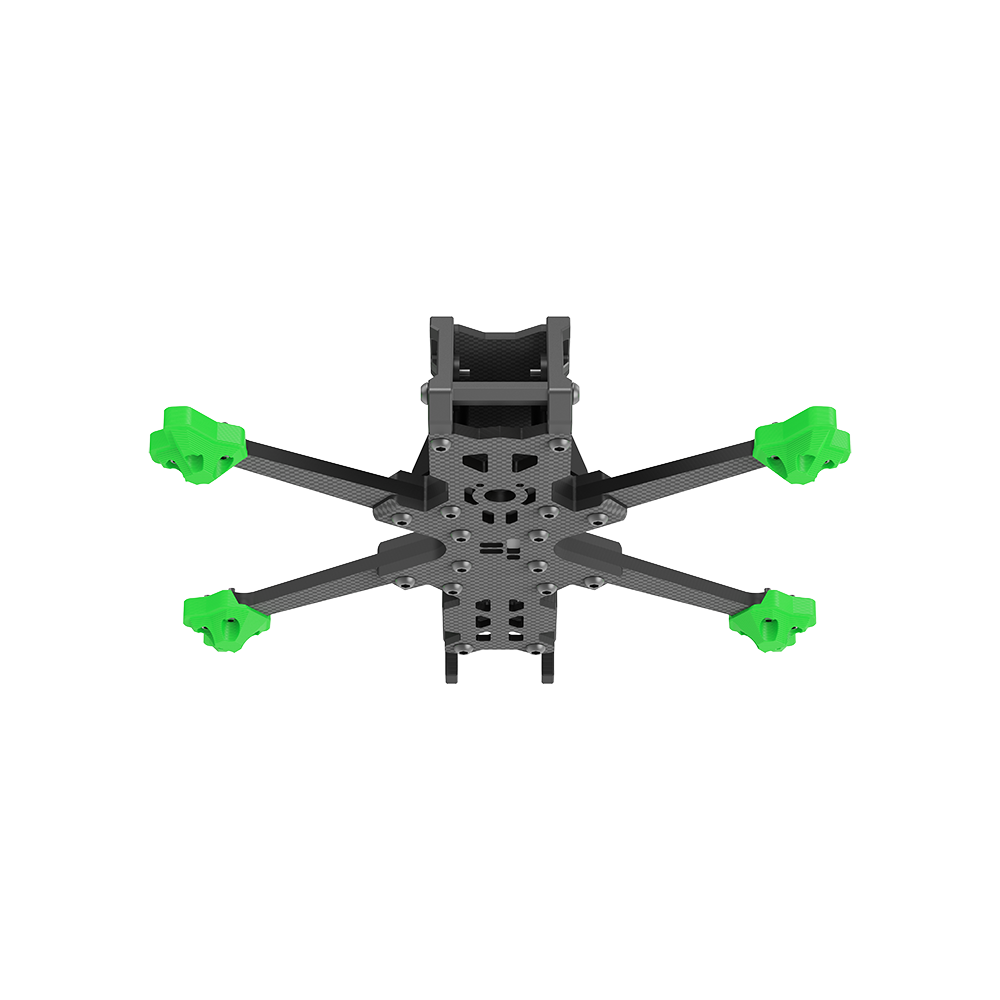

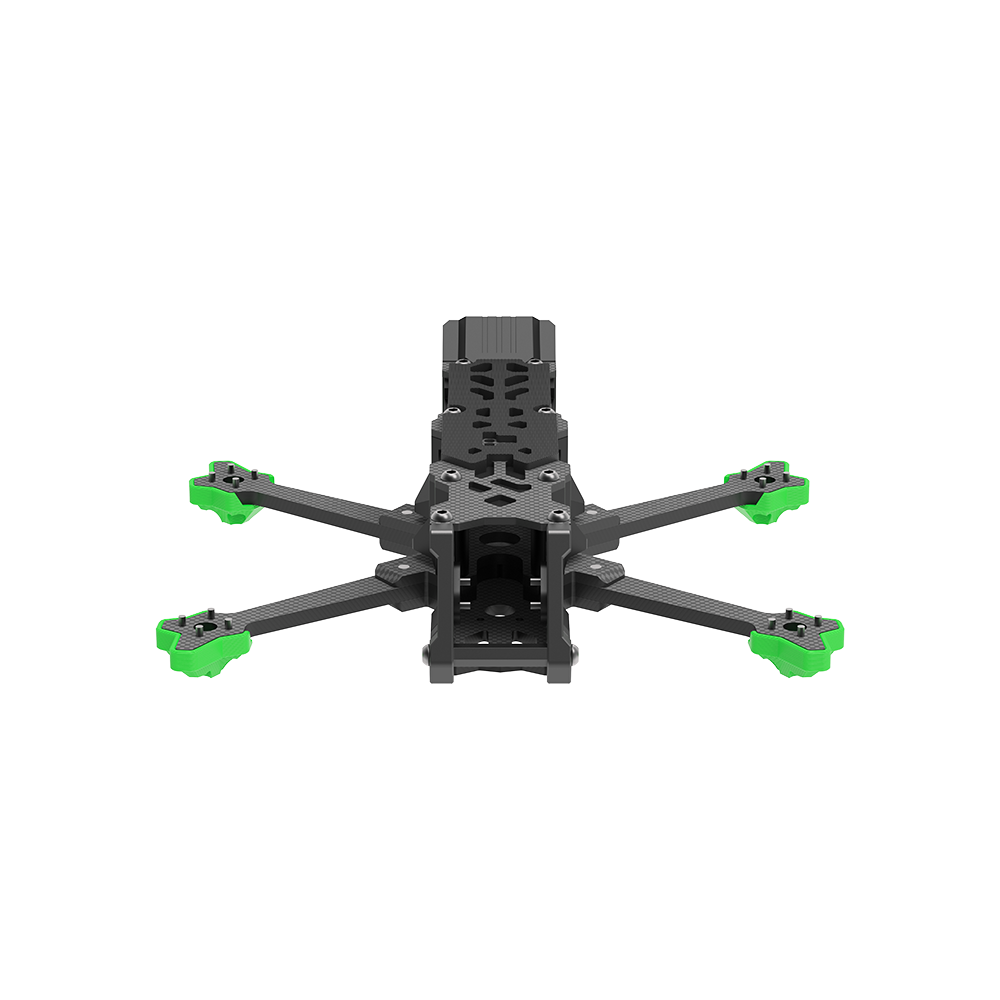

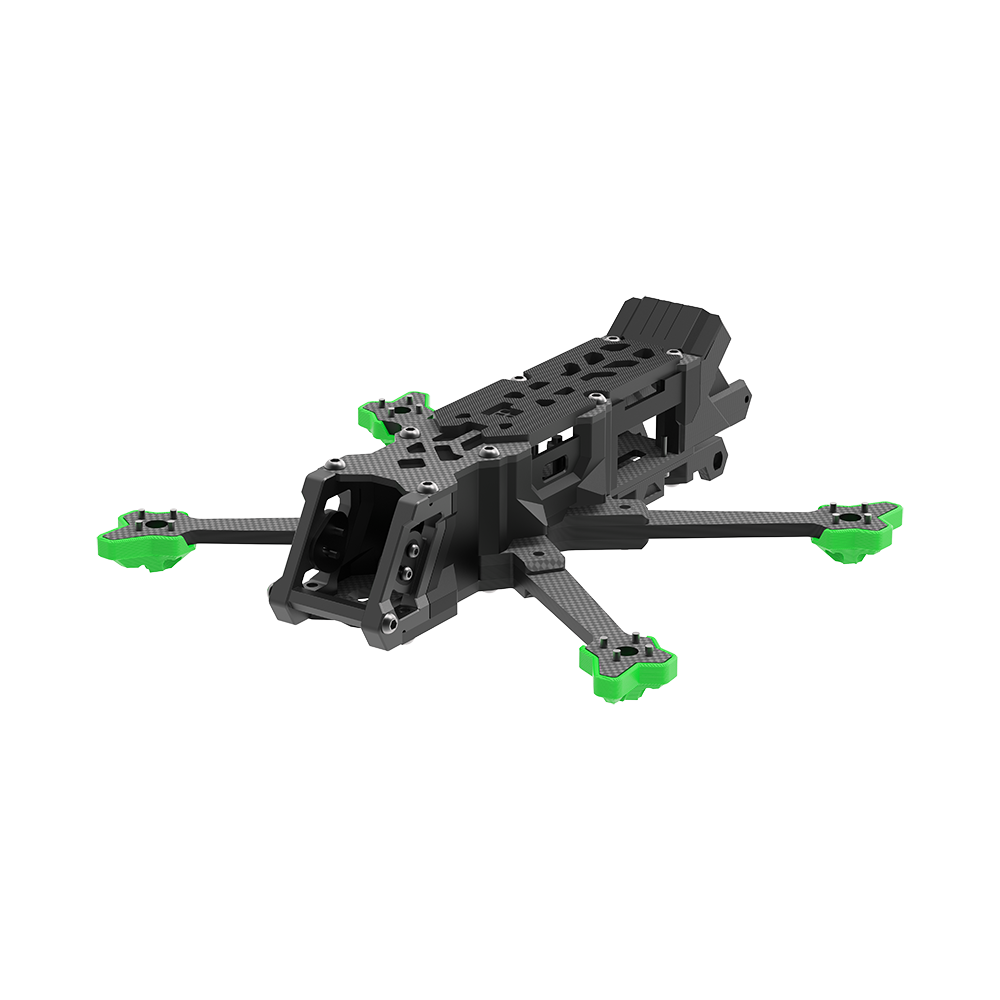

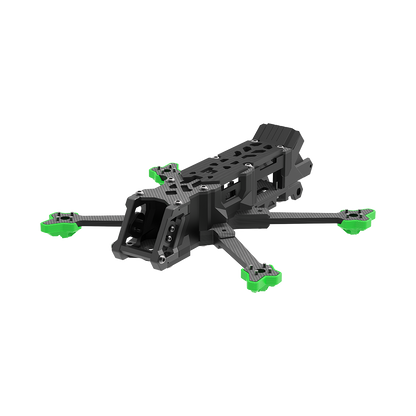

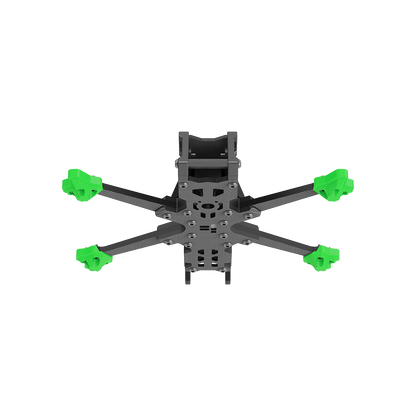

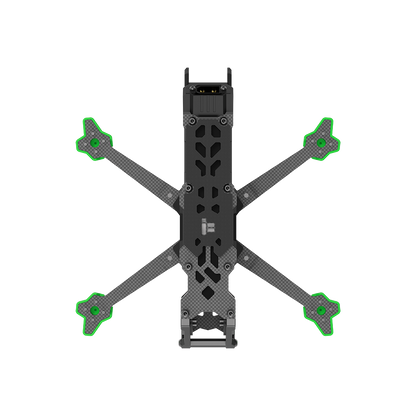

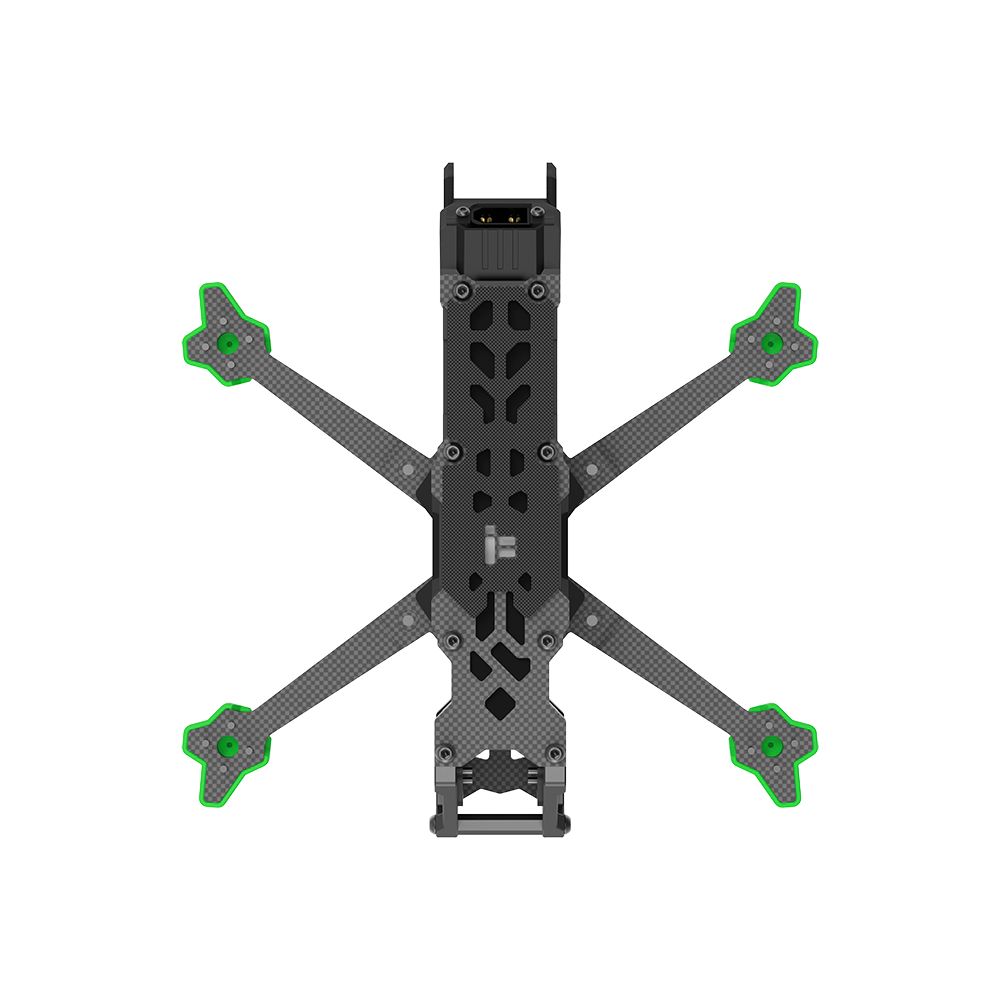

Nazgul Evoque F4X Frame Kit The latest frame minimizes the risks of contaminating your flight controller and ESC and protects against malfunctions or short circuits. Modified airflow ensures optimal cooling and cleanliness without compromising weight or performance. The latest version of the Nazgul Evoque F4 boasts improved performance and a sleeker and lighter design. Specifications: Product Name: Evoque F4 Frame Kit Geometric model: Squashed X Frame Wheelbase: 184.8mm (Squashed X) Frame size: L148.5*W110*H36mm (squeezed X) Frame body size: 36mm Arm thickness: 4 mm Bottom plate thickness: 3 mm Thickness of the top plate: 2 mm Thickness of the top plate: 3 mm Maximum magazine height: 23 mm Maximum height of VTX: 23 mm Flight Stack assembly: 20*20/Φ3mm VTX mounting: 25.5*25.5/Φ1.6mm Motor mounting: 12x12mm/φ2mm Weight: 163 grams Packing List: 1 x Evoque F4 Frame Kit 1x TPU set 1 x GoPro TPU Base Mount 1 x bag of screws 1 x non-slip battery pad 2 x battery strap
