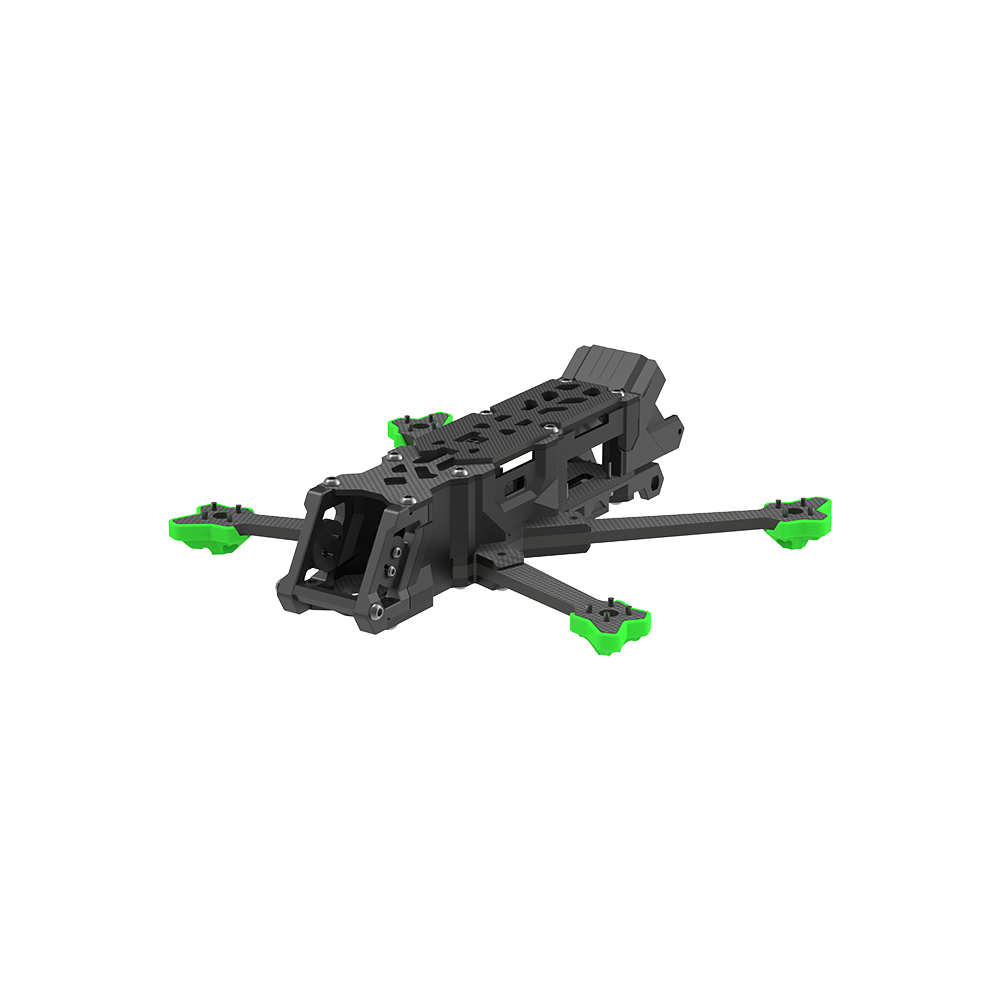

    Frame iFlight Nazgul Evoque F4D

    Frame iFlight Nazgul Evoque F4D

    Brand: iFlight

    €68,60
    €68,60 €68,60
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Nazgul Evoque F4D Frame Kit

The latest frame minimizes the risks of contaminating your flight controller and ESC and protects against malfunctions or short circuits. Modified airflow ensures optimal cooling and cleanliness without compromising weight or performance. The latest version of the Nazgul Evoque F4 boasts improved performance and a sleeker and lighter design.

Specifications:
Product Name: Evoque F4 Frame Kit
Geometric model: Deadcat
Frame wheelbase: 185 mm (DeadCat)
Frame size: L149*W110*H36mm (DeadCat)
Frame body size: 36mm
Arm thickness: 4 mm
Bottom plate thickness: 3 mm
Thickness of the top plate: 2 mm
Thickness of the top plate: 3 mm
Maximum magazine height: 23 mm
Maximum height of VTX: 23 mm
Flight Stack assembly: 20*20/Φ3mm
VTX mounting: 25.5*25.5/Φ1.6mm
Motor mounting: 12x12mm/φ2mm
Weight: 163 grams

Packing List:
1 x Evoque F4 Frame Kit
1x TPU set
1 x GoPro TPU Base Mount
1 x bag of screws
1 x non-slip battery pad
2 x battery strap
