Code: SKU:FQ15861

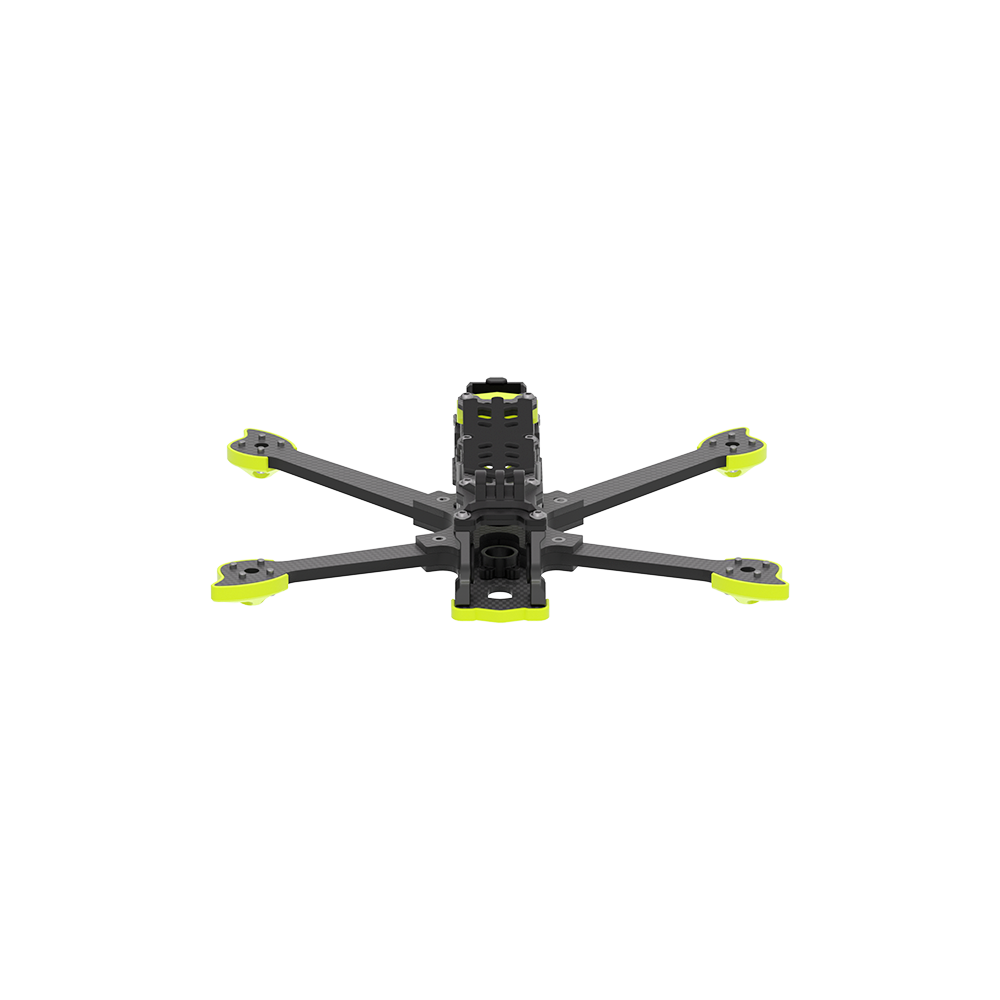

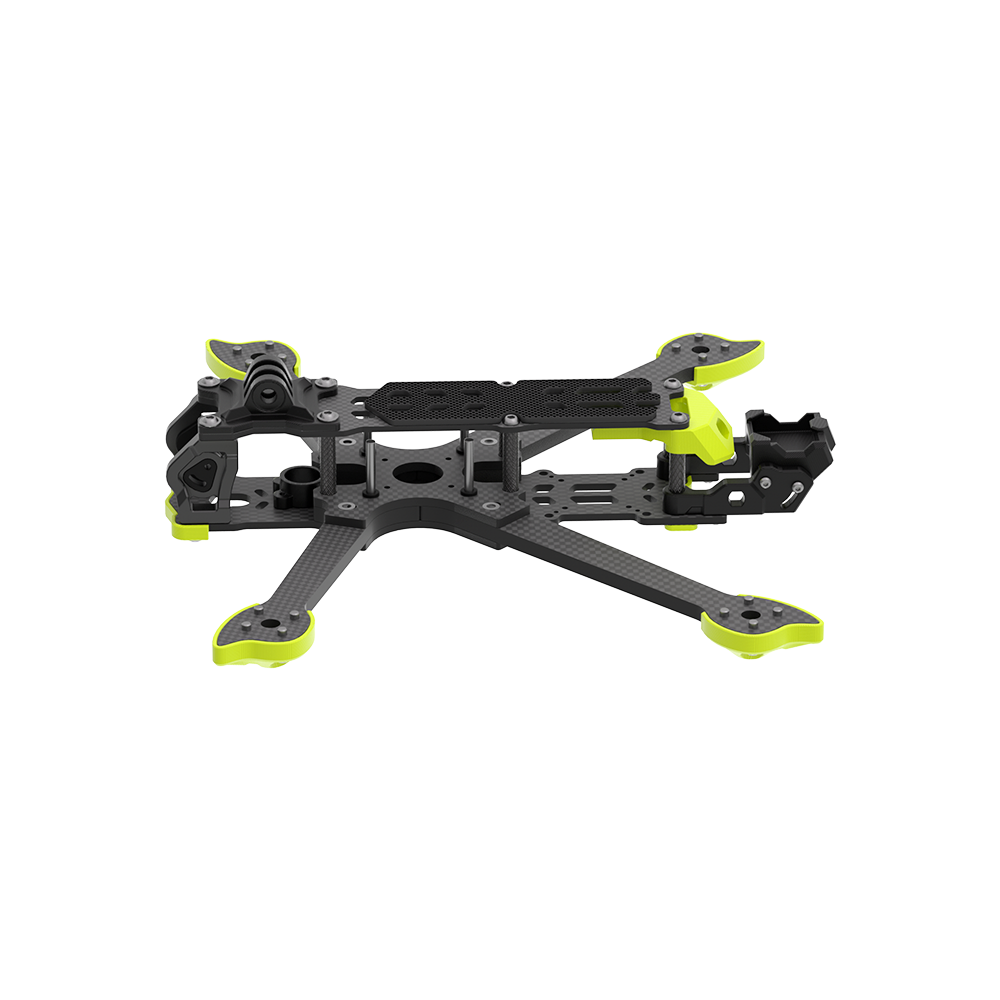

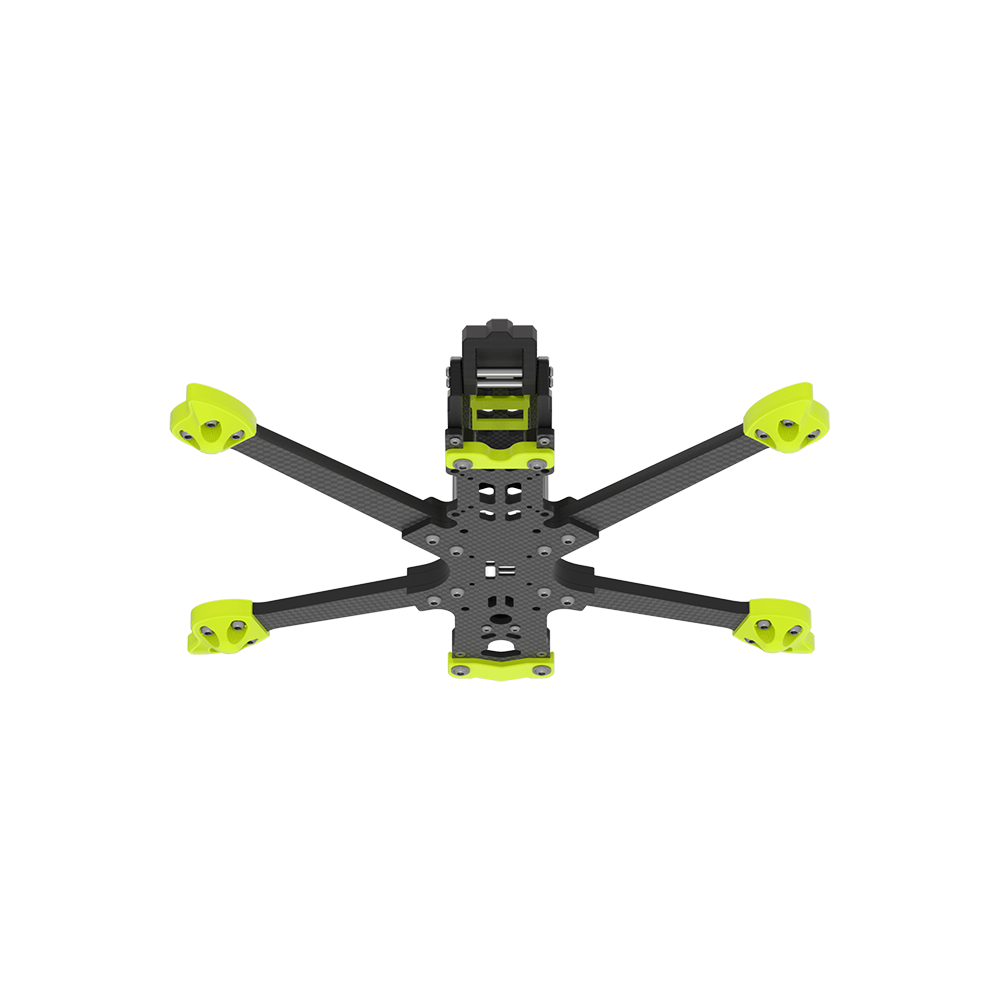

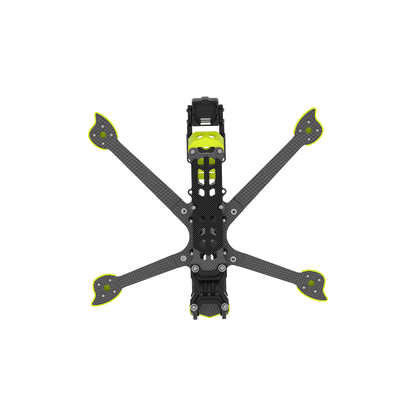

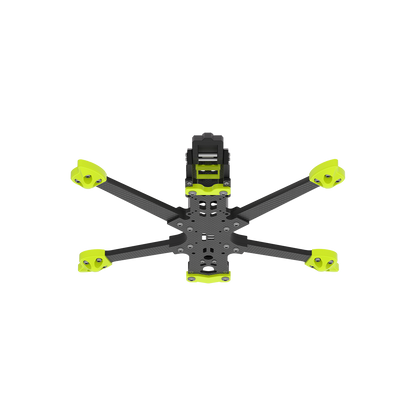

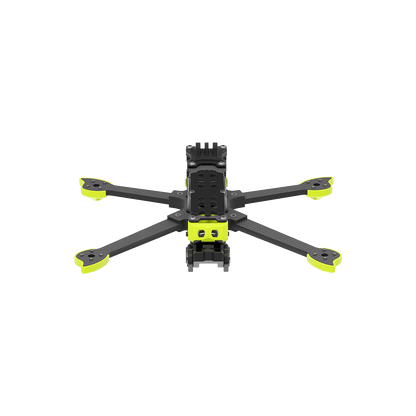

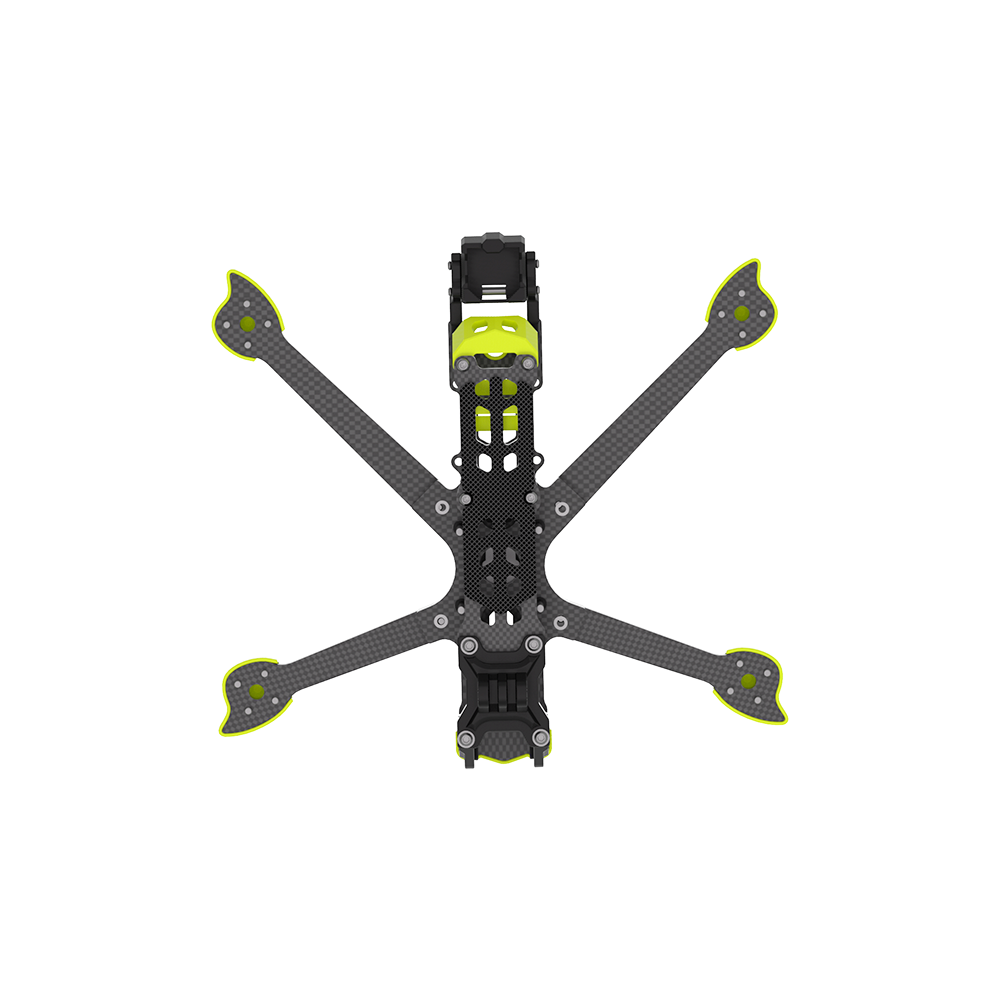

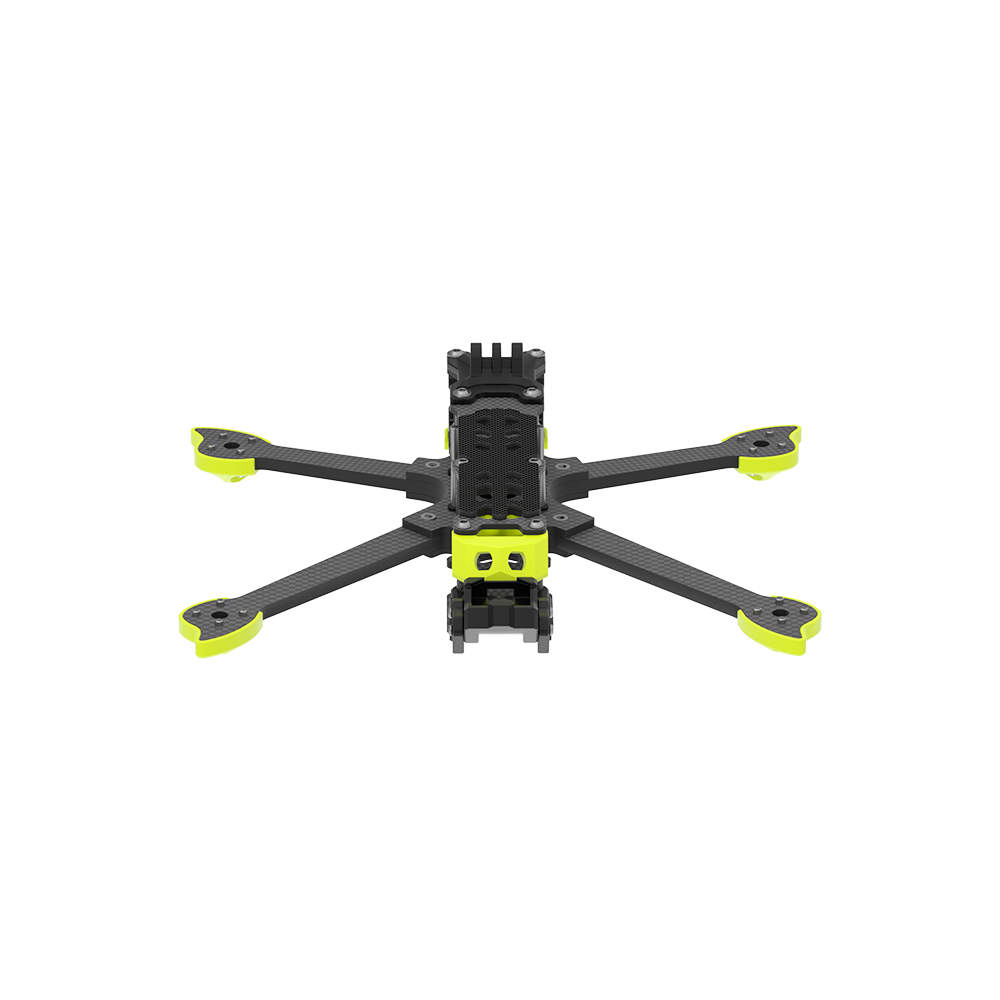

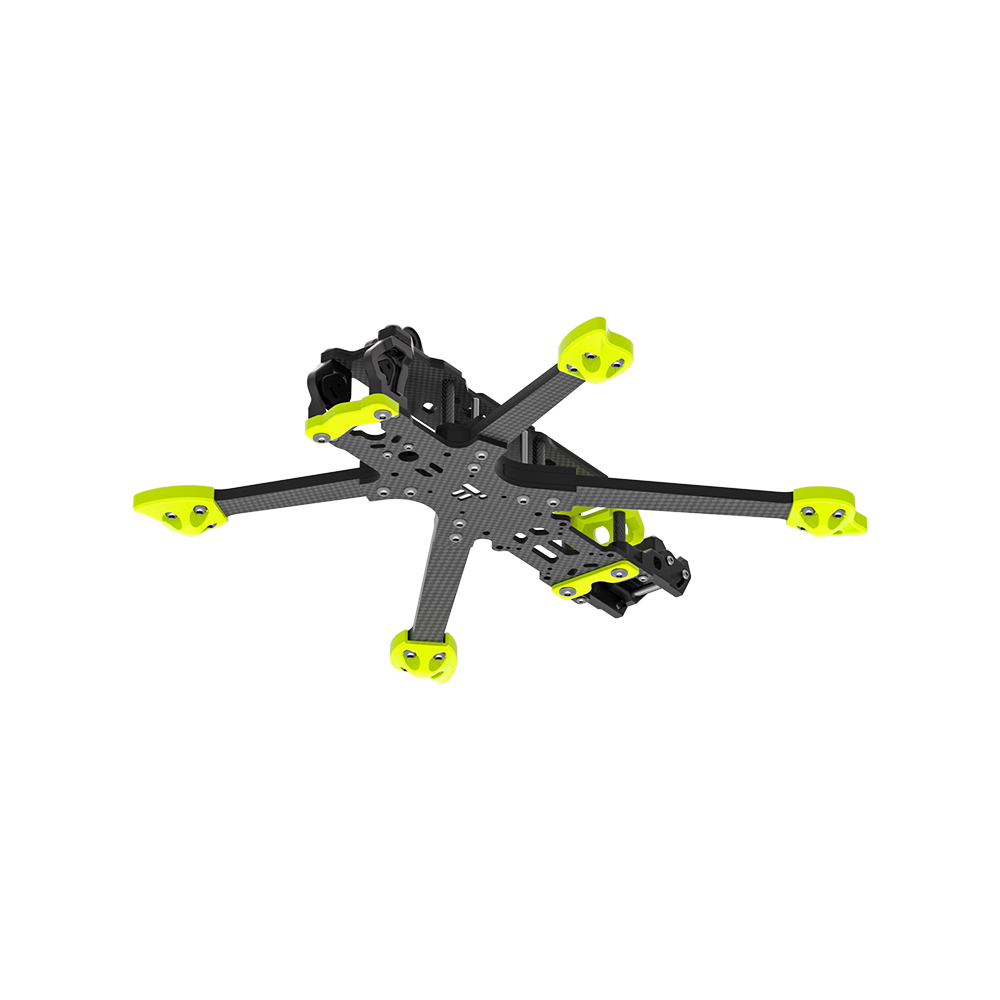

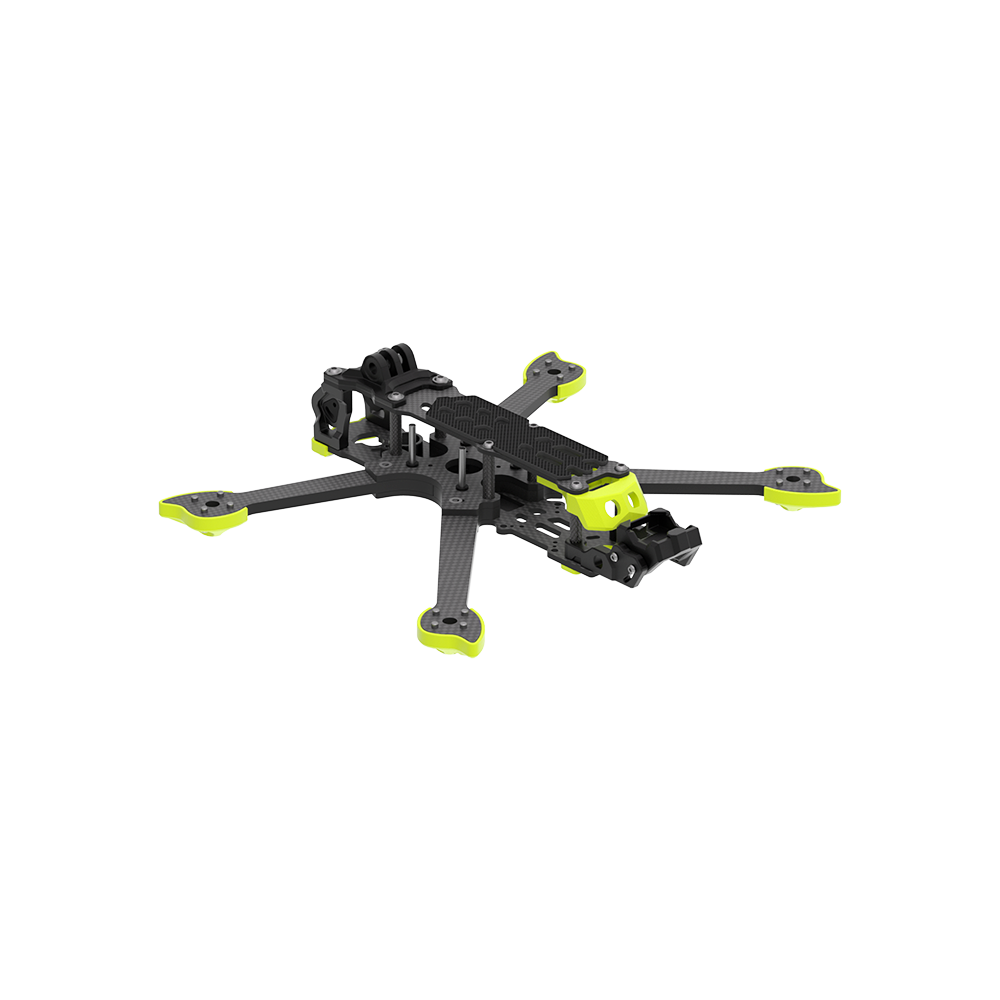

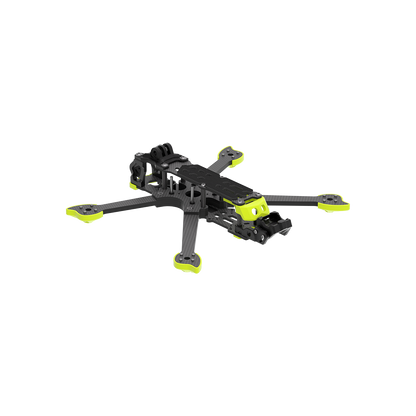

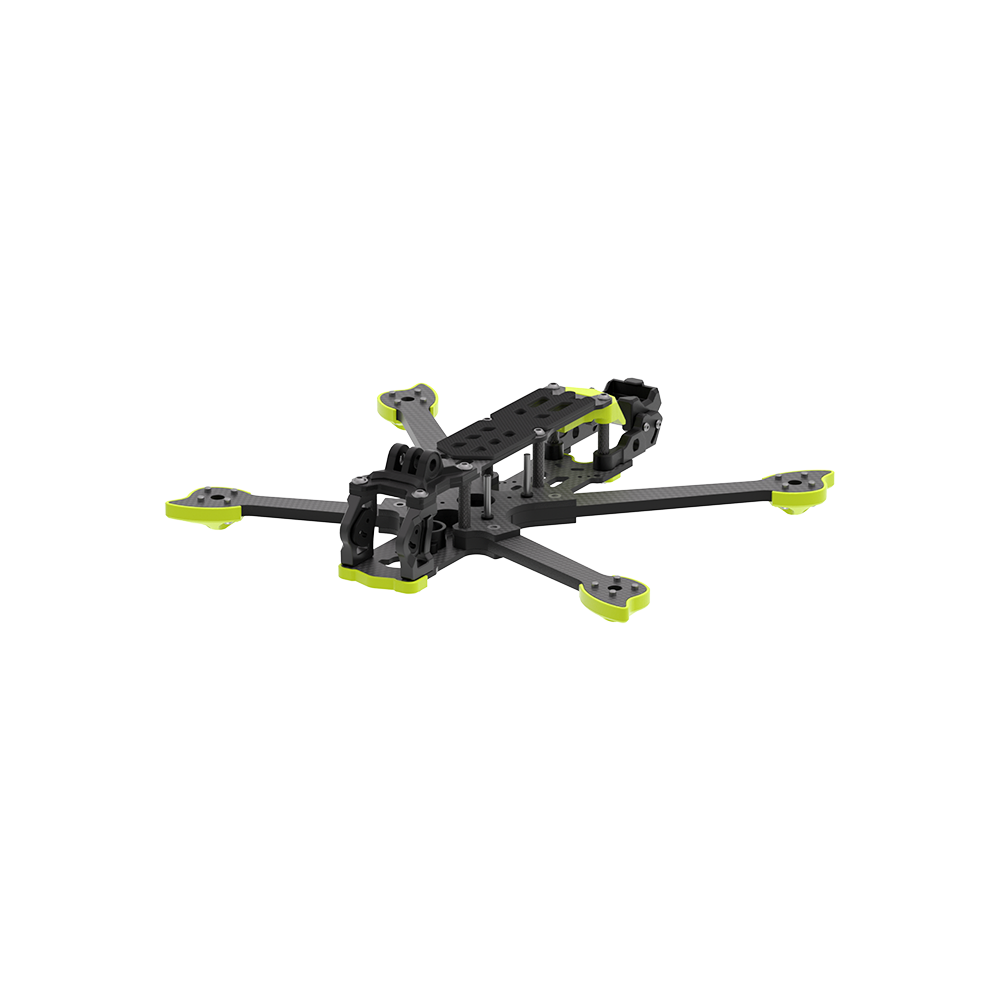

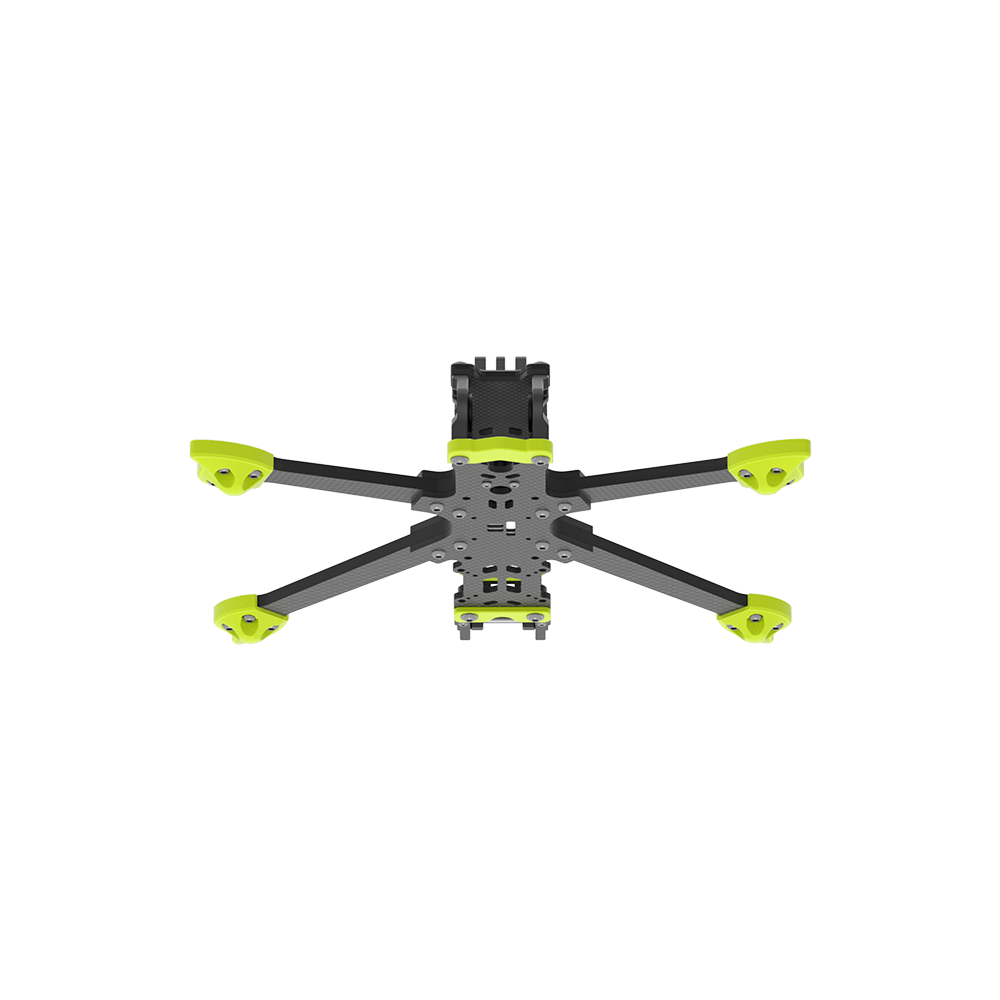

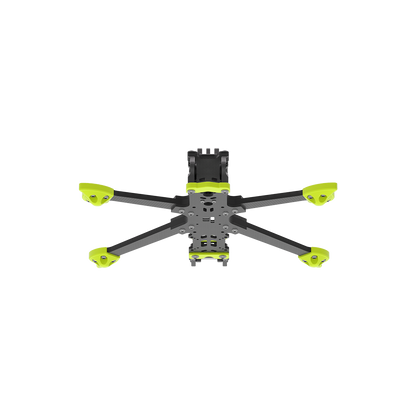

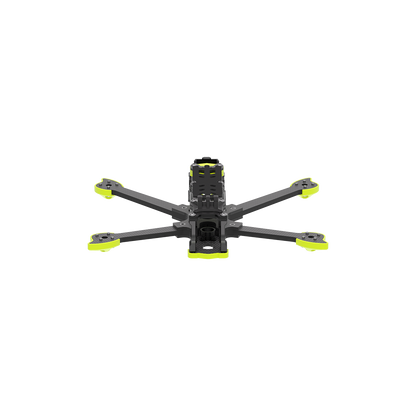

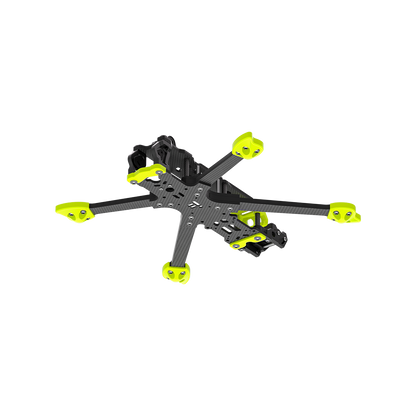

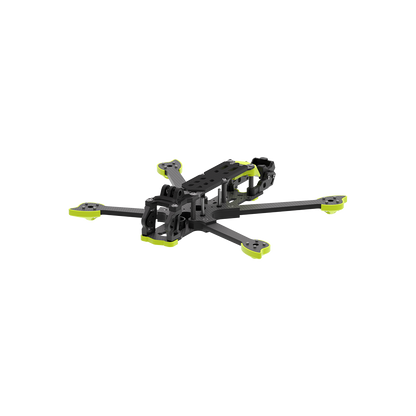

Frame iFlight Nazgul DC5
Frame iFlight Nazgul DC5
Brand: iFlight
Regular price
€64,98
Regular price
€64,98
Sale price
€64,98
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Nazgul DC5 frameset The iFlight Nazgul5 V3 frame is a 5" freestyle frame. Made from super stiff carbon for minimal resonance and recommended 2207 motors for maximum 5" propeller control. Specifications: Product Name: Nazgul5 Frame Kit V3 Geometry: Squashed-X Wheelbase: 245 mm Frame size: L173*W173*H36.5 mm Frame body size: 36.5mm Arm thickness: 5 mm Bottom plate thickness: 3 mm Thickness of the top plate: 2.5 mm Thickness of the top plate: 3 mm Camera plate thickness: 3mm Maximum magazine height: 21 mm Maximum height of VTX: 29 mm Motor mounting: 16x16mm VTX mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm Weight: 130 grams (without TPU parts) Packing List: 1 x Nazgul5 V3 Frameset 1 x GoPro TPU Base Mount 1 x bag of screws 4 x TPU arm protector 1 x TPU bottom plate front protection 1 x bottom plate TPU back protection 1 x non-slip battery pad 4 x motor wire shield tube 2 x battery strap (20*250 mm)
