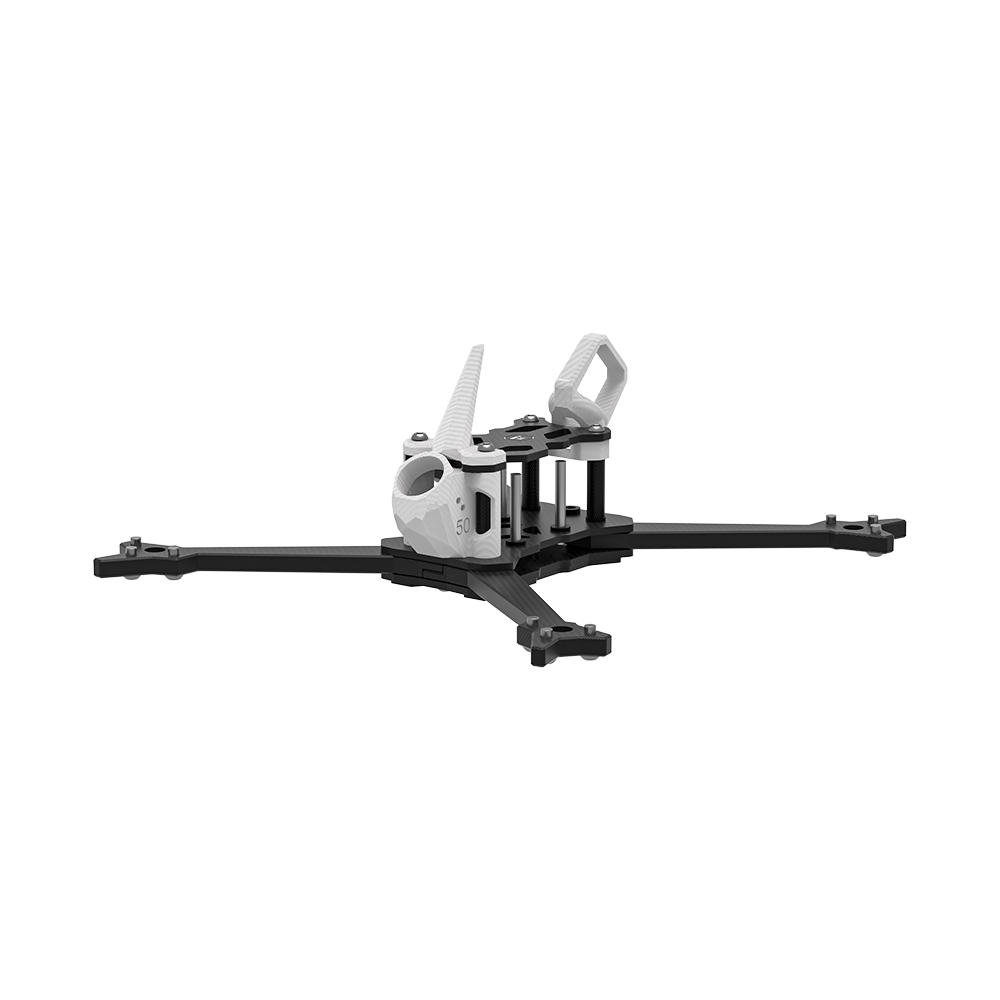

Frame iFlight Mach R5 Sport Ultra version The Mach R5 Sport Race Frameset is designed for serious FPV racing enthusiasts who value both performance and customizability. It offers three configurations — Canopy, Lite and Ultra — that provide flexibility for different racing needs. Made from carbon fiber with lightweight plastic components, it strikes the perfect balance between durability and reduced weight. It features robust arm thickness, versatile mounting options and plenty of room for VTX and flight stacks, ensuring safe and efficient component integration. The modular design makes assembly and maintenance easy, while the aerodynamic construction provides high speed, agility and frame stability for top racing performance. Specifications: Wheelbase: 210 mm (Canopy / Lite version) / 190 mm (Ultra version) Frame dimensions: 148 × 148 × 51 mm (Canopy version) / 148 × 148 × 37 mm (Lite version) / 169 × 161 × 35 mm (Ultra version) Top plate: 2mm (Lite/Ultra version) Arm thickness: 5.5mm (Canopy / Lite version) / 5mm (Ultra version) Bottom plate thickness: 2 mm Top plate thickness: 4mm (Canopy / Lite version) / 2mm (Ultra version) Maximum flight stack height: 25mm (Canopy / Lite version) / 23mm (Ultra version) Maximum VTX height: 25mm (Canopy / Lite version) / 23mm (Ultra version) FC mounting: 20 × 20 / Φ3 mm Motor mounting: 16 × 16 / Φ3 mm VTX mounting: 20 × 20 / Φ3 mm Weight: 107g (Canopy version) / 128g (Lite version) / 92g (Ultra version) Recommended engines: series 22**, 23**, 24**, 25** Recommended parts (not included): BLITZ Mini F722 flight controller BLITZ E55R 4-in-1 2-6S 55A ESC R5 2207 engines The package contains: 1 x Mach R5 Sport Frameset (Unassembled) 2 x battery straps (20 x 250 mm) 1 x TPU set 2 x non-slip battery pads
