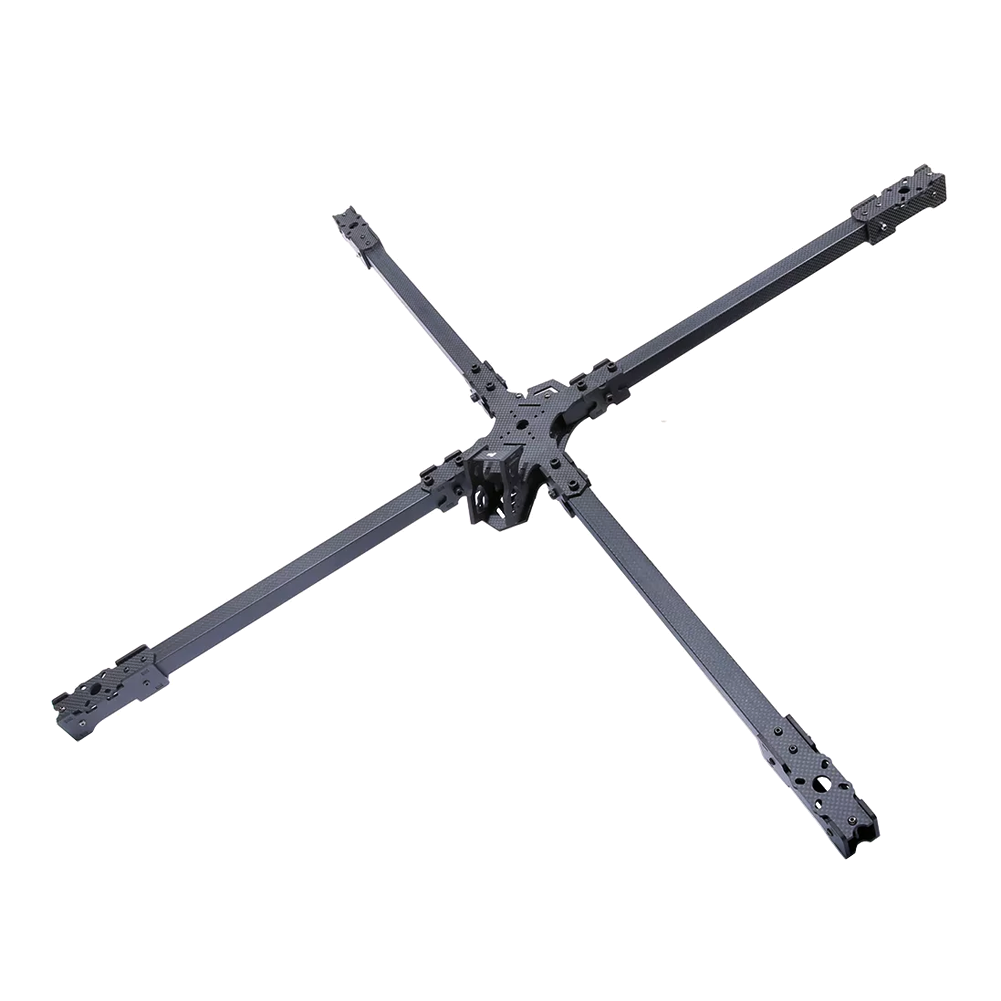

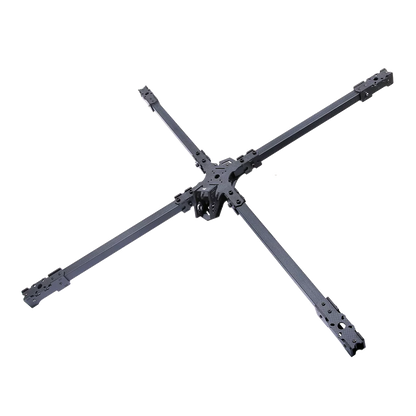

    iXC13 X-CLASS Racing Frameset

Function:
- Ture X design, pure 3K carbon fiber.
- Comes with a GoPro mount, enough space to install the device.

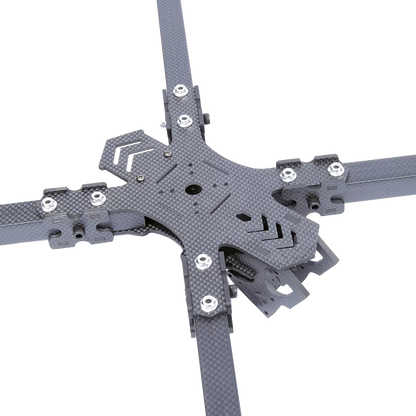

- Omni-directional locking structure of the arm to ensure the strength of the connection between the arm and the body.

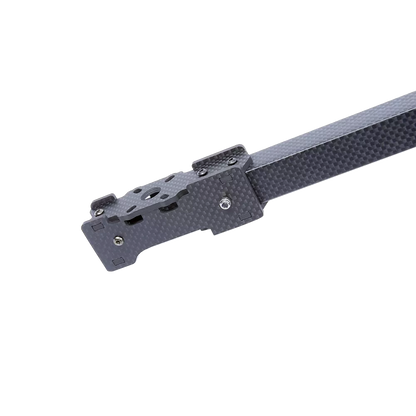

- The unique motor base design ensures quick installation and high strength.

Specifications:

Product Name: iXC13 X Class Frame
Wheelbase: 850 mm
Carbon tube arm size: 20mm * 20mm * 375mm
Tube: 20mm (OD), 18mm (ID)
Frame body size: 20mm
Length of individual tube: 375 mm
Arm thickness: 6 mm
Bottom plate thickness: 3 mm
Thickness of the top plate: 2 mm
Thickness of the top plate: 3 mm
Camera plate thickness: 3mm
Motor mounting: 19x19mm - 25*25mm
VTX mounting: 30.5*30.5mm / 20*20mm
Weight: 503.9 grams (without TPU parts)

The package includes:
1 x iFlight iXC13 850mm X CLASS race only frame
