    Code: FQ14091

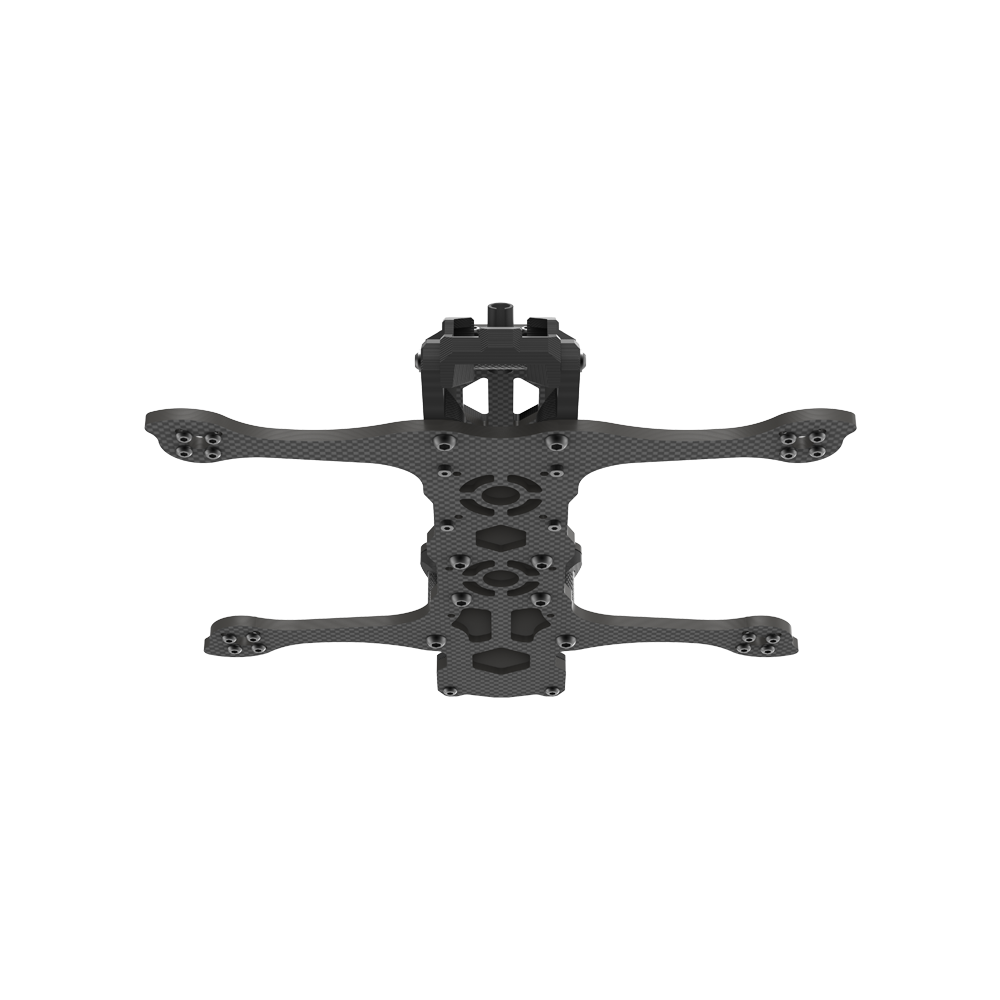

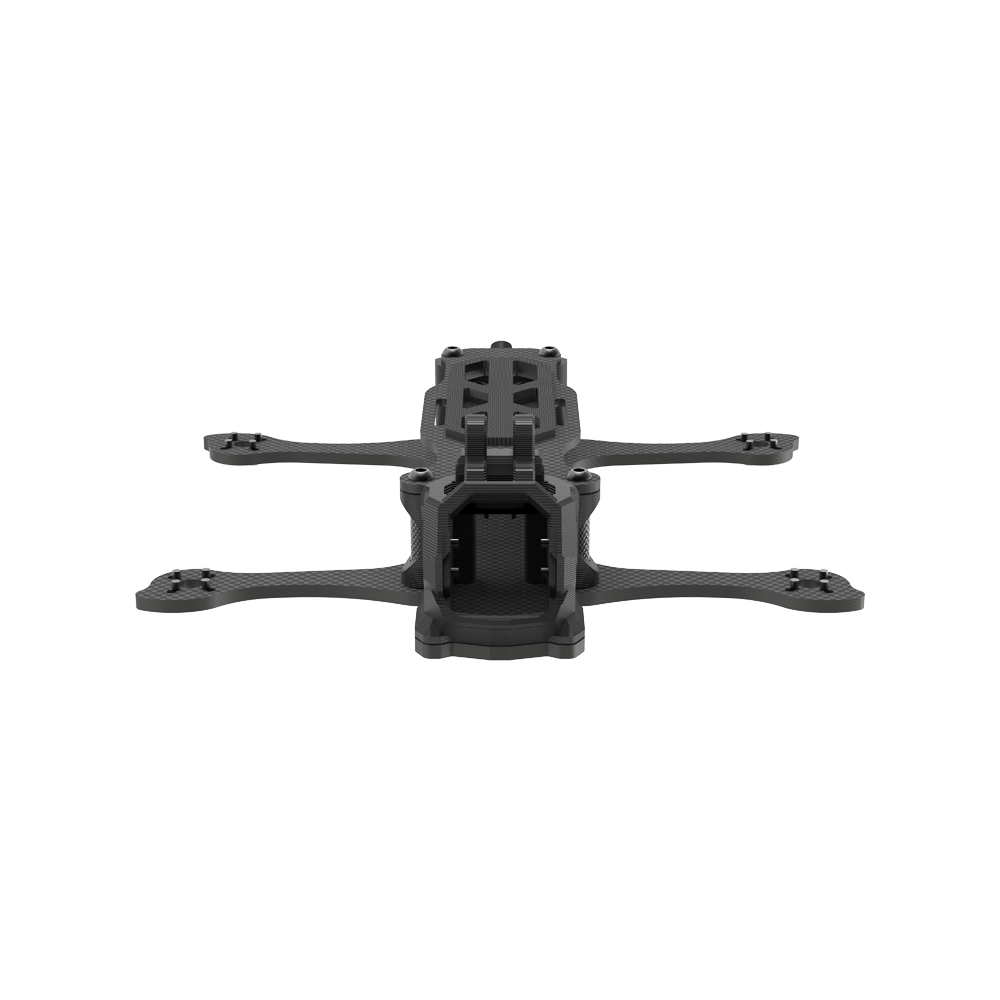

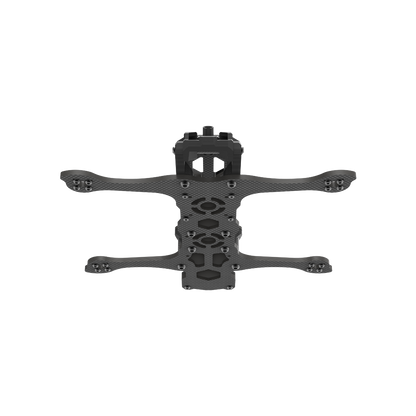

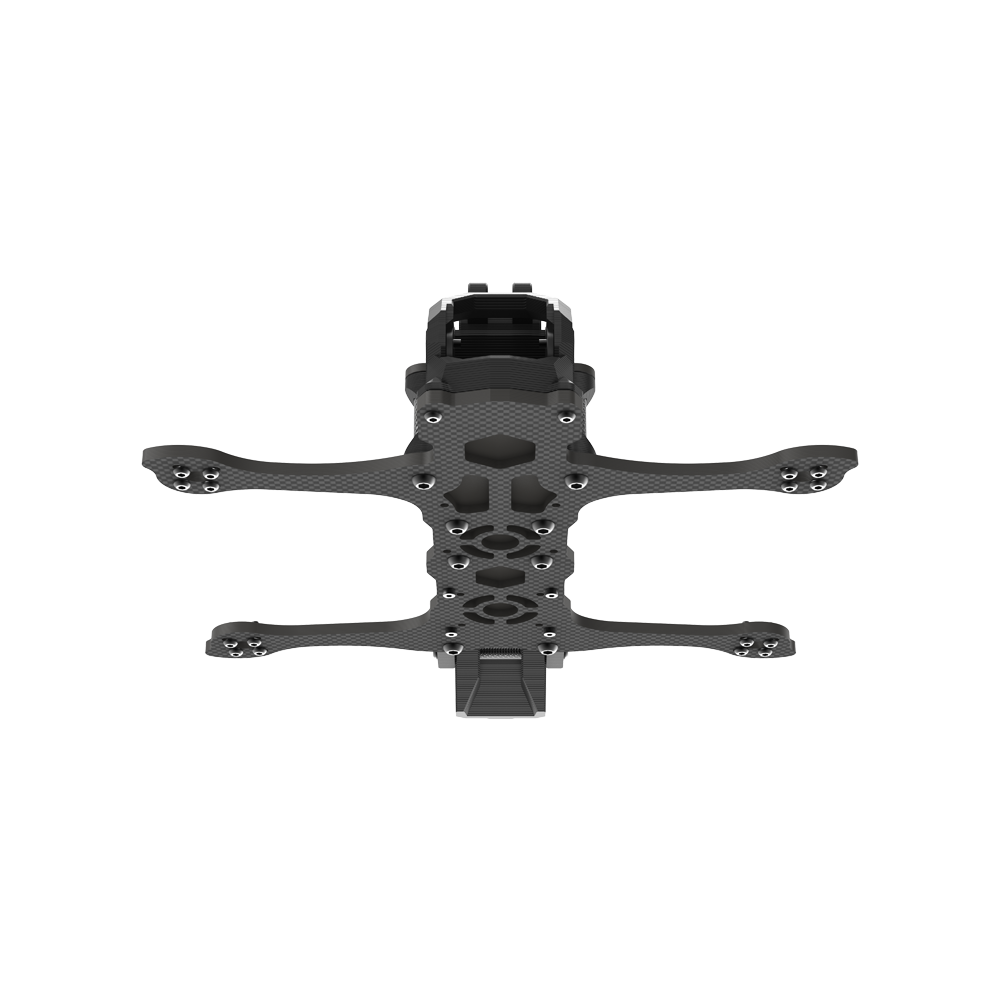

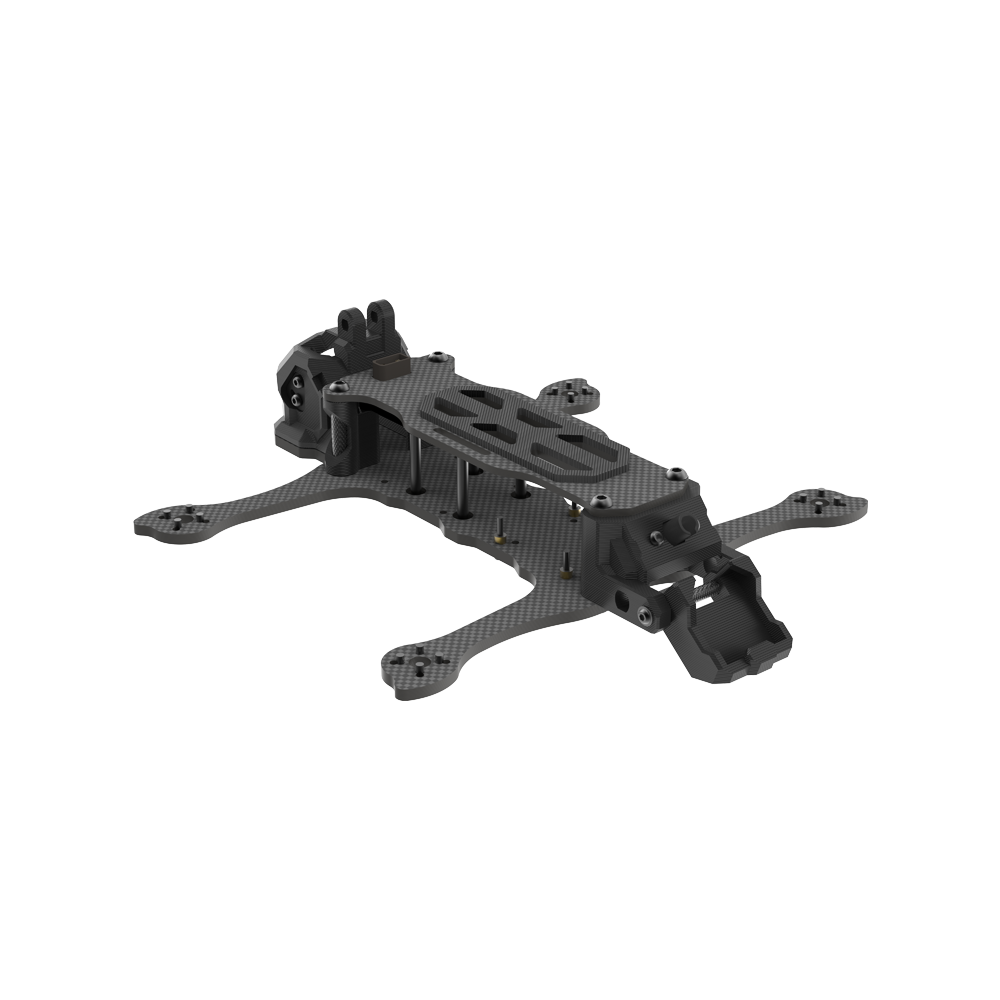

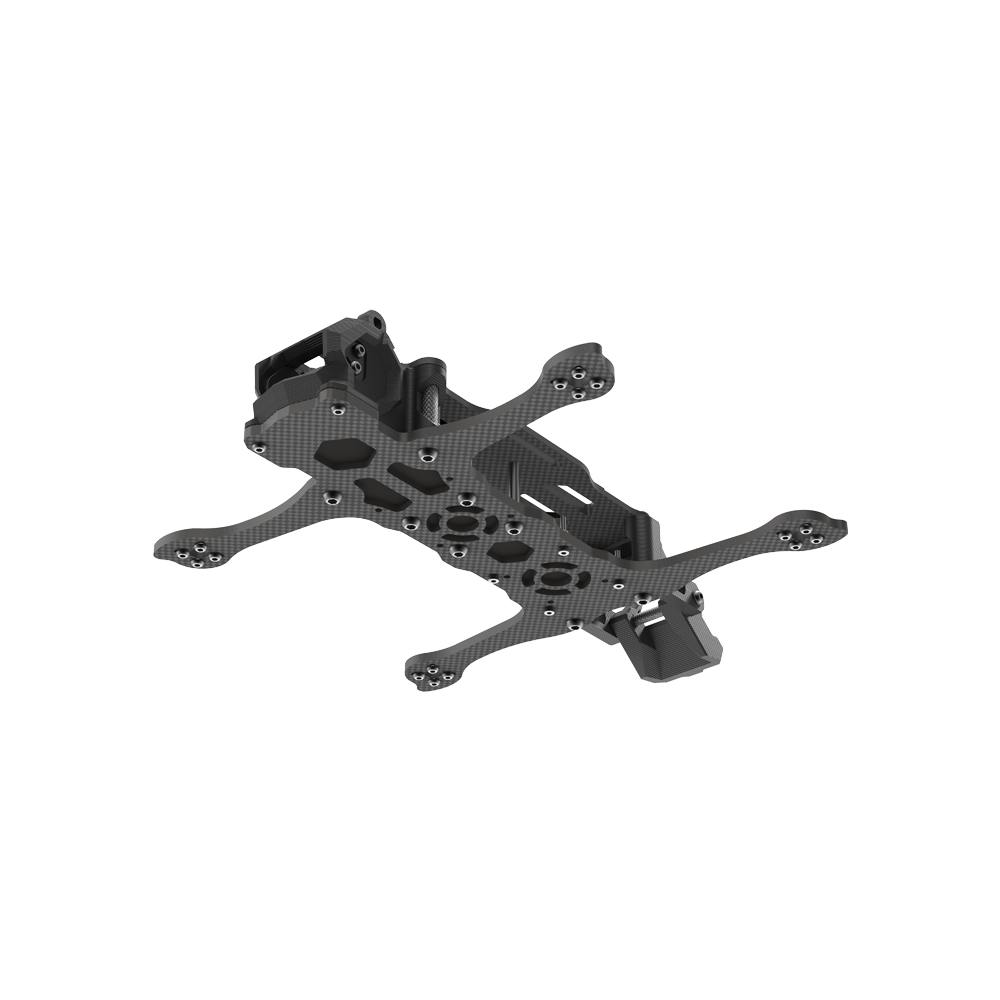

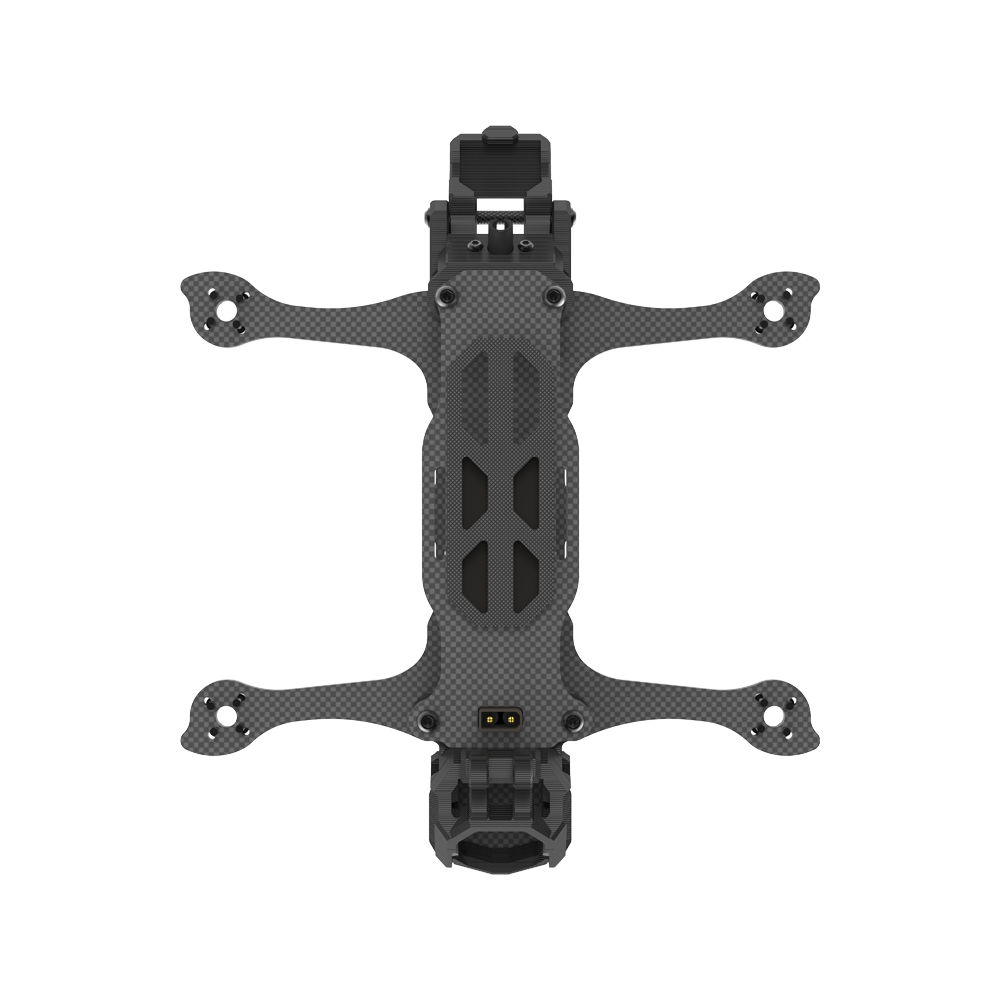

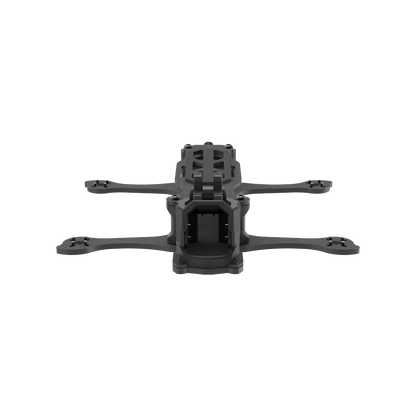

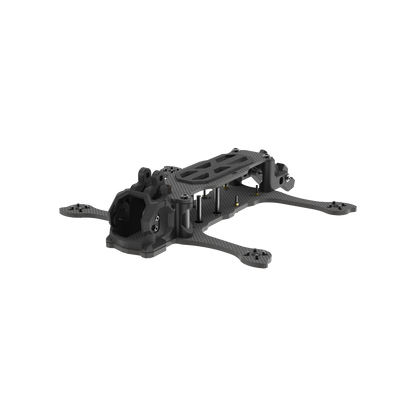

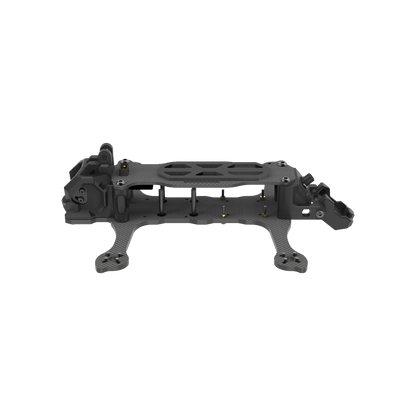

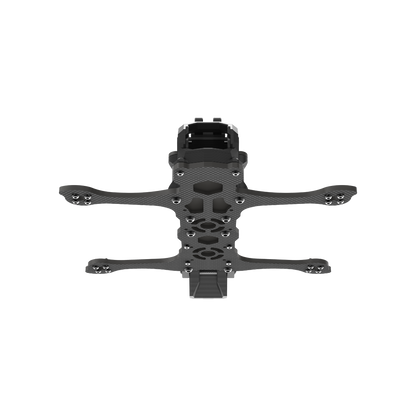

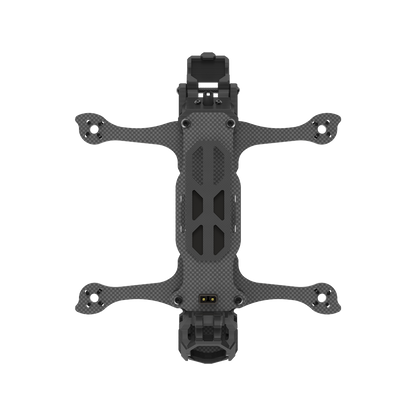

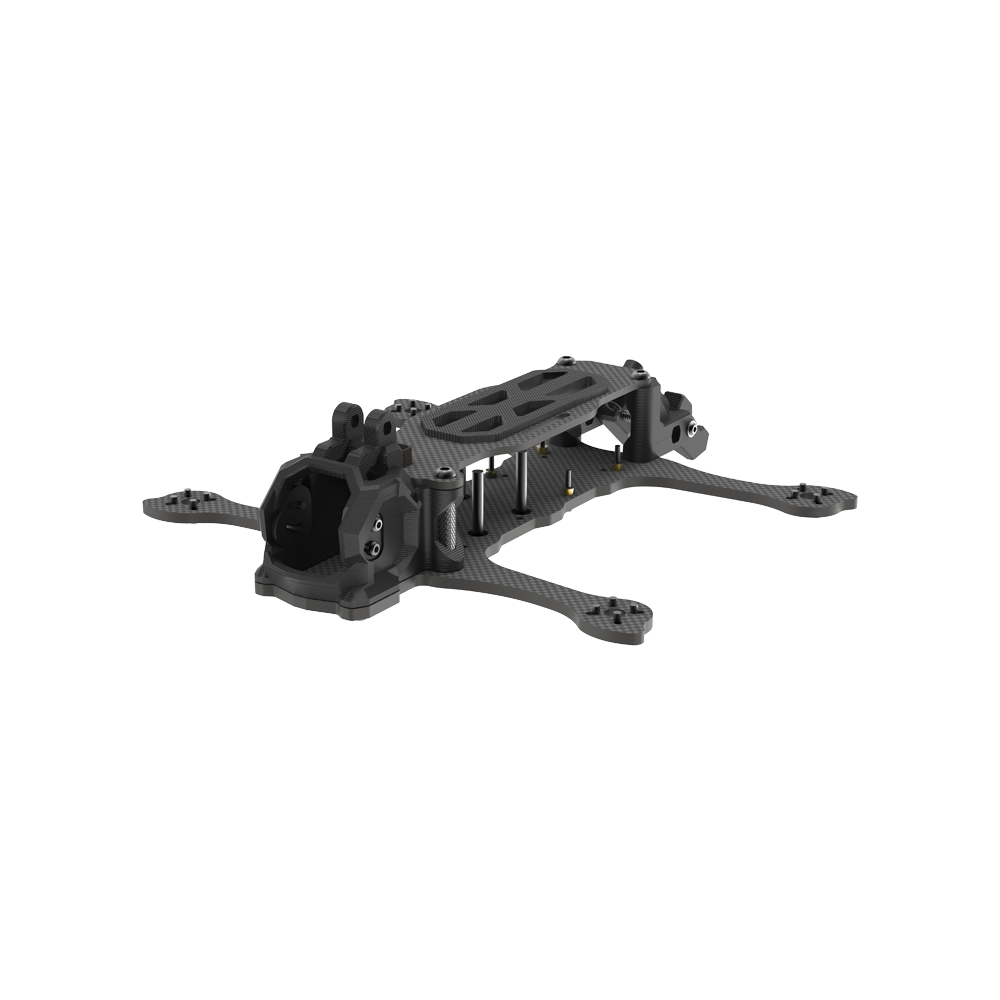

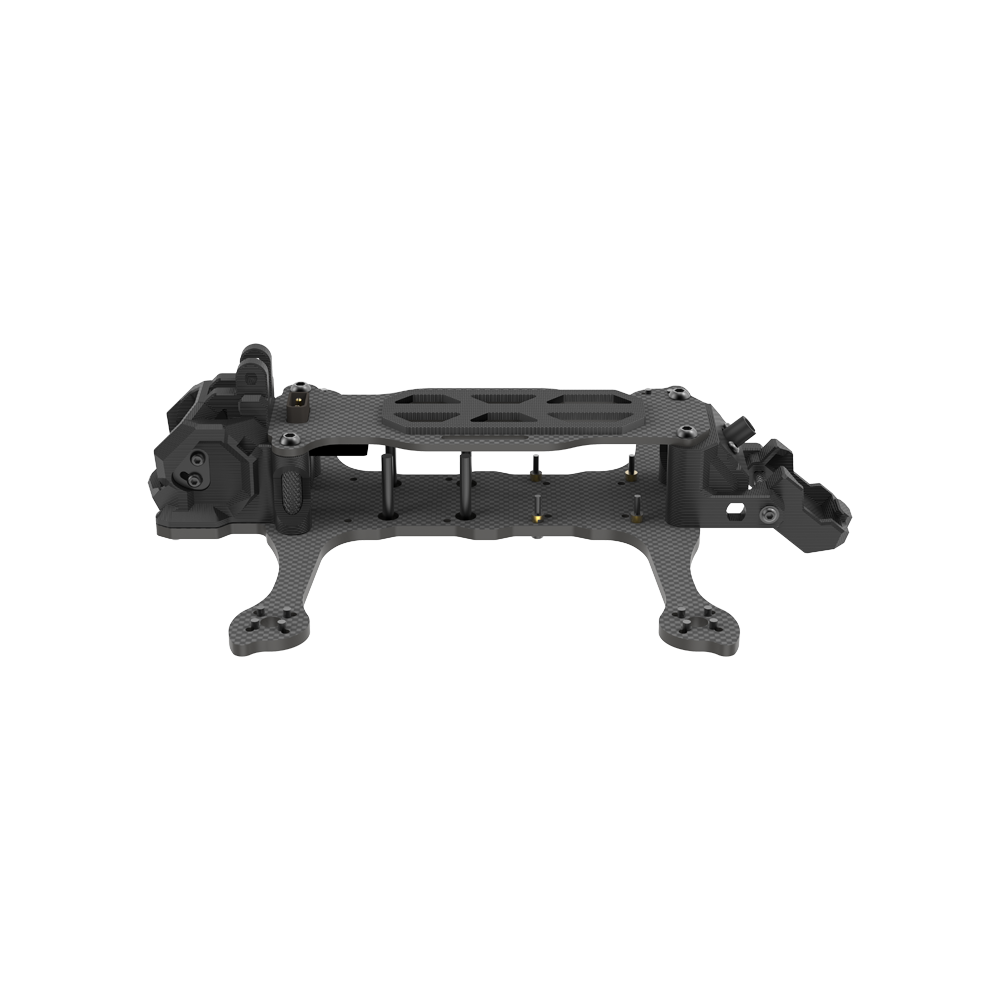

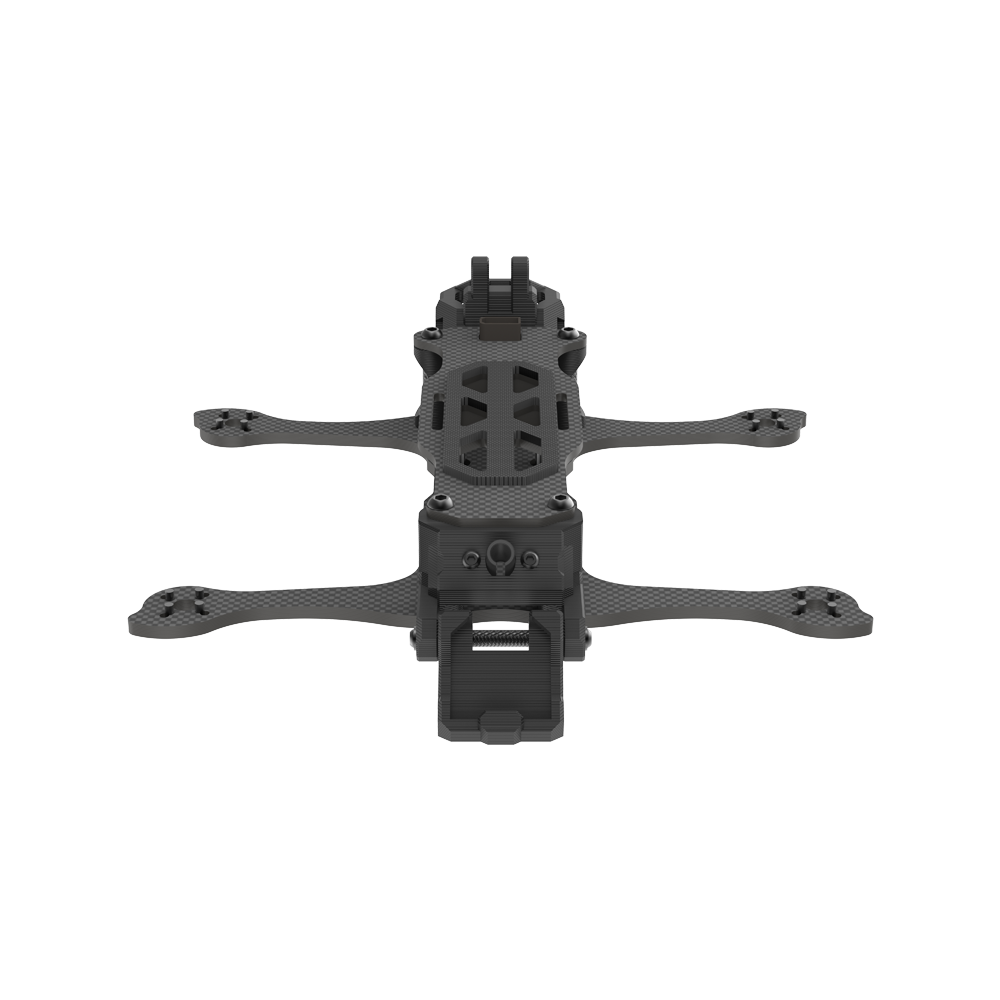

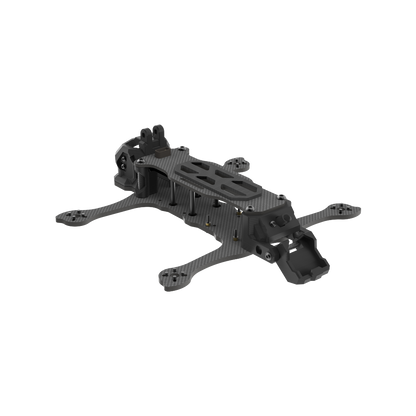

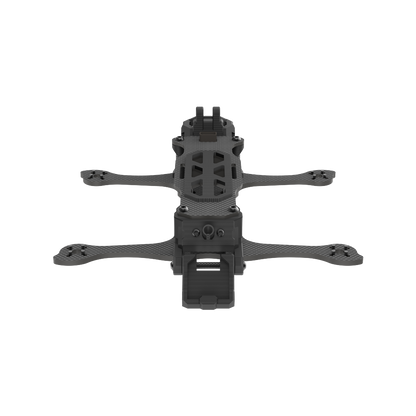

    Frame iFlight iH3 O3

    Frame iFlight iH3 O3

    Brand: iFlight

    €39,20
    €39,20 €39,20
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    iH3 O3 Frame Kit

Specifications:
Product name: iH3 O3 3.5 inch frame kit
Geometry: H-shaped
Frame wheelbase: 168 mm
Frame dimensions (L×W×H): 135×100×40 mm (from canopy)
Arm thickness: 3 mm
Bottom plate thickness: 3 mm
Thickness of the top plate: 2 mm
Maximum magazine height: 19 mm
Maximum height of VTX: 22 mm
Motor mount: 9x9mm/12x12mm
VTX mounting: 20*20 Φ2mm/ 25.5*25.5 Φ1.6mm
Weight: 110 grams

Packing List:
1x iH3 frame
1 x bag of screws
1x TPU set
1 x Battery Anti-Slip Pad
1 x battery strap
