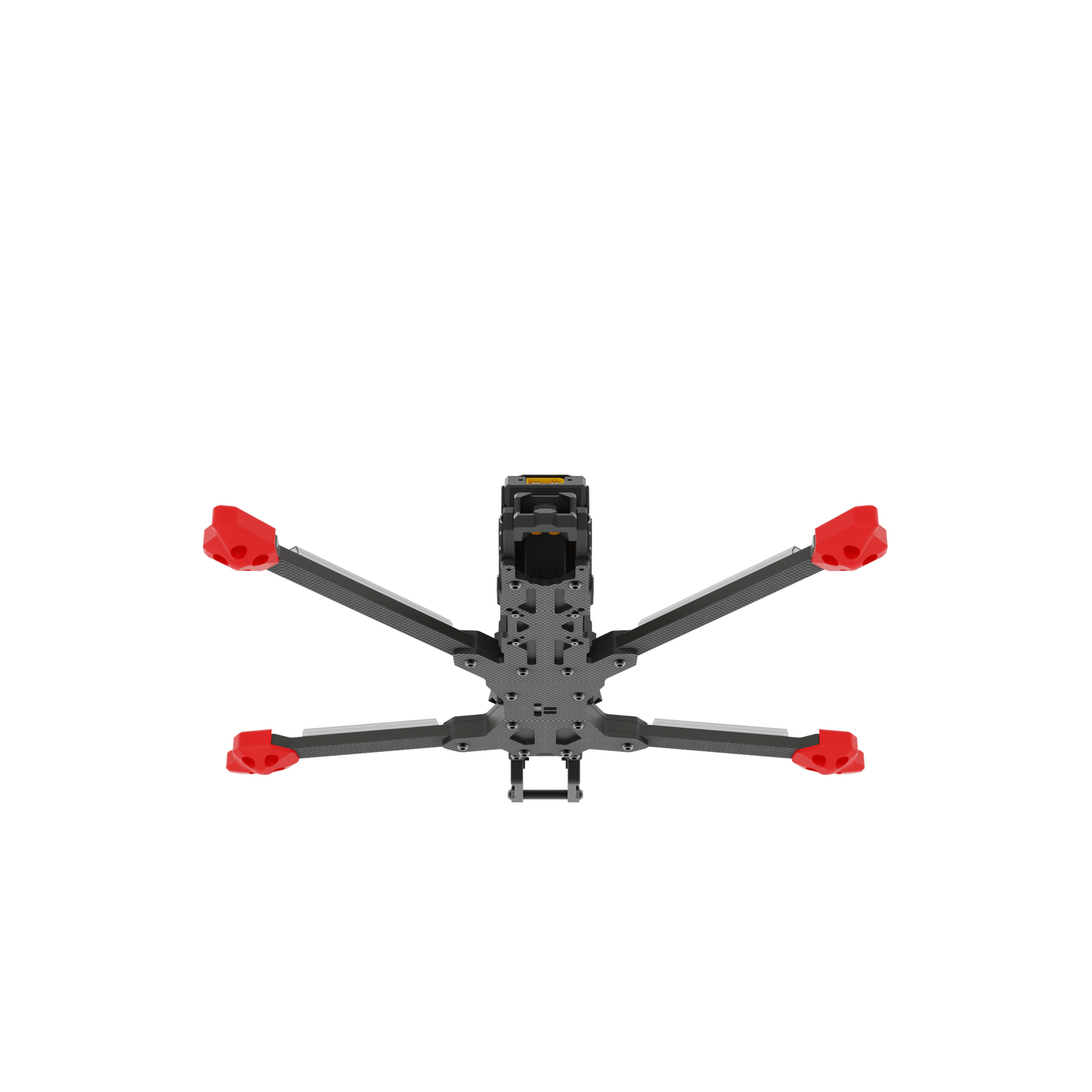

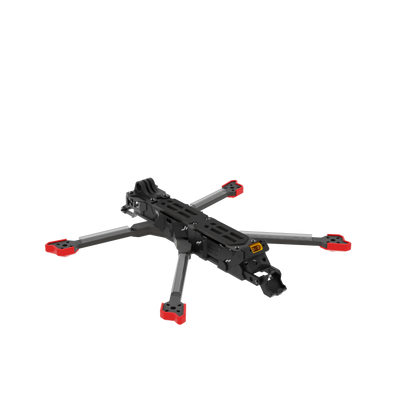

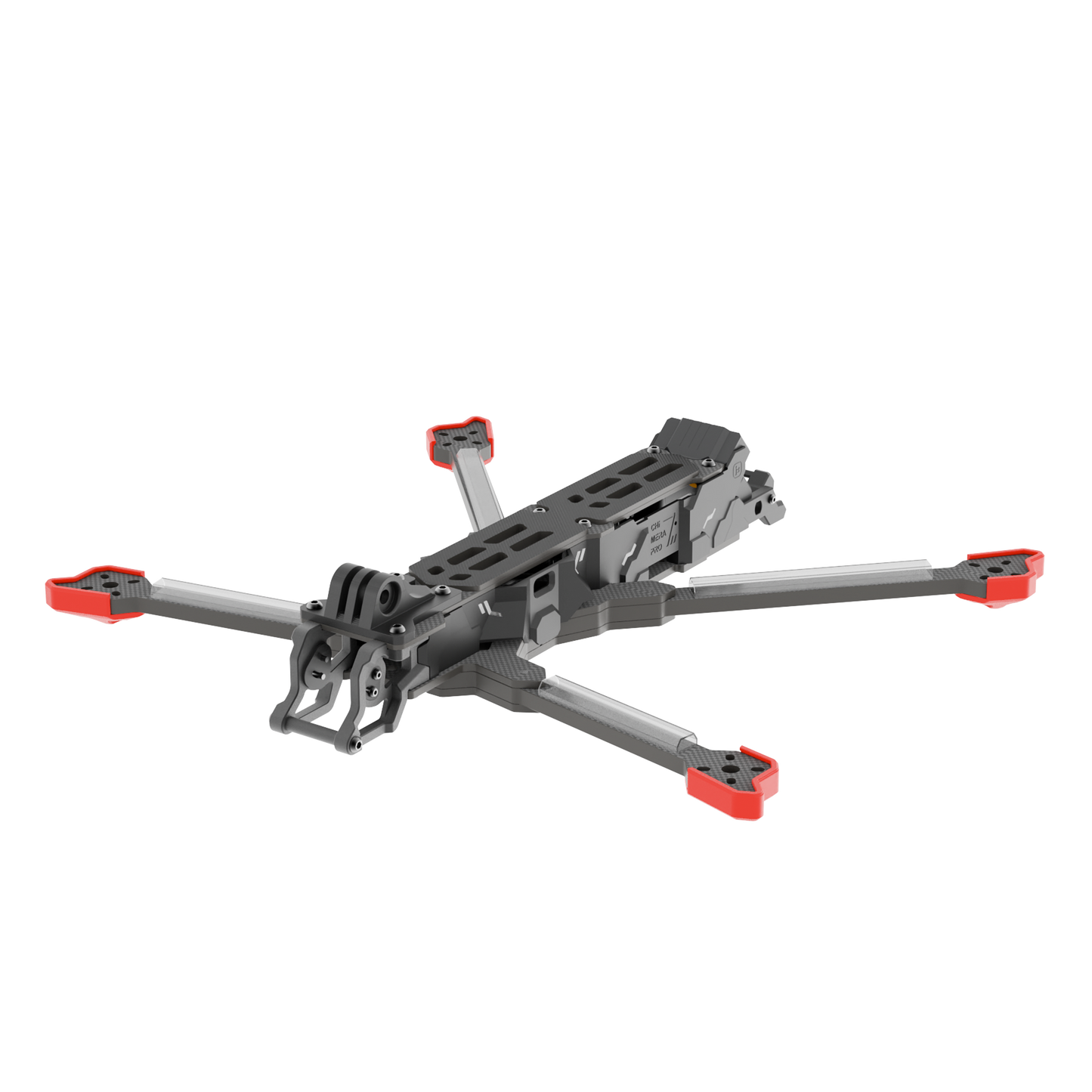

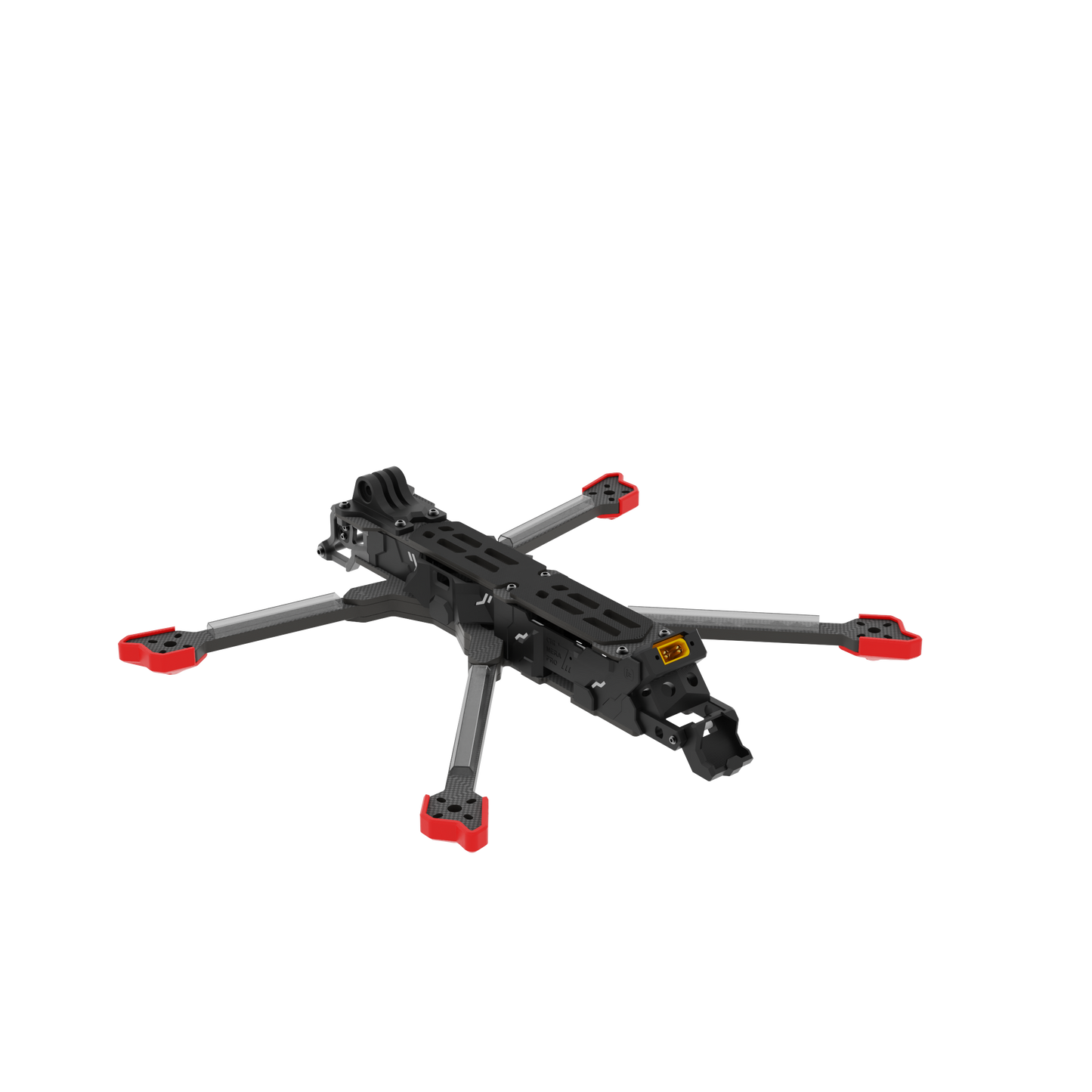

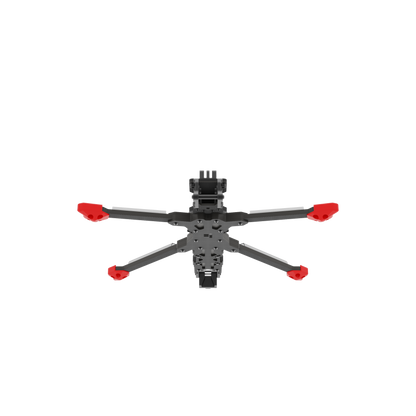

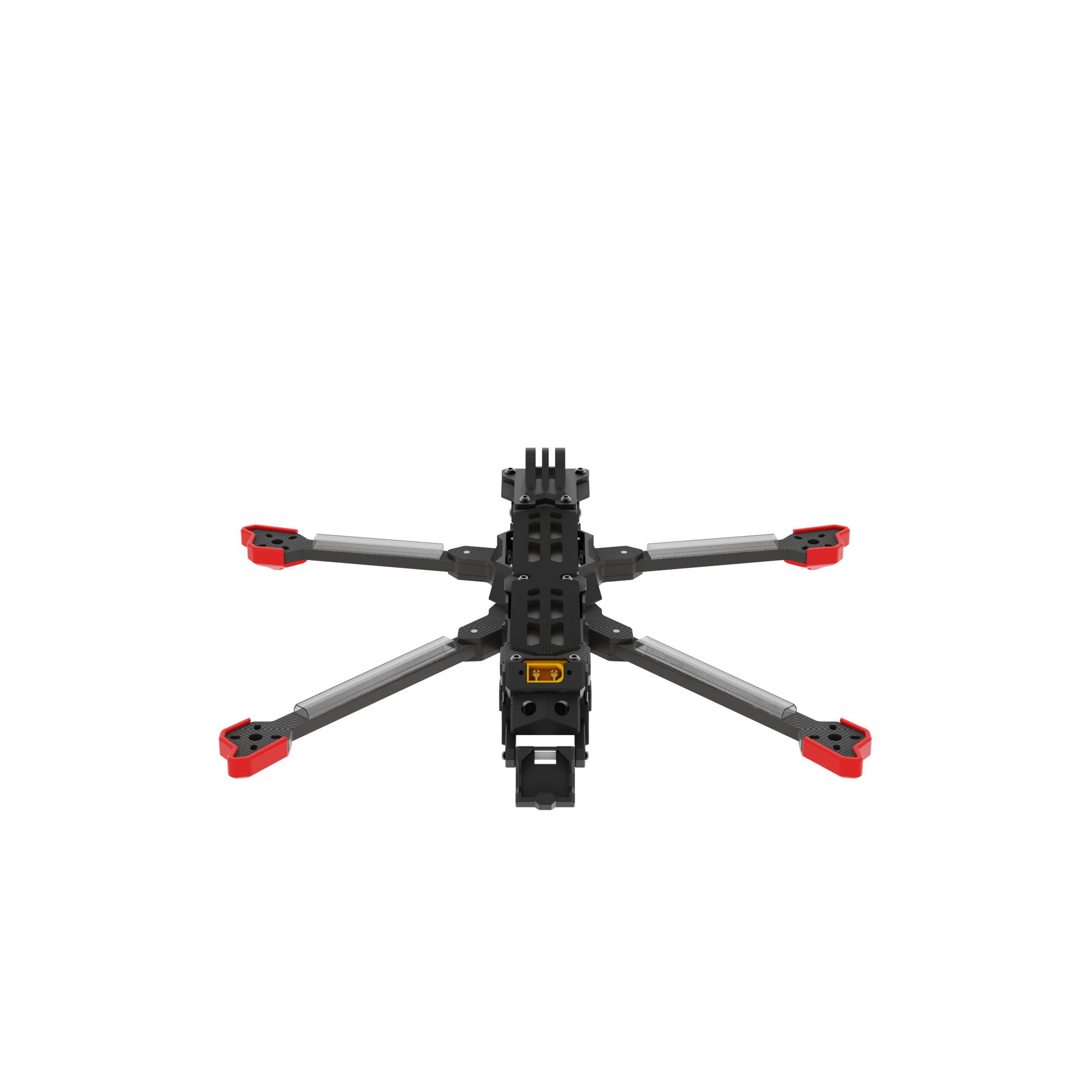

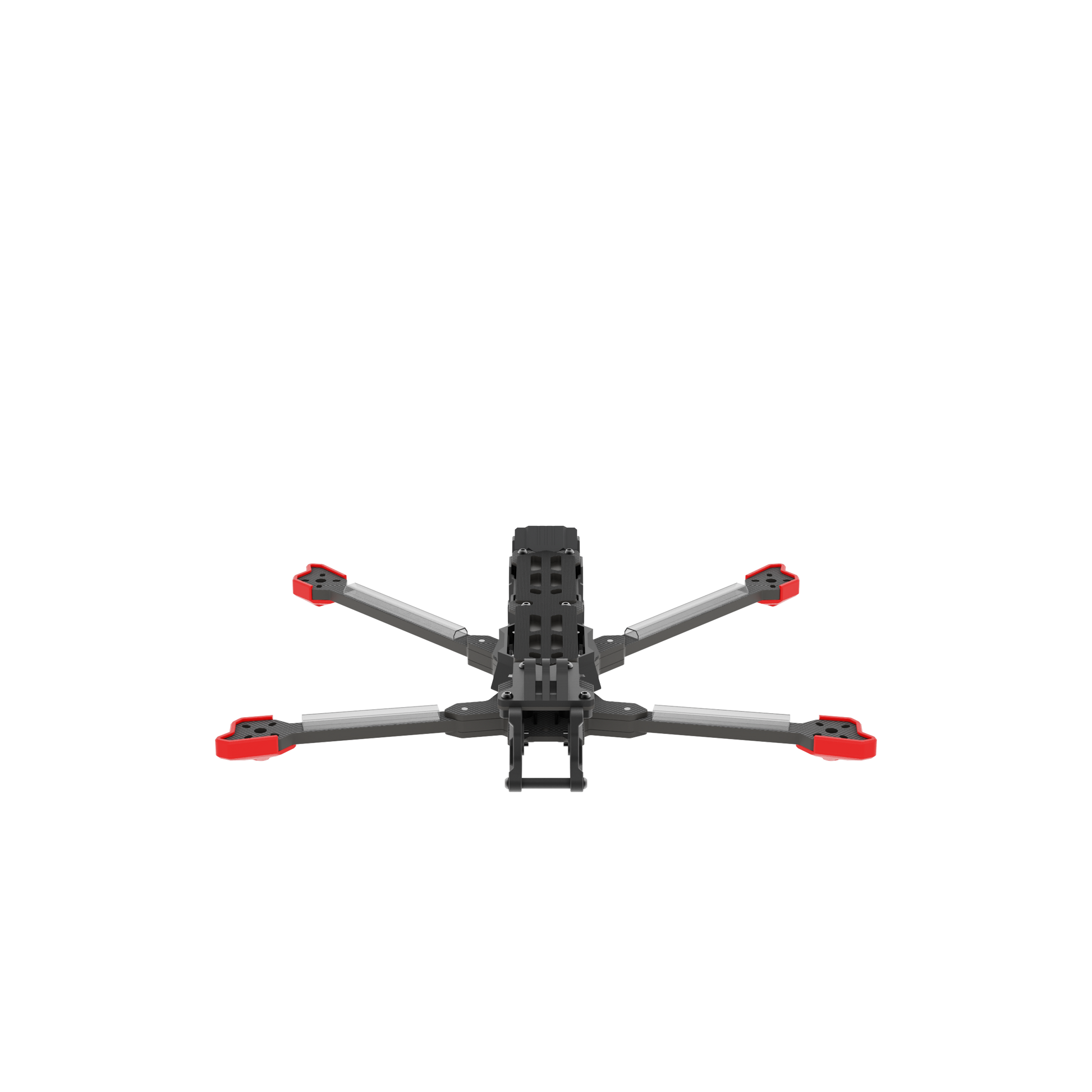

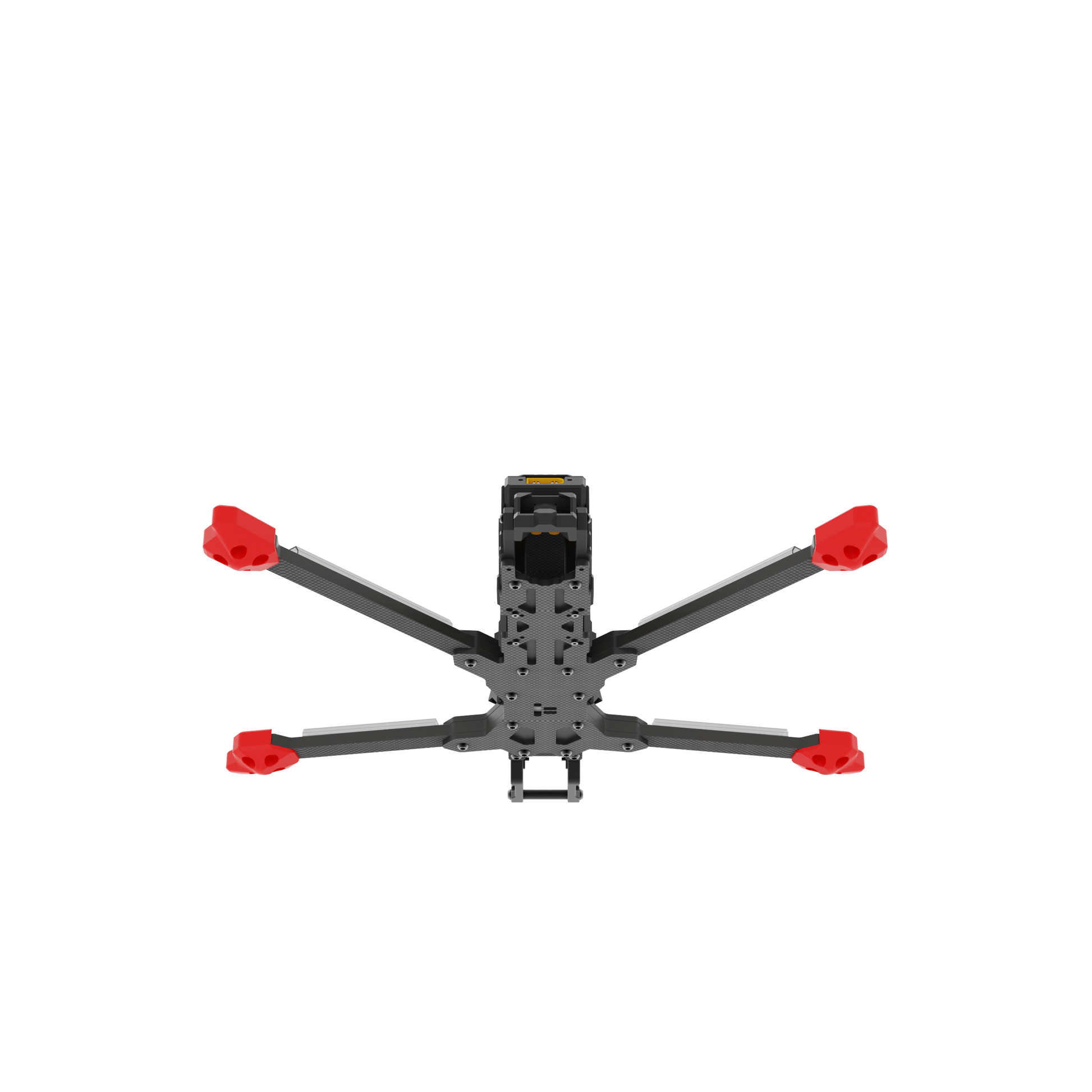

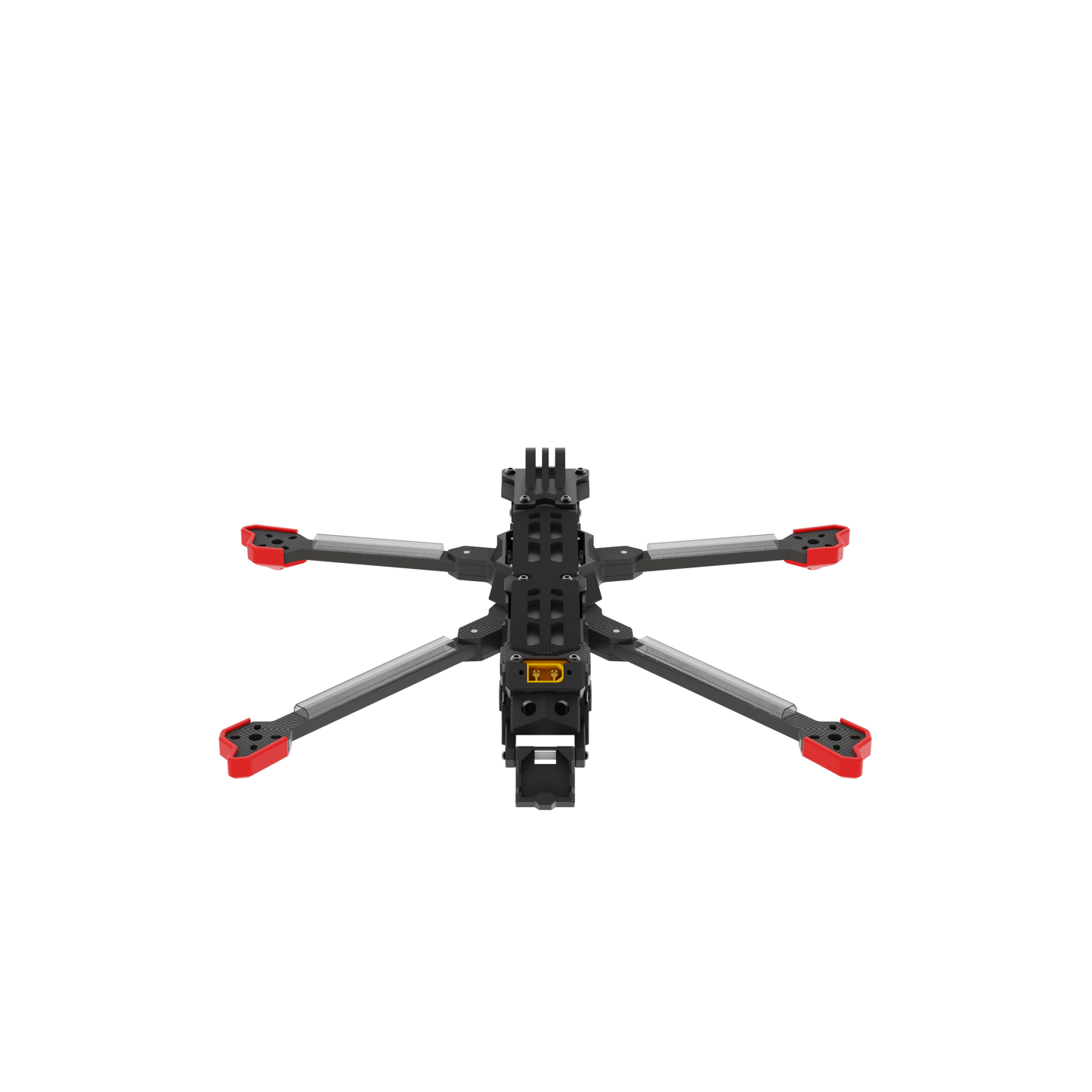

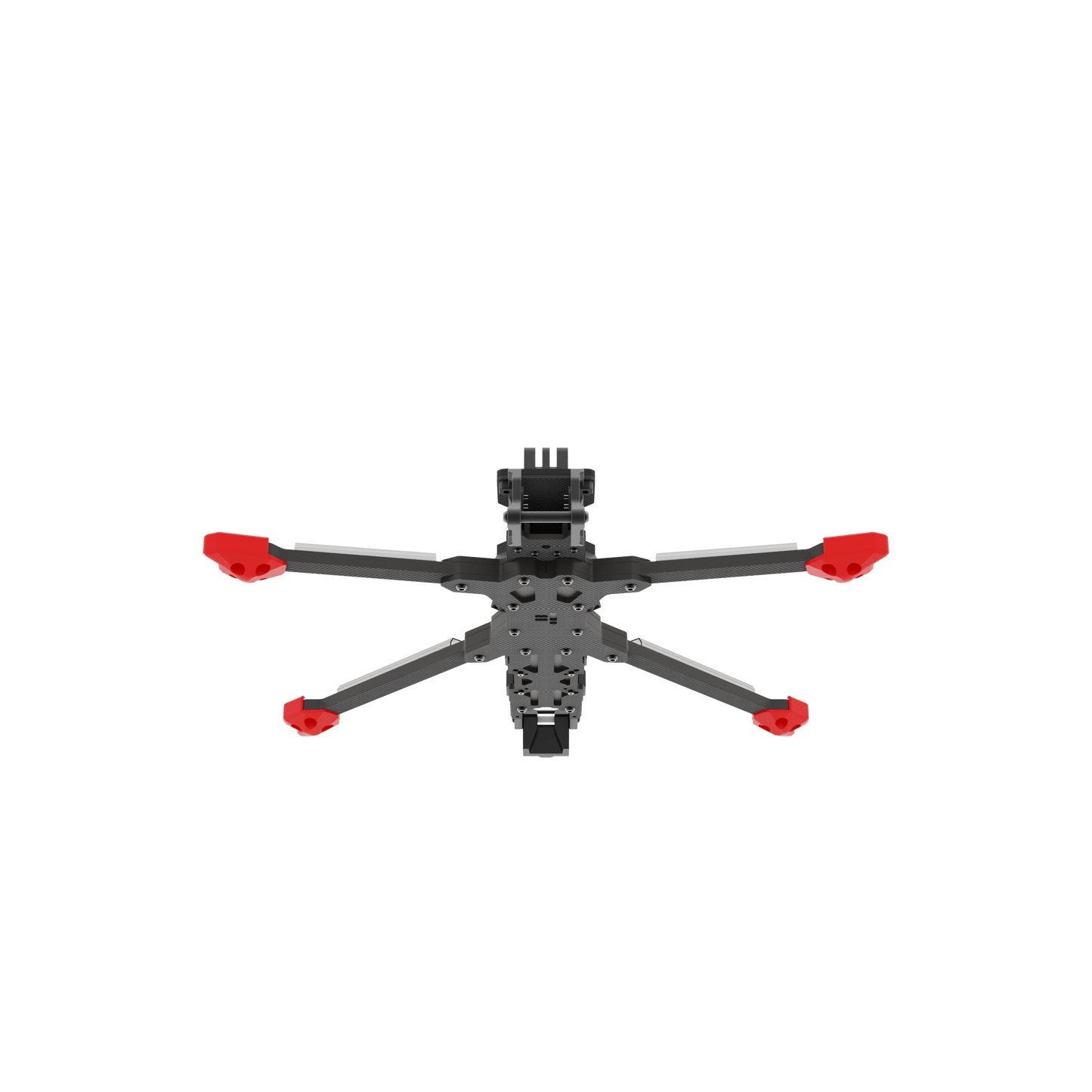

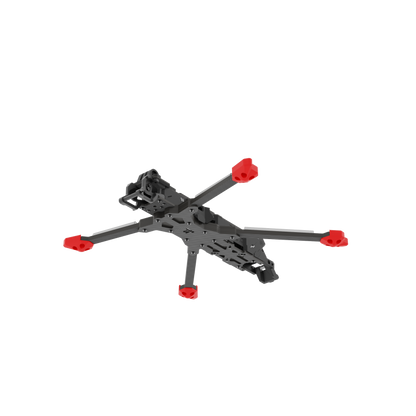

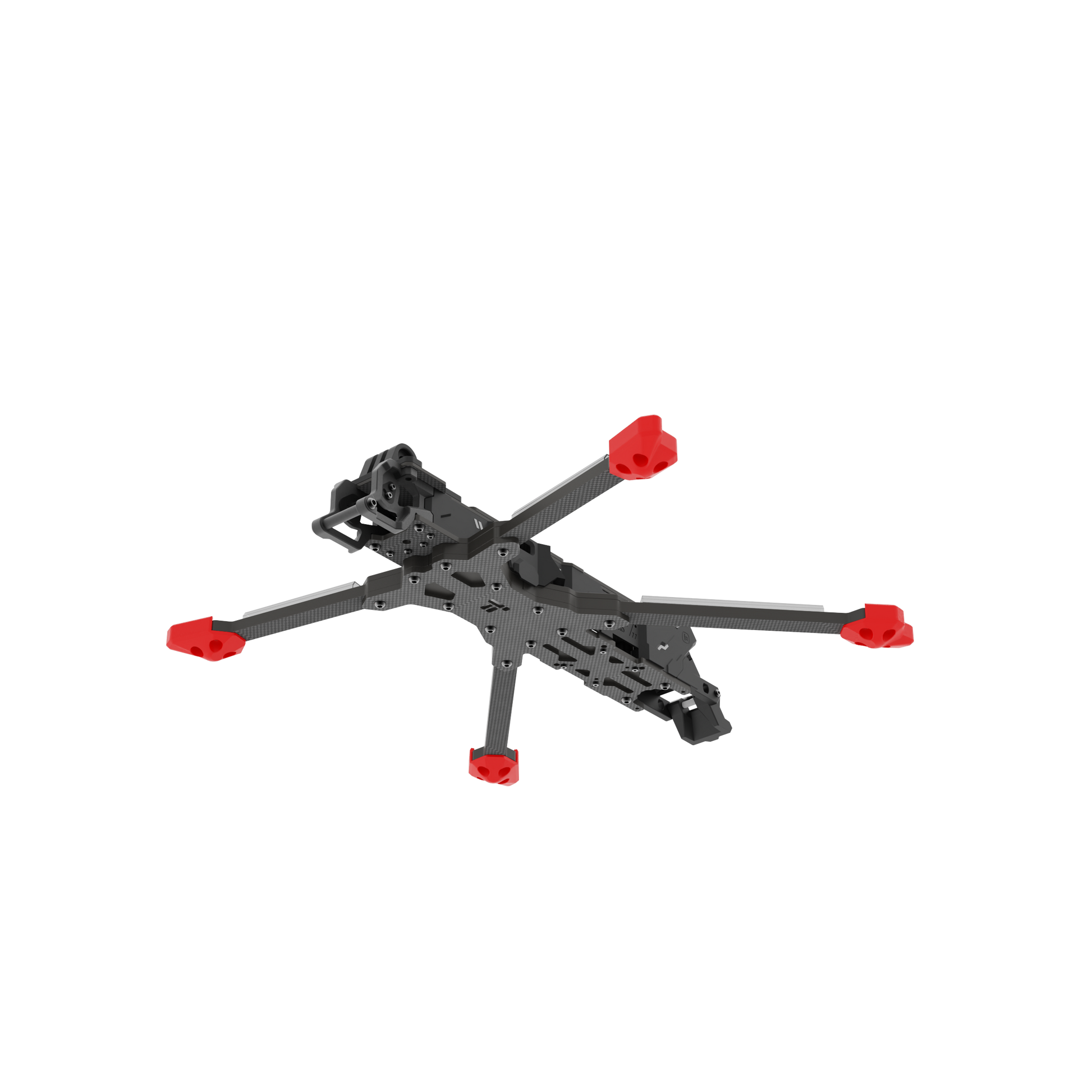

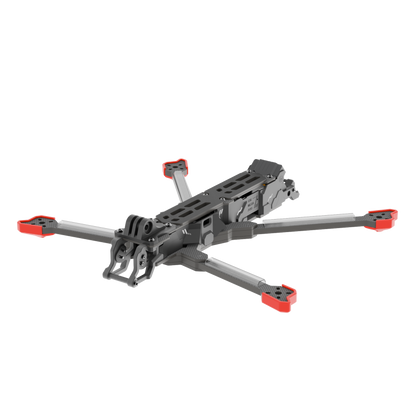

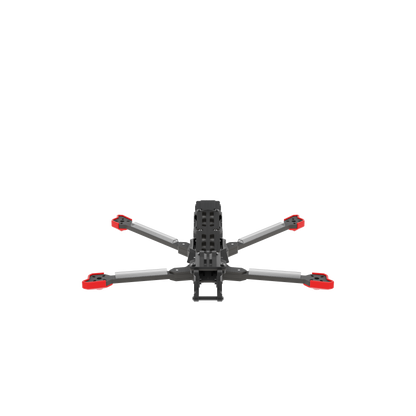

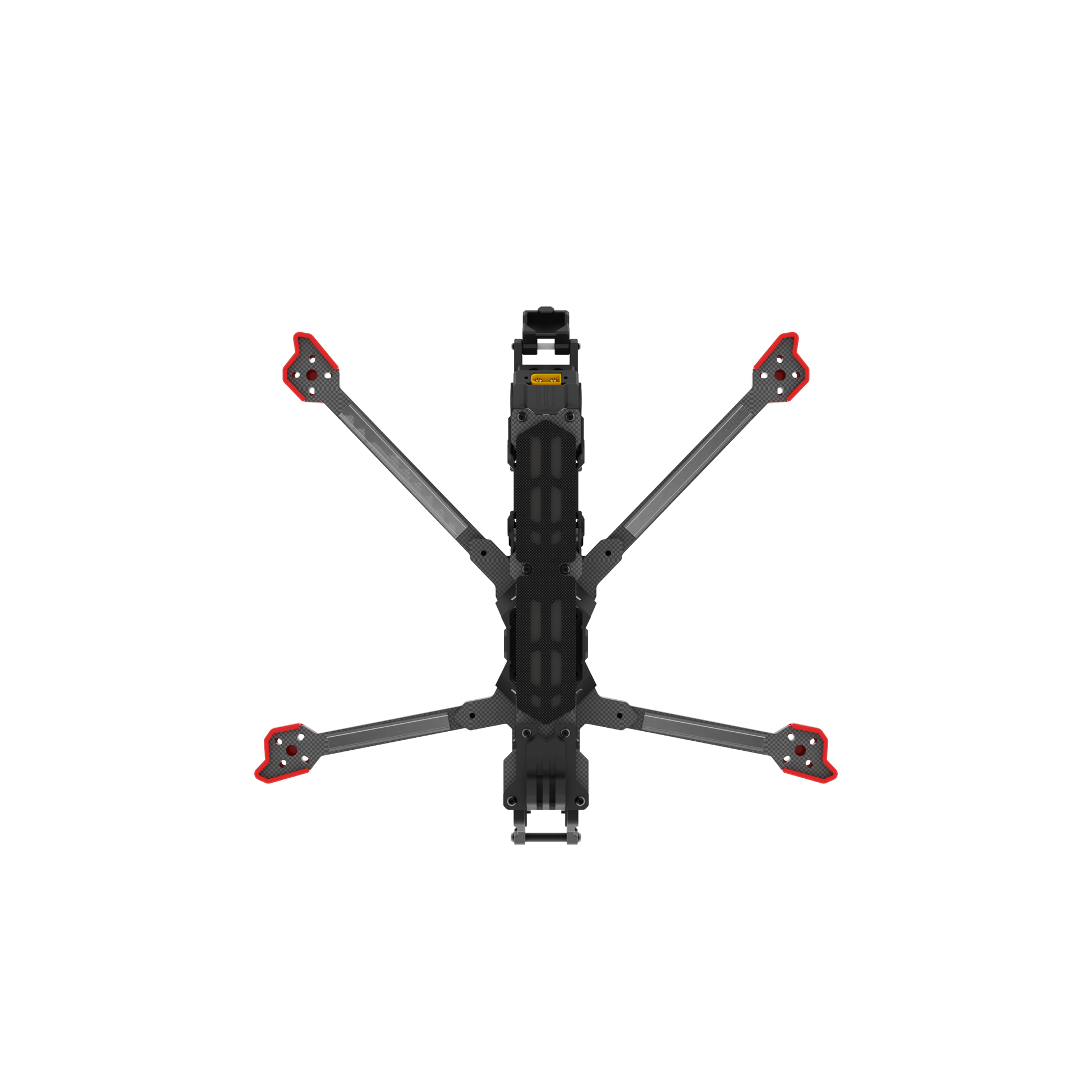

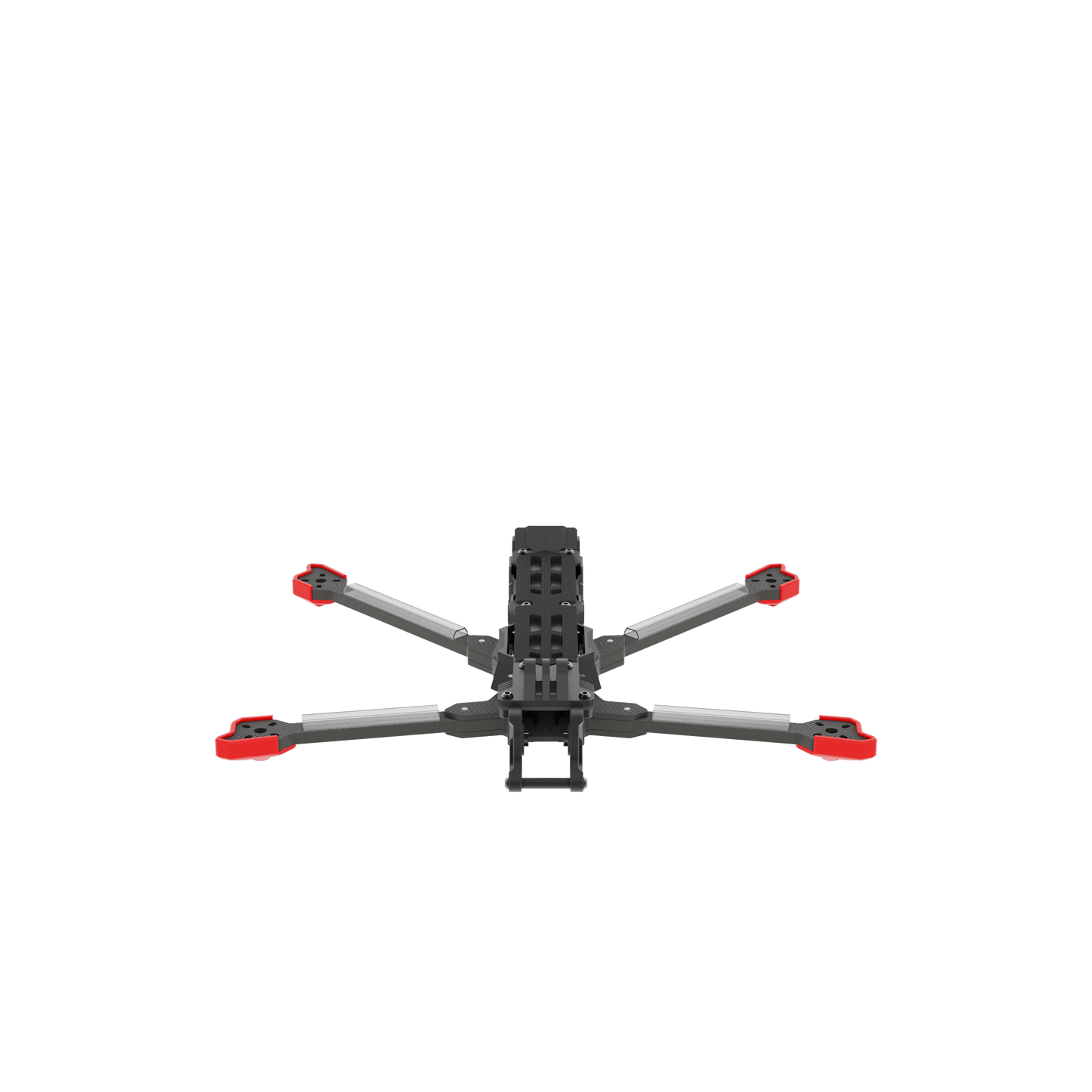

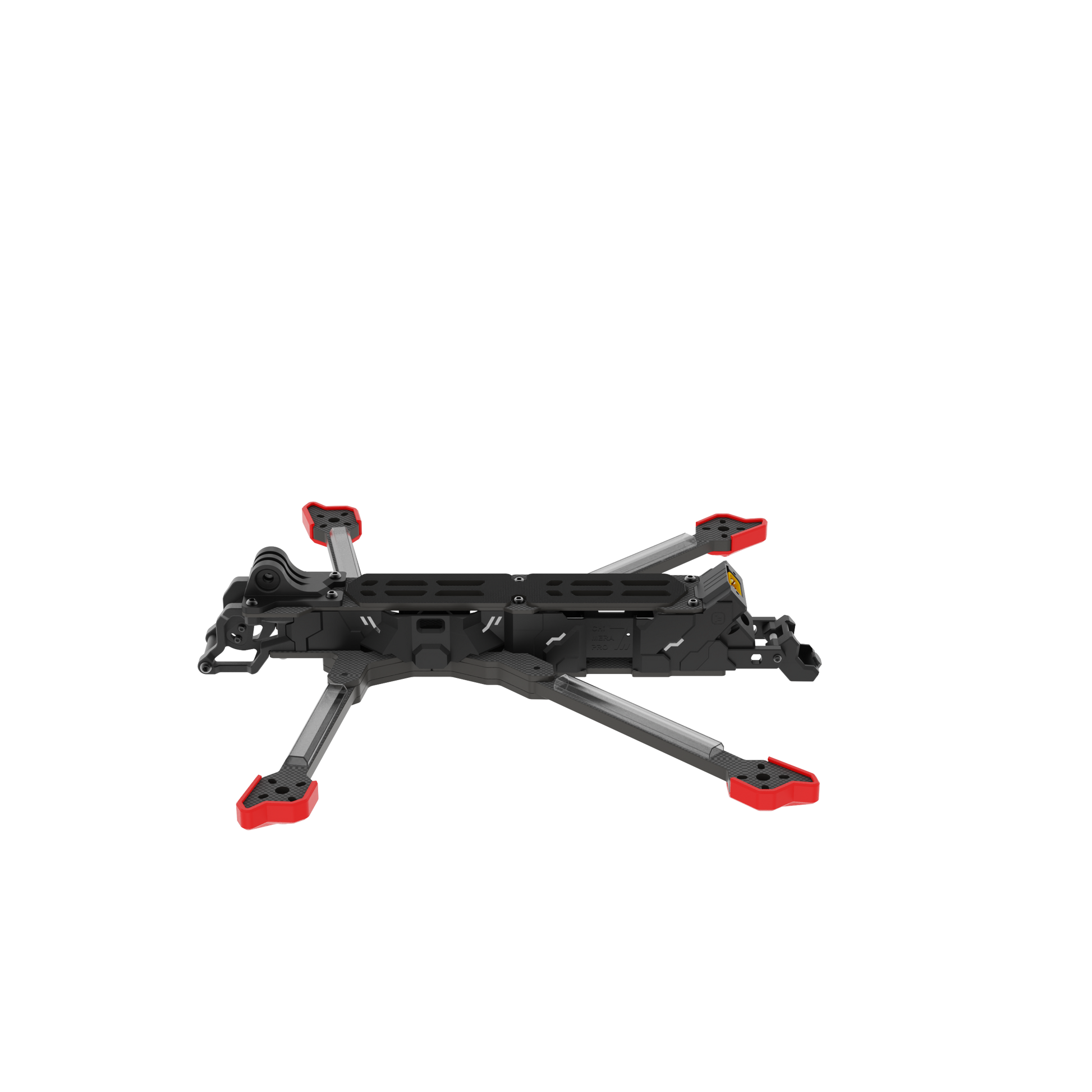

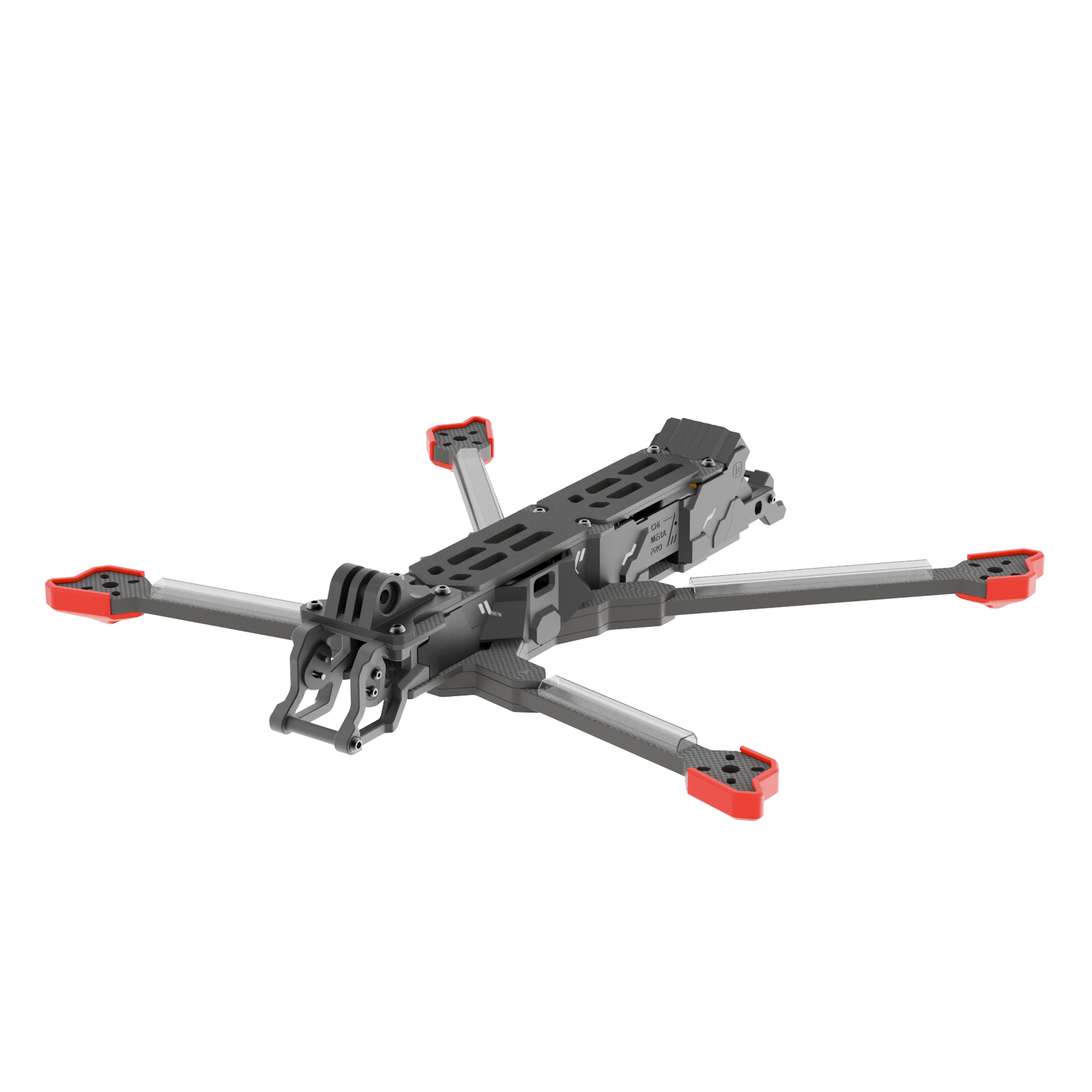

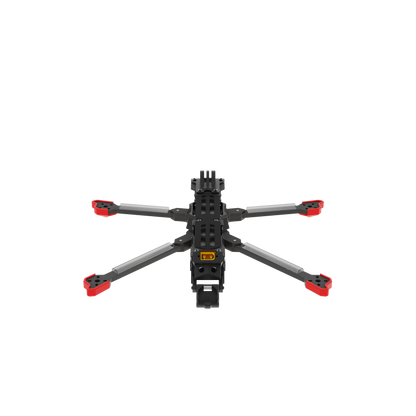

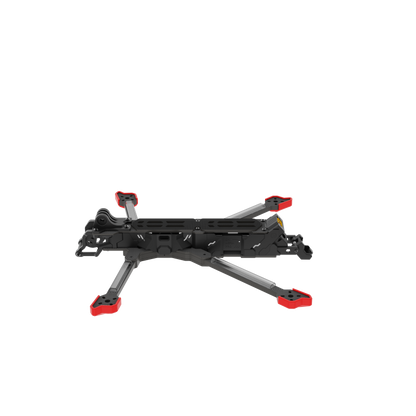

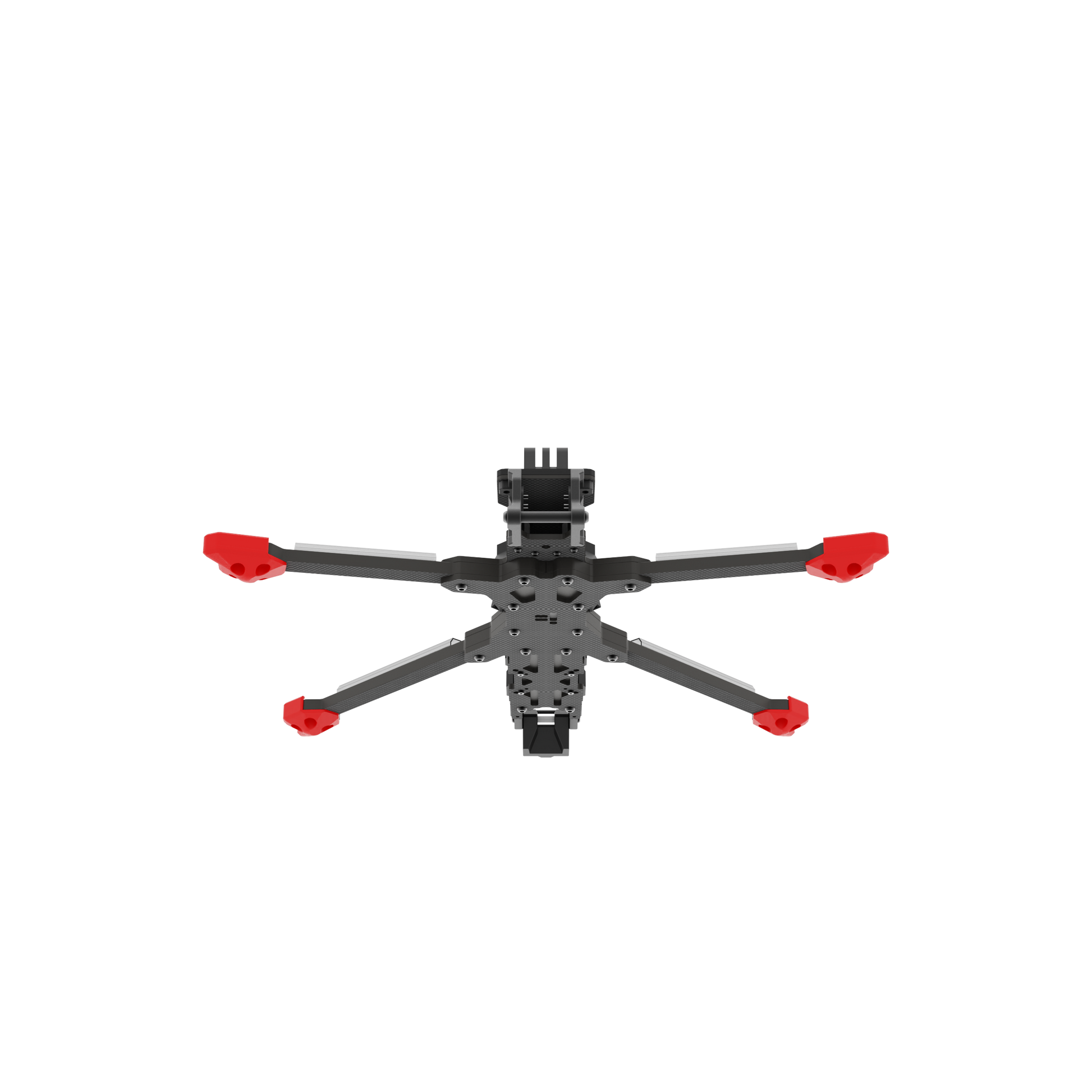

Chimera7 Pro V2 FPV LR Frame Kit
The iFlight Chimera7 is a 7.5" long-throw frame designed to provide maximum stability and flight time during cinema shooting.
Function:
- V2 has been upgraded for DJI O3 HD air unit digital transmission
- Specially designed cooler for DJI O3 air unit
- New camera mount for wider camera FOV with cushioning TPU inserts
- New side panels that perfectly fit the O3 air unit in the back
- New dual 5.8G VTX antenna TPU holder
- The latest Chimera7 Pro frame upgrades for maximum protection
Specifications:
Product Name: Chimera7 Pro V2 Frame Kit
Wheelbase: 327 mm
Frame size: L270*W199*H34 mm
Frame body size: 34mm
Arm thickness: 6 mm
Bottom plate thickness: 3 mm
Thickness of the top plate: 2 mm
Thickness of the top plate: 3 mm
Camera plate thickness: 3mm
Maximum magazine height: 21 mm
Maximum height of VTX: 30 mm
Motor mounting: 16x16mm / 19*19mm
VTX mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 175 grams (without TPU parts)

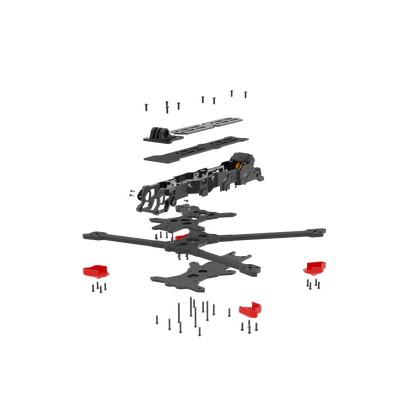

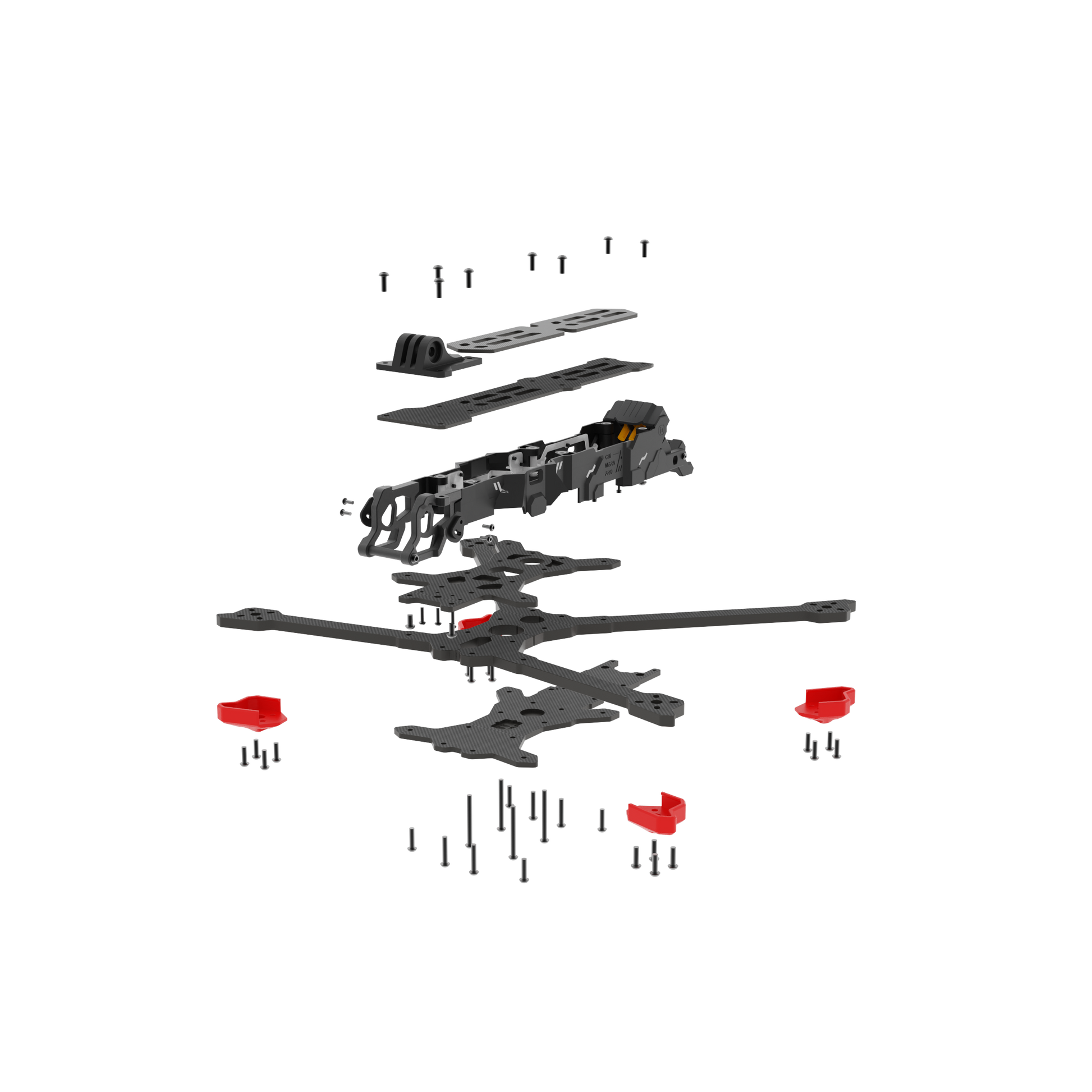

Packing List:
1 x Chimera7 Pro V2 Frame Kit
1x O3 air unit cooler
1x O3 MIPI digital video cable 215mm
2x O3 IPEX to RP-SMA antenna pigtails
1 x O3 dual antenna TPU
1 x GoPro TPU Base Mount
1 x bag of screws
4 x TPU arm protector
1x TPU front bumper
1x TPU rear bumper
2 x non-slip battery mat
2 x battery strap (20*250 mm)
