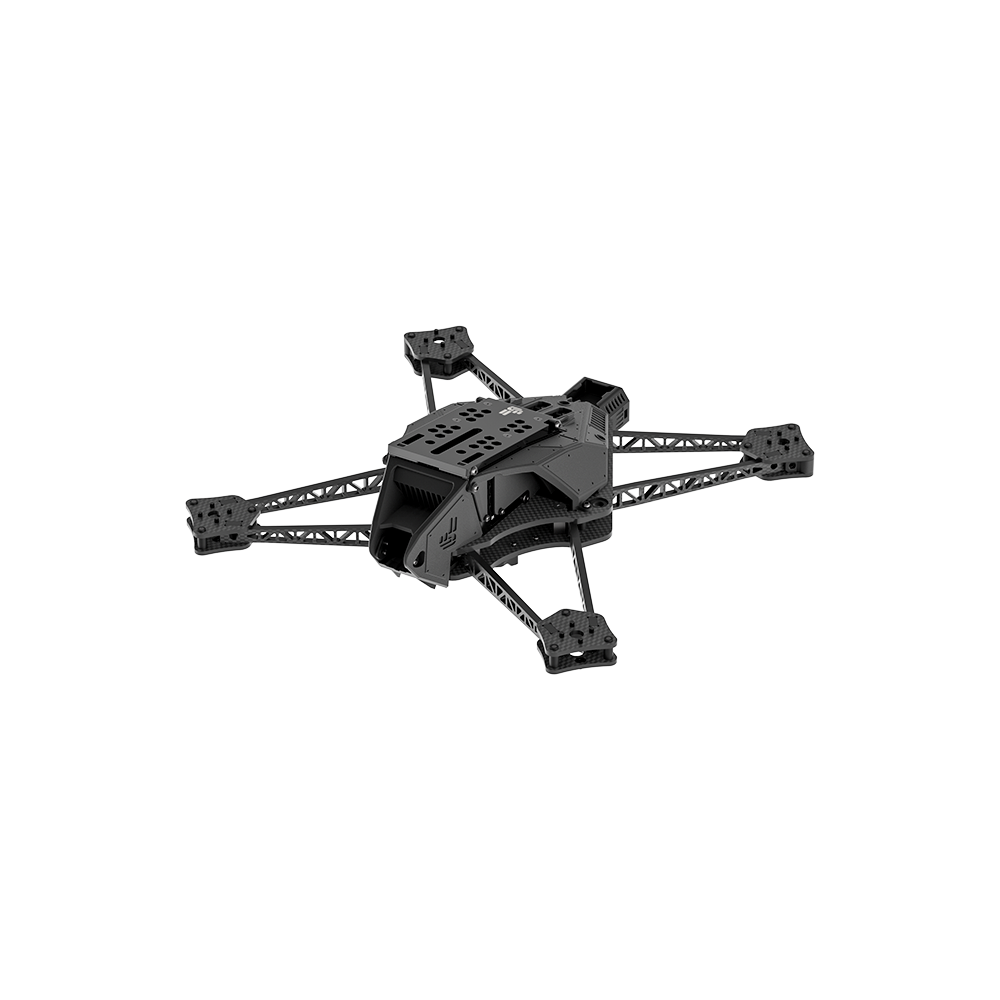

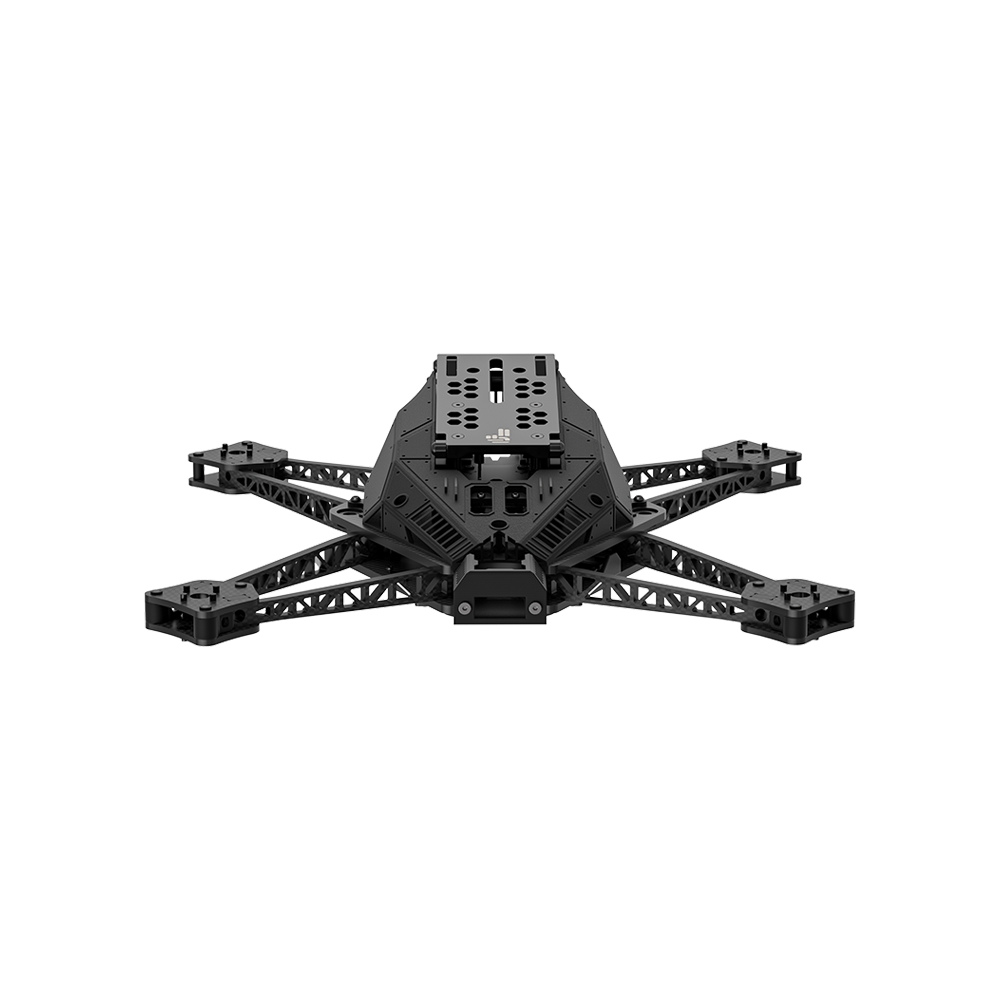

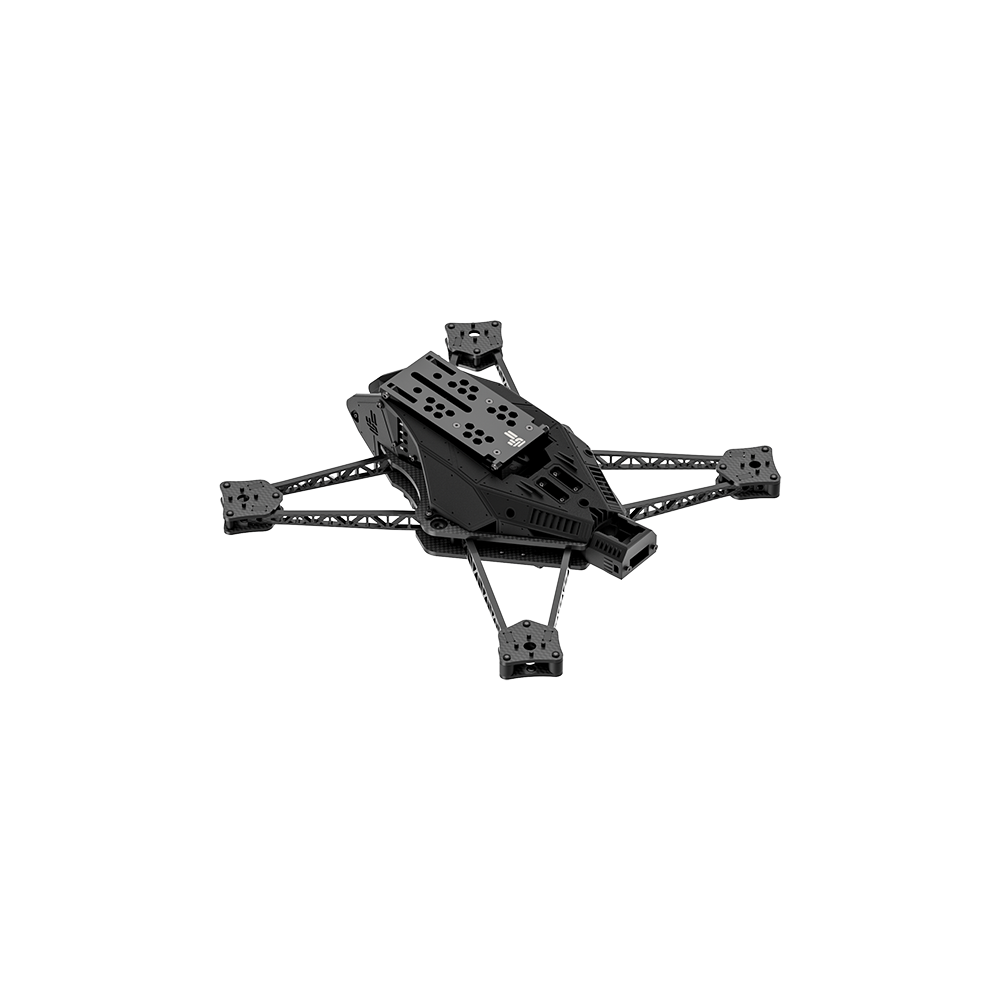

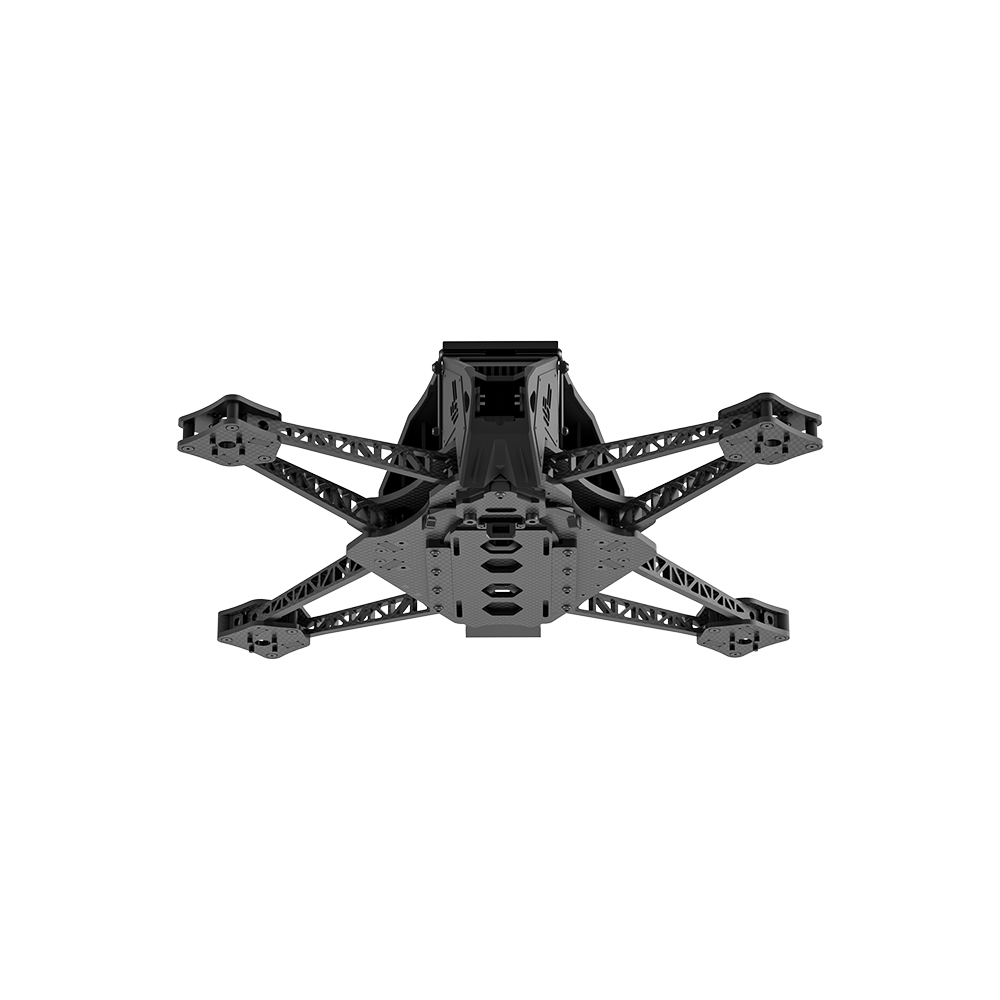

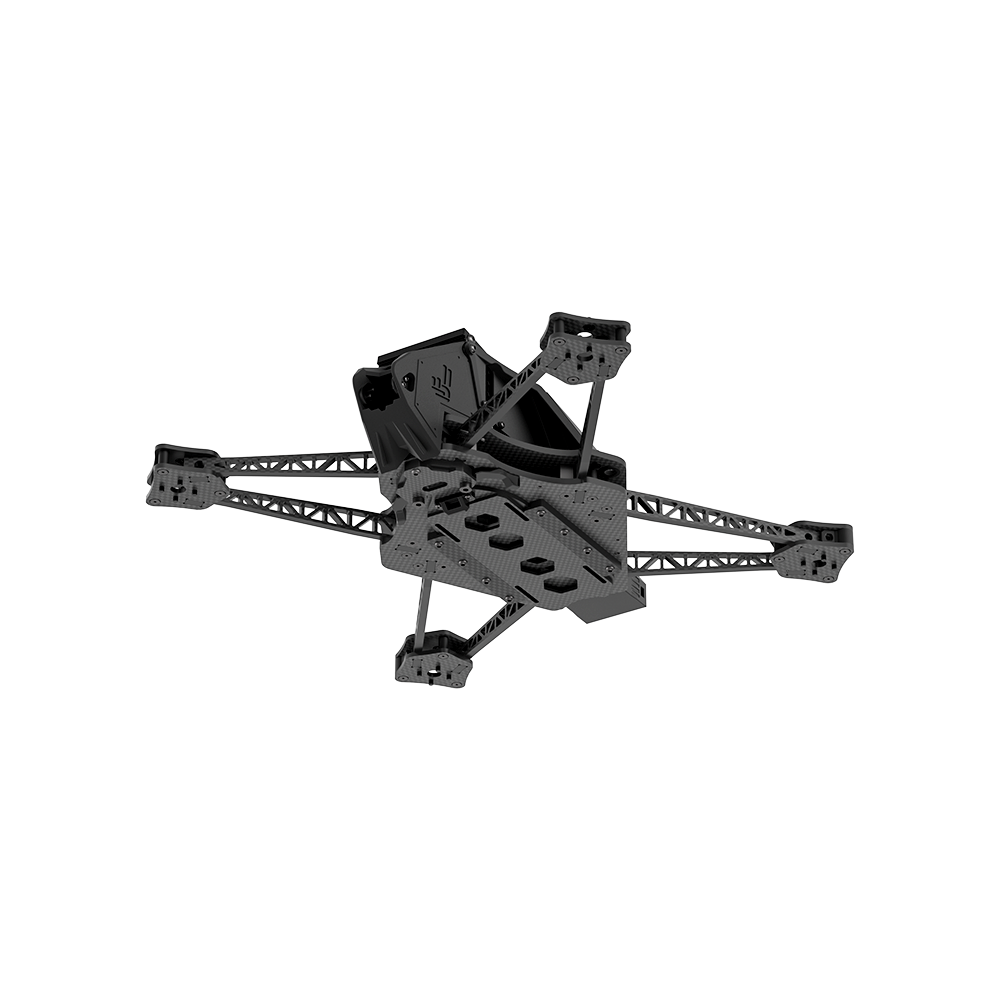

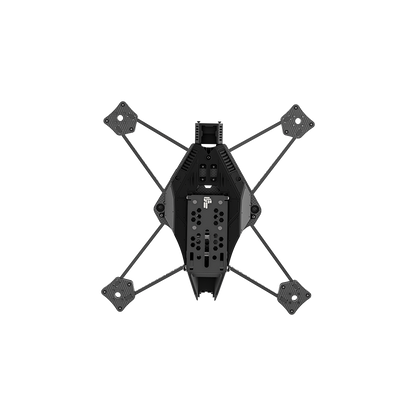

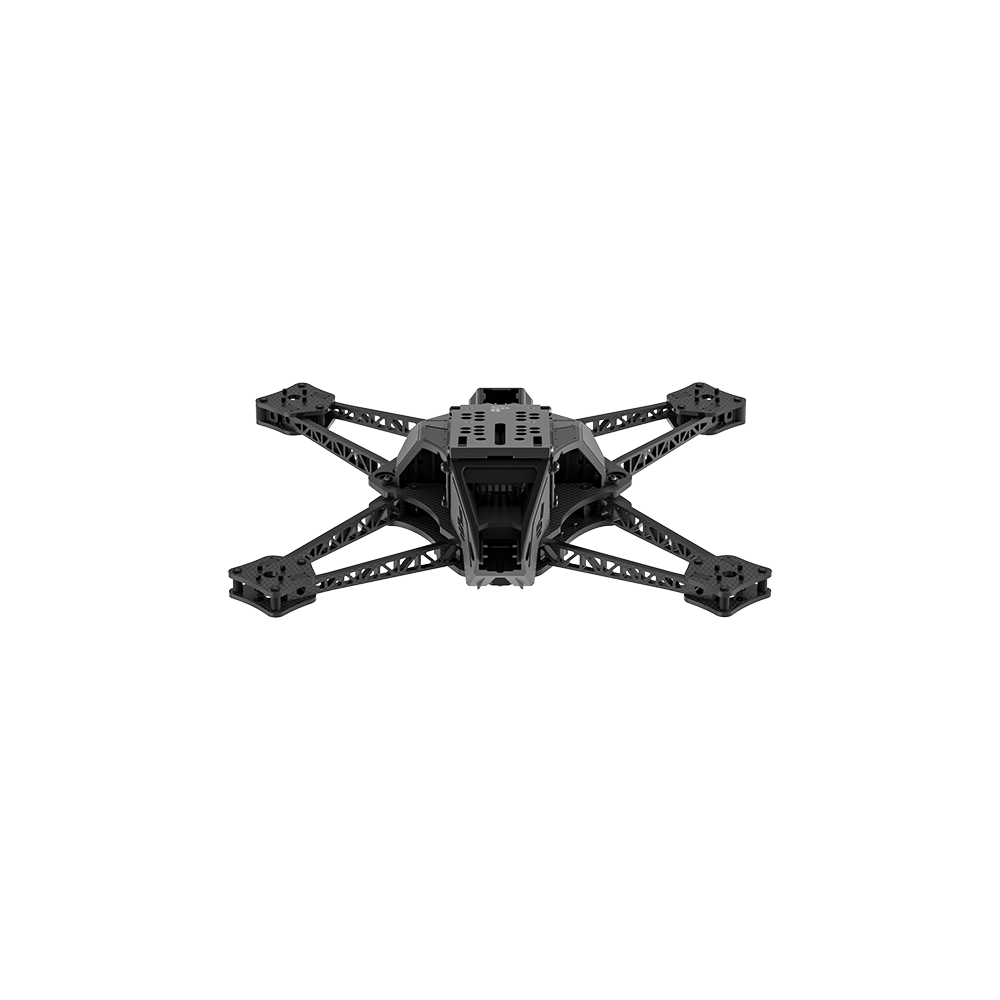

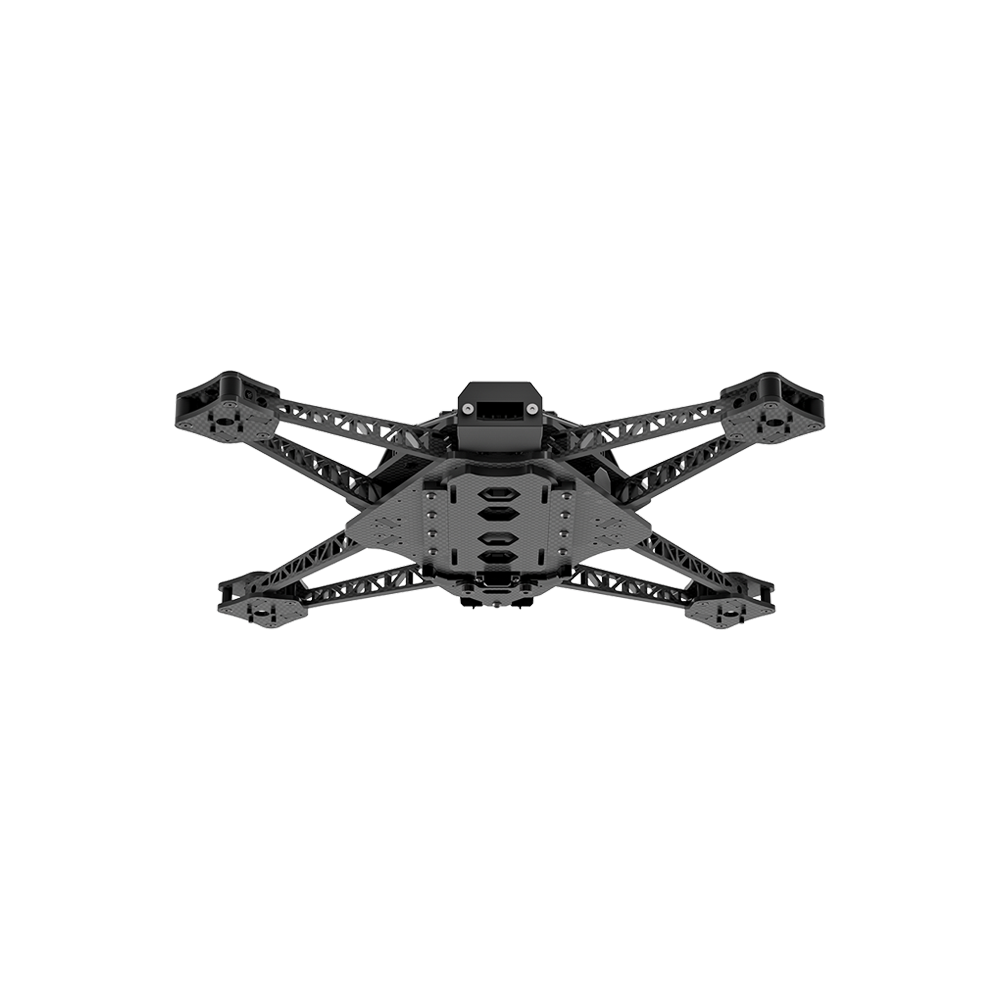

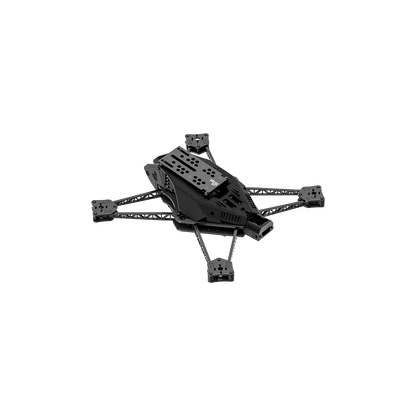

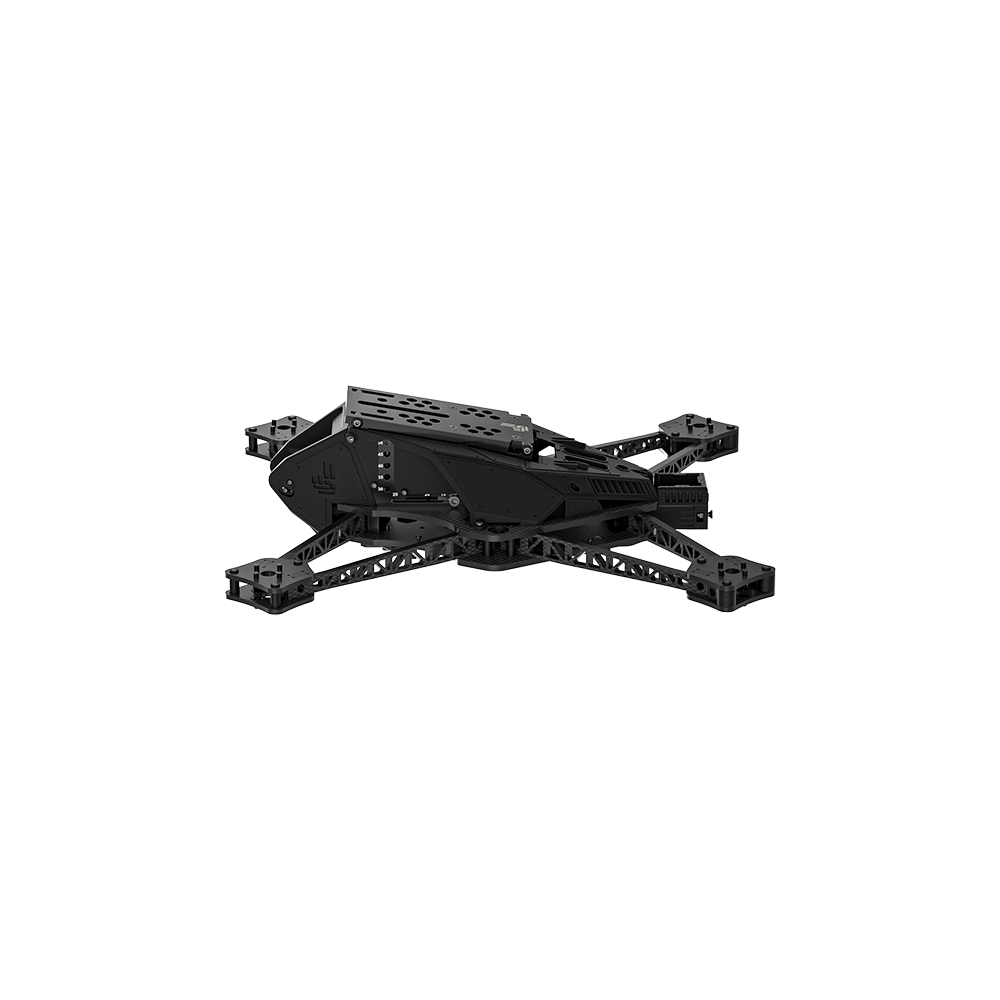

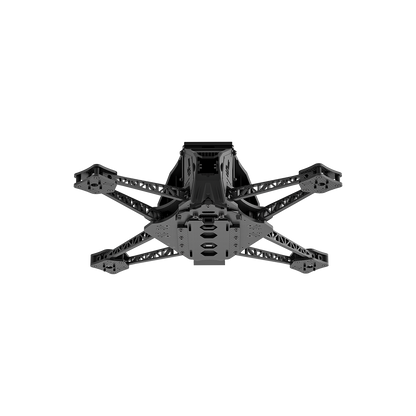

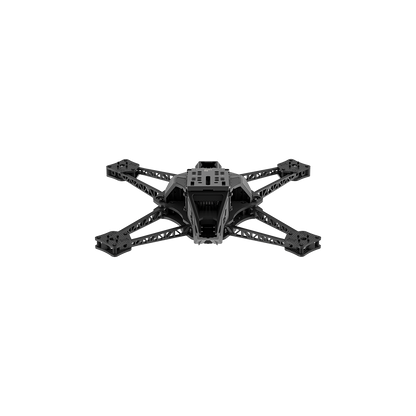

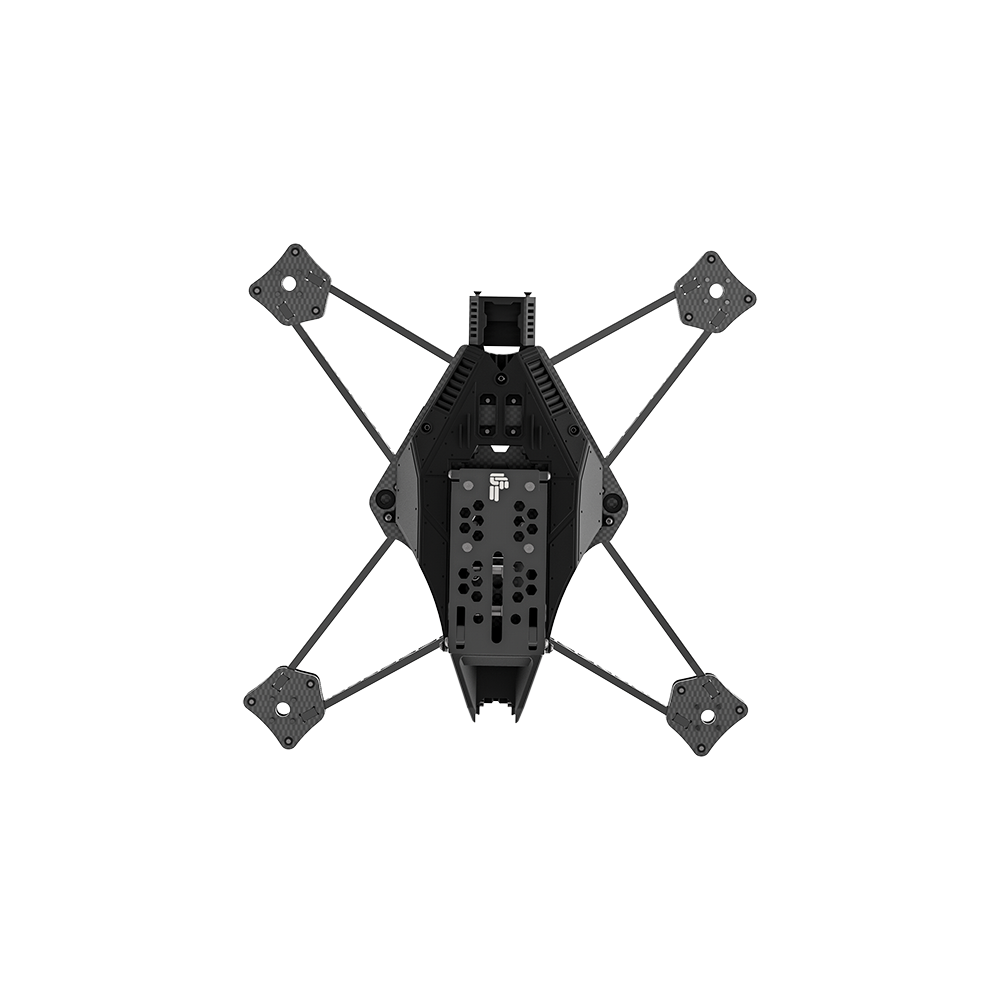

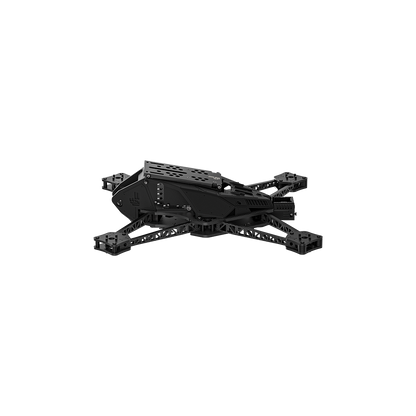

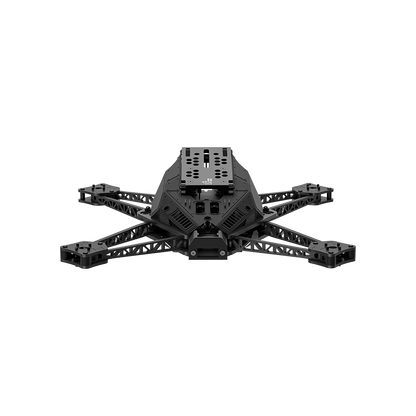

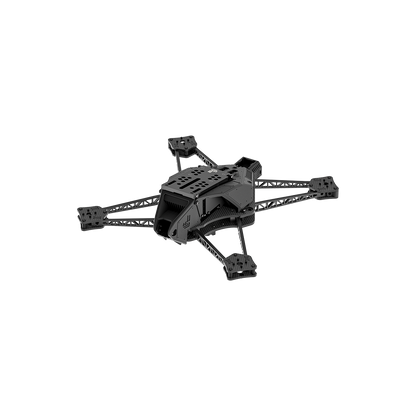

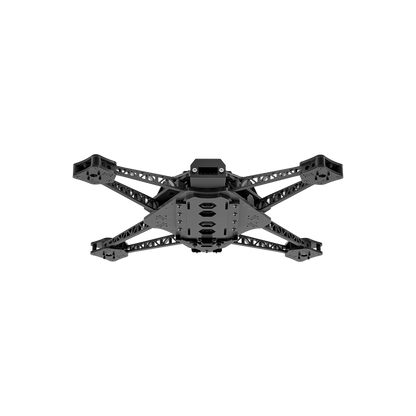

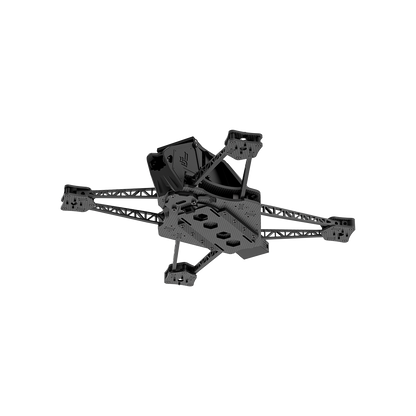

Centurion X8 cinelifter frame kit
The Centurion is a cinelifter frame kit that has been carefully crafted in collaboration with the pilots and engineers at 2RAW Aerials. Its A-frame construction coupled with stiffeners provides remarkable stiffness while effectively managing weight, resulting in superior performance. The Centurion is also equipped with a unique Aeroshell with an integrated camera holder. Trusted by many of the world's top pilots, this frame has the potential to be one of the most powerful cinelifter platforms available when built.
Advanced Truss Arms
The integration of A-frame construction with braces ensures exceptional stiffness while effectively managing weight, resulting in superior performance.
Innovative camera holder
The Centurion camera mount stands out from others on the market with its adjustable angles ranging from 10 to 50 degrees. The mount is made of 7075 aircraft grade aluminum and is elevated to eliminate the propellers from the view of the movie camera. Importantly, it is supported along both the horizontal and vertical axes to mitigate payload resonances. As the camera angle increases for higher speed, the mount provides more and more support.
AeroShell
The AeroShell not only gives the Centurion a distinctive look, but also regulates airflow around the body and inside the drone. Air enters through intakes to cool the ESC, while exit is facilitated by rear exhausts. As the drone's speed escalates, the AeroShell acts as an air splitter, deflecting the airflow away from the flat top plate. The casing also serves as a barrier against the penetration of dirt into the electronics.
Thermal cooling
The casing design allows direct airflow over the electronics and ensures consistent cooling.
Quick release battery system
Equipped with a seamlessly integrated quick release battery system, the Centurion optimizes efficiency in demanding film environments. Unlike competing models, it uses battery straps and carbon plates, which eliminates the need for individual battery tying. This quick battery change option allows users to return to flight in seconds, increasing productivity.
Specifications
Product Name: Centurion 8 HD Cinelifter Frame
Geometry: Squashed-X
Wheelbase: 384 mm
Frame size: L272*W272*H96 mm
Arm thickness: 5 mm
Bottom plate thickness: 4 mm
Thickness of the top plate: 4 mm
Maximum magazine height: 18 mm
Maximum height of VTX: 35 mm
Flight controller assembly: 30.5*30.5/Φ3mm
VTX mounting: 25.5*25.5/Φ2mm
Motor mounting: 19*19/Φ3mm
Weight: 969 g
Recommended engine: 28xx engine
Packing List:
1 x Centurion 8 HD Cinelifter Frame
4 x 20 x 300mm battery strap (color may vary)
1 x 15 x 250mm battery strap (color may vary)
1 x DJI O3 VTX cooler for Centurion
1x TPU set
2 x batteries Anti-slip mats
1 x bag of screws
1 x XT90E-Male plug
1 x XT30G-Female plug
2 x iPex/UFL to Abble RP-SMA adapter cable
