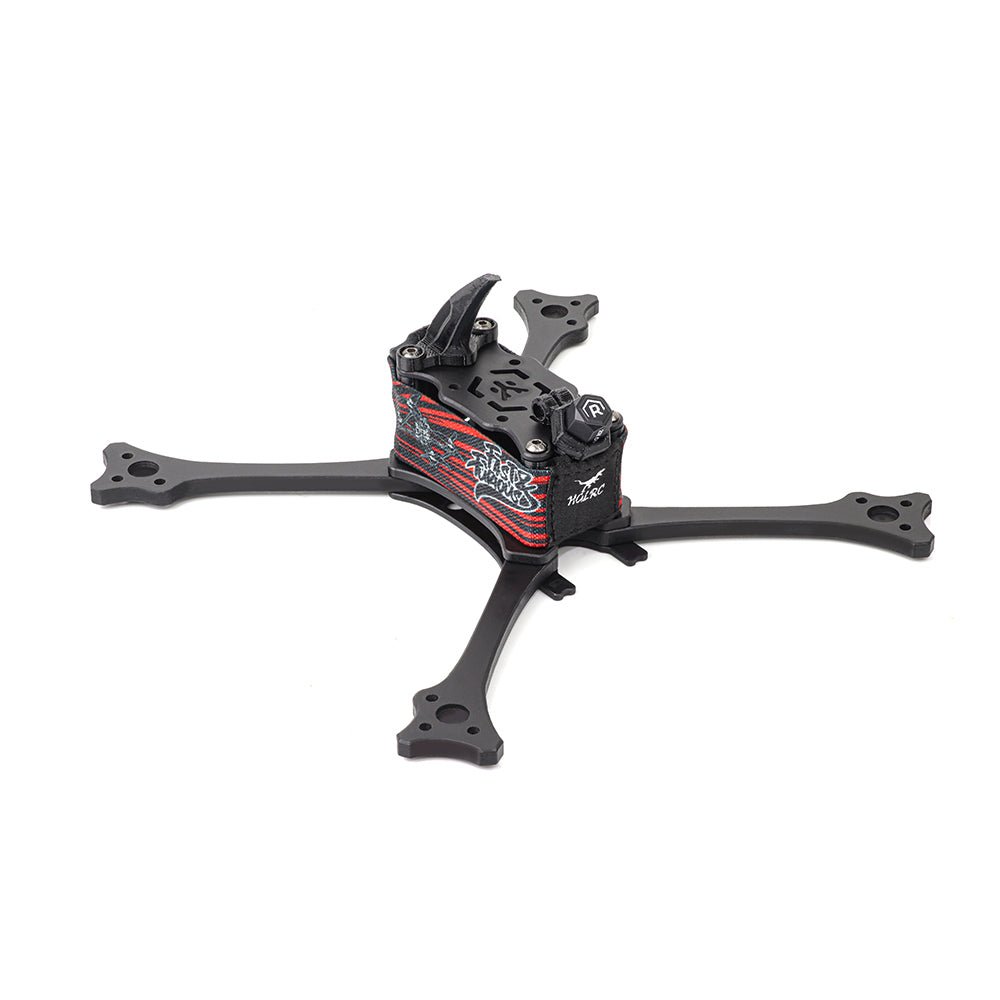

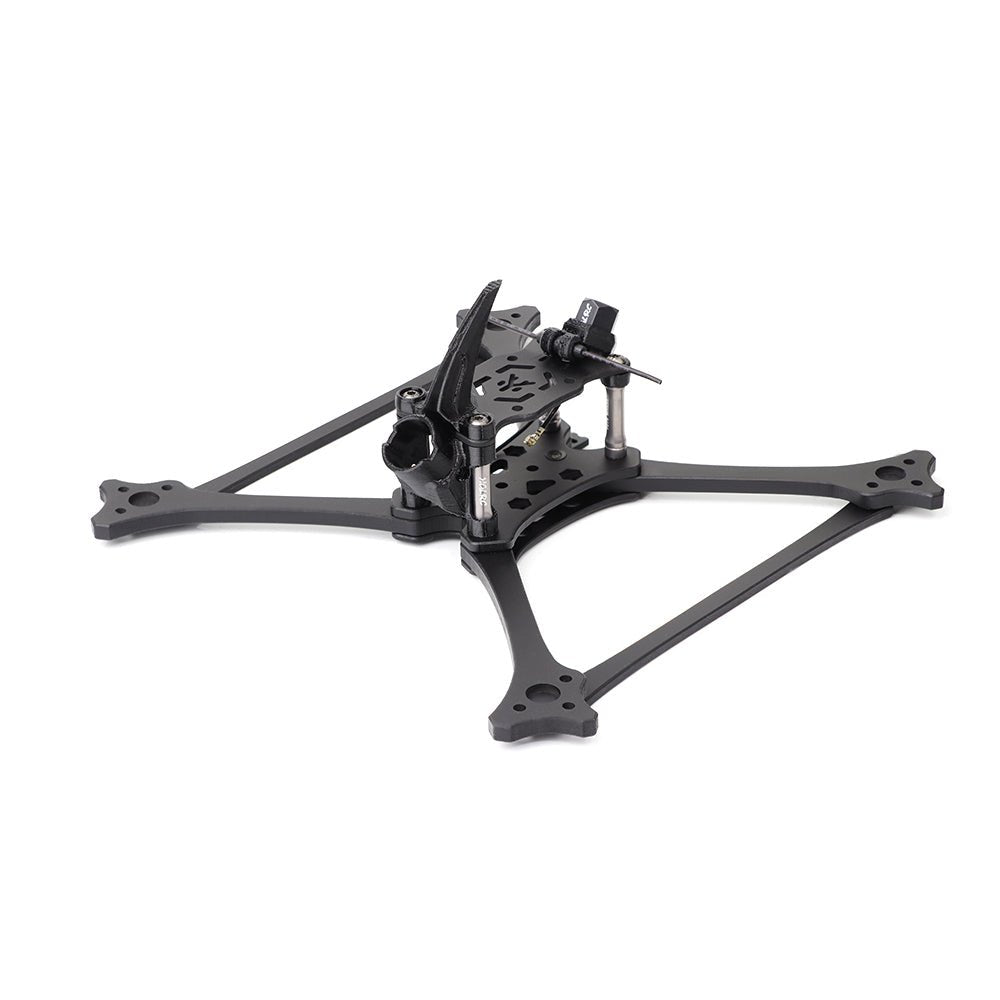

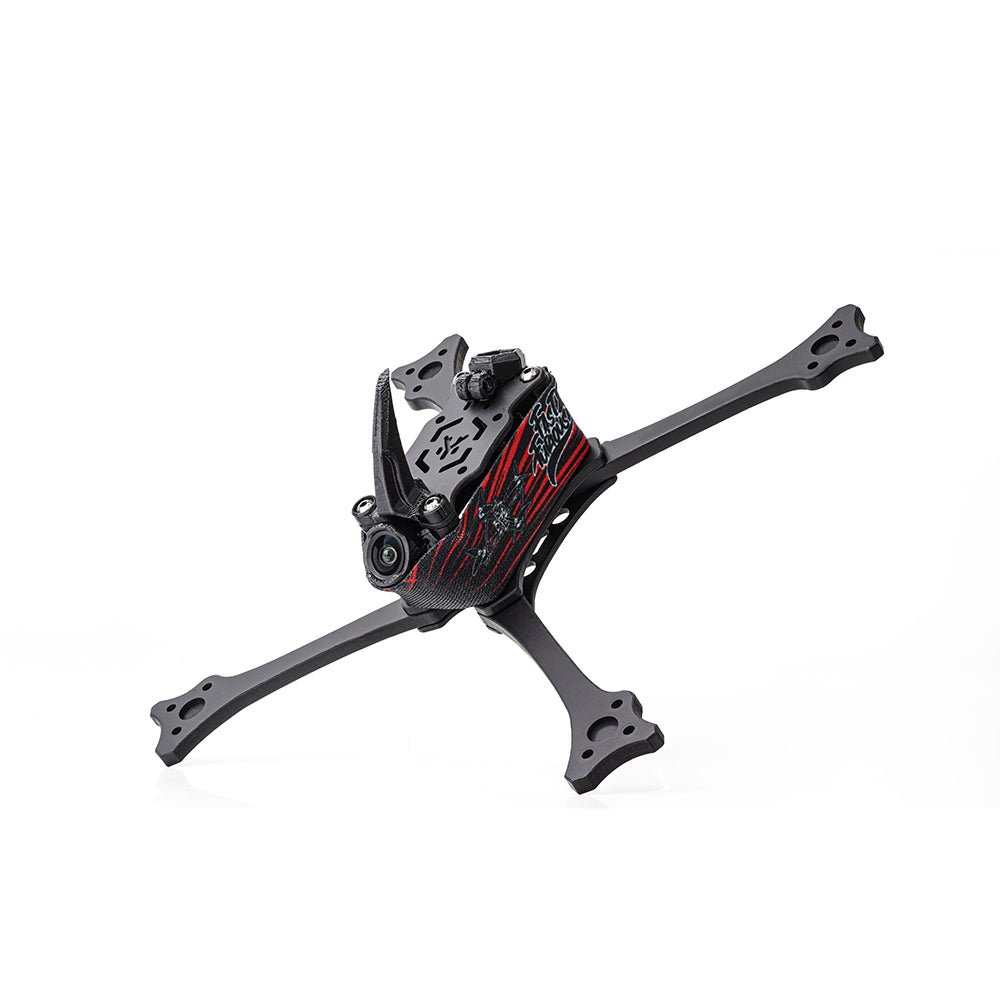

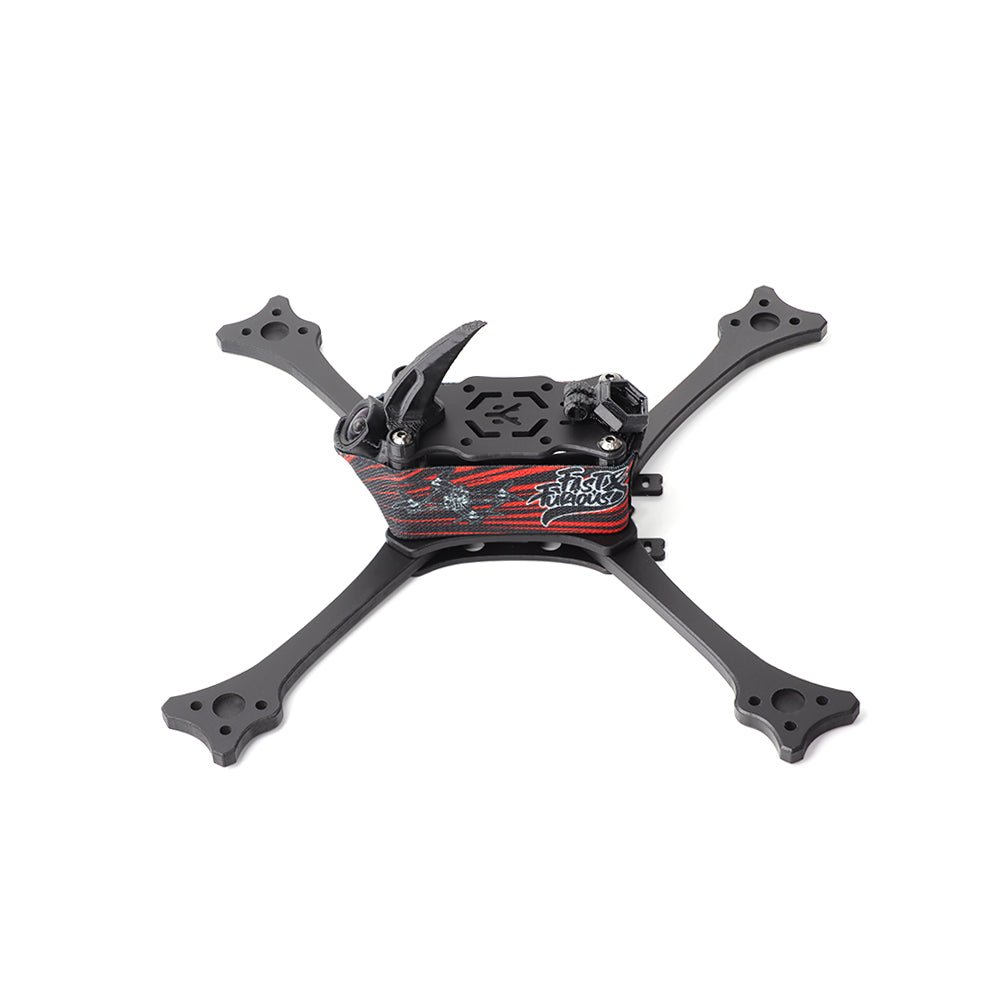

HGLRC Wind5 V2 Lite frame

HGLRC Wind5 V2 Lite is a lightweight and high performance racing drone frame designed for FPV racing. Thanks to the positive X construction with a wheelbase of 195 mm, it provides better maneuverability and response in flight. Constructed from Toray-T700 carbon fiber and 7075 aircraft aluminum posts, this frame ensures exceptional durability while maintaining a lightweight profile. The quick-release arm design allows for easy maintenance, making it an excellent choice for professional racers.

Specifications:

- Material: Toray-T700 carbon fiber + aircraft grade 7075 aluminum.
- Frame wheelbase: 195 mm
- Installation space: 26 mm
- Mounting holes for flight controller: 20x20mm (M3)
- VTX mounting holes: 20x20 mm (M3)
- Motor mounting holes: 16x16 mm (M3)
- Frame dimensions (L x W x H): 172.5 mm x 169 mm x 70 mm
- Default camera mount: FOXEER Predator 5 NANO (45 degree mount)
- Frame thickness: Top plate: 2mm / Middle plate: 3mm / Bottom plate: 2mm / Arms: 5mm / Guard bar: 3mm
- Weight (single frame): 69.5g

The package contains:

1x HGLRC Wind5 V2 Lite frame
