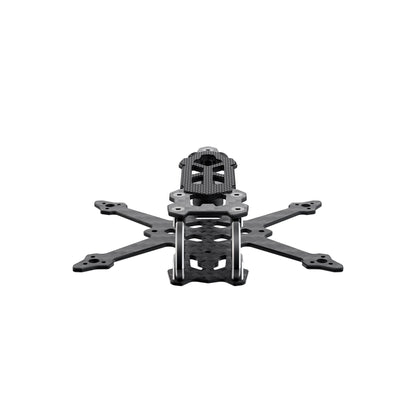

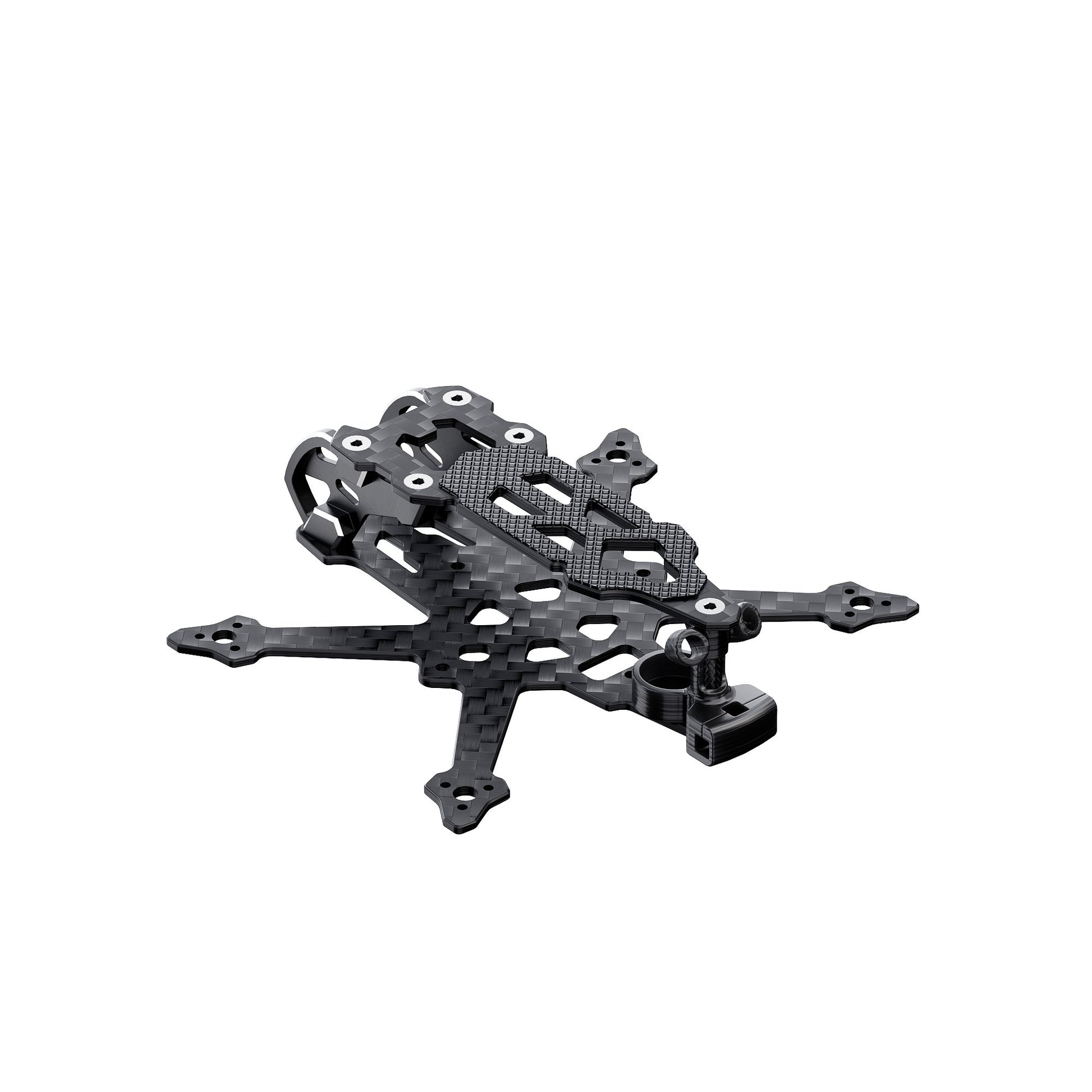

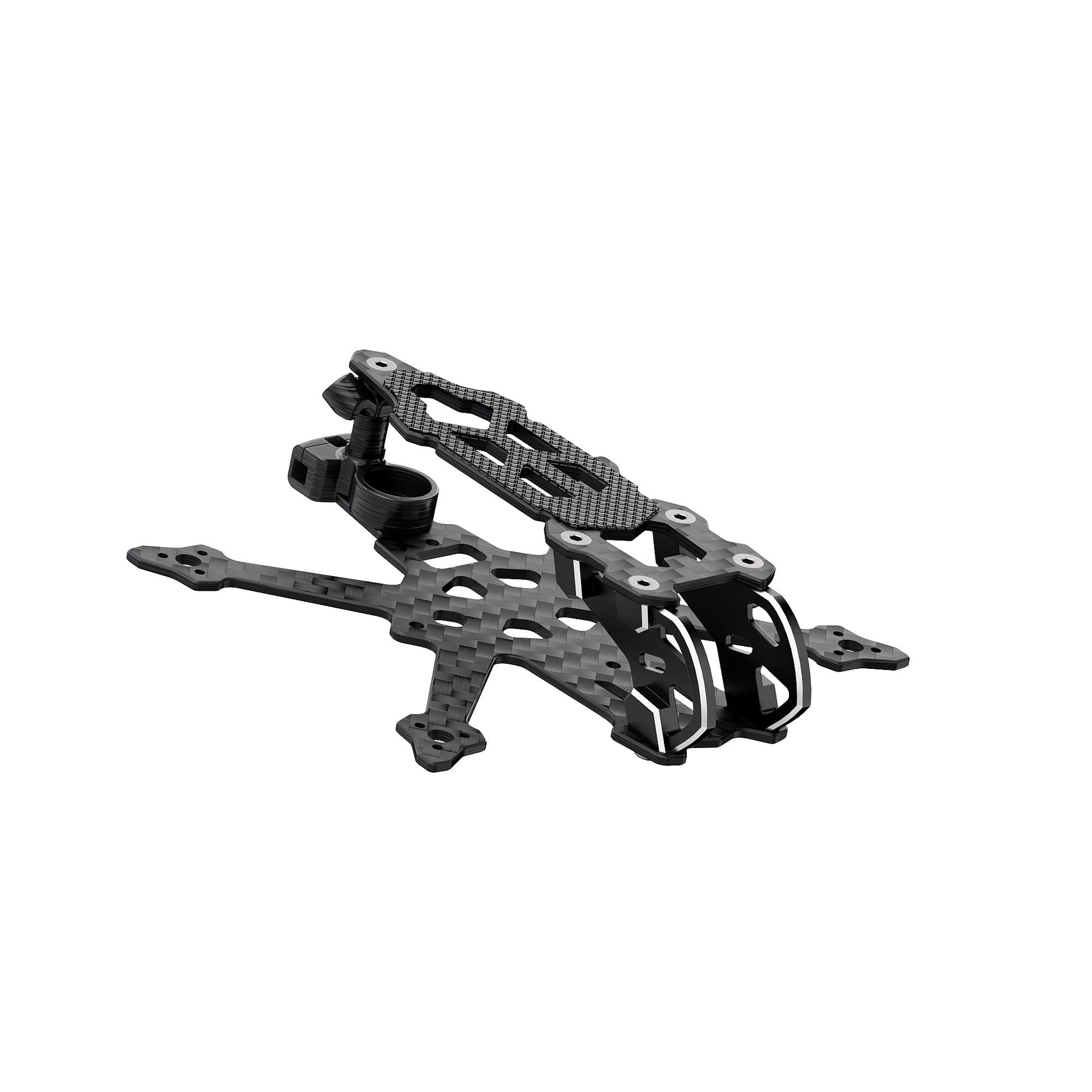

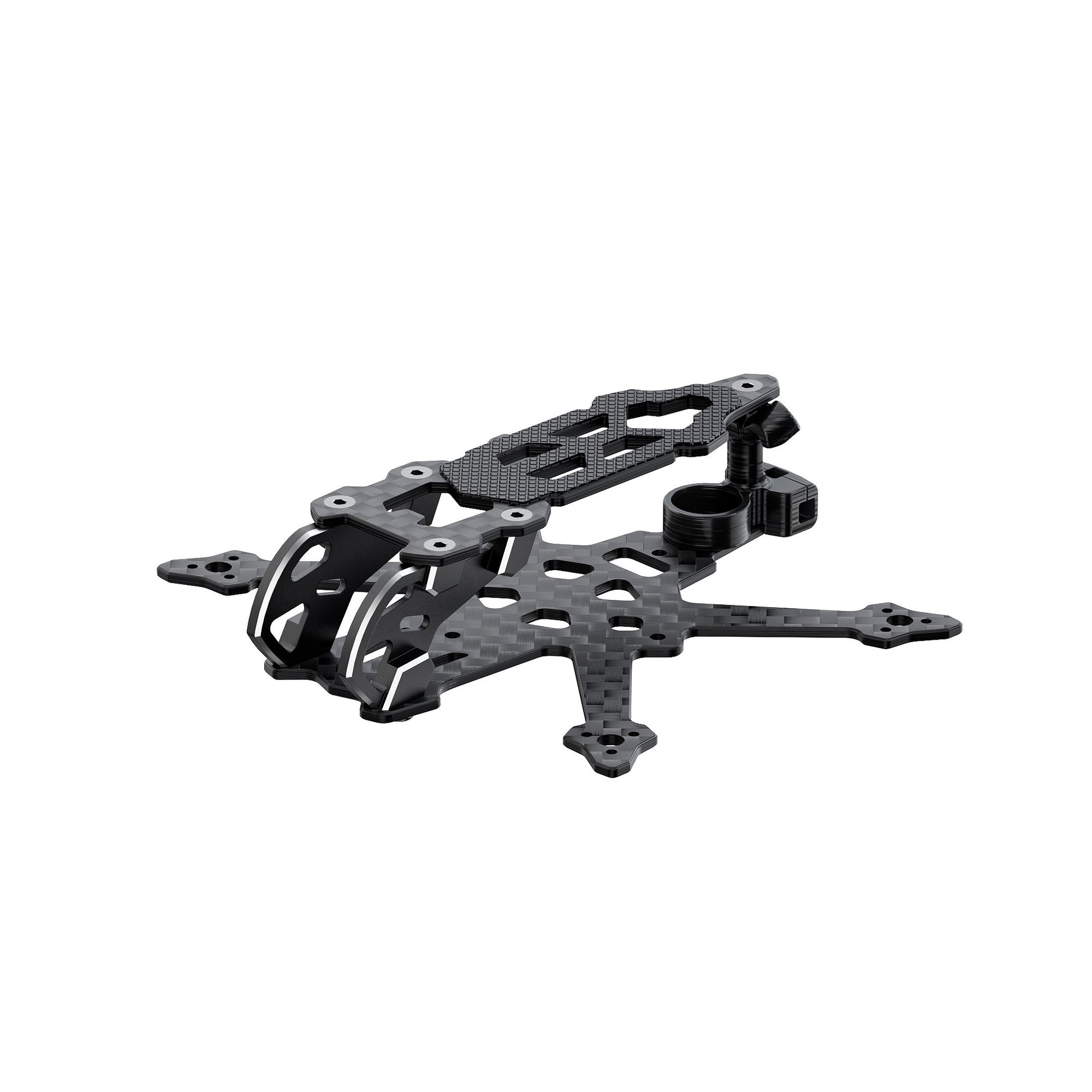

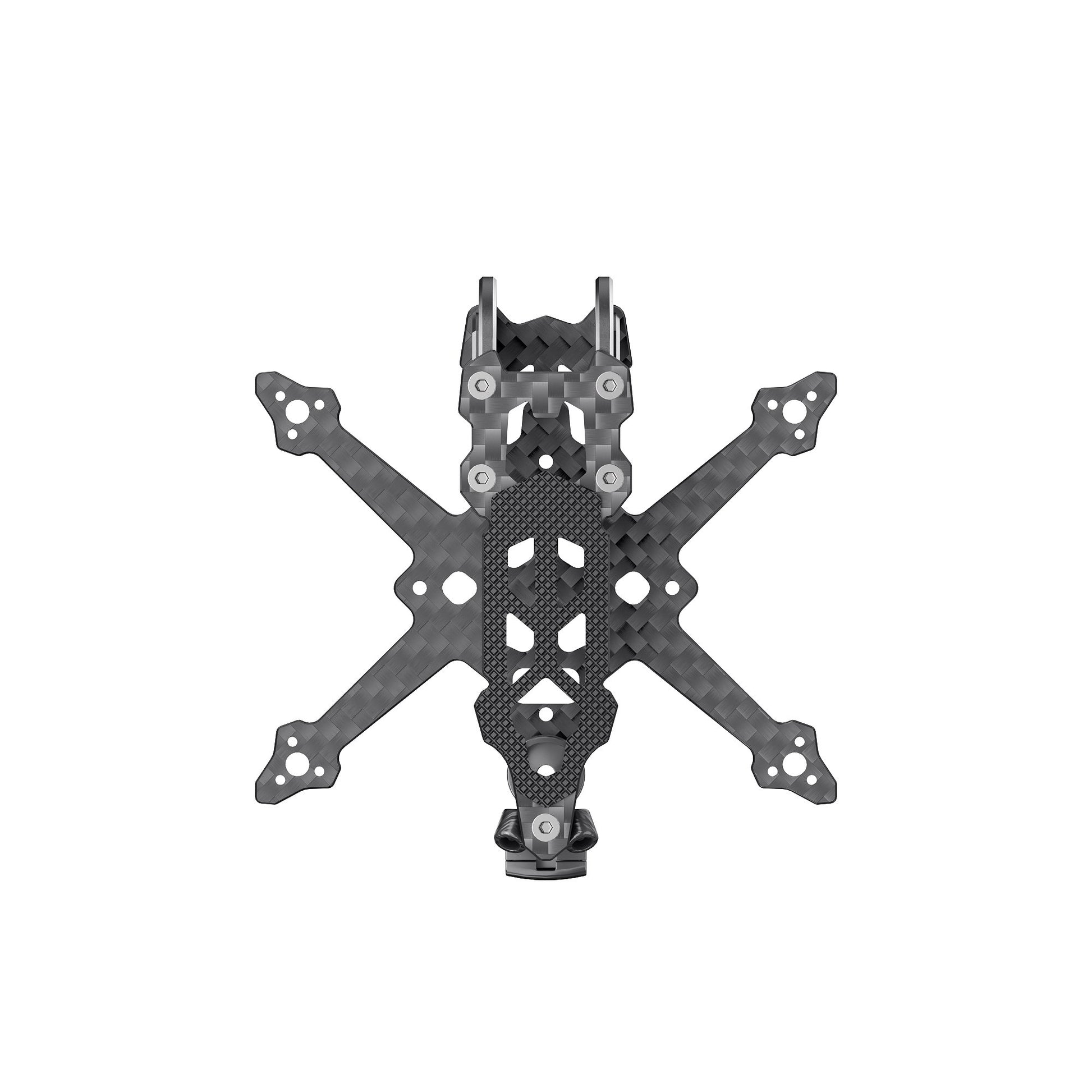

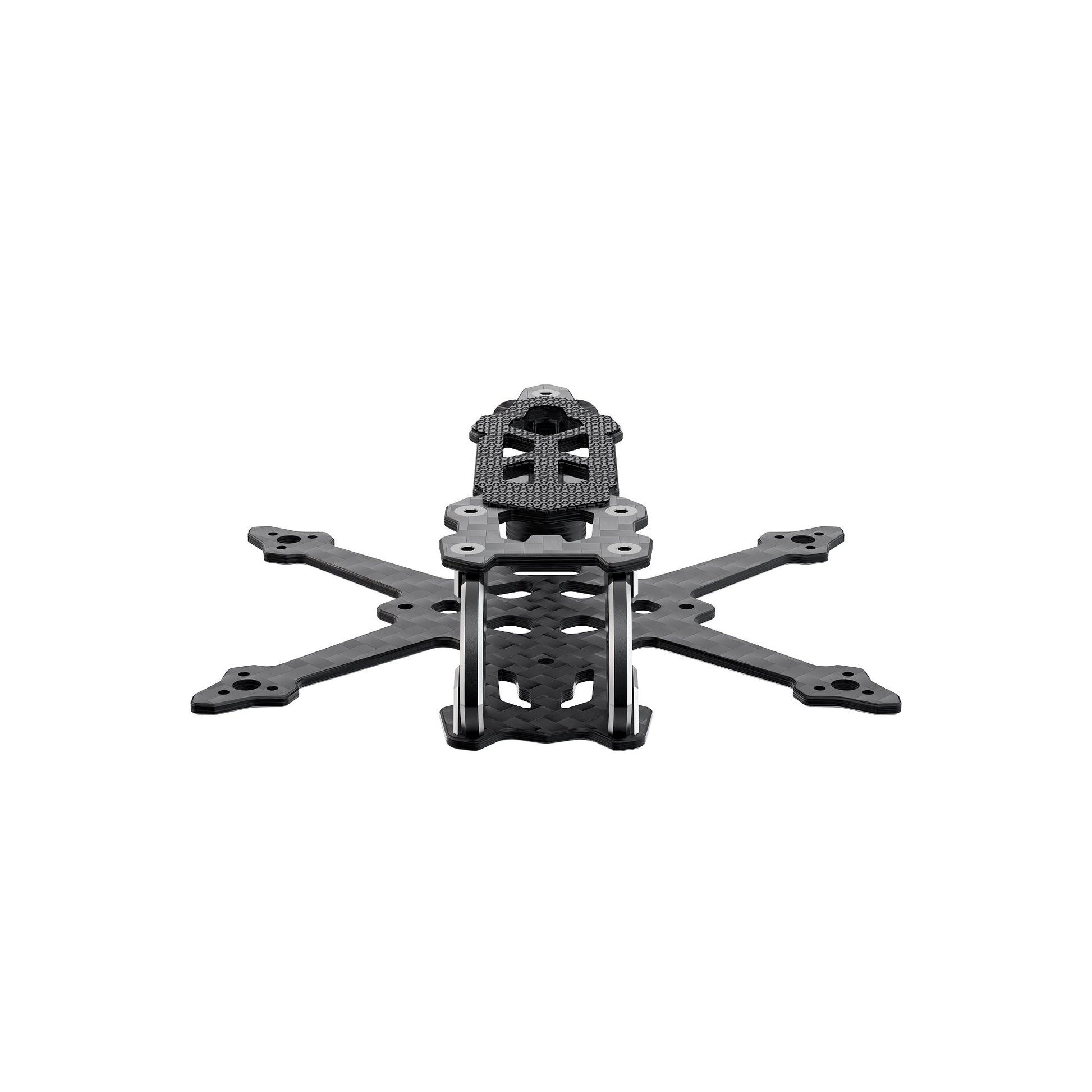

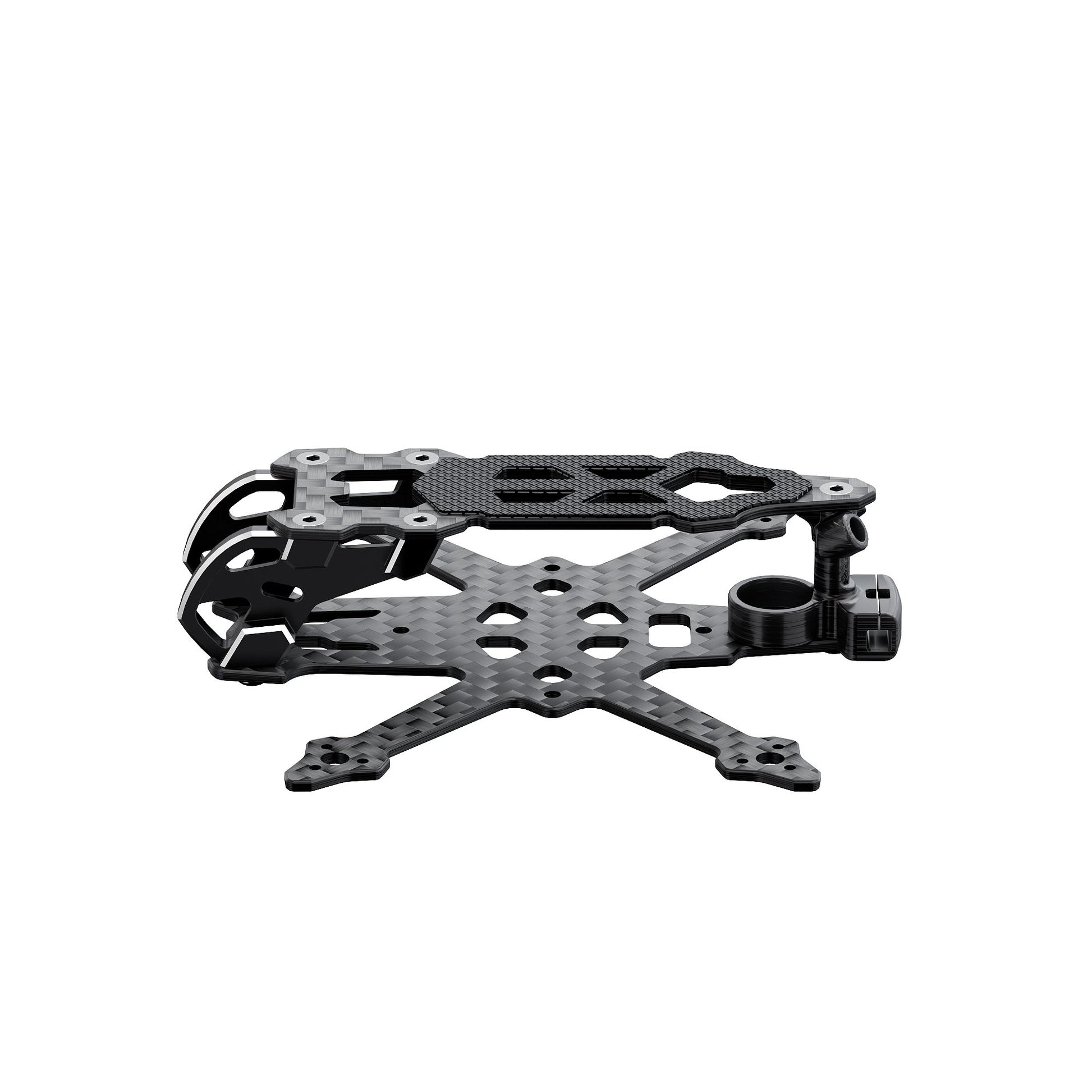

    GEPRC TC18 frame

The GEPRC TC18 frame is a lightweight and durable frame designed for Tinywhoop FPV drones that offers the ideal balance between stability, strength and compact design. It is equipped with camera mounts made of grade 7075 aluminum, which ensure increased rigidity and resistance to vibrations for maximum clear images even during dynamic flight.

The integrated rear section includes dedicated space for mounting the buzzer and two VTX antennas, allowing for a clean and efficient layout. The 1.5mm carbon fiber arms offer an excellent strength-to-weight ratio, increasing durability while keeping the frame light and agile.

Specifications:

Model: Frame GEP-TC18
Wheelbase: 87 mm
Dimensions: 100 x 90 mm
Frame type: Wide X
Top plate: 1.5 mm
Bottom plate: 1.5 mm
FC mounting pattern: 25.5 × 25.5 / M2
VTX mounting pattern: 25.5 × 25.5 / M2
Motor mounting pattern: 6.6 × 6.6 / M1.4
Spacing of camera side plates: 14 x 14 mm
Stack height: 12 mm
Weight: 11.7 g

The package contains:

1 × GEPRC TC18 frame
