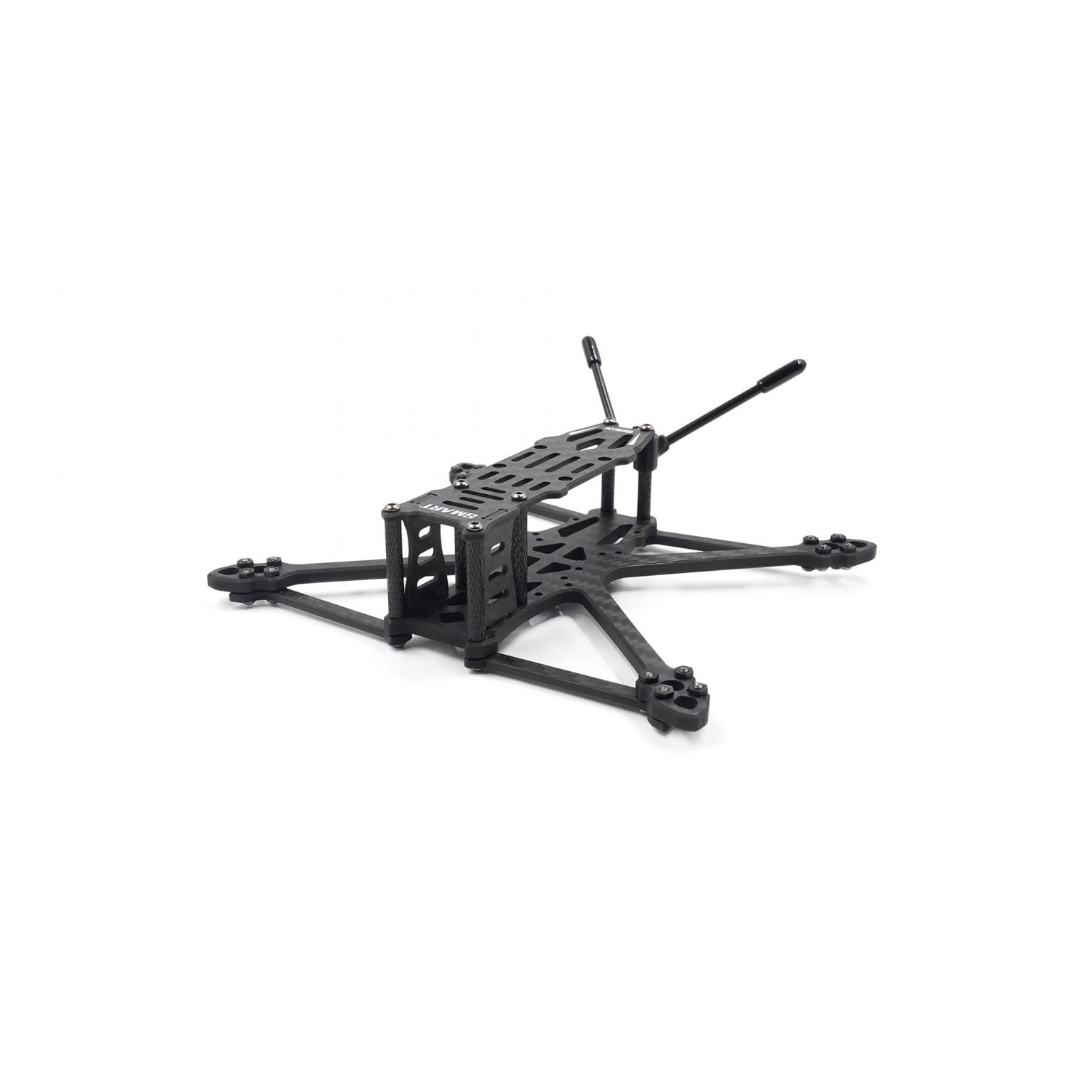

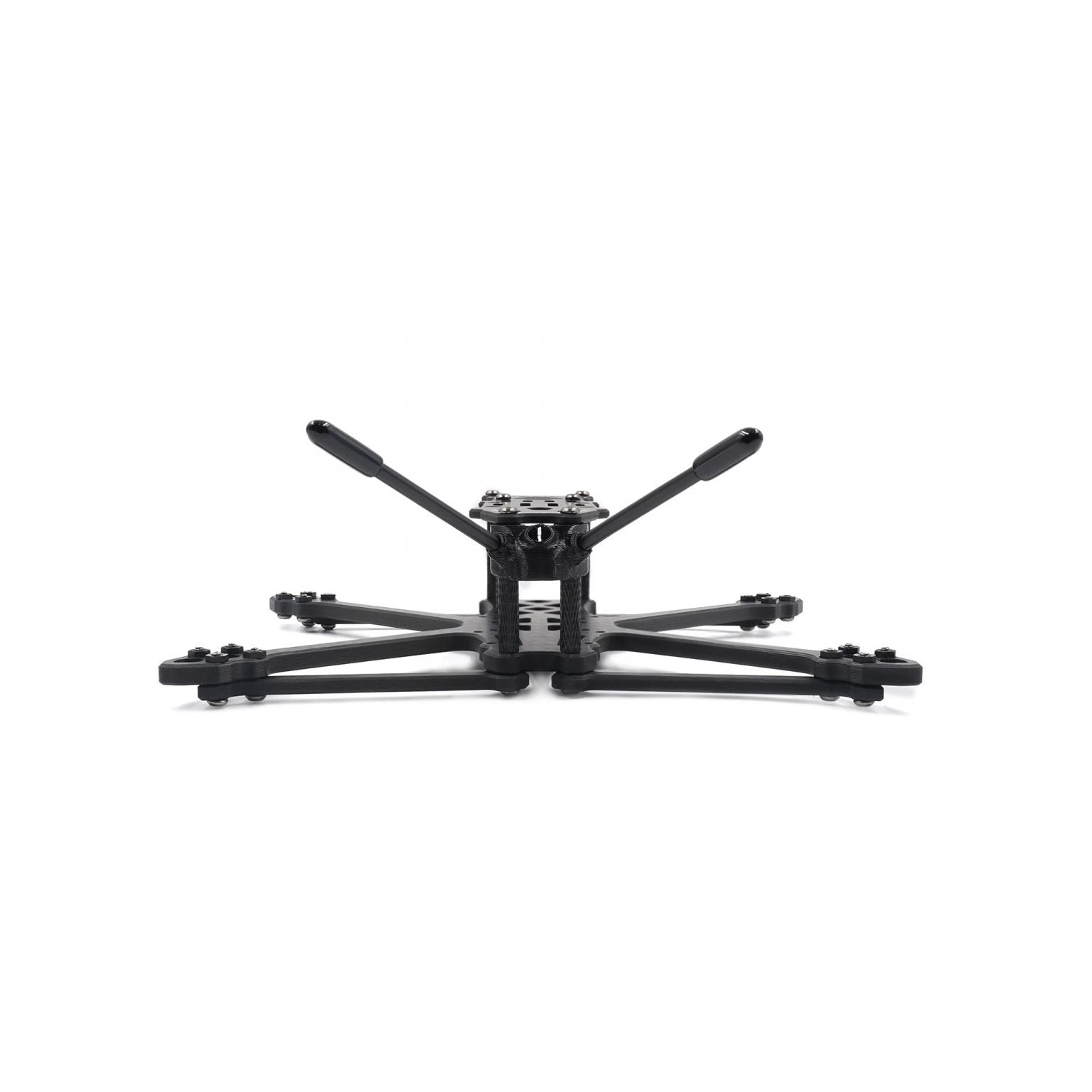

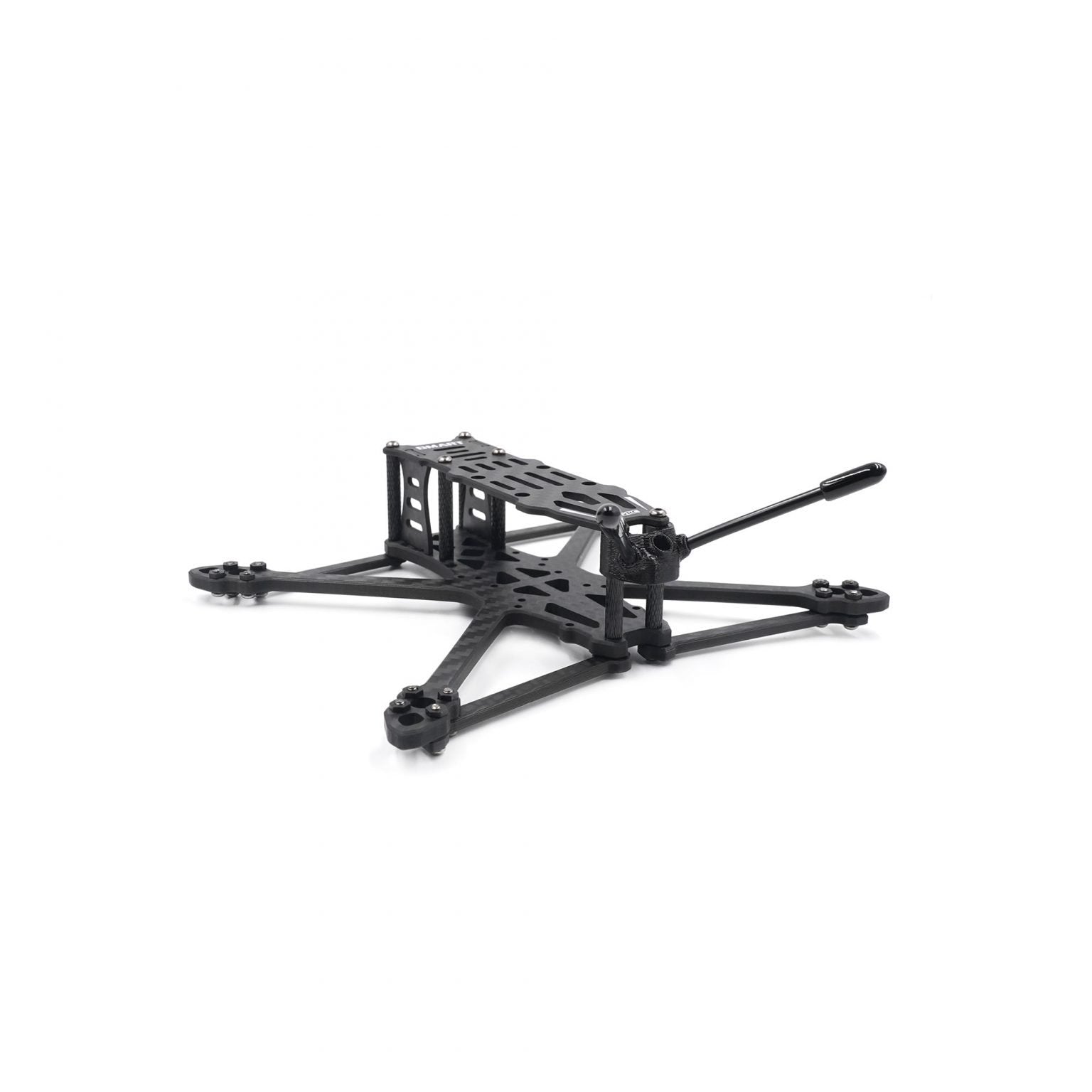

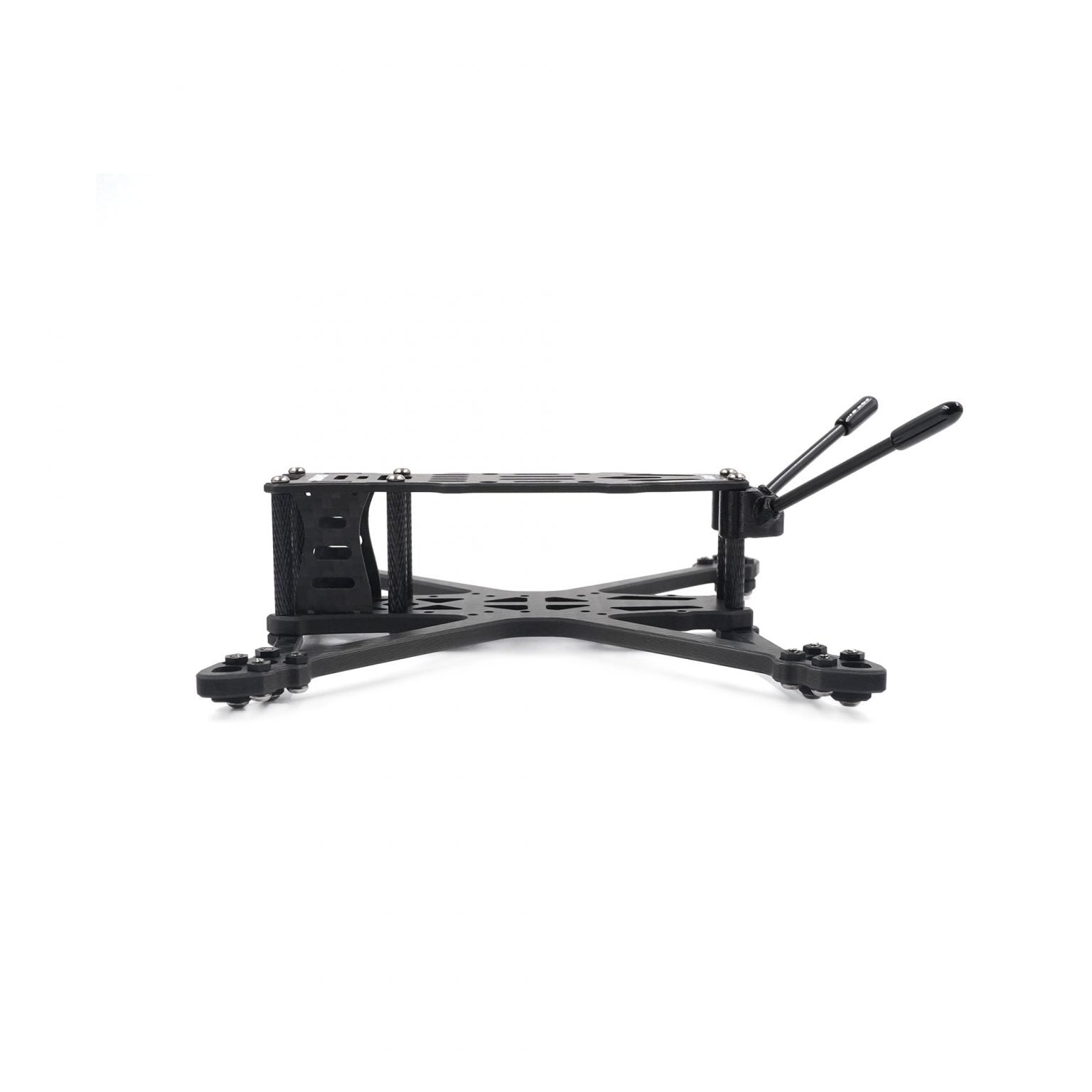

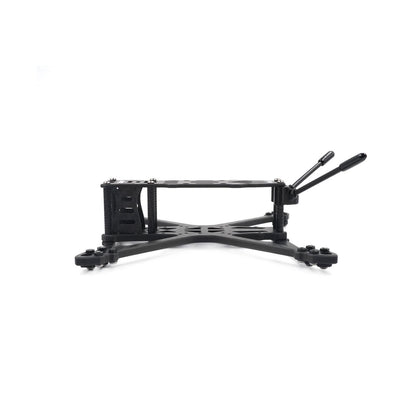

GEP-ST35 The GEP-ST35 is a 3.5 inch freestyle frame. Contains multiple mounting holes for installing various FC and VTX options. Accommodates motors with bore sizes from 8mm to 13mm and is compatible with Naked GP8 and Insta 360 Go2 cameras when using the GP camera mount. The frame is constructed with 4mm arms and can also be equipped with 2mm reinforced arms, ensuring ultra high strength. Specifications: Brand Name: GEPRC Model: GEP-ST35 Wheelbase: 155 mm Top plate: 2.0mm Bottom plate: 4.0mm Shoulder plate: 4.0 mm Reinforced shoulder: 2.5 mm FC mounting holes: 26.5x26.5mm / 20x20mm VTX mounting holes: 20x20mm Motor mounting holes: 9x9mm / 12x12mm Dimensions: 142 x 118 x 36 mm Weight: 47.9g (with 3D printing and reinforced arm)
