    Code: GP105964

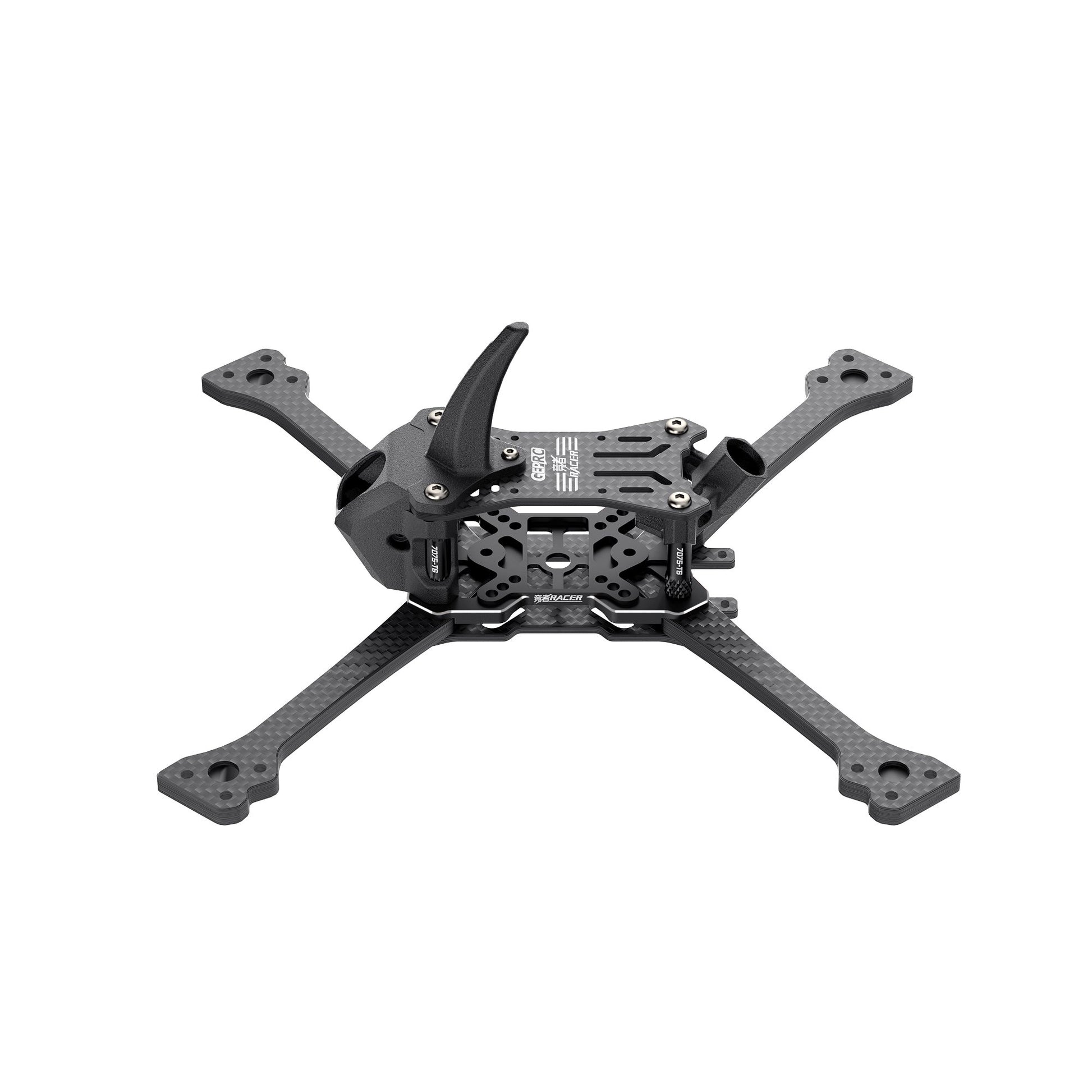

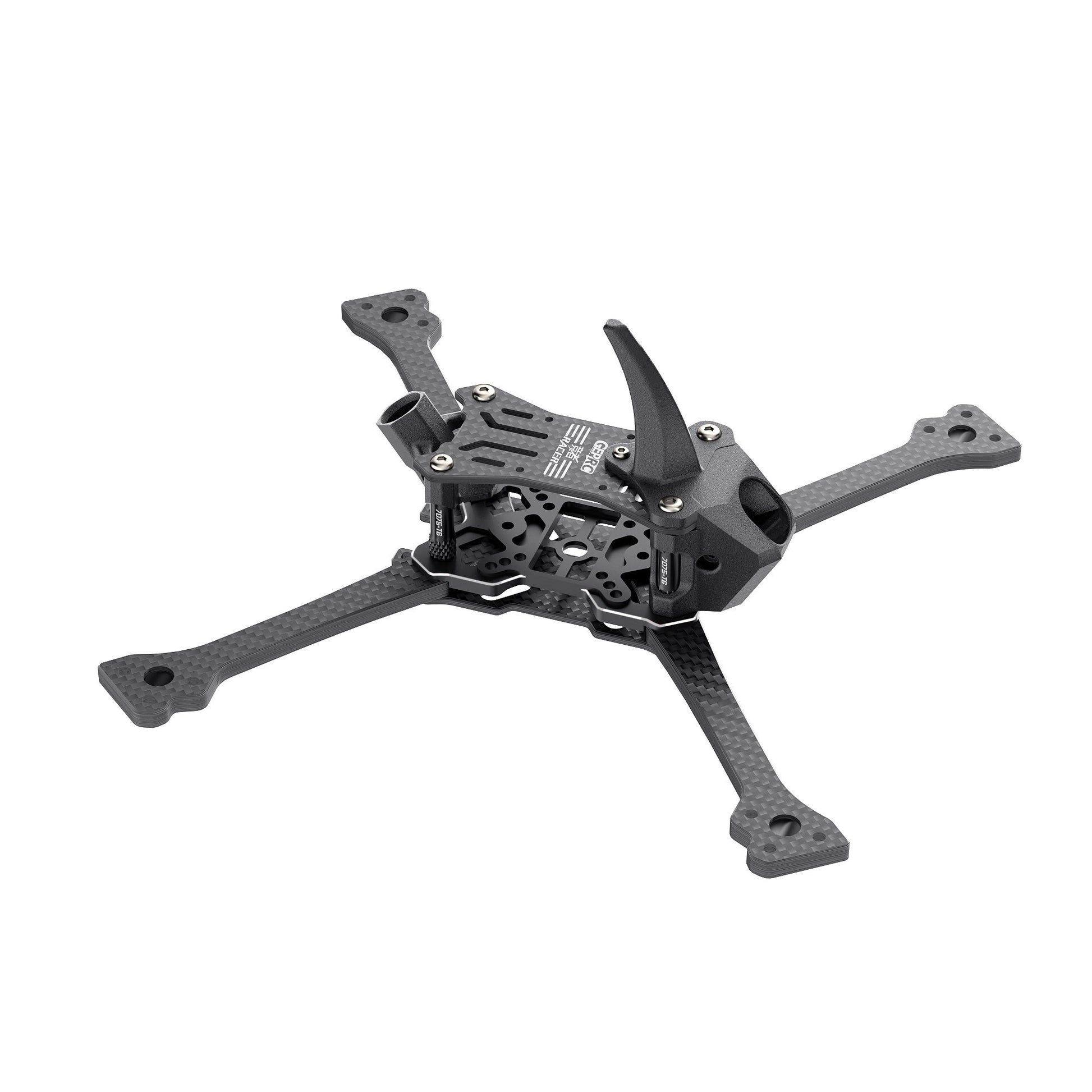

    Frame GEPRC GEP-Racer-Sliver for Racer FPV Drone

    Frame GEPRC GEP-Racer-Sliver for Racer FPV Drone

    Brand: GEPRC

    €58,87
    €58,87 €58,87
    -0% View Product
    Taxes included.
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    GEP-Racer-Sliver

The Racer frame combines a 7075-T6 aircraft aluminum alloy plate and high-quality CNC processing of T700 carbon plates, and the overall structure is solid. 20 * 20mm / 25.5 * 25.5mm / 30.5 * 30.5mm flight controller can be installed, and the motor mounting hole is 16 * 16mm. Compatible with HDZero VTX

Specifications:
Model: RACER FPV frame
Frame: GEP-RACER Frame
Dimensions: 175mm x 173mm
Wheelbase: 208 mm
Top plate: 2.0mm
Aluminum sheet: 2.0 mm
Bottom plate: 2.0mm
Arm thickness: 5.0 mm
Dimension of aluminum post: M3x6x24mm
FC mounting hole: 30.5x30.5mm / 25.5x25.5mm / 20x20mm
VTX mounting hole: 20x20mm
Motor mounting hole: 16x16mm
Camera installation space: 14 mm
Propeller: 5 inches
Weight: 78g ± 2g
