Code: SKU:GP105934
Frame GEPRC GEP-MOZ7 for MOZ7 Drone
Frame GEPRC GEP-MOZ7 for MOZ7 Drone
Brand: GEPRC
Regular price
€97,33
Regular price
€97,33
Sale price
€97,33
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

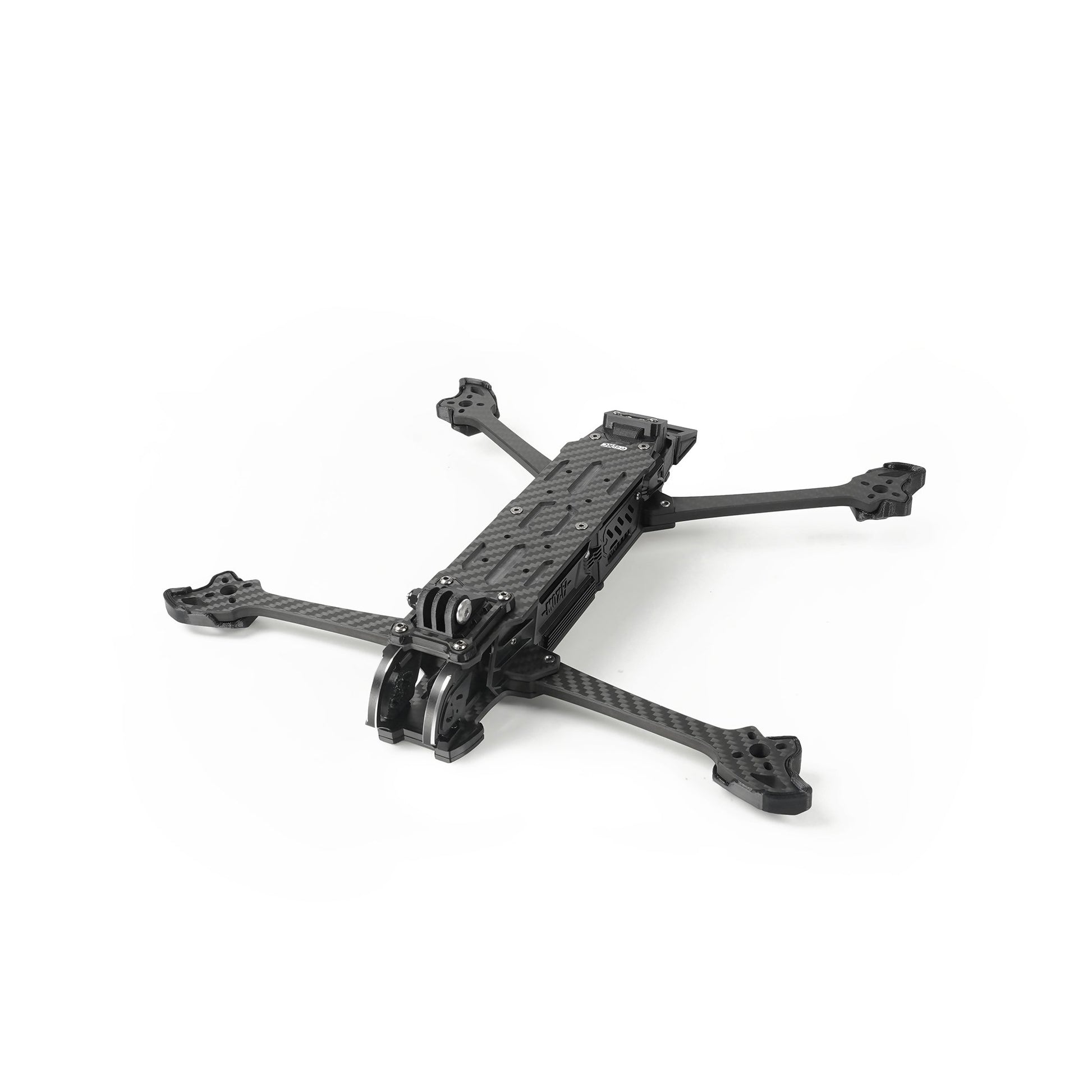

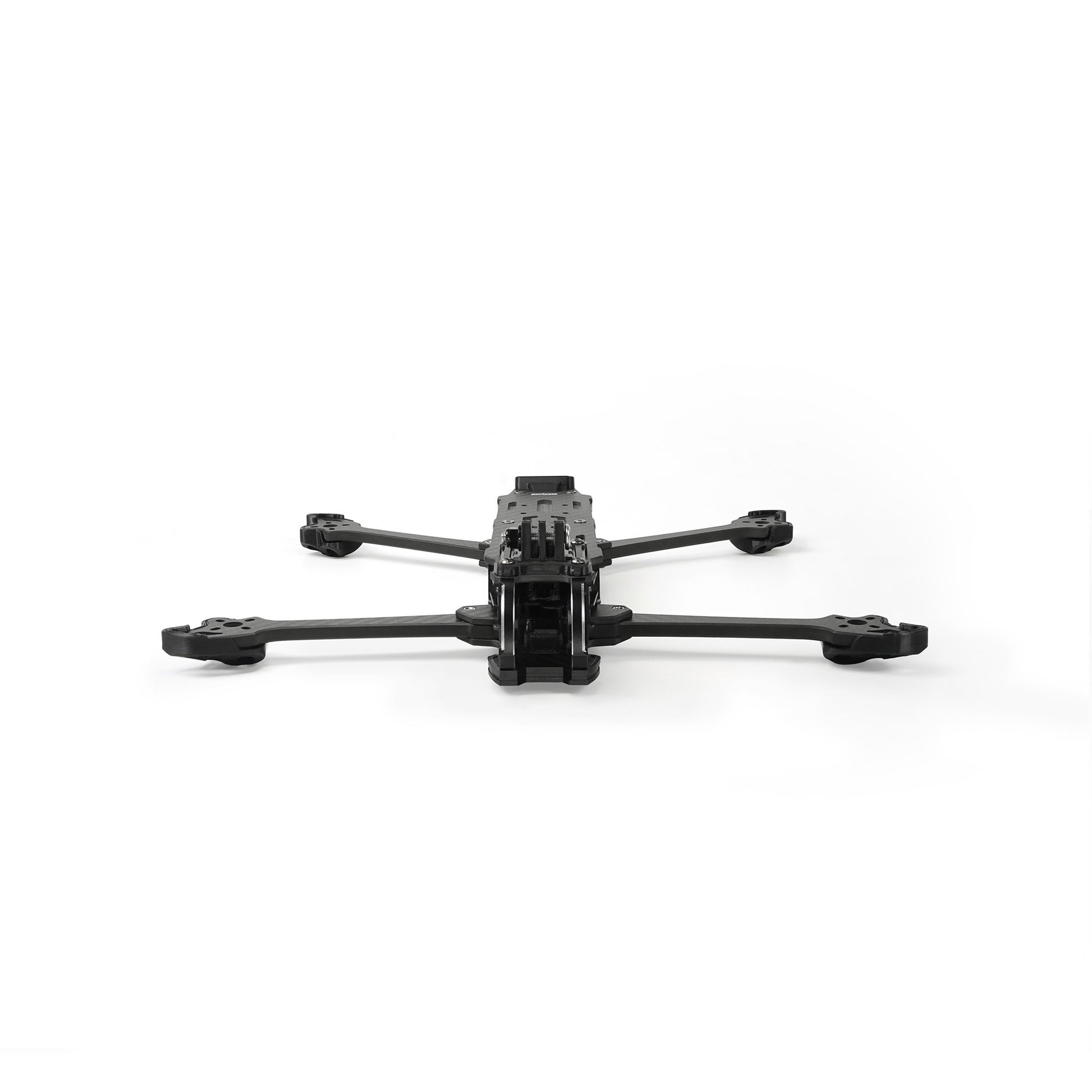

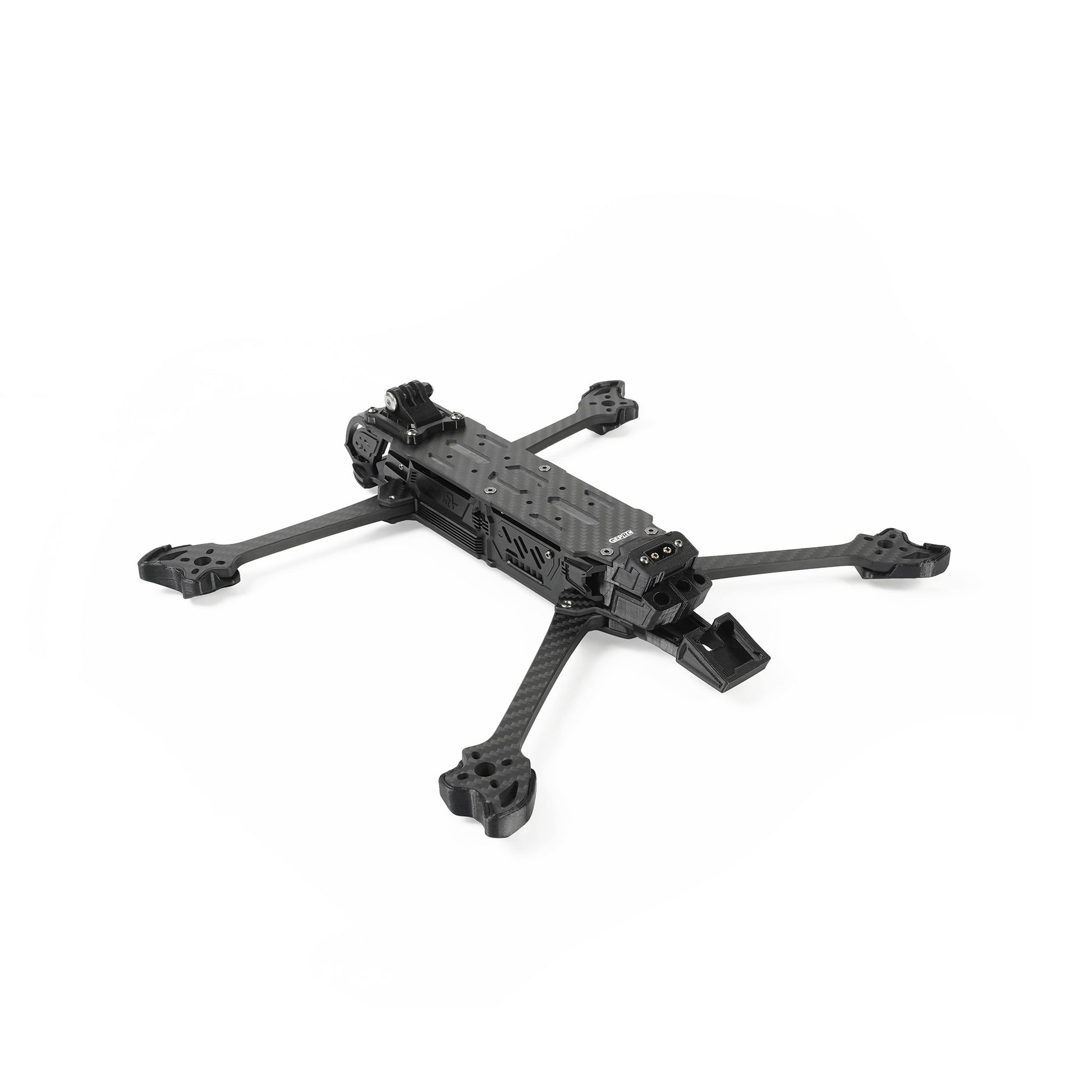

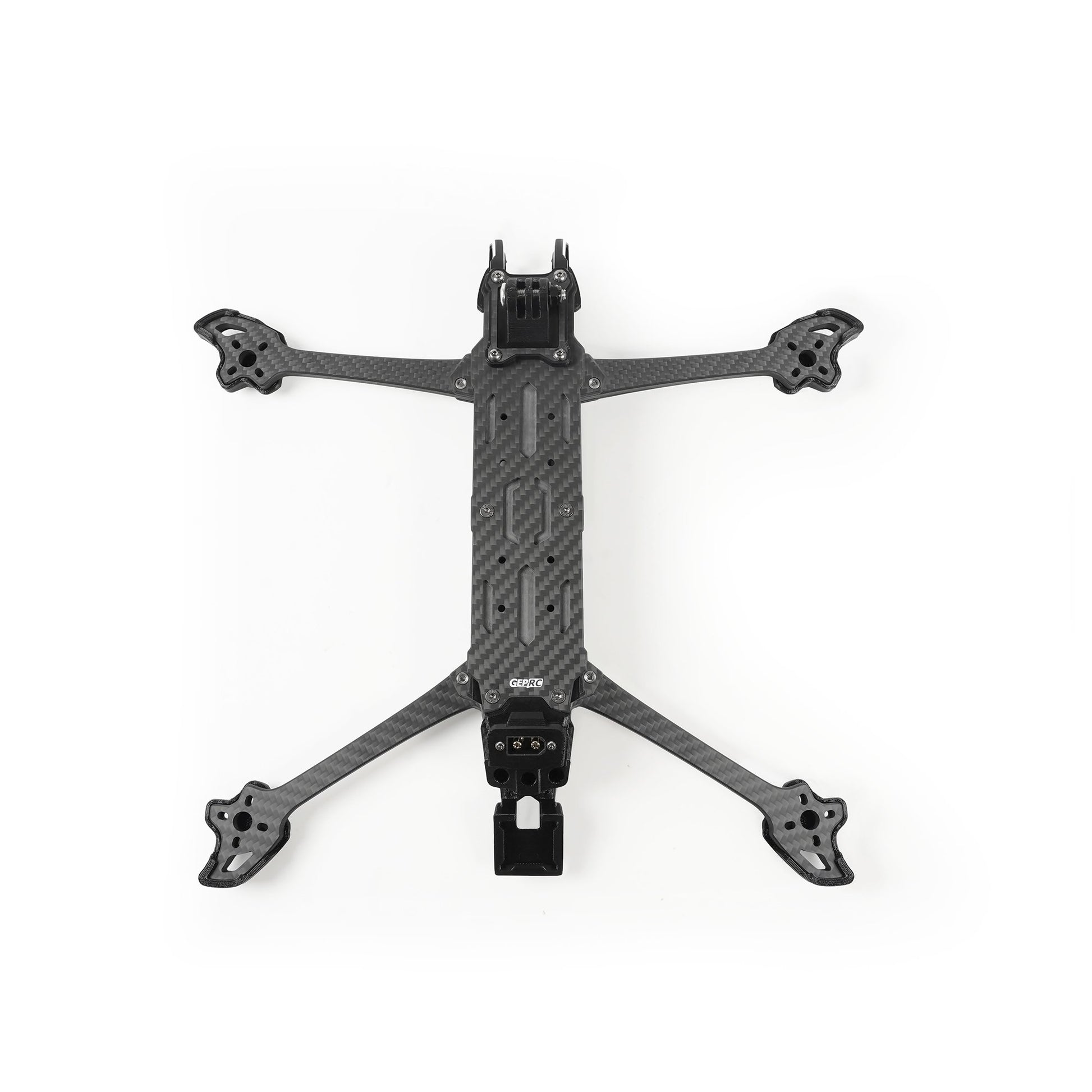

GEP-MOZ7 The GEP-MOZ7 frame is a traditional model with a personalized protective side plate. The MOZ7 supports a maximum 30.5mm x 30.5mm installation and is compatible with various VTX and custom cooling systems. Innovative camera mounting method, the left and right position of the alternate aluminum camera part allows switching between 19mm and 20mm sizes. Function 1. The camera uses CNC aluminum alloy side plate, strong and sturdy, compatible with 19mm and 20mm camera mounts. 2. H-shaped frame design, smooth flight experience, stable attitude, suitable for long-distance flight. 3. Compatible motor hole position, support 16mm × 16mm and 19mm × 19mm motor installation. 4. Added VTX cooling fins to ensure stable operation during flight. 5. Can be mounted with a variety of GoPro cameras, Insta 360 Go2 and Caddx Peanut cameras. Specifications: Model: MOZ7 Frame: GEP-MOZ7 Dimensions: 280×310 mm Wheelbase: 320 mm Top plate: 3.0mm Bottom plate: 3.0mm Shoulder plate: 6.0 mm Slat plate: 3.0 mm Camera mount: 2.0mm VTX cover: 1.5 mm FC mounting hole: 30.5x30.5mm VTX Mount: 20 x 20mm / 25.5 x 25.5mm / 30.5 x 30.5mm (maximum external size supports 30 x 30mm) Camera installation size: 19mm / 20mm Propeller: 7-7.5 inches Weight: 310.0 g (without battery)
