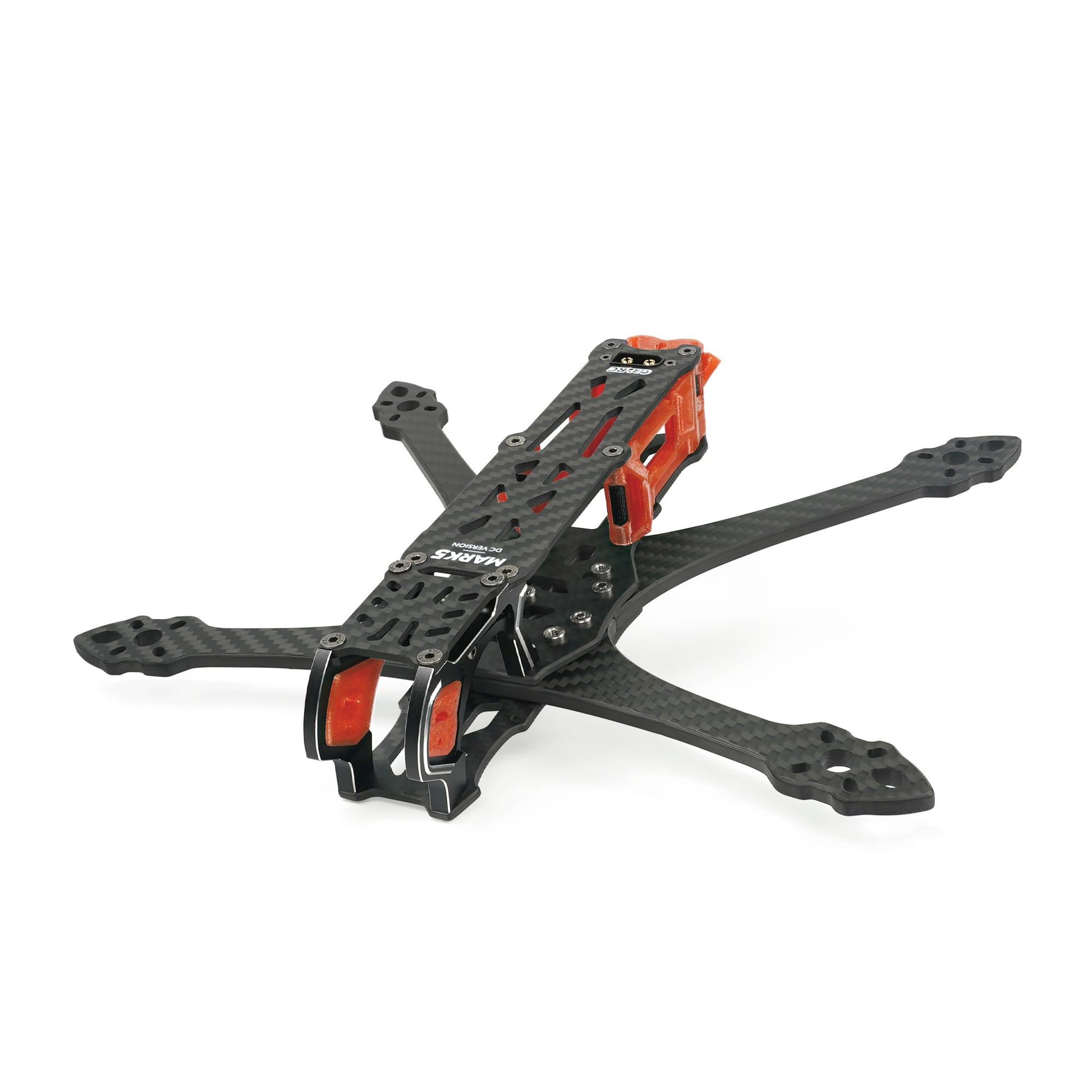

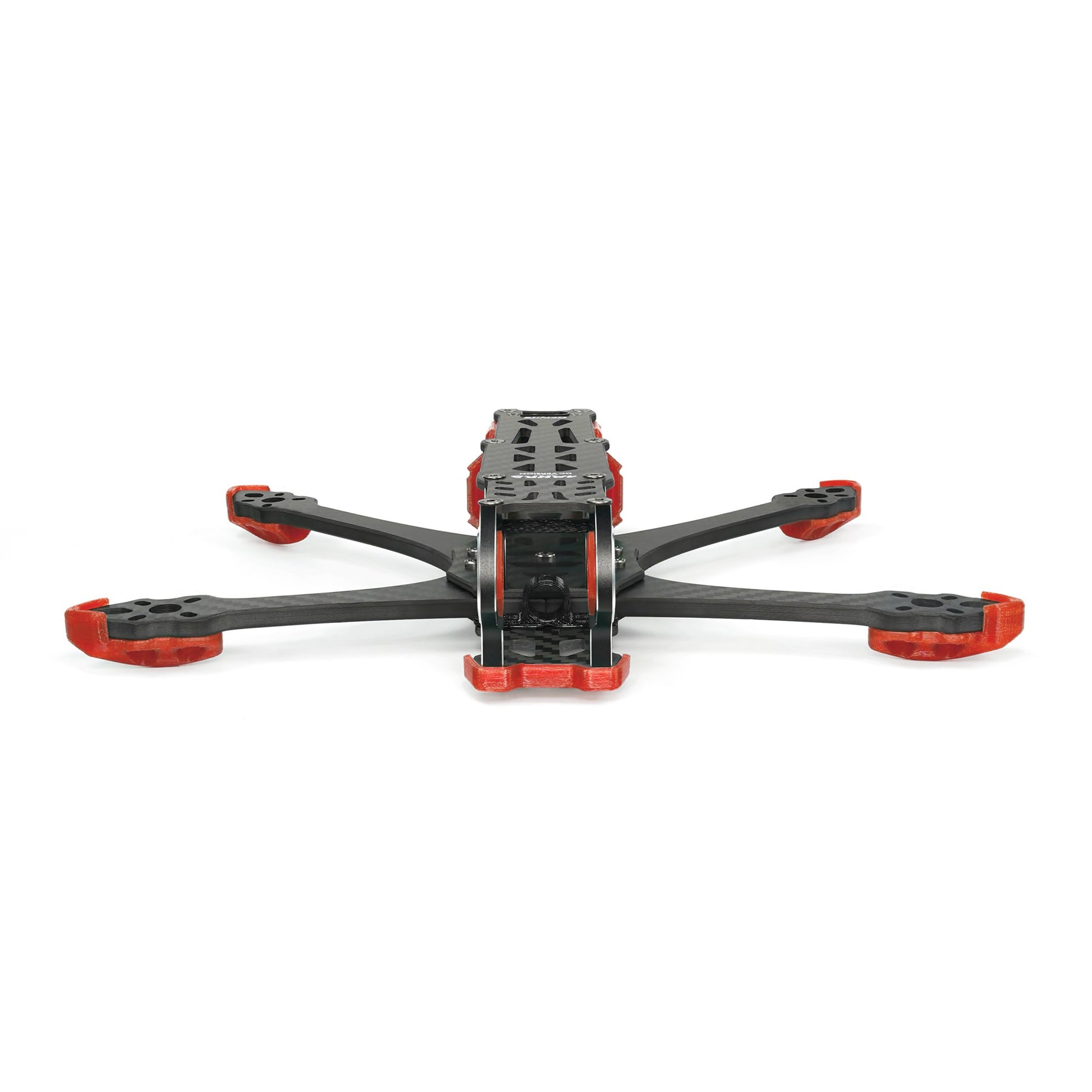

Frame GEPRC GEP-MK5D-O3-Standard Coral Orange

Name: Frame GEPRC GEP-MK5D-O3-Standard Coral Orange
Brand: Baltic Drones
SKU: GP105797
Price: 75.60 EUR
Availability: OutOfStock

Frame GEPRC GEP-MK5D-O3-Standard Coral Orange

Brand: GEPRC

€75,60

~~€74,19~~ €75,60

--2% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

GEP-MK5D-O3-Standard (Orange)

The HD VTX launched a new upgrade and the brand new DJI O3 Air Unit VTX took the digital system to a new level. The GEPRC team is also modernizing and optimizing overall performance based on MARK5. At the same time, it will be equipped with a DJI O3 air unit for the design of the new version of the MARK5 O3, the versions are MK5D and MK5X.

The camera's newly improved aluminum alloy side plate, 7075-T6 aluminum alloy, is strong and durable. It can be fully adapted to the new DJI O3 aerial unit camera with a field of view (FOV) of 155° and can support up to 4K 60FPS recording. The DC structure has a wide and unobstructed viewing angle during flight, which is suitable for O3 in-flight video recording and direct output. For the O3 VTX module, we also specially designed soft TPU printing parts and equipped with a cooling air intake port, which contributes to sufficient heat dissipation in the air unit. The GEP-MK5 O3 Pro version comes with two different camera mounts that can be mounted on a range of GP action cameras as well as GP 8/10 naked camera, Insta 360 GO2 and Caddx Peanut etc. moments for your flight.

Specifications:
Frame GEP-MK5D O3
Wheelbase: 230 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 5 mm
FC mounting holes: 30.5mm x 30.5mm
Camera installation space: 20 mm
Suitable propeller size: 5″ propeller
Dimensions: 208mm x 193mm x 42mm
Standard version Weight: 168.0 g
