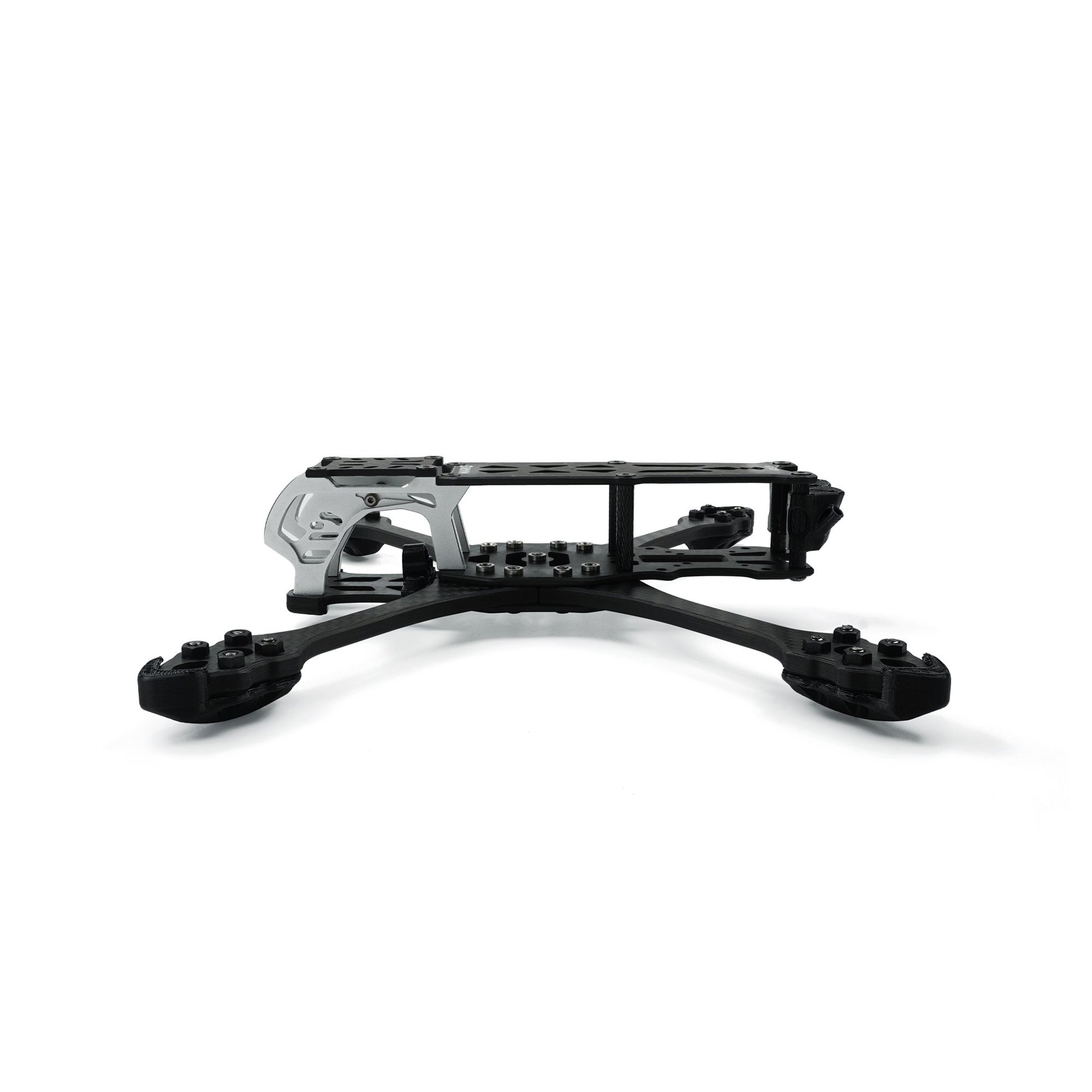

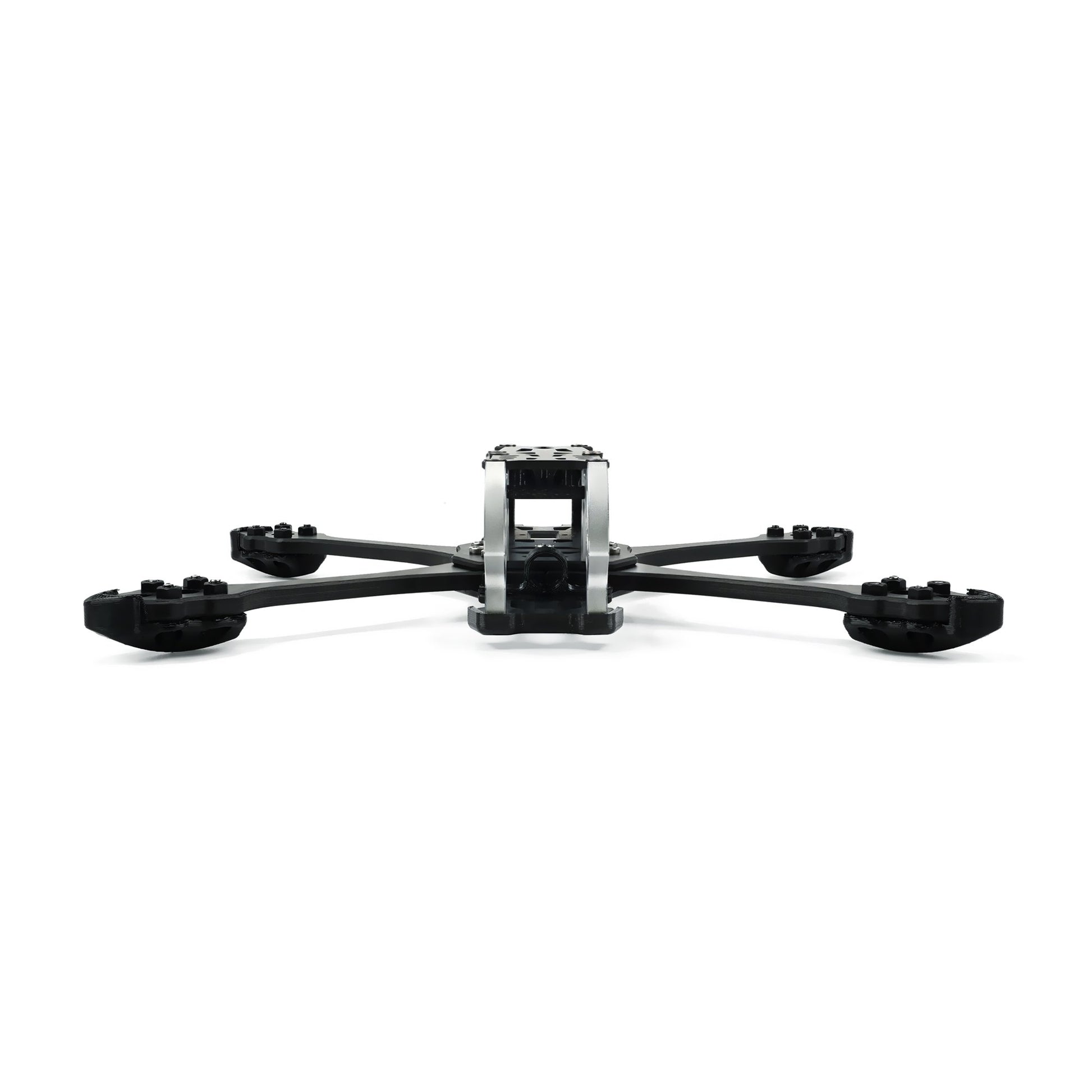

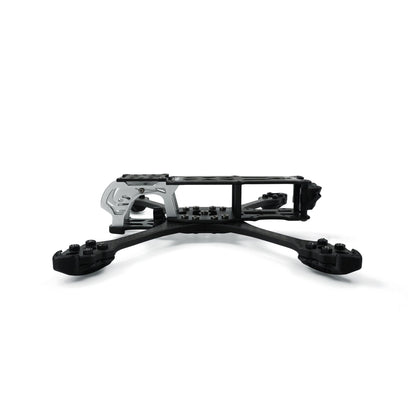

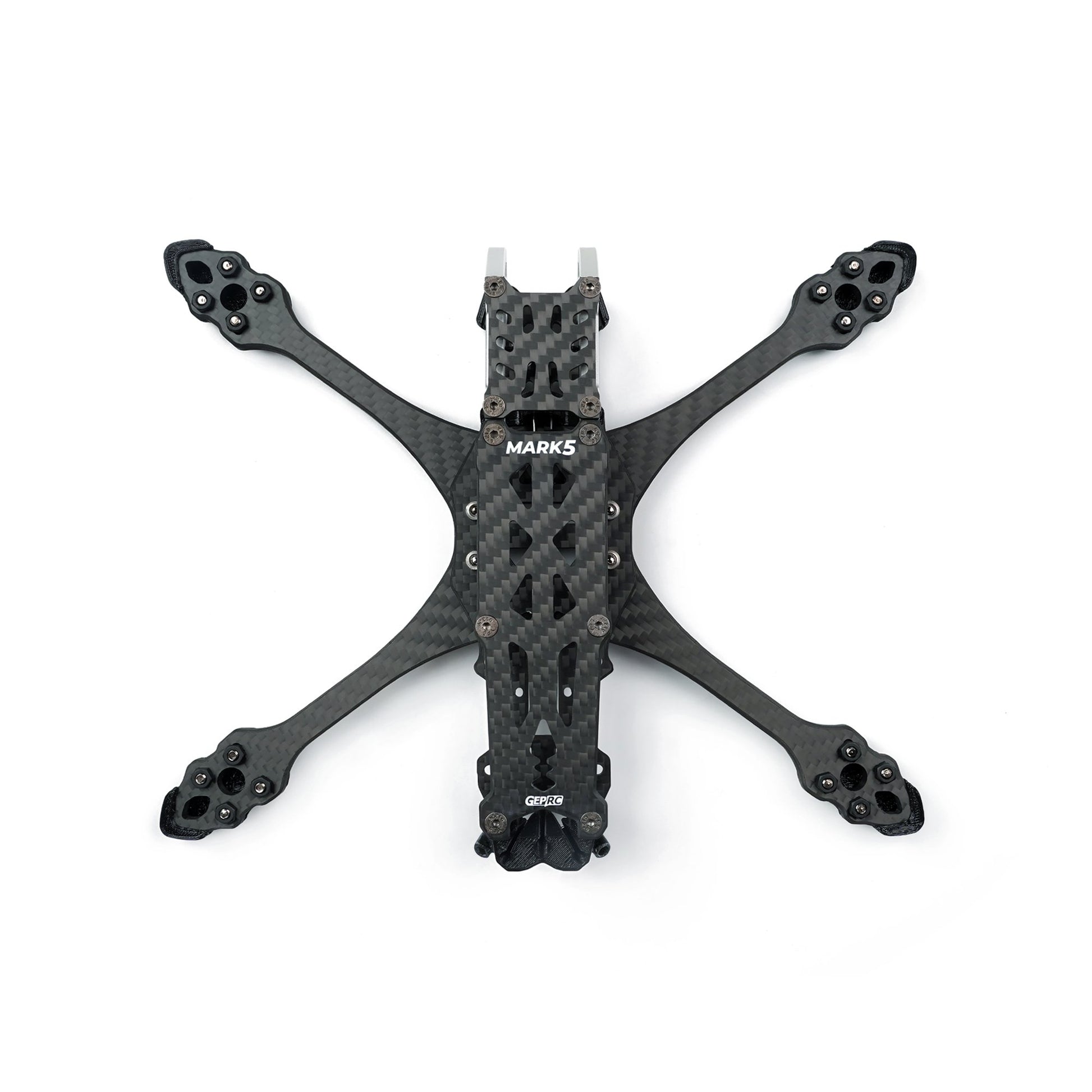

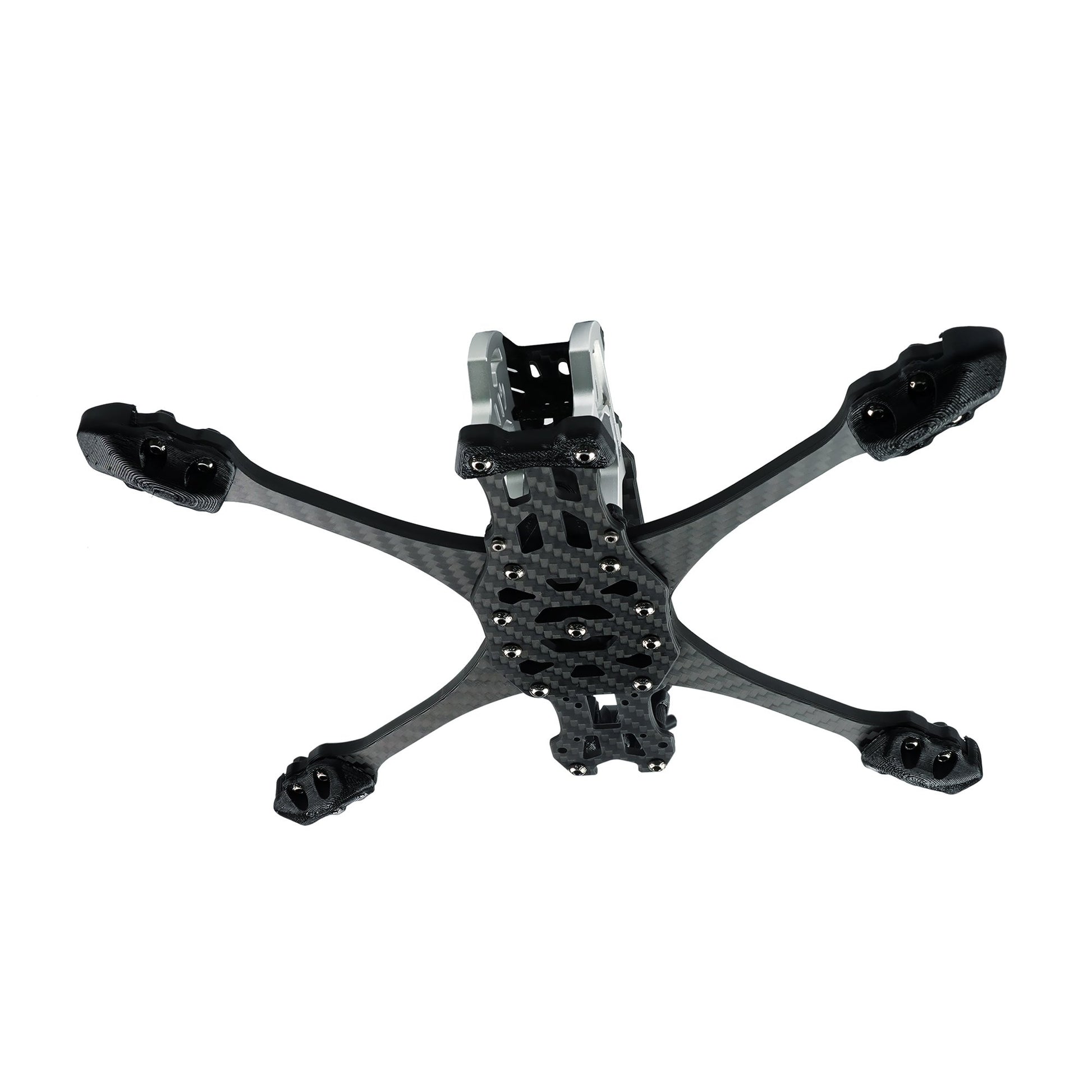

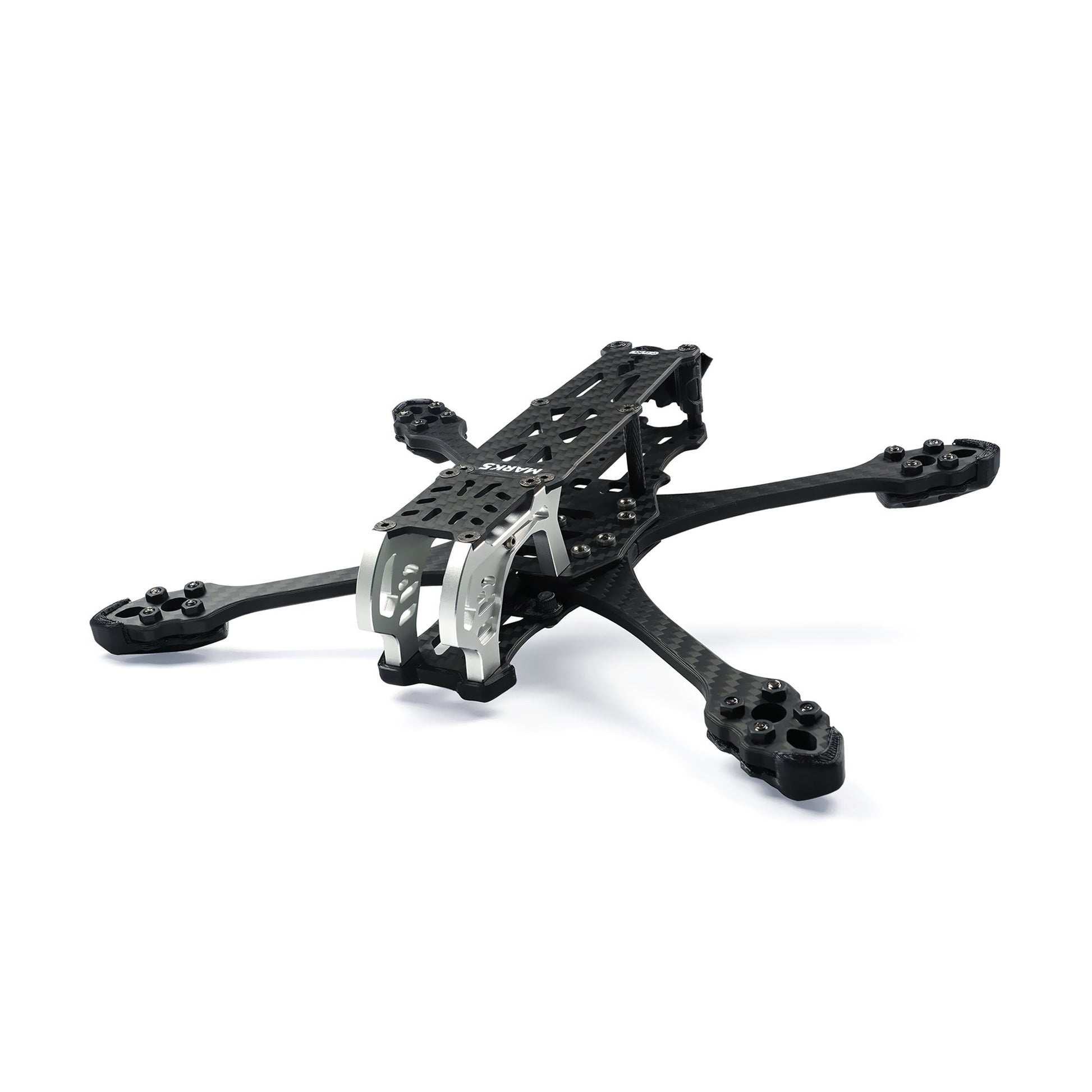

GEP-MK5 PRO (Black) The new generation MARK5 freestyle frame is compatible with DJI AIR UNIT, CADDX VISTA and Analog VTX. 1. Aluminum alloy side plates reduce weight and increase durability. 2. Specially developed for freestyle with a compressed X-arm. 3. The VTX installation hole is compatible with DJI Air Unit and VISTA while maintaining the 30.5*30.5 analog VTX installation hole. 4. Support 19-20mm wide lens installation, you can directly install original DJI lens. 5. Unique shock absorbing design, less vibration and resonance. 6. Specially designed space for independent condenser and buzzer for better performance and shock reduction. 7. Compatible motor hole design, support 16x16mm and 19x19mm motor installation. 8. Two different 3D printed parts bases that can be installed with GP cameras, Naked camera GP8, Insta 360 GO2 and Caddx Peanut cameras. Specifications: Model: GEP-MK5 Engine to engine: 225mm Top plate: 2.5mm Bottom plate: 2.5 mm Shoulder plate: 5.0 mm FC mounting holes: 30.5x30.5mm VTX mounting holes: 30.5x30.5mm / 20x20mm Motor mounting holes: 16x16mm / 19x19mm Camera installation space: 19-20mm Suitable propeller size: 5 inches Size: 214x168x42mm Weight: 130.0g Notes: Installing the DJI O3 Air unit requires additional matching aluminum lens mounting parts. The GPS mount must be purchased separately.
