Frame GEPRC GEP-MARK4 HD5 for Mark4 Drone

Name: Frame GEPRC GEP-MARK4 HD5 for Mark4 Drone
Brand: Baltic Drones
SKU: GP102619
Price: 63.59 EUR
Availability: OutOfStock

Frame GEPRC GEP-MARK4 HD5 for Mark4 Drone

Brand: GEPRC

€63,59

~~€63,59~~ €63,59

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

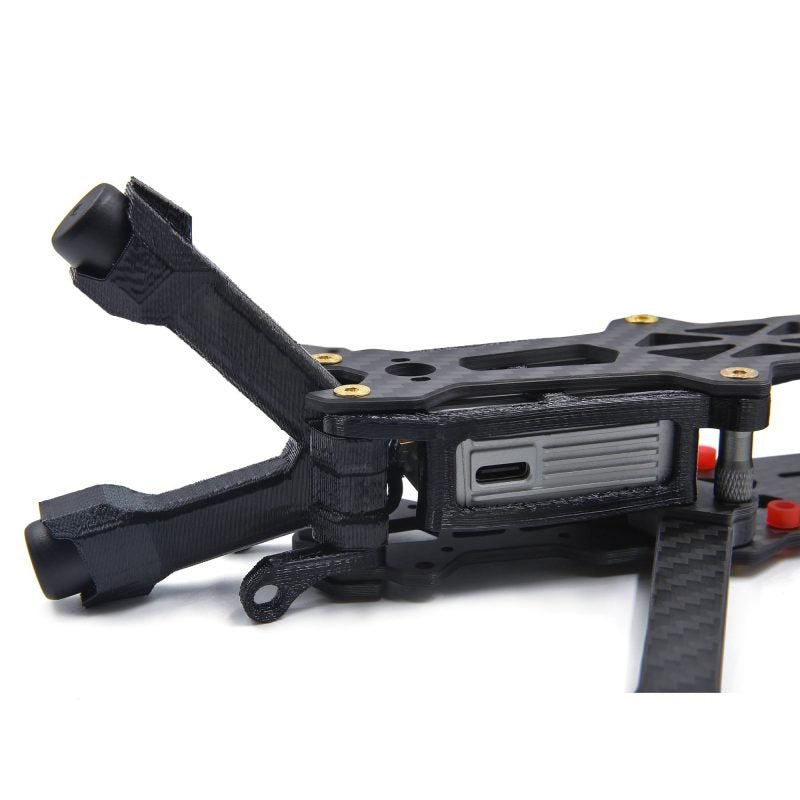

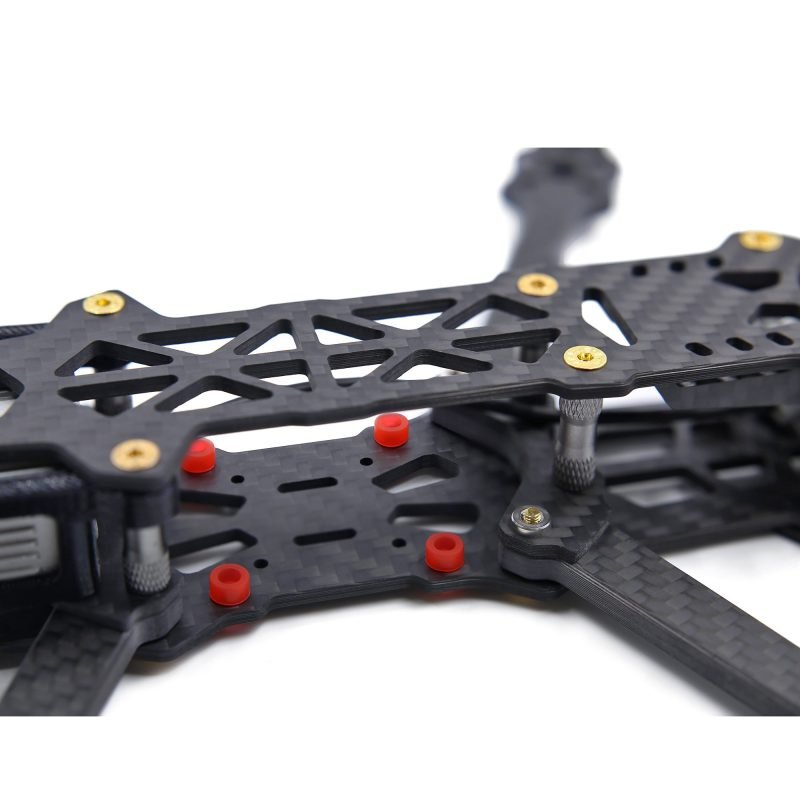

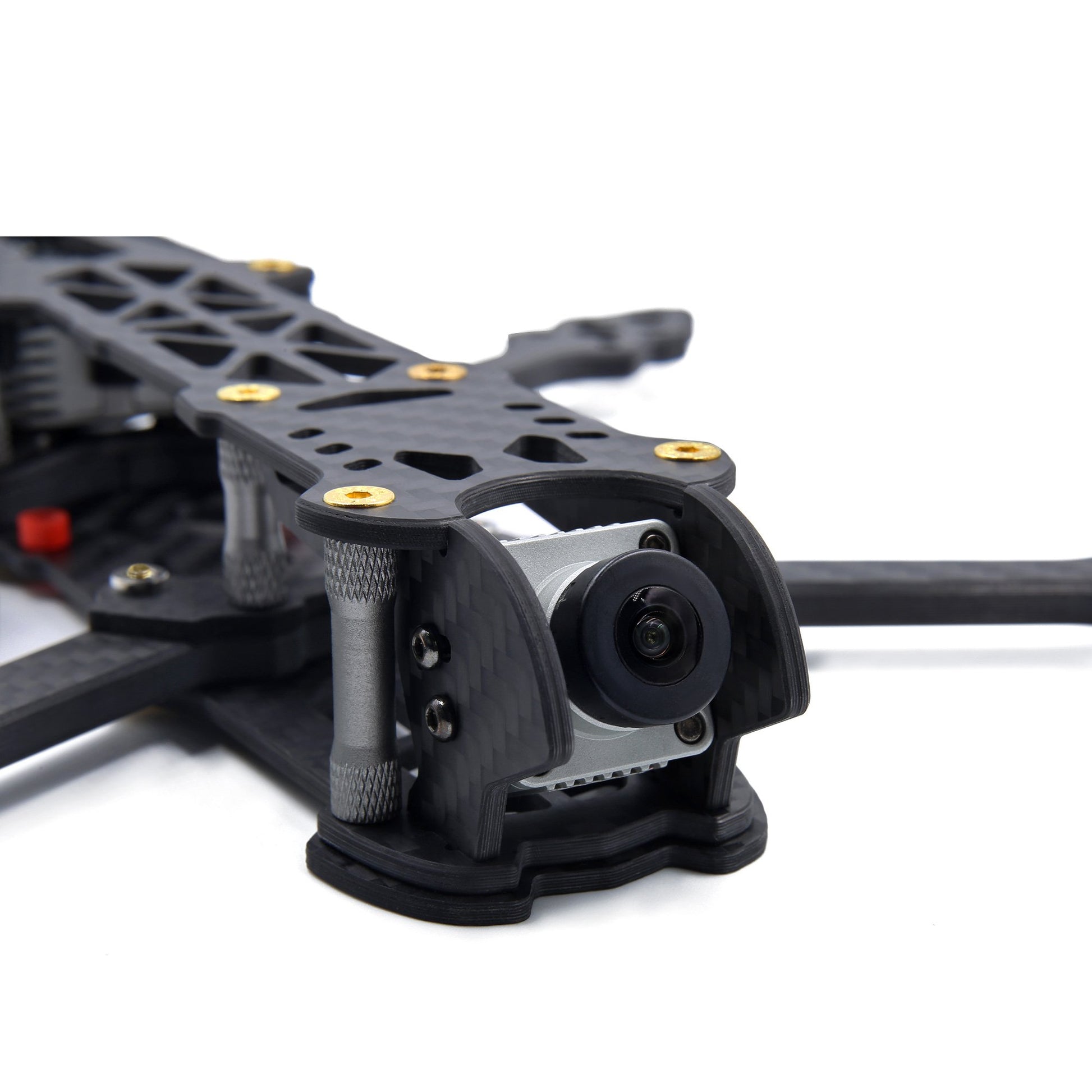

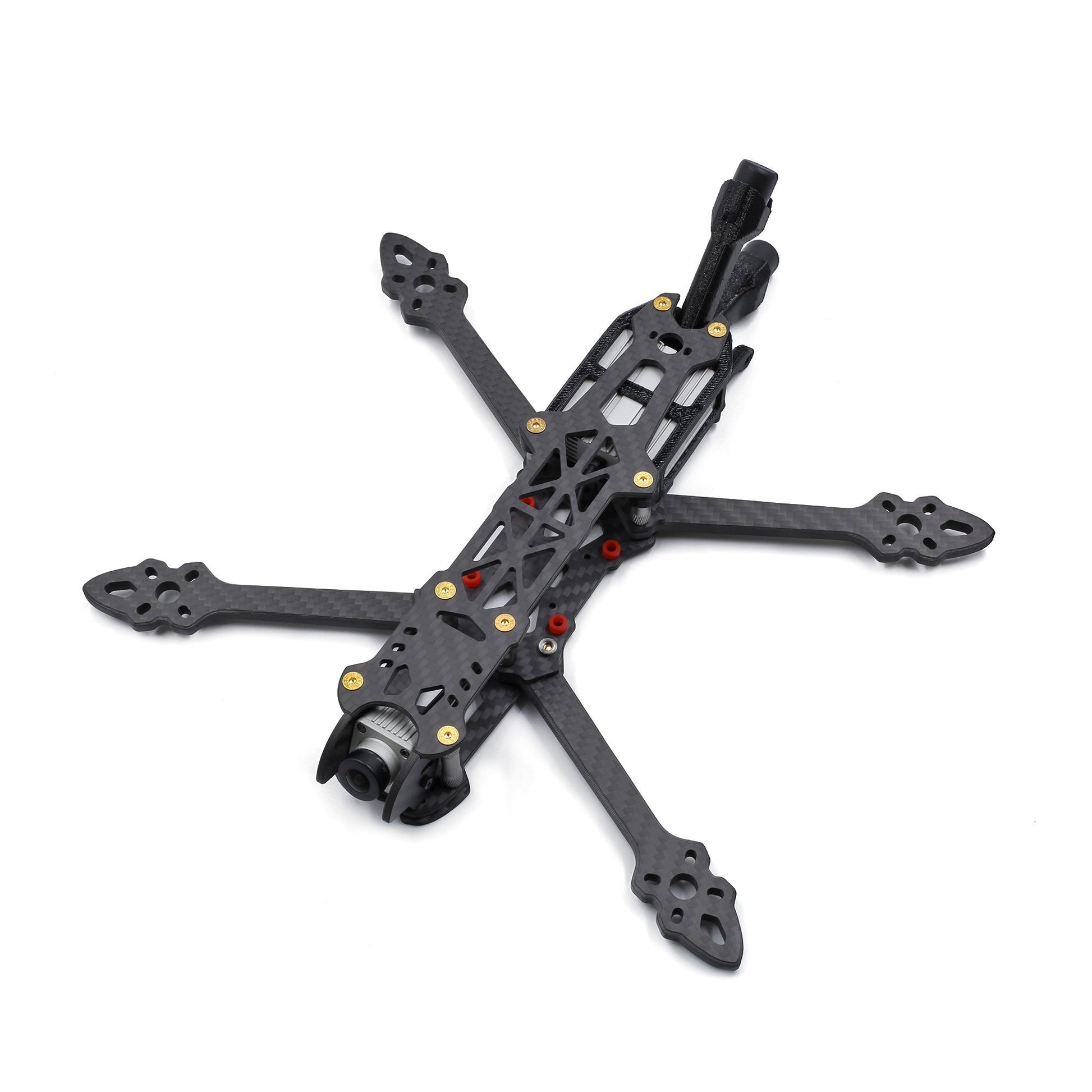

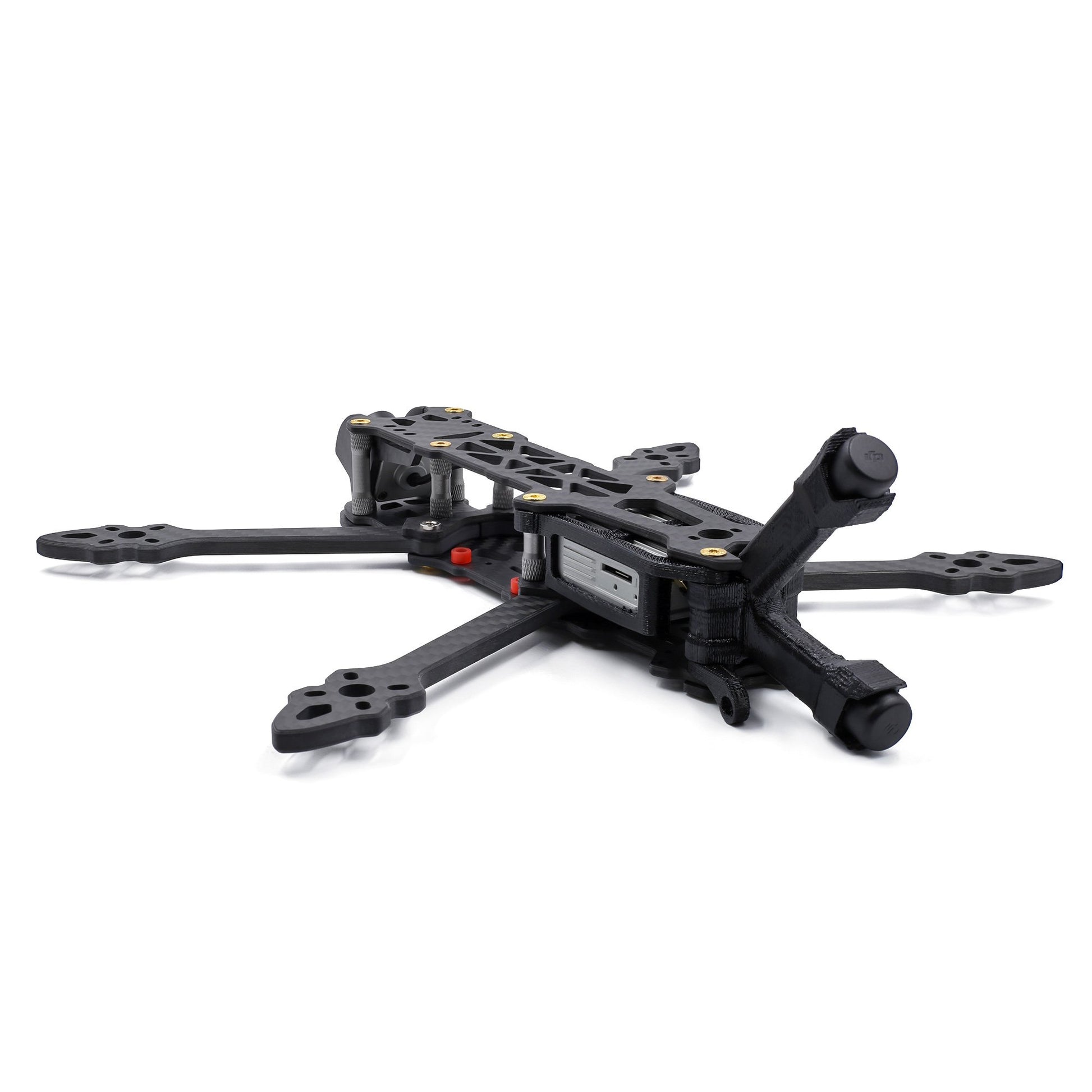

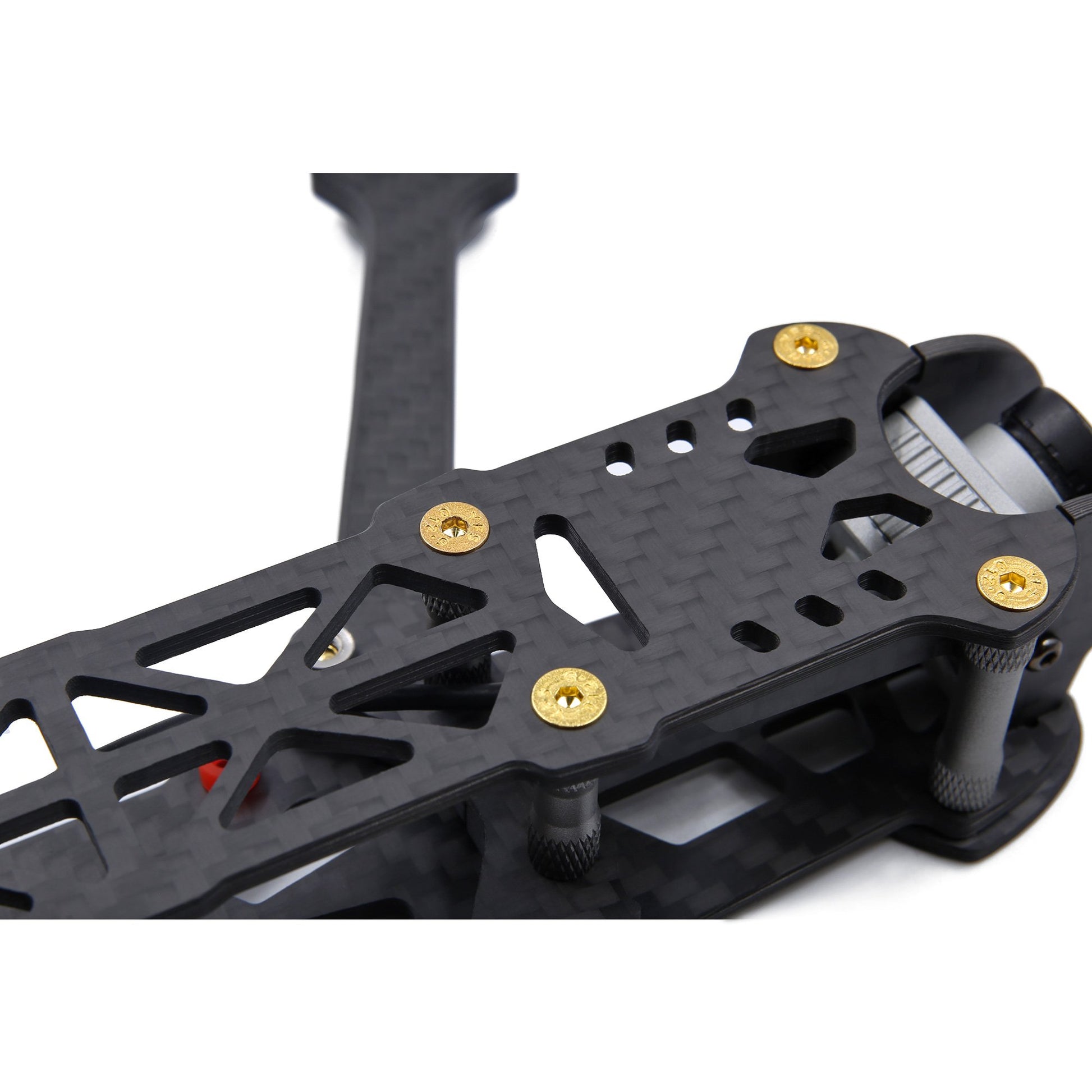

GEP-MARK4 HD5

Function:
- Perfect fit for DJI FPV air unit.
- 3D printed parts for safe protection.
- Full 3K carbon fiber frame.
- Super light freestyle frame.
- Beautiful and durable design that can withstand impacts.
- 25mm spacers for better height and CG (Center of Gravity) ratio, providing enough space for electronic installation.
- ALU6061 Standoff, newly designed to increase hardness.
- Accommodates 30.5 x 30.5mm and 20 x 20mm flight control holes, allowing the stack to fit in the center or back.
- High quality 3K carbon fiber twill plate with high precision CNC machining.

Brand Name: GEPRC
Item name: MARK4 HD5
Frame type: H TYPE
Shoulder plate: 5 mm
Side plate: 2.5 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Protective plate: 2 mm
Propeller: 5 inches
Engine to engine: 224 mm
Size: 138 x 176 mm
Mounting holes: 30.5x30.5mm/20x20mm
Weight: 121g

Recommended:
Flight controller: RF/Kiss/F3/F4/F7
Engine: 2205/2206/2207/2207.5/2305/2306/2306.5
ESC: 30A-50A
Propeller: 5 inches
Lipo: 4S 1500mAh - 6S 1300mAh
FPV: DJI FPV Air Unit
