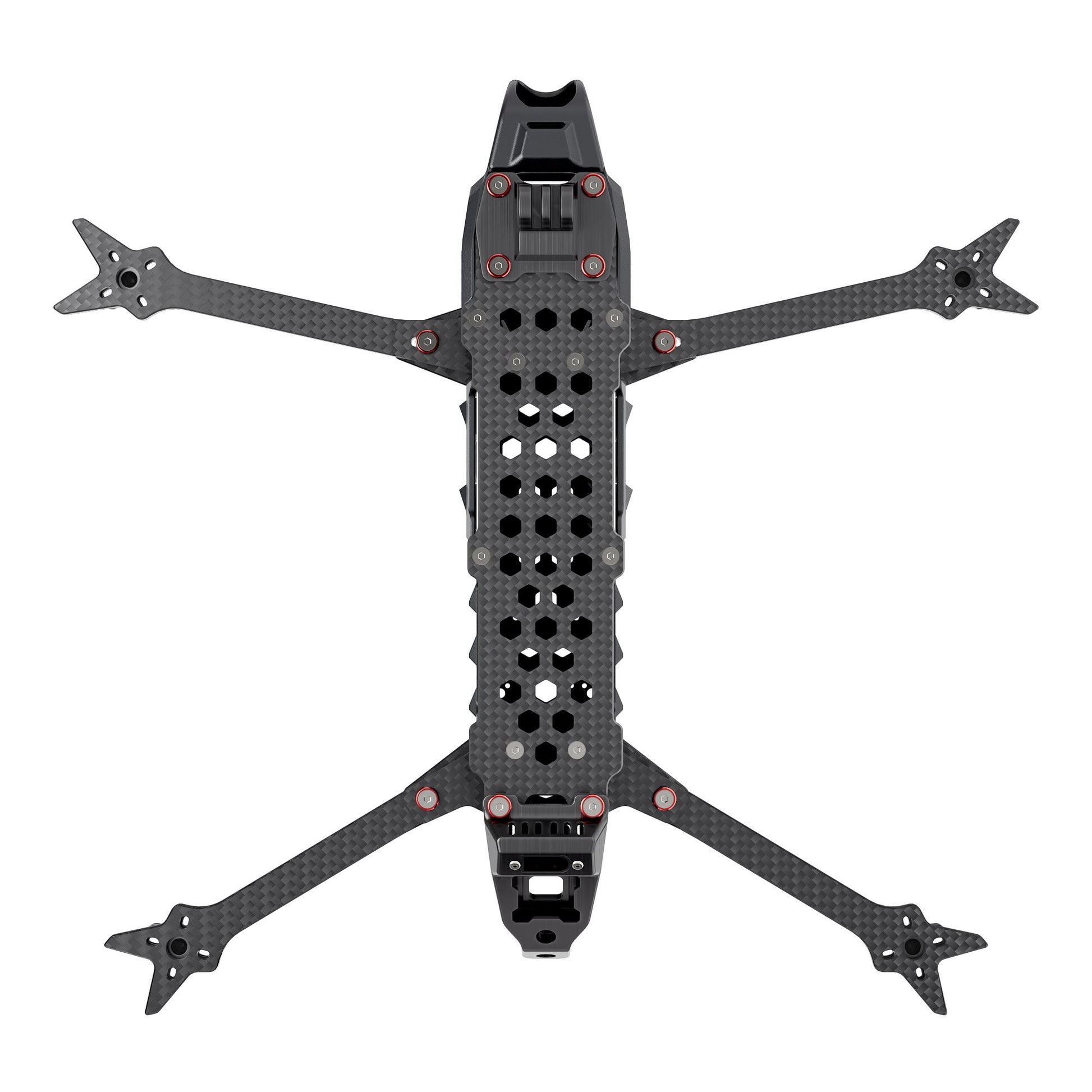

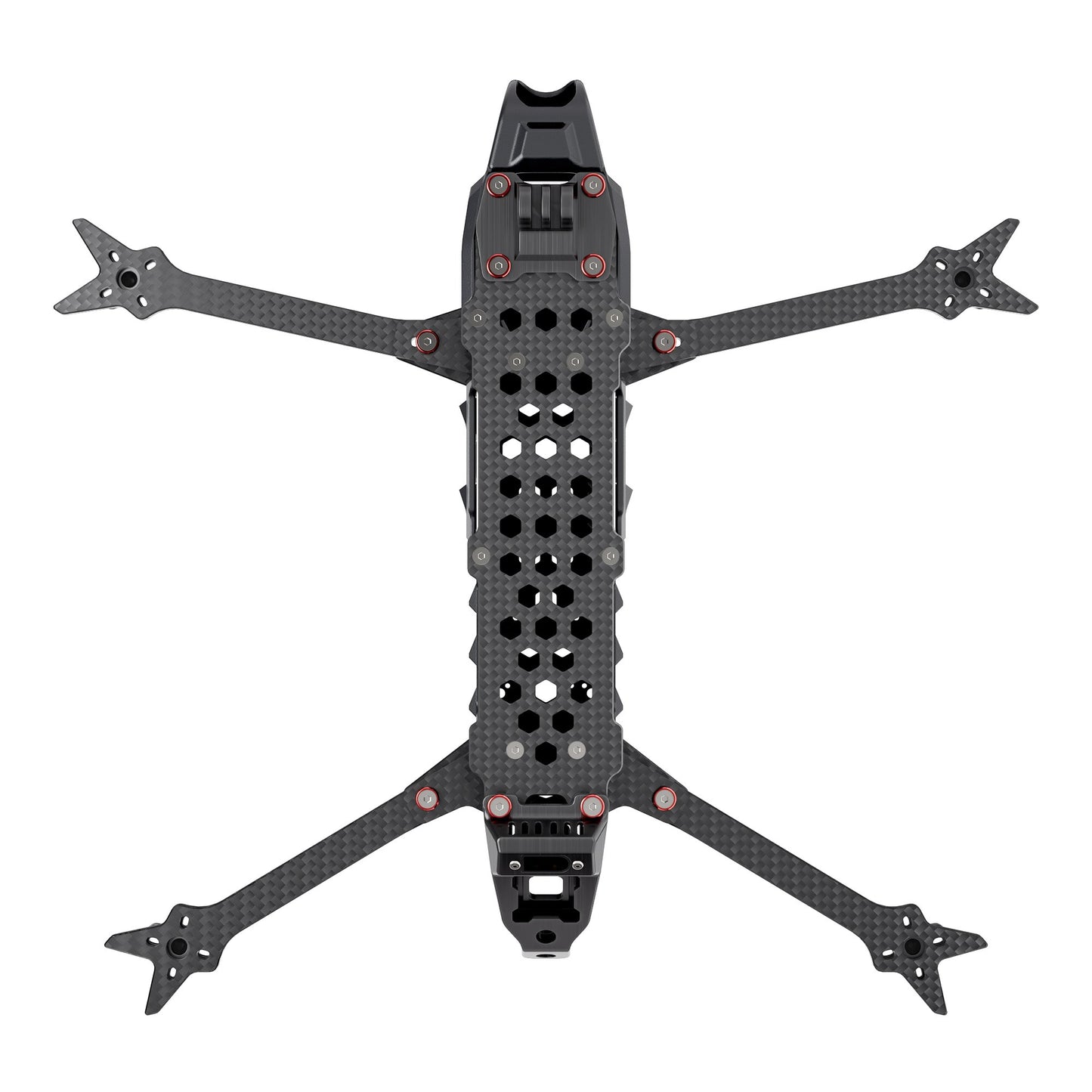

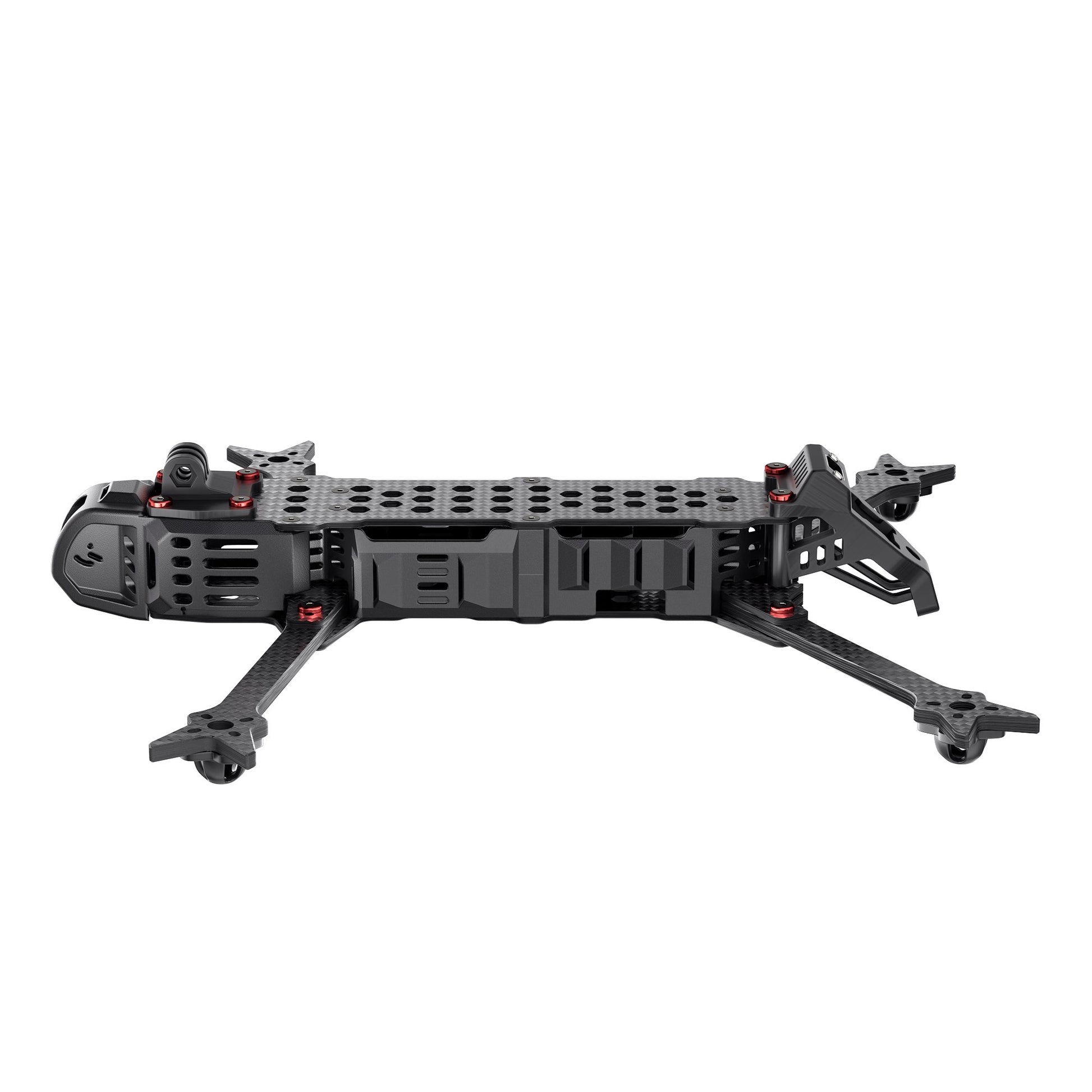

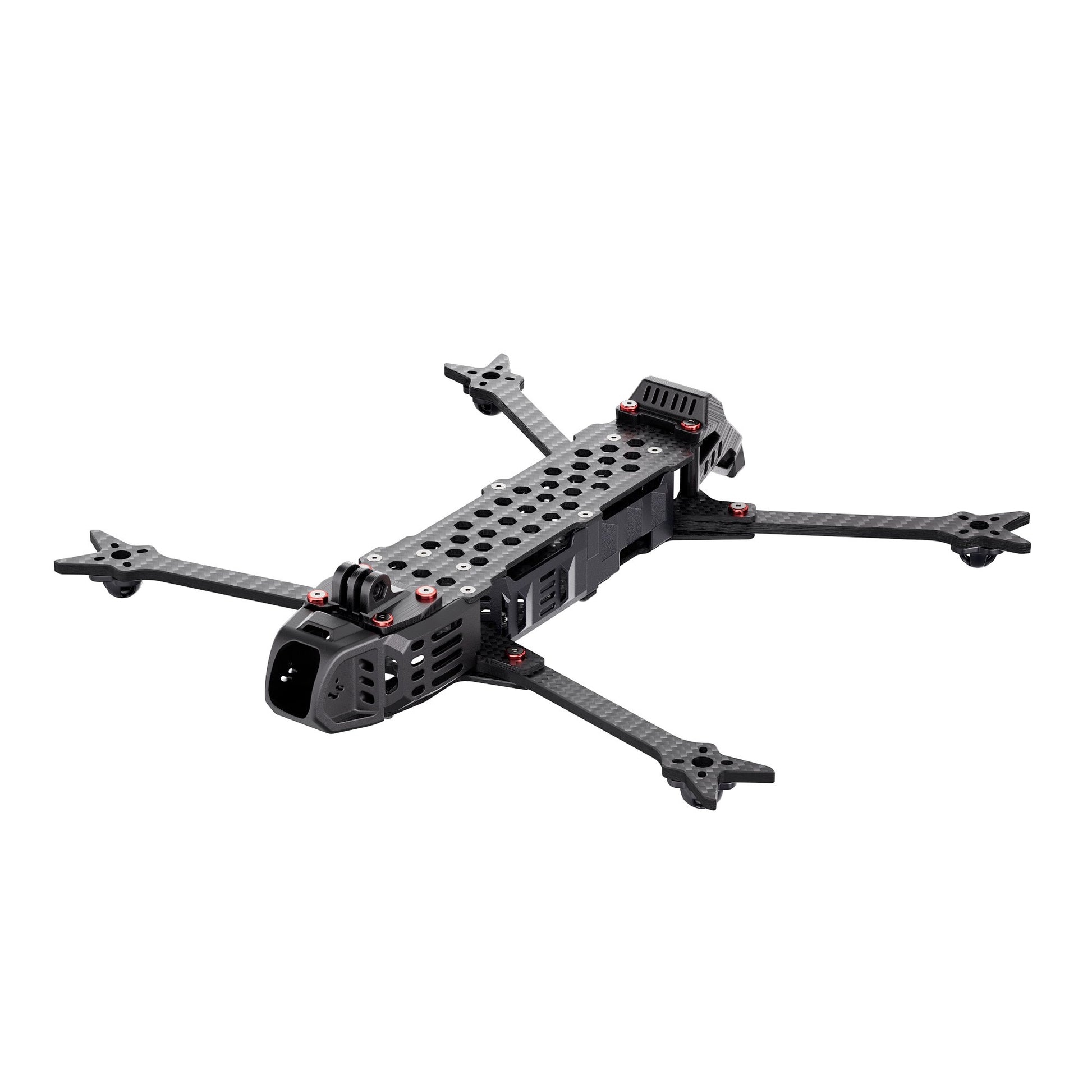

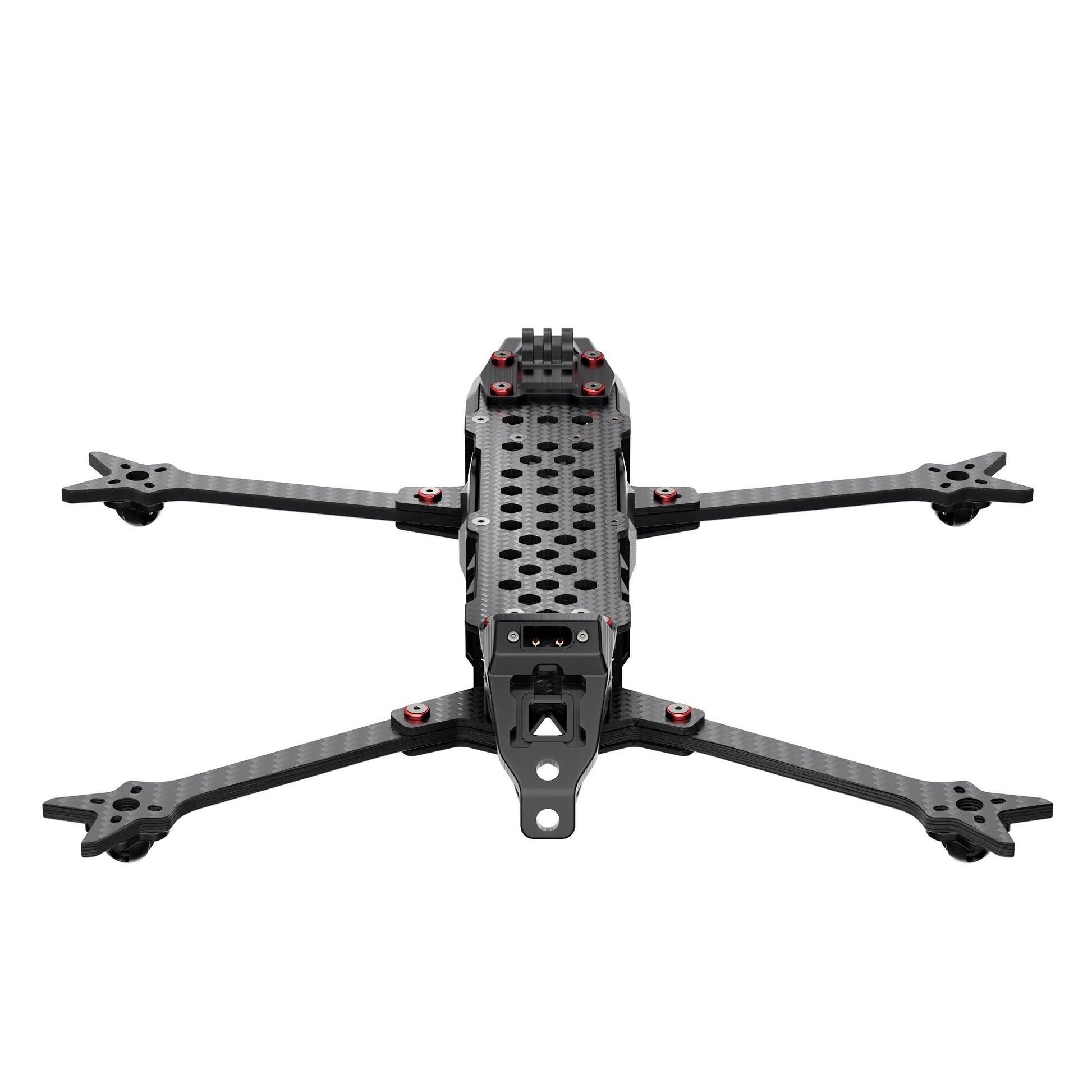

Frame GEPRC GEP-LC75V3 for Crocodile75 V3 Drone
Frame GEPRC GEP-LC75V3 for Crocodile75 V3 Drone
Brand: GEPRC
Regular price
€106,18
Regular price
€106,18
Sale price
€106,18
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
GEP-LC75V3 The GEP-LC75 V3 is a long-range frame that uses an H-shaped construction and adds protective side panels to the fuselage to protect the electronic control system from dust contamination. The arm is made of 6mm thick carbon fiber plate to improve flight stability. The hull design optimizes the strength of the main stress points to ensure high impact resistance. Features: - The hull adds protective side panels to protect the electronic control system from sand and dust contamination. - Perfect fit for 7 inch or 7.5 inch propellers. - Crocodile75 V3 frame has longer fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight. Specifications: Model: GEP-LC75 V3 Size: 7.5 inches Wheelbase: 342 mm Top plate: 2.5mm Bottom plate: 3.0mm Shoulder plate: 6.0 mm FC mounting hole: 30.5x30.5mm VTX mounting hole: 20x20mm / 25.5x25.5mm Motor mounting hole: 16x16mm / 19x19mm Camera mounting hole: 19-20mm Recommended propeller size: 7-7.5 inches Weight: 266g
