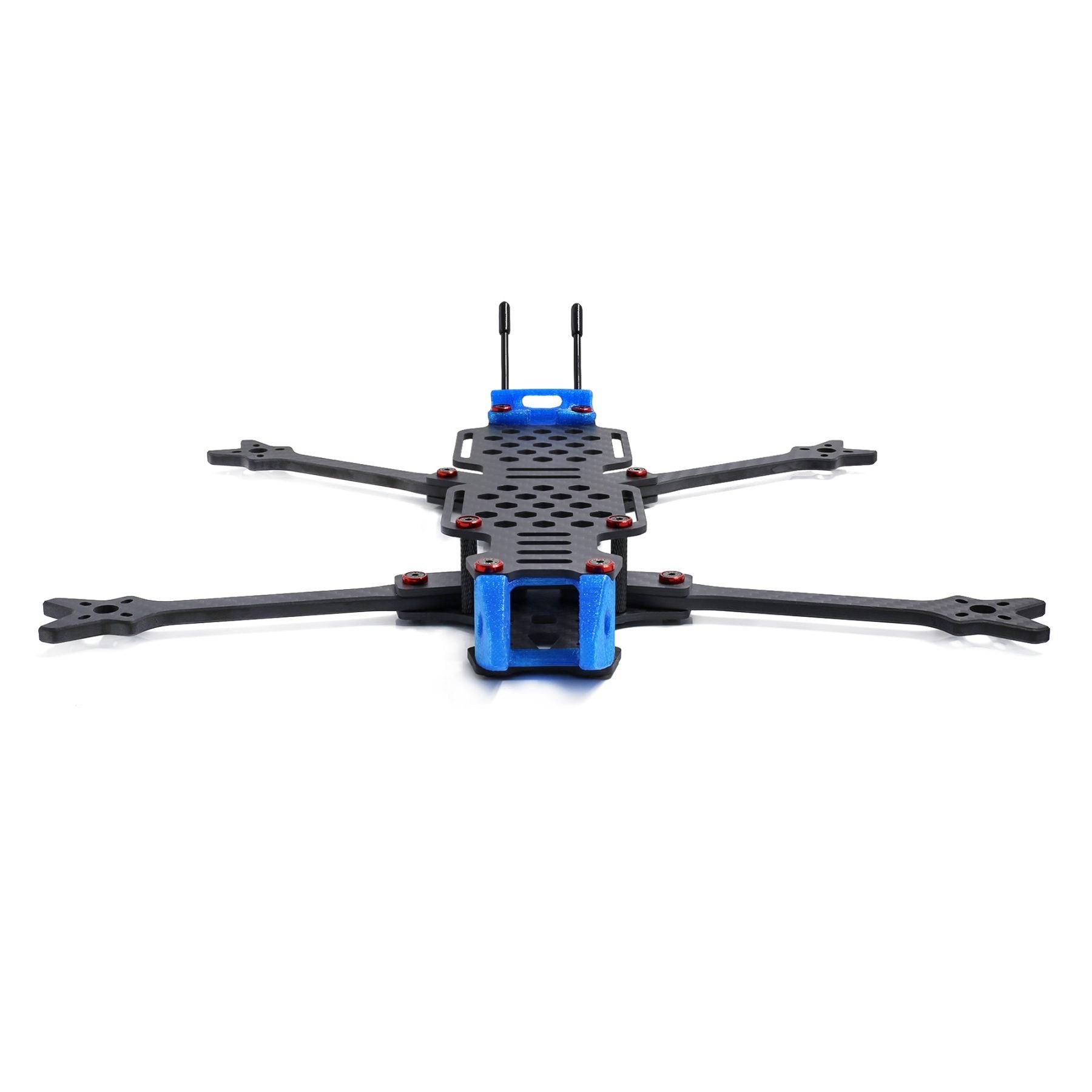

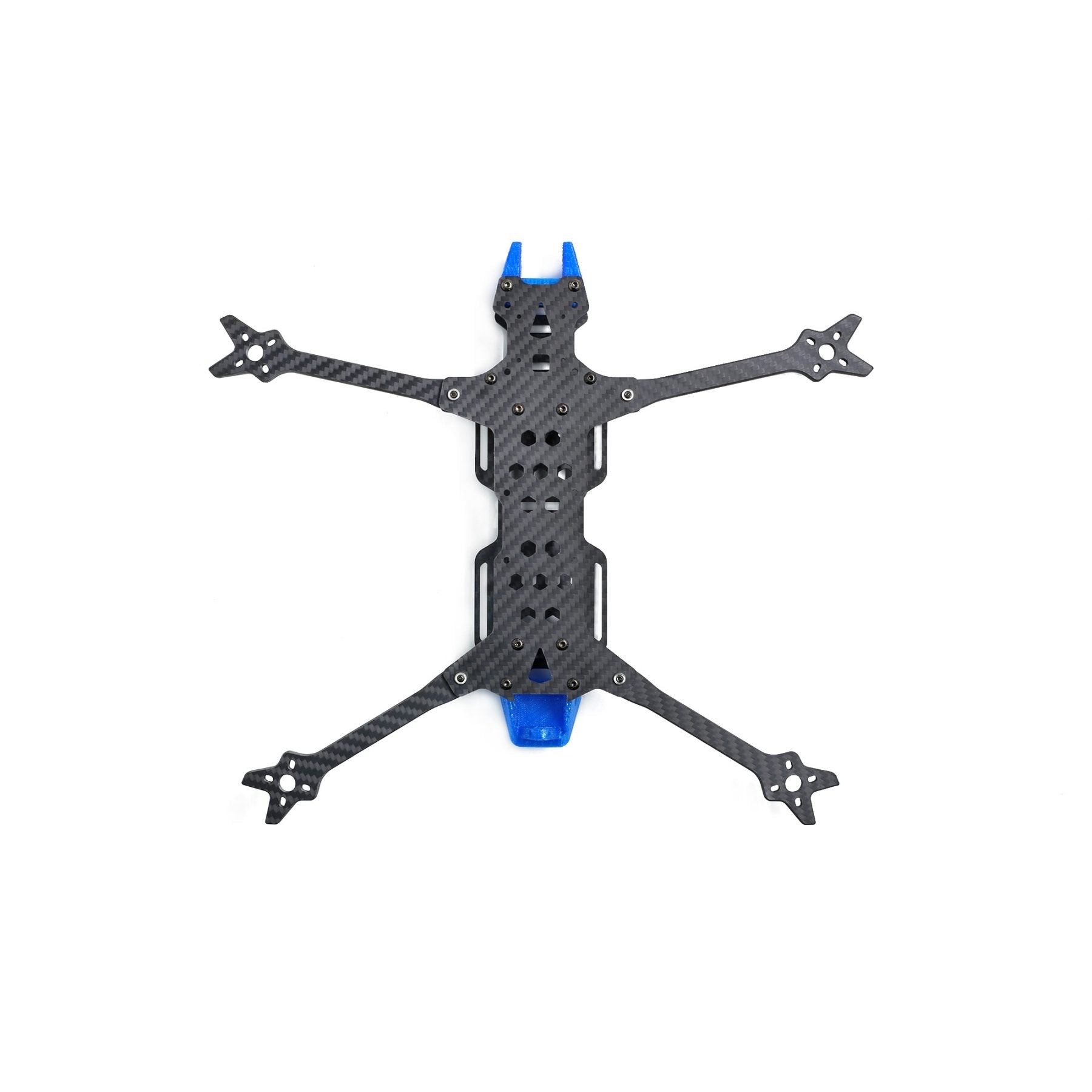

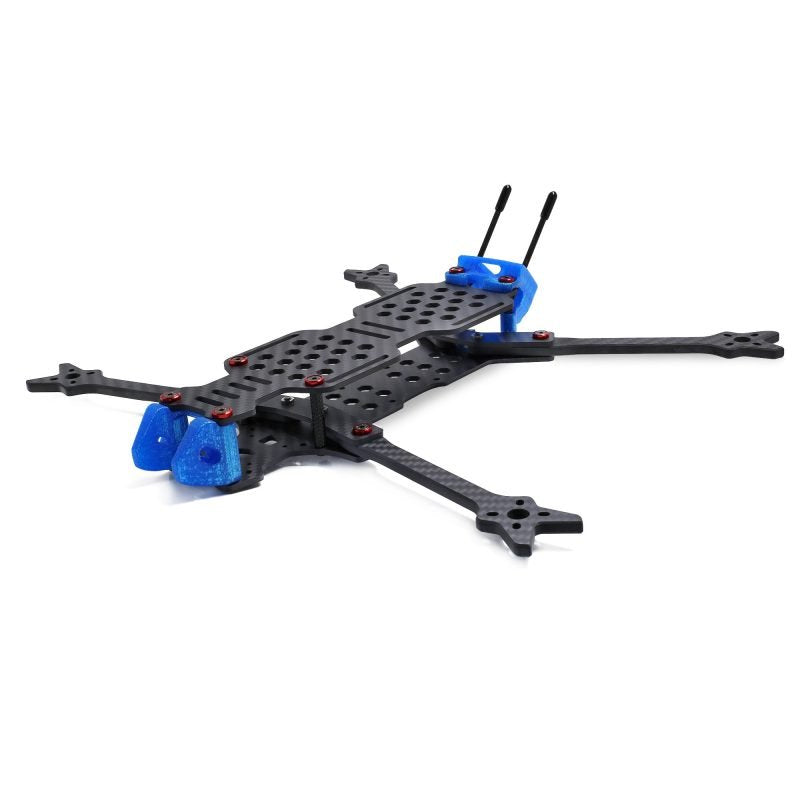

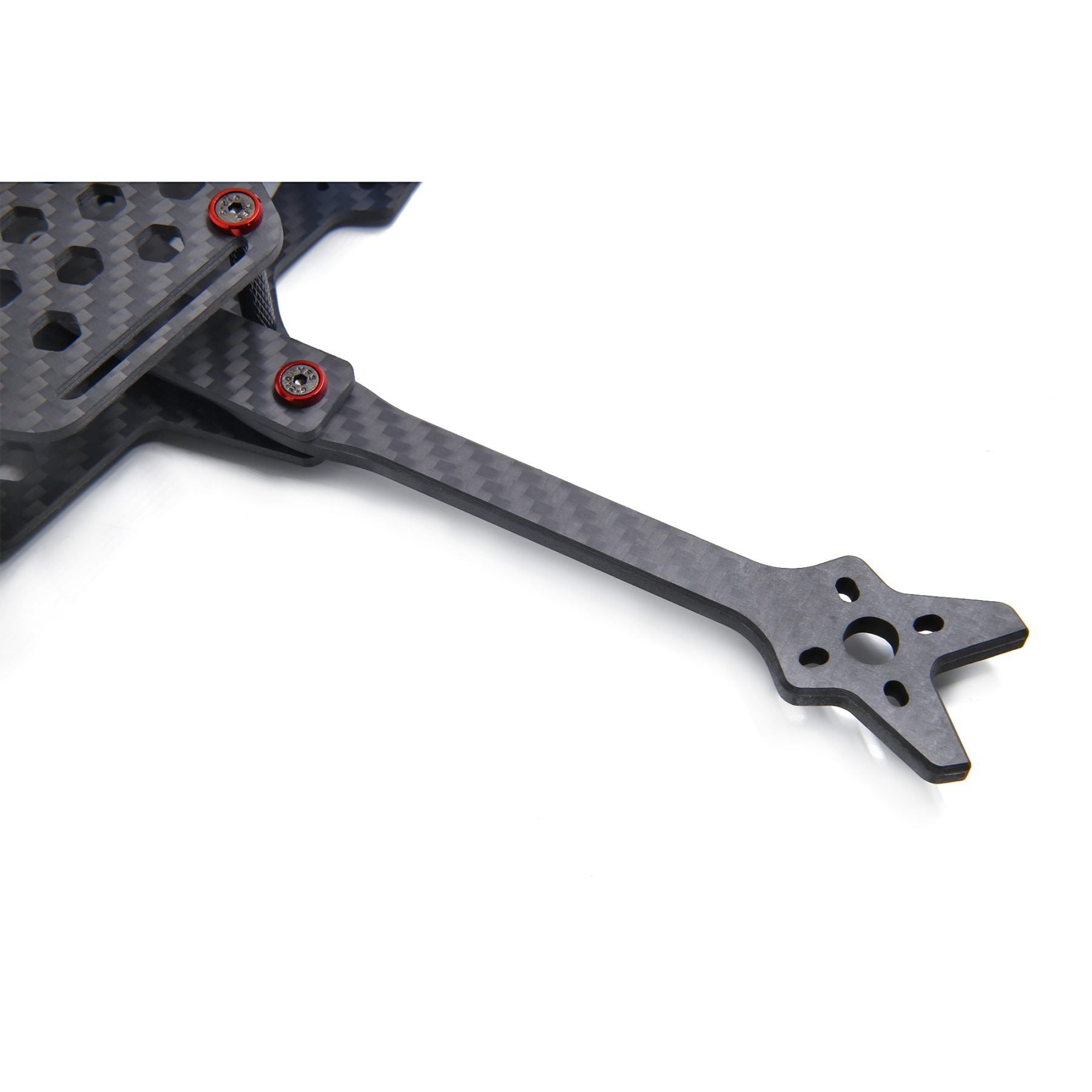

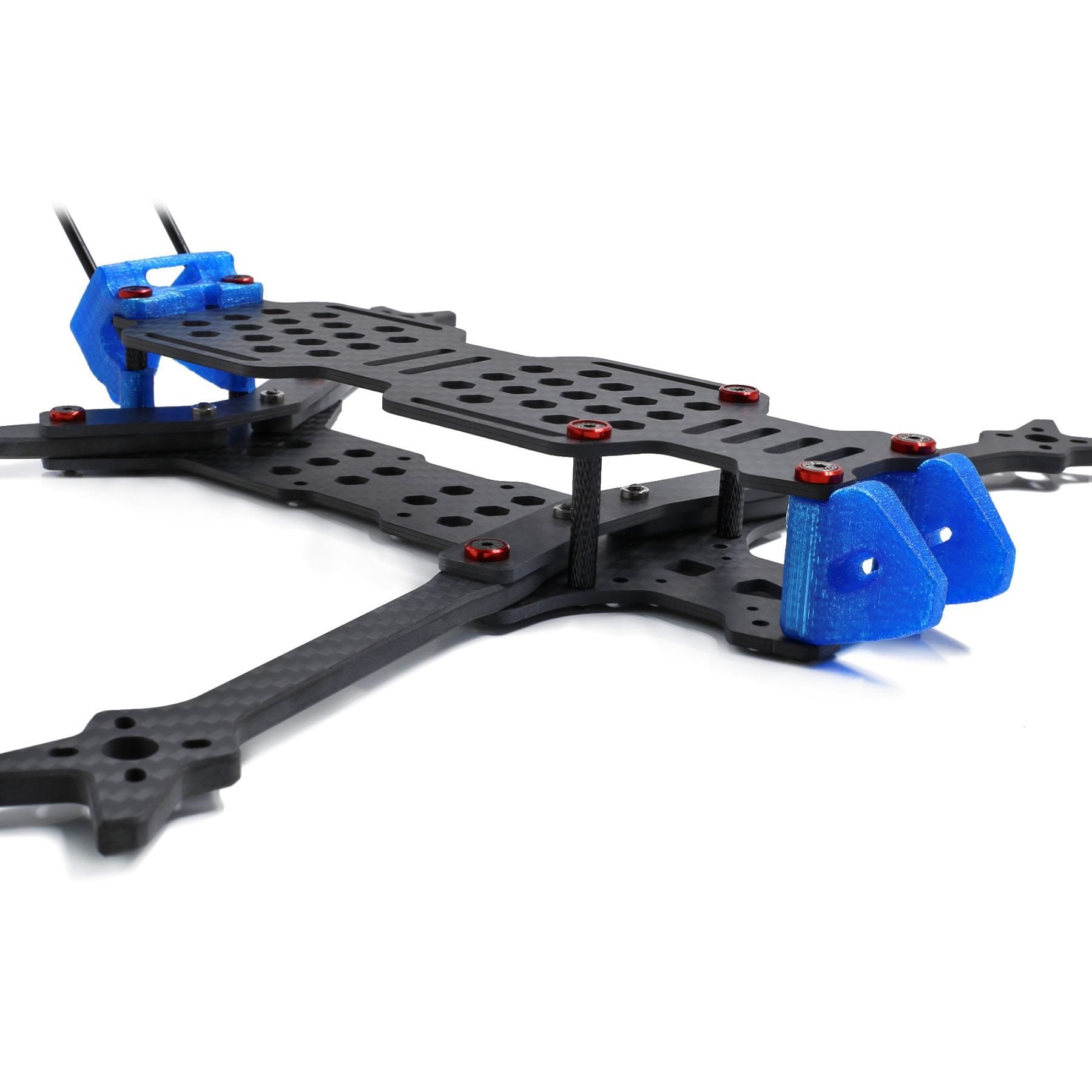

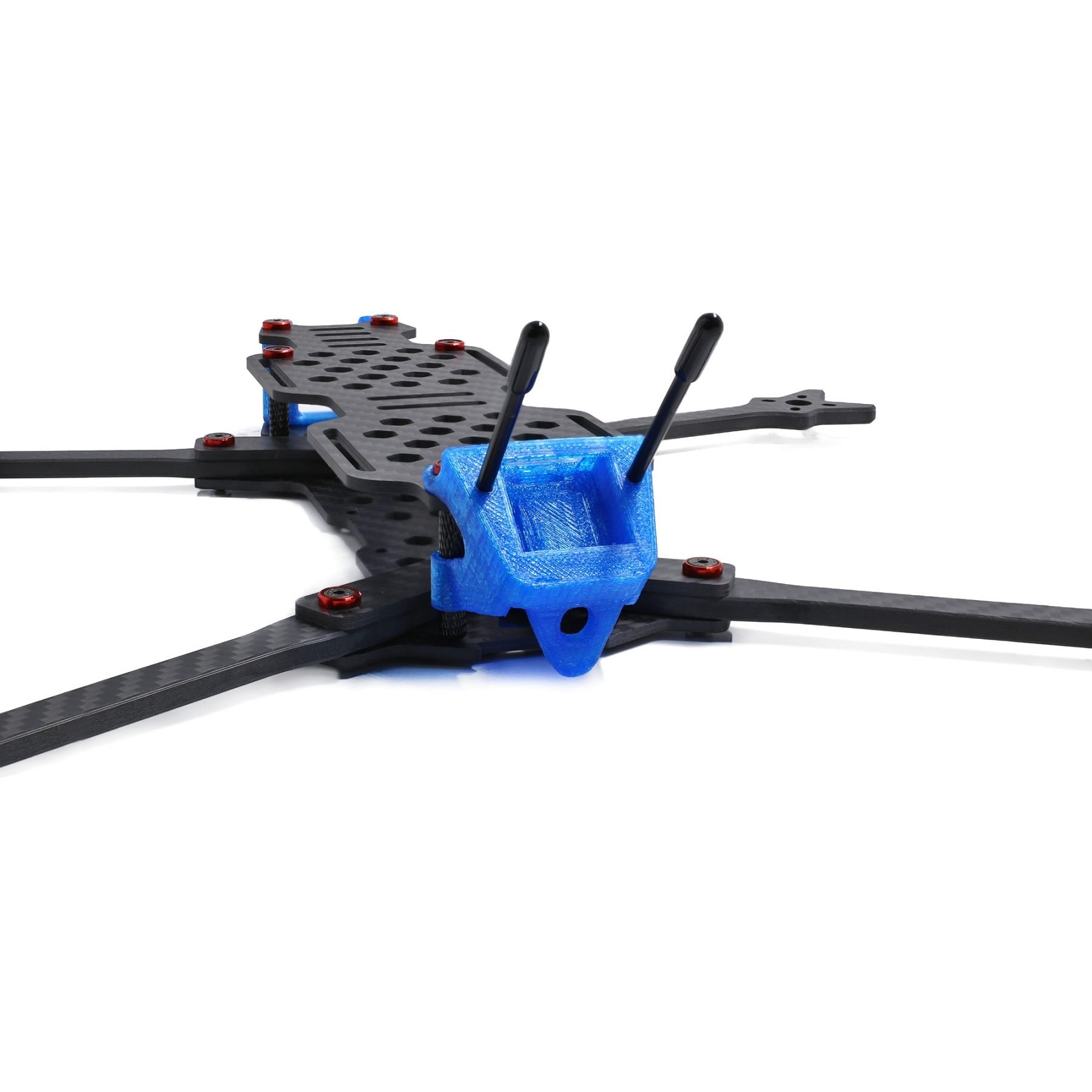

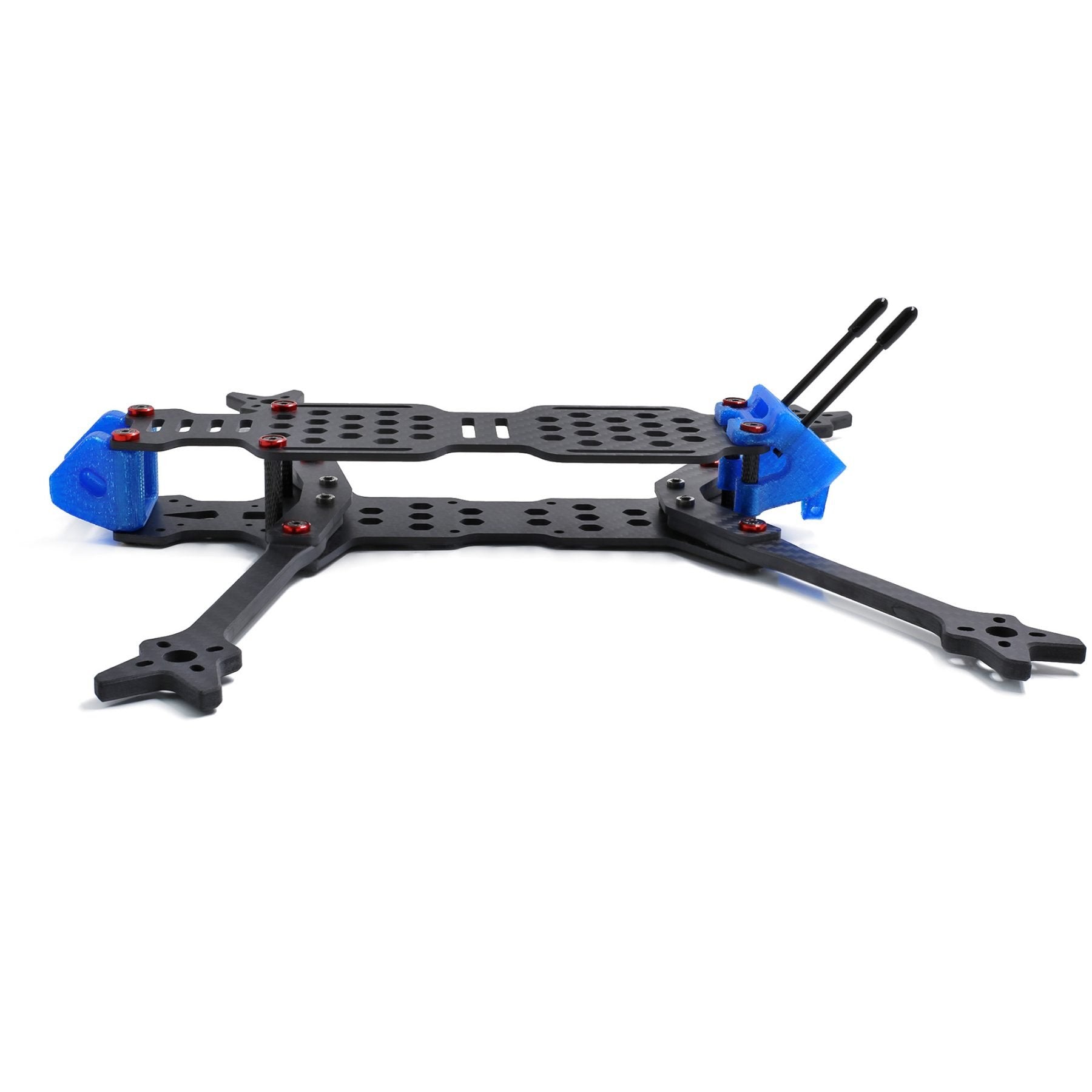

GEP-LC7 The GEPRC GEP-LC7 Crocodile is a 7-inch frame designed for long-distance flights. Its large size of 315 mm provides stability for long flights. The frame is compatible with both 6-inch and 7-inch propellers. There are two types of mounting holes in the front of the frame, 30.5 x 30.5 mm and 20 x 20 mm, for the PCB from the Split HD camera. This means you can mount any Split HD cameras available on the RC market, such as RunCam Split 2S, RunCam Split Mini 2, Foxeer Mix or Caddx Turtle. The FPV camera, antenna and GPS are secured and protected using TPU plastic components. The mounting hole for the GPS is designed for a size of 22 x 20 mm. There is enough space in the magazine for electronic components. The frame is highly durable and comes with 5mm arms. Specifications: Engine to engine size: 315mm Arm thickness: 5 mm Top plate: 2.5mm Bottom plate: 2.5 mm Camera mounting width: 19 mm Weight: 153g Recommendation: Flight controller: F7/F4/F3/Kiss/RF Motors: 2207 - 1500-1700KV / 2306 - 1500-1700KV / 2407 - 1300-1700KV ESC: 40A-60A Propeller: 6-7 inches Battery: 6S 2200mAh - 6S 2600mAh
