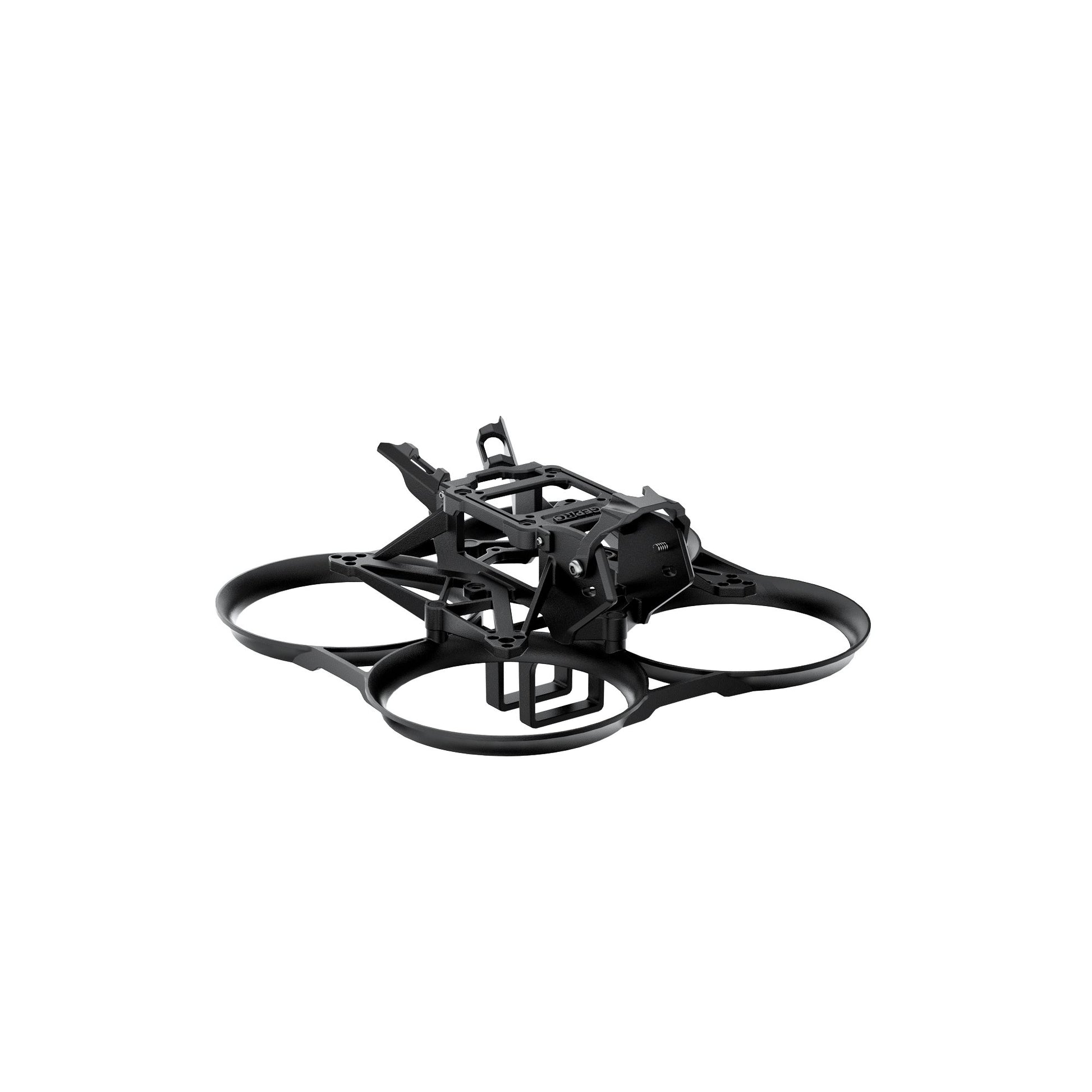

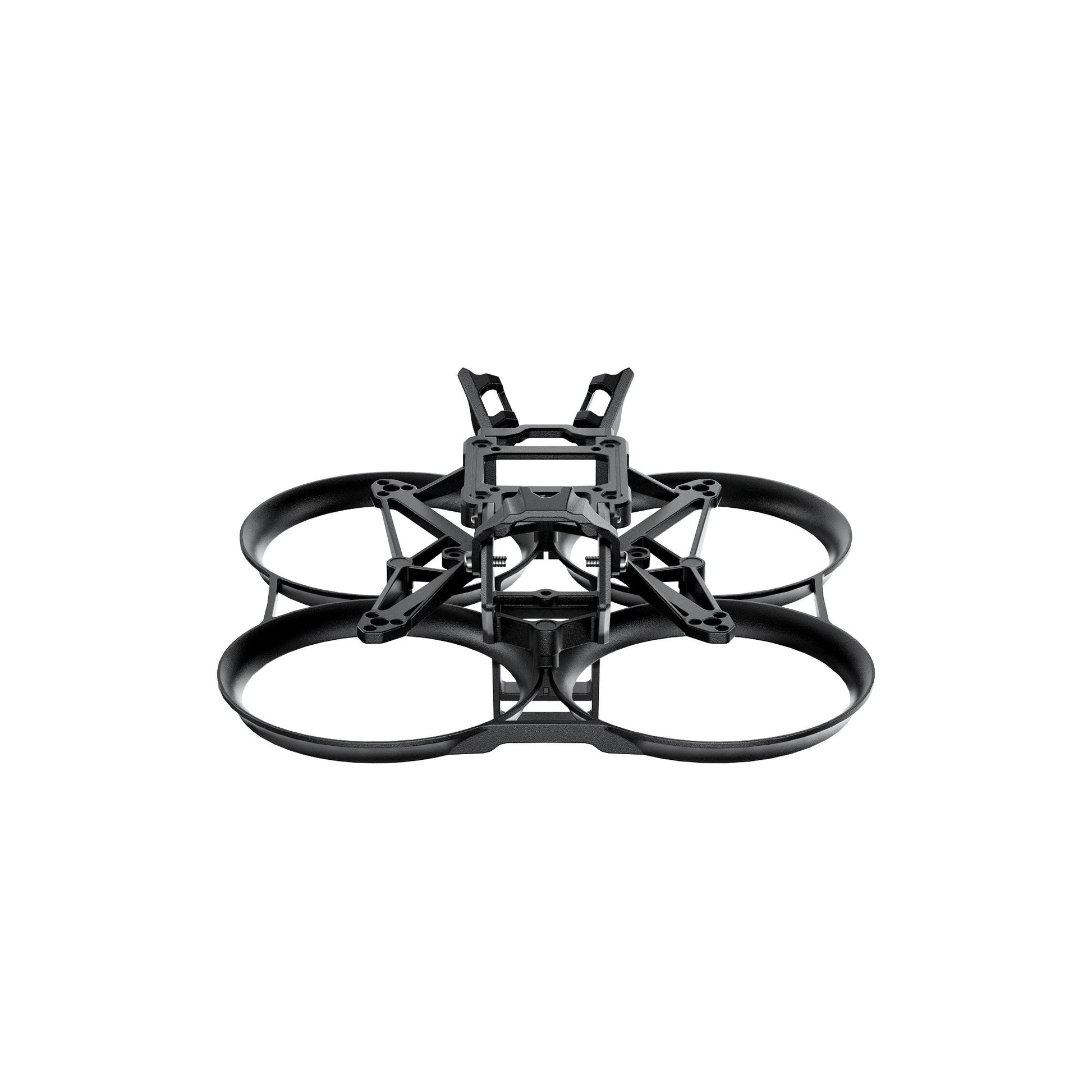

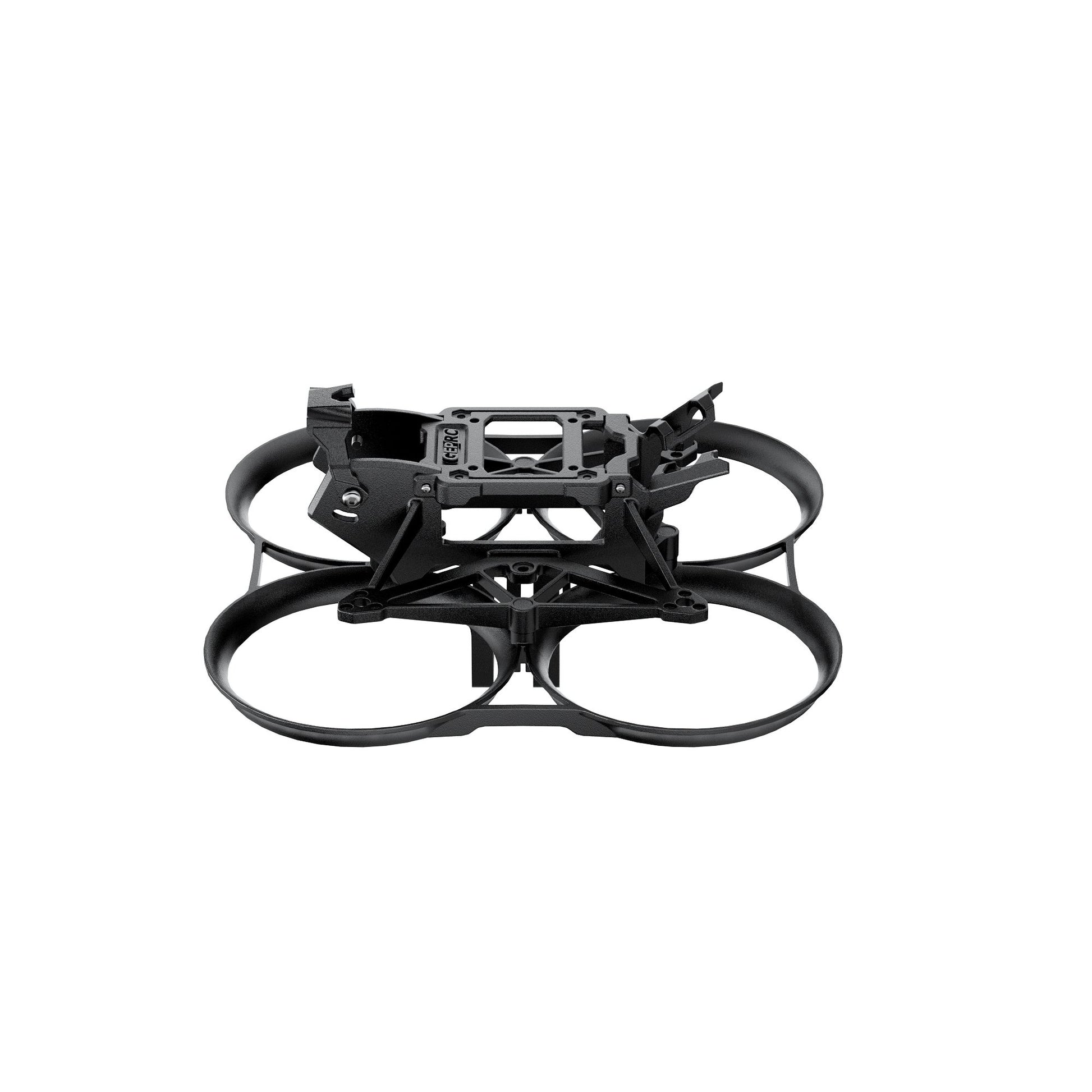

GEP-DS20 Lightweight 2 inch frame
GEP-DS20 is a high-quality 2-inch frame designed for FPV drones with an emphasis on lightweight durability. Manufactured using an advanced injection molding process, this frame offers both strength and durability, ensuring excellent performance for both the O3 Air Unit, Link and analog video transmission. Thanks to the multi-directional triangular support frame, the GEP-DS20 provides exceptional rigidity, making it ideal for high-performance flights.
Available in five stylish colors (white, pink, grey, black and blue), the frame combines functionality and aesthetics. The frame battery compartment is designed for easy battery installation and removal, allowing easy power management during flight. The GEP-DS20 is also compatible with 1003 and 1102 motors, adding flexibility to its lightweight design.
Key features:
- Innovative design: Fully injection-molded body with multi-directional triangular support frame ensures lightweight and durable performance.
- Modular structure: Easy-to-assemble frame for quick assembly and modifications.
- Color variant: Available in five colors – white, pink, grey, black and blue.
- Video compatibility: Support for O3 Air Unit, Link and analog video transmission.
- Motor compatibility: Fits 1003 and 1102 motors with three mounting holes.
- Stylish antenna cover: Practical and visually attractive antenna holder.
- Convenient battery compartment: Frame design for easy battery installation and removal.
Specifications:
- Model: GEP-DS20 frame
- Dimensions: 126 mm x 126 mm x 57 mm
- Wheel wheelbase: 90 mm
- Control unit mounting: 25.5mm x 25.5mm
- VTX Mounting: 20mm x 20mm / 25.5mm x 25.5mm
- Motor mounting: 3-M1.4-φ6.6mm (compatible with 1003 and 1102 motors)
- Camera size: 19mm / 20mm
- Battery Slot Width: 17.3mm x 13.5mm
- Propeller Size: 2 inches
- Weight: 26 g
Package contents:
- 1x Integrated protective frame
- 1x Main frame
- 1x Mounting plate for VTX
- 1x Camera protective cover
- 1x Pack of screws
- 2x VTX antenna
- 1x L-type screwdriver (1.5 mm)
- 1x Torx screwdriver
