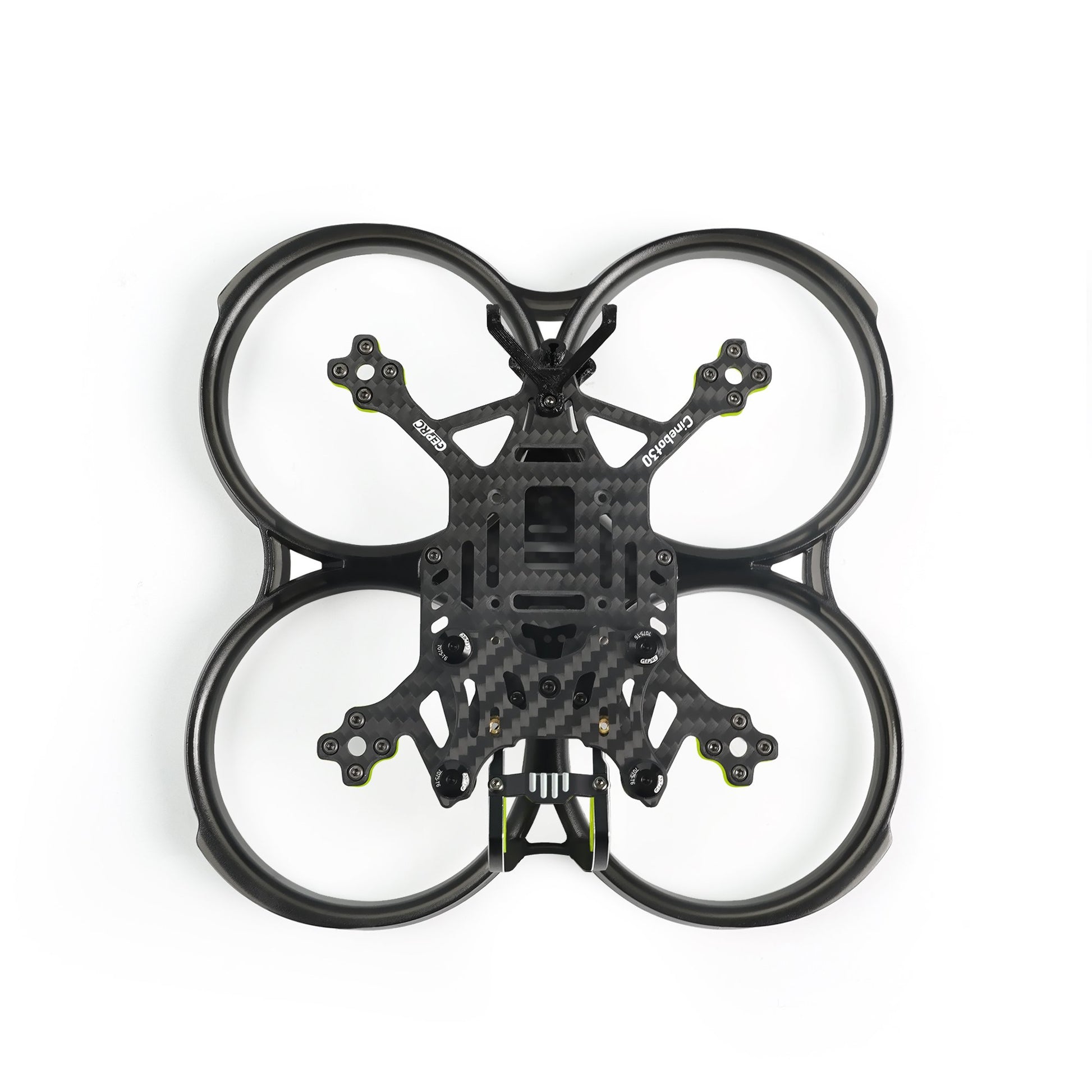

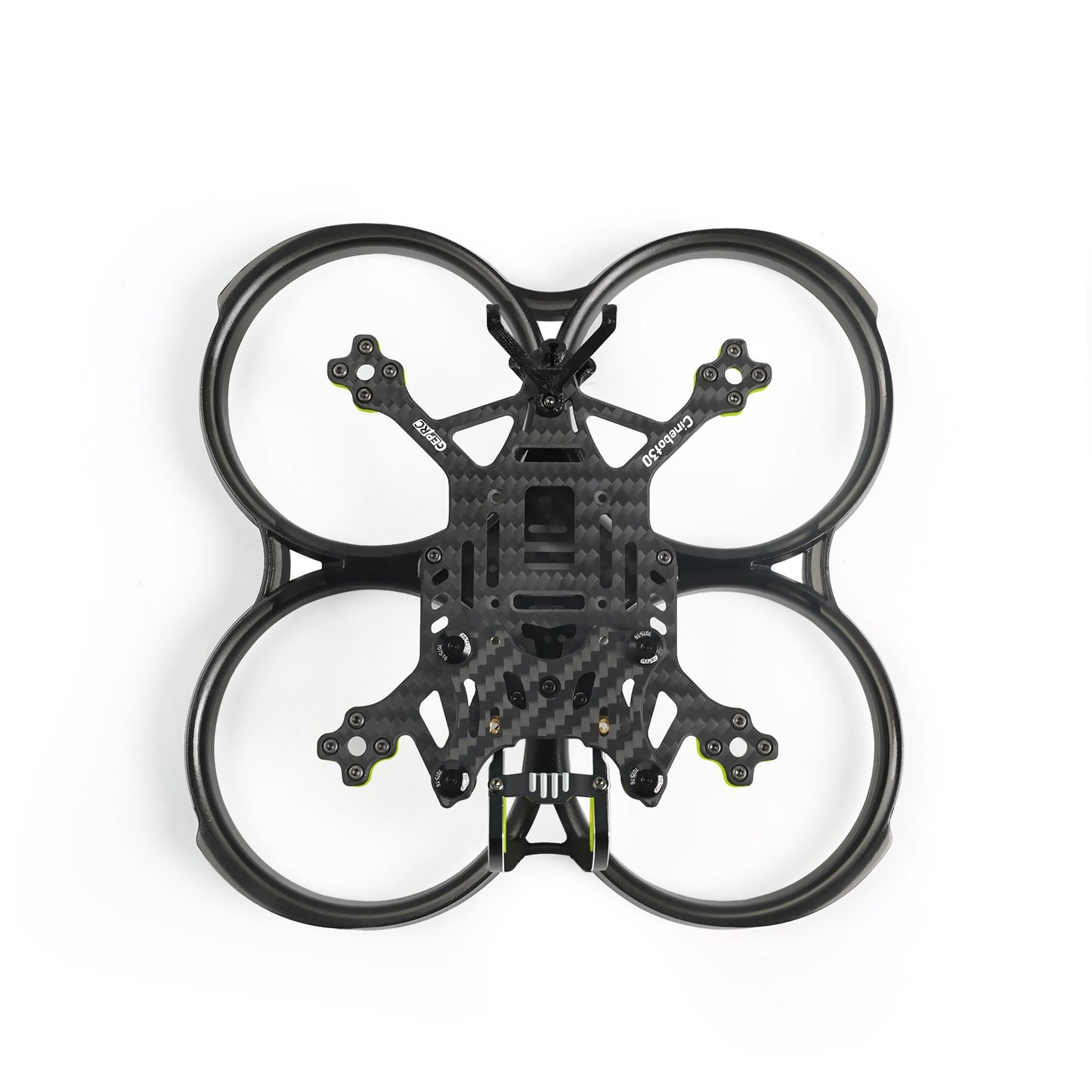

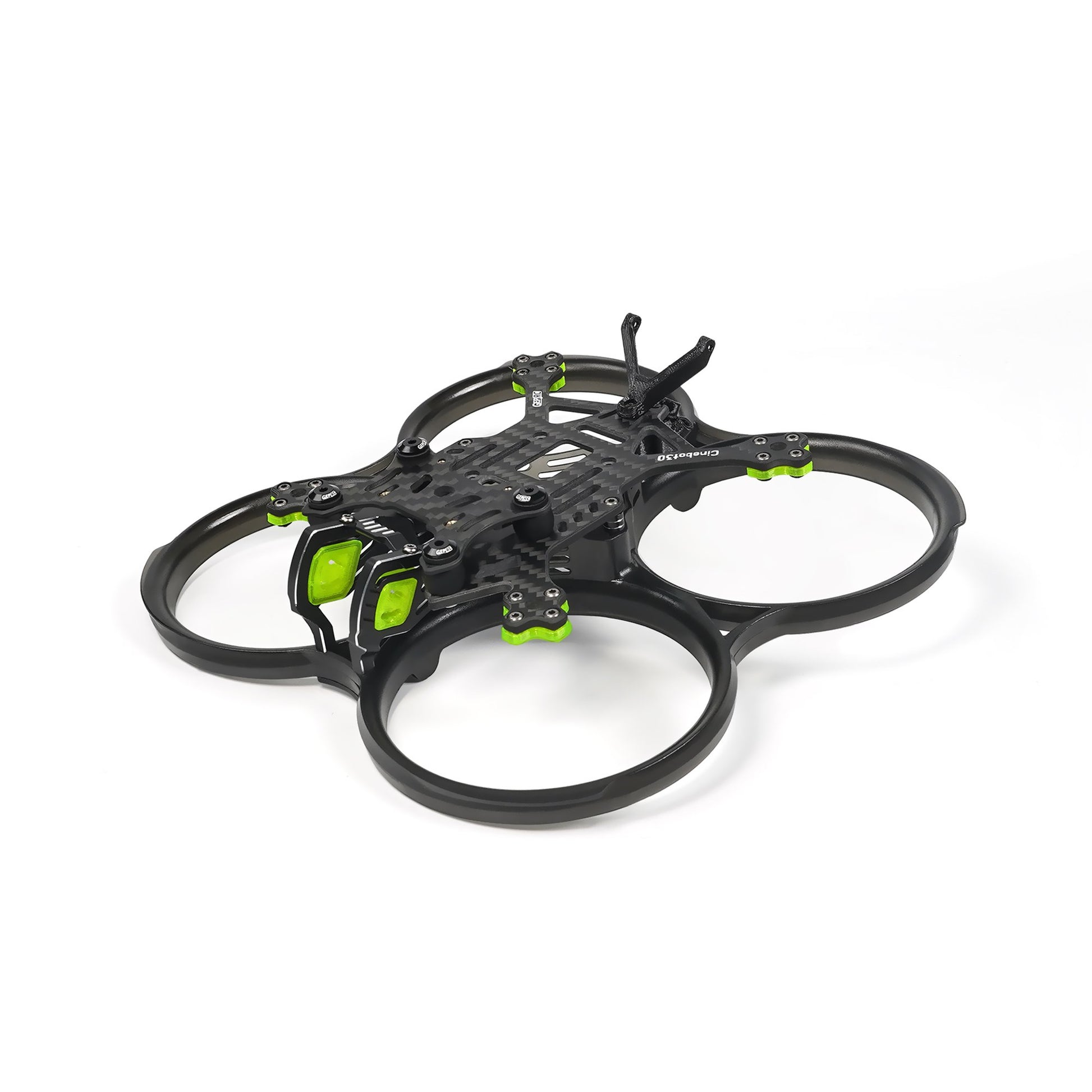

    GEP-CT30-O3-COB

A version of the GEP-CT30 O3 frame developed by the GEPRC team specifically for the O3 air unit.
The newly polished gimbal damping module can easily solve the problems of high frequency vibration and jello. It can be mounted on multiple action cameras, TPU soft mounting method designed for O3 cameras to avoid resonant vibration of the IMU camera. The GEP-CT30 O3 frame supports the installation of common AIO flight controllers with 25.5mm*25.5mm mounting holes, and is compatible with various VTX mounting holes on the market, such as 20mm*20mm/25.5mm*25.5mm. With 12mm * 12mm motor mounting holes, can be installed with larger 15-18-20 series motors with strong output power with 3 inch propeller. Ultralight fuselage weight for safer flying.

Specifications:
Model: GEP-CT30 O3
Wheelbase: 127 mm
Insulation board: 2.0 mm
Main plate: 3.0mm
Bottom plate: 1.5 mm
FC mounting hole: 25.5mm x 25.5mm
VTX mounting hole: 20mm x 20mm / 25.5 x 25.5
Motor mounting hole: 12mm x 12mm
FPV camera pitch: 20mm
Suitable propeller size: 3 inch propeller
Weight: 107.3
