GEP-CL35P

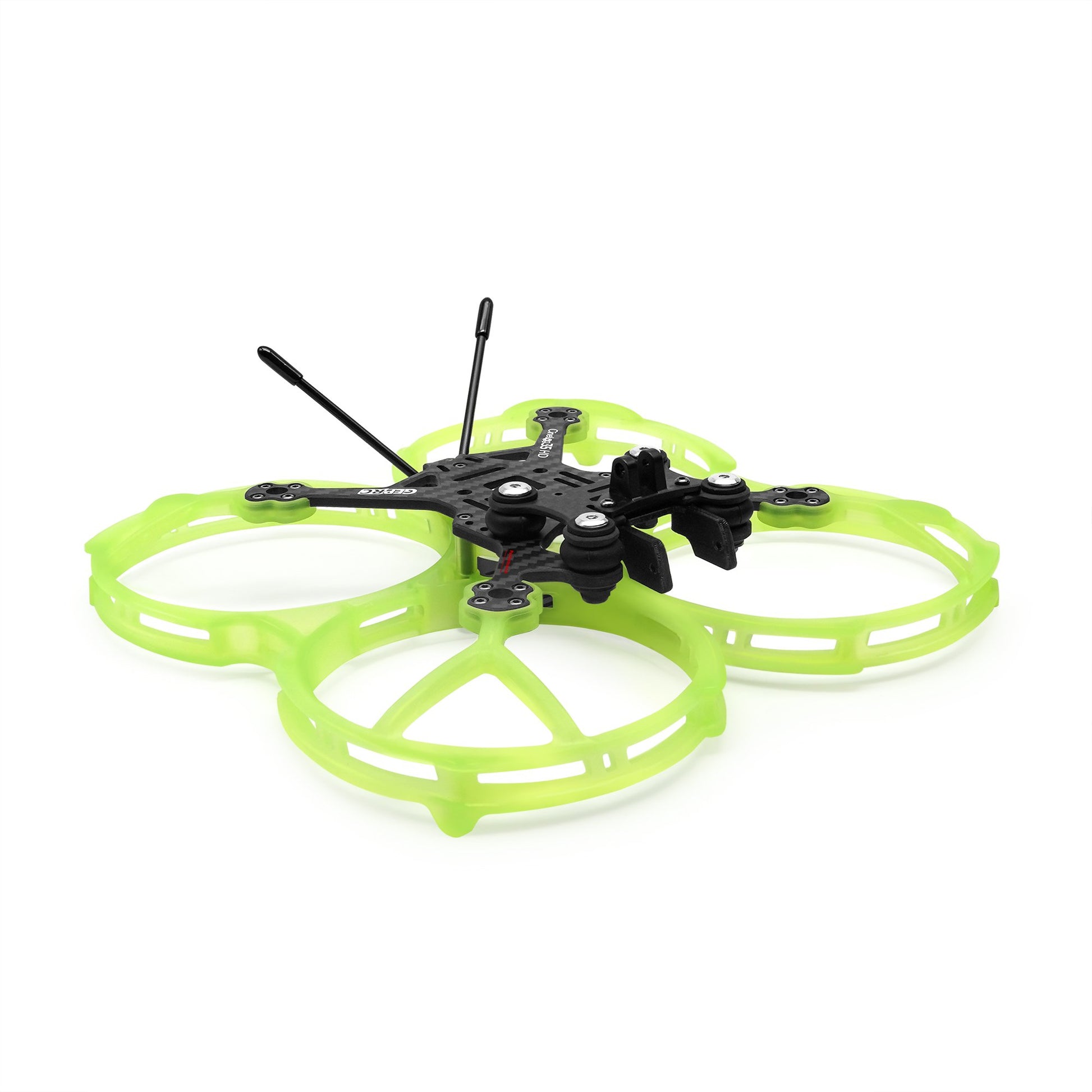

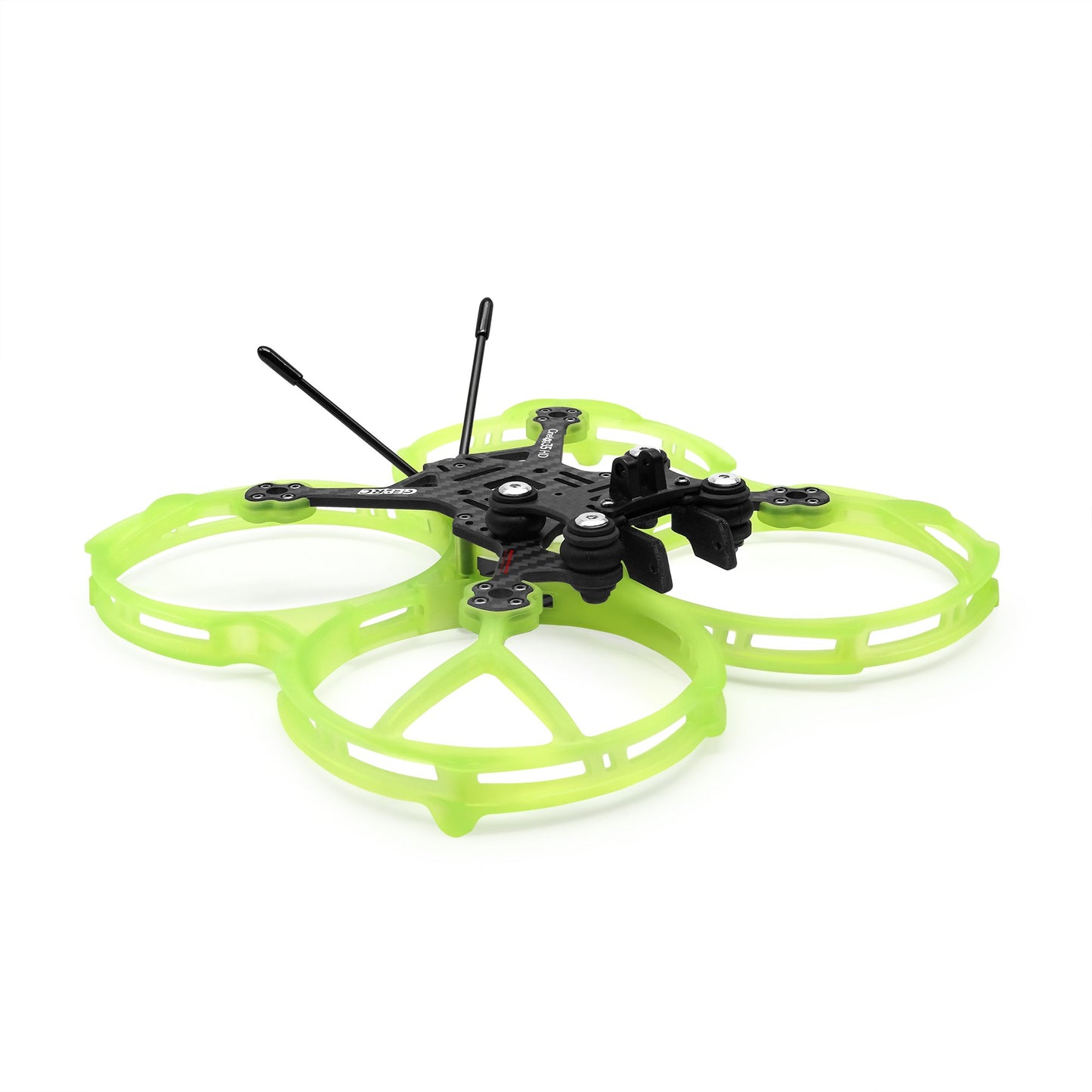

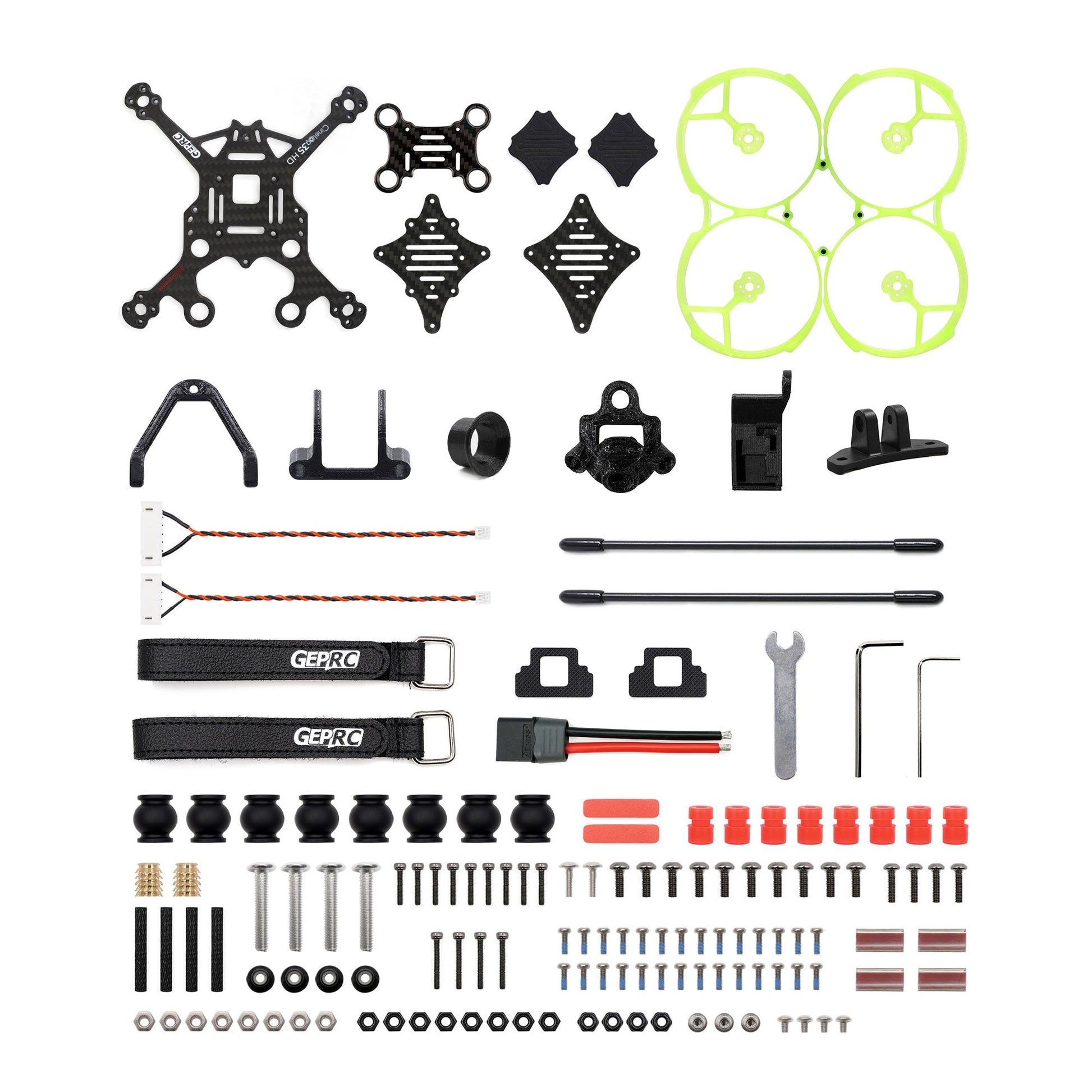

The CineLog35 Performance frame is improved and optimized based on the CineLog35 frame. Supports installation of common AIO flight controllers with 25.5mm x 25.5mm holes. Mounting holes for 20mm x 20mm/25.5mm x 25.5mm can directly install VISTA and AVATAR digital VTX. The propeller cover has an integrated design and the overall structure is stronger. The GEP-CL35 Performance frame uses brand new materials that are stronger against impact and have better toughness. Upgrade the power system and use 12mm x 12mm motor holes, a larger 15-18-21 series motor can be installed compared to the CL30. With 3.5 inch propellers, it has more powerful performance. A regular 14/19mm camera can be installed. For greater mounting compatibility, you can use the 3D printed parts to install GP 8/9/10 cameras or use the base to install naked GP 8, Insta 360 GO2 and Caddx Peanut cameras.

Specifications
Model: GEP-CL35 Performance
Engine to engine: 142 mm
Top plate: 2.5mm
Bottom plate: 2.0mm
Shoulder plate: 3.5 mm
FC mounting hole: 25.5mm x 25.5mm
VTX mounting hole: 20mm x 20mm/25.5mm x 25.5mm
Motor mounting hole: 12mm x 12mm
Camera installation space: 14-19 mm
Inner diameter of the propeller cover: 95 mm
Suitable propeller size: 3.5 inch propeller
Dimensions: 203 mm x 203 mm x 42 mm (including propeller cover)
Weight: 105.7g (including propeller cover, 3D printed parts, GP8 naked camera mount)
