Frame GEPRC GEP-CB5 for Crocodile Baby 5 Drone
Frame GEPRC GEP-CB5 for Crocodile Baby 5 Drone
Brand: GEPRC
Regular price
€44,23
Regular price
€44,23
Sale price
€44,23
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

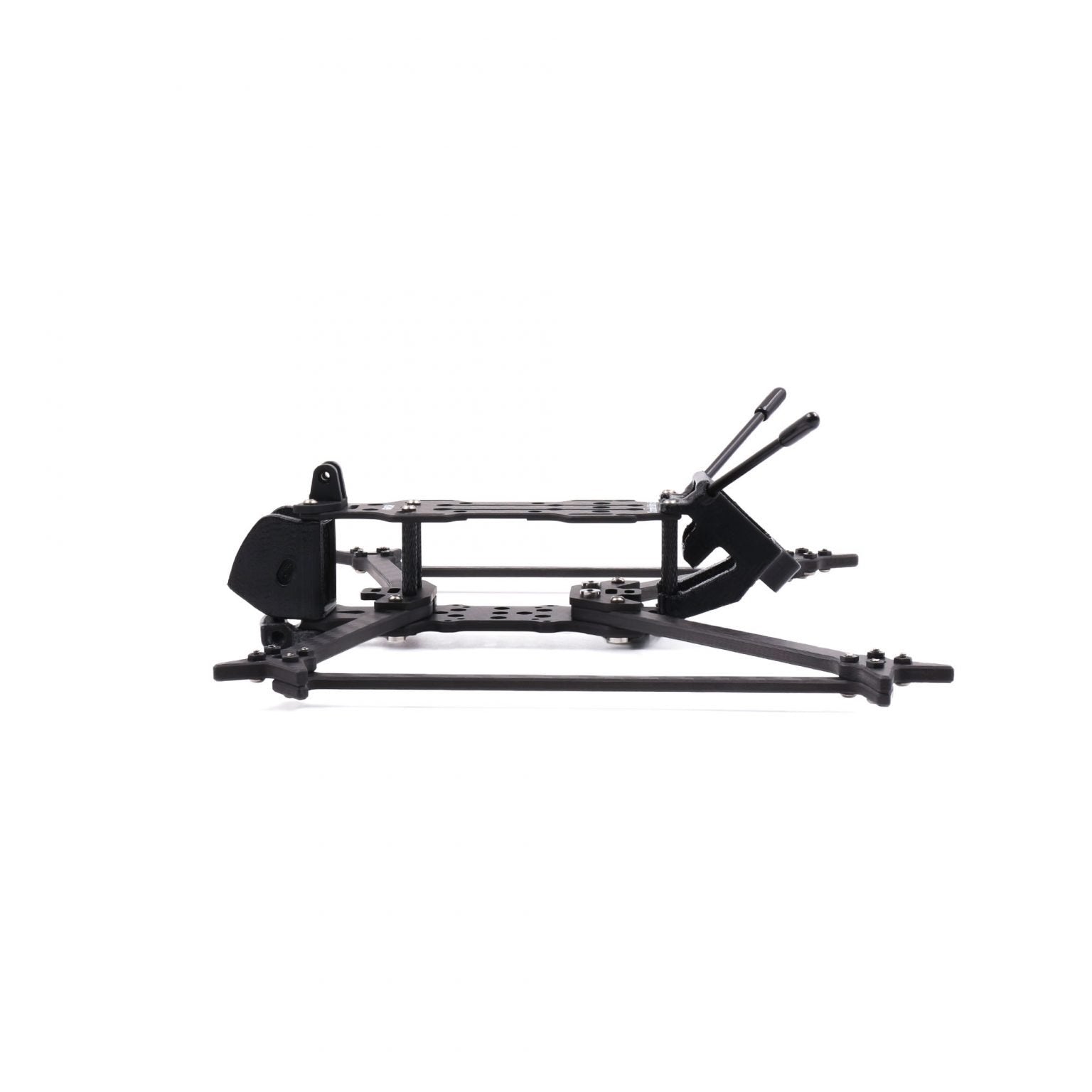

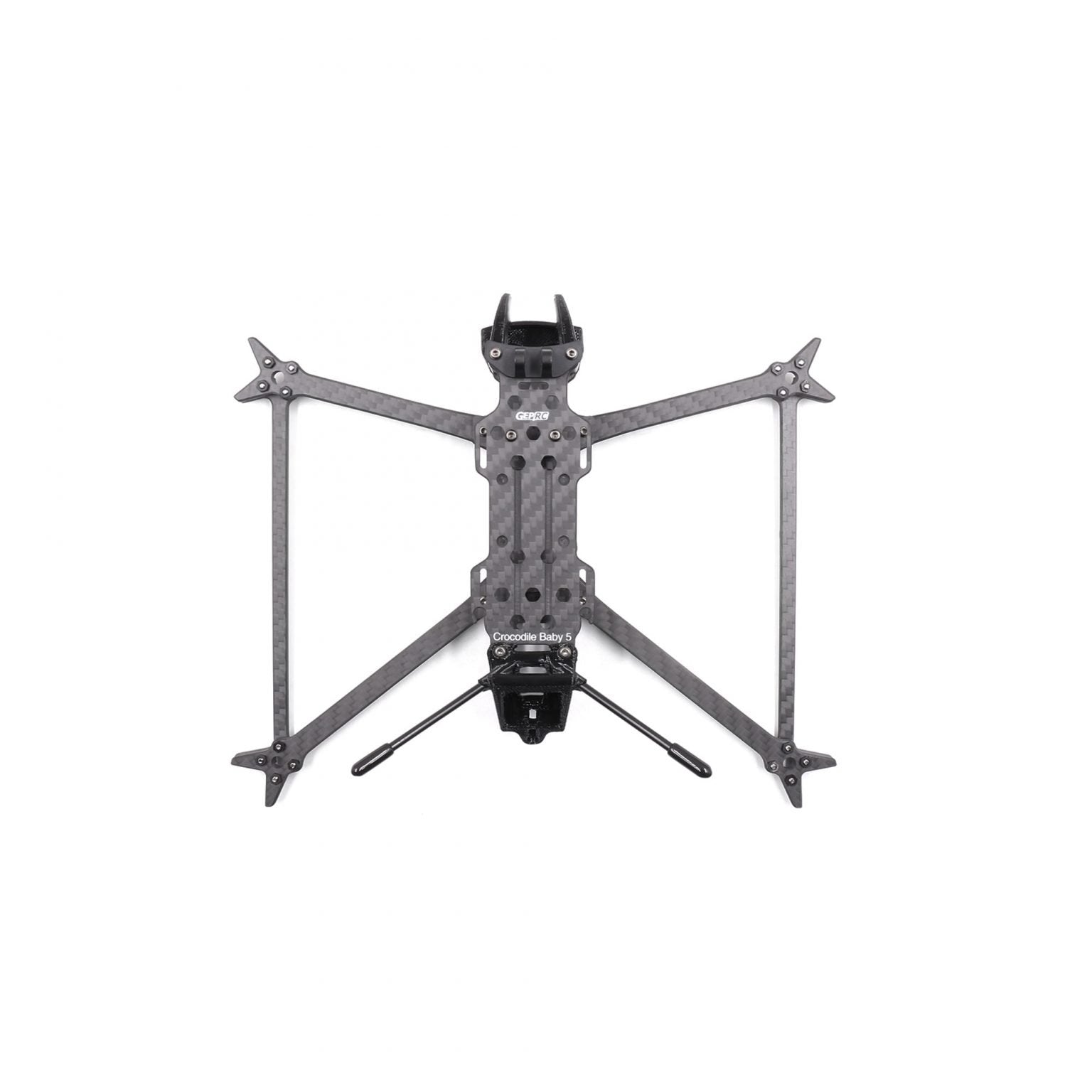

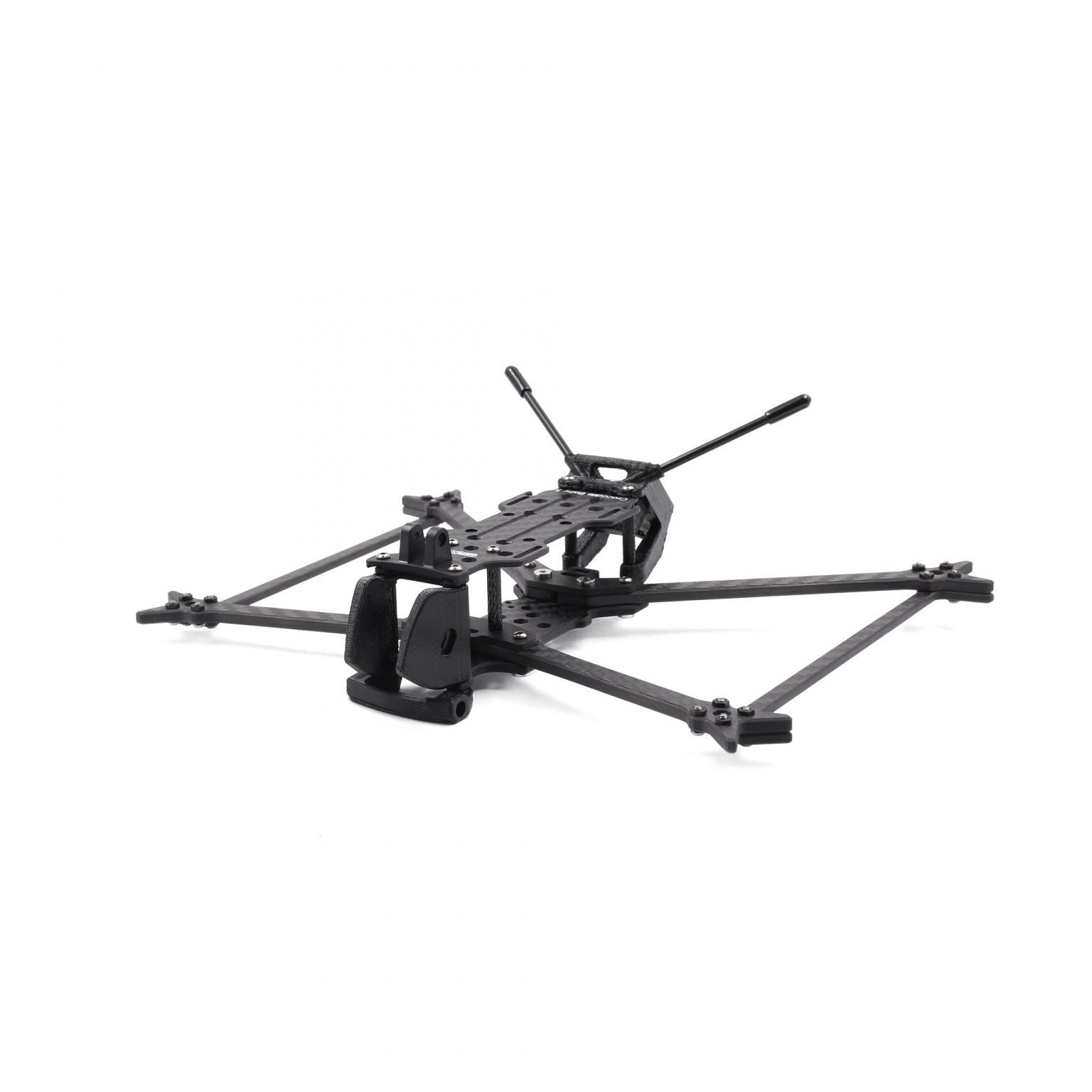

GEP-CB5 The Crocodile5 Baby frame is an improved model based on the Crocodile4 Baby and Crocodile7 frames. It continues the consistent design of carbon plate + 3D printing + aluminum post, which results in an ultra-light frame that offers better operating feel, reduced flight resistance and significantly minimized frame vibration, which ultimately leads to better shooting results. It has several mounting hole options, including 26.5mm x 26.5mm FC and 20.5mm x 20.5mm FC mounting holes on the bottom plate and 20mm x 20mm Vista mounting holes on the top plate with mounting grooves. Motors such as 1507, 1805 and 2004 can be placed in the motor mounting holes. Specifications: Model: GEP-CB5 Brand Name: GEPRC Wheelbase: 227 mm Top plate: 2.0mm Bottom plate: 3.0mm Shoulder plate: 4.0 mm Reinforced shoulder: 3.0 mm FC mounting holes: 26.5 x 26.5 mm, 20.5 x 20.5 mm VTX mounting holes: 20x20mm (with fixing grooves) Camera pitch: 20 x 20 mm Motor mounting holes: 12x12mm Dimensions: 210 x 160 x 32 mm Weight: 84.8g (with 3D printing)
