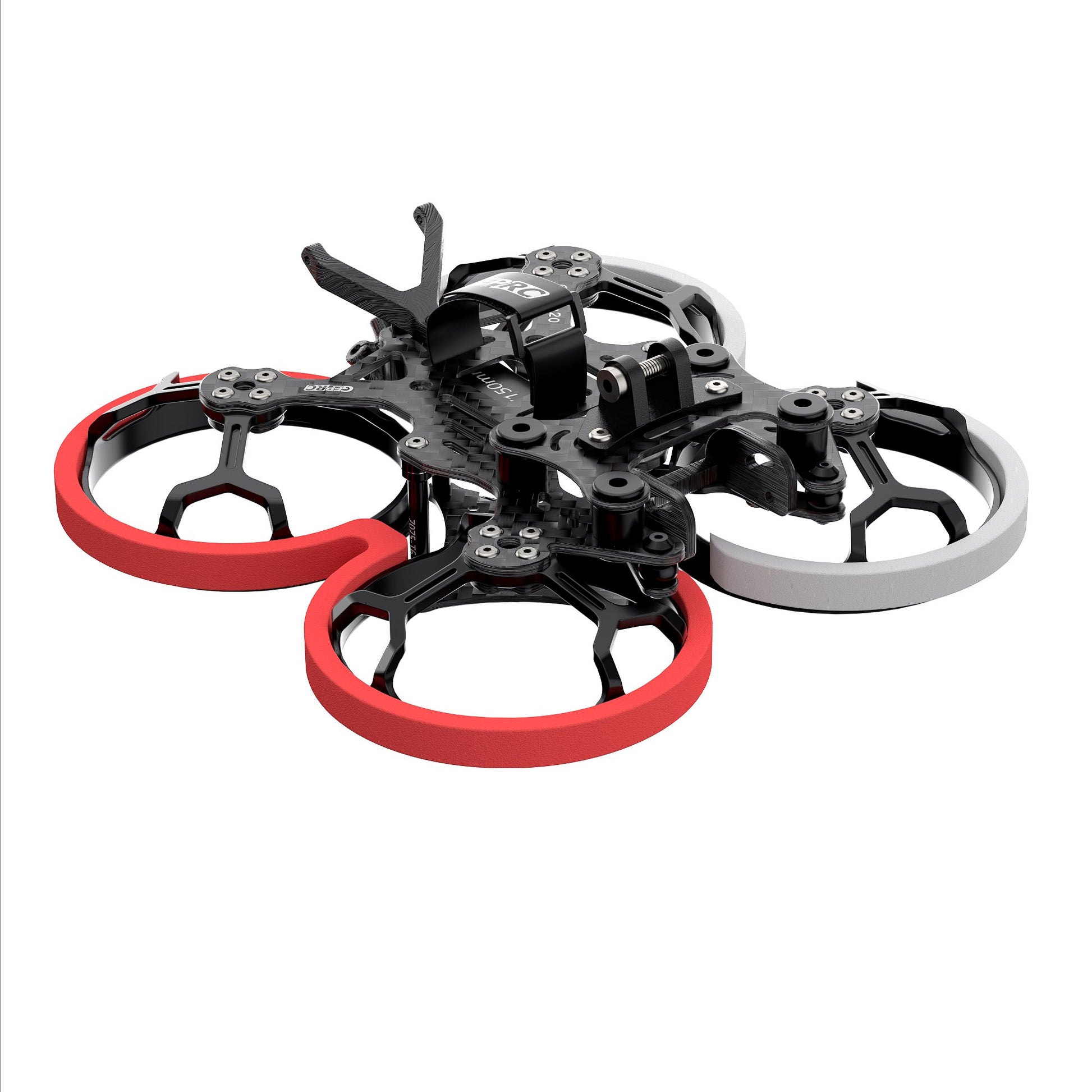

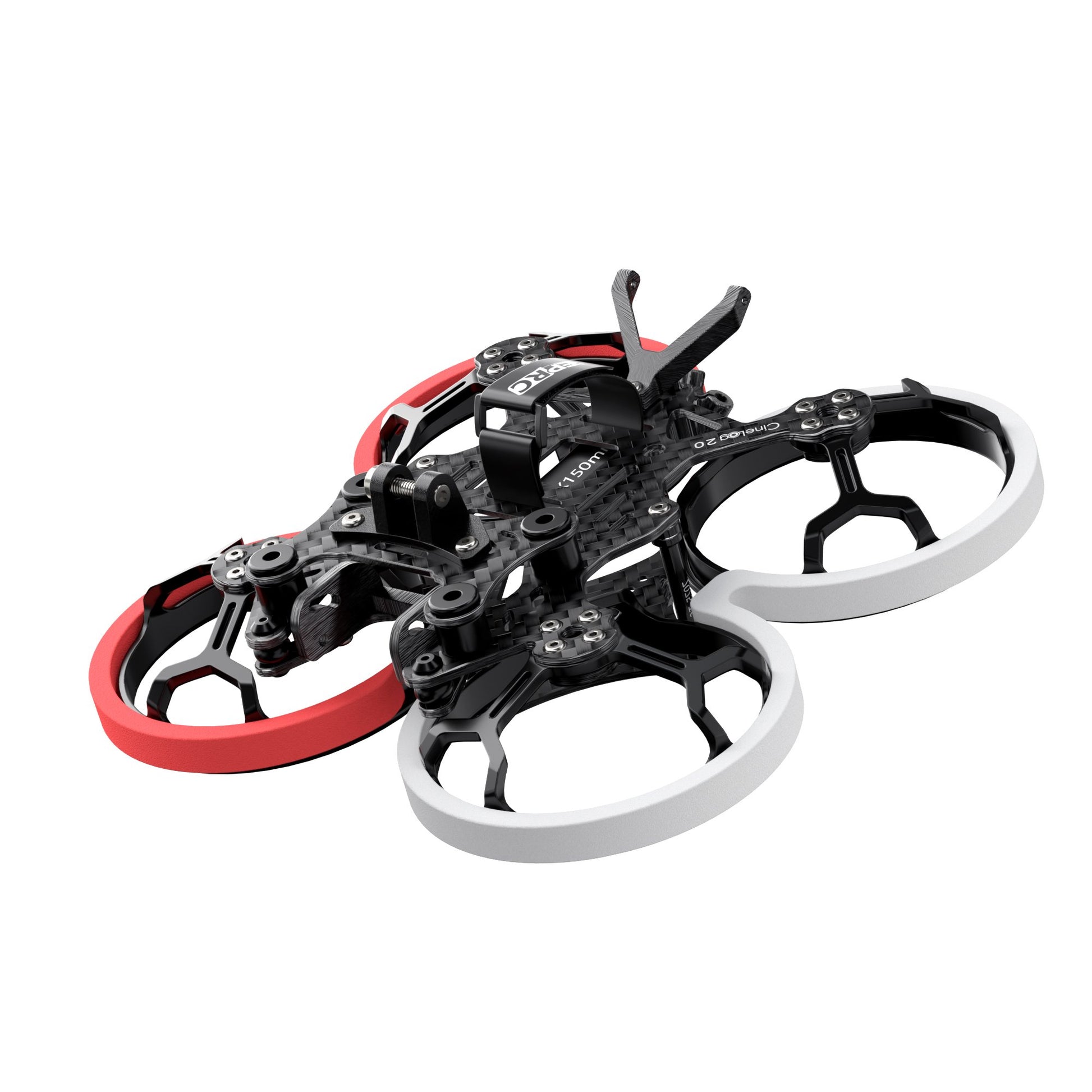

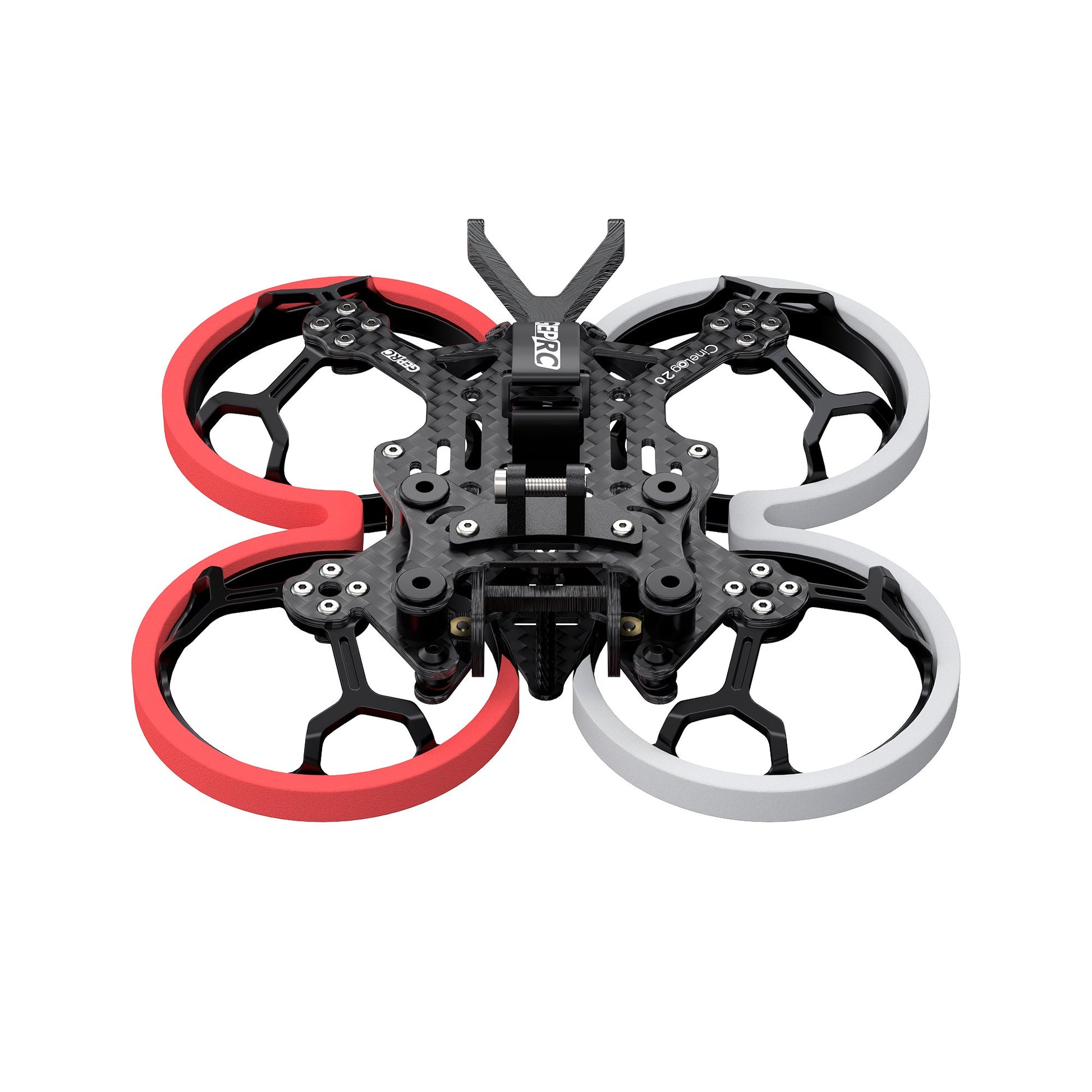

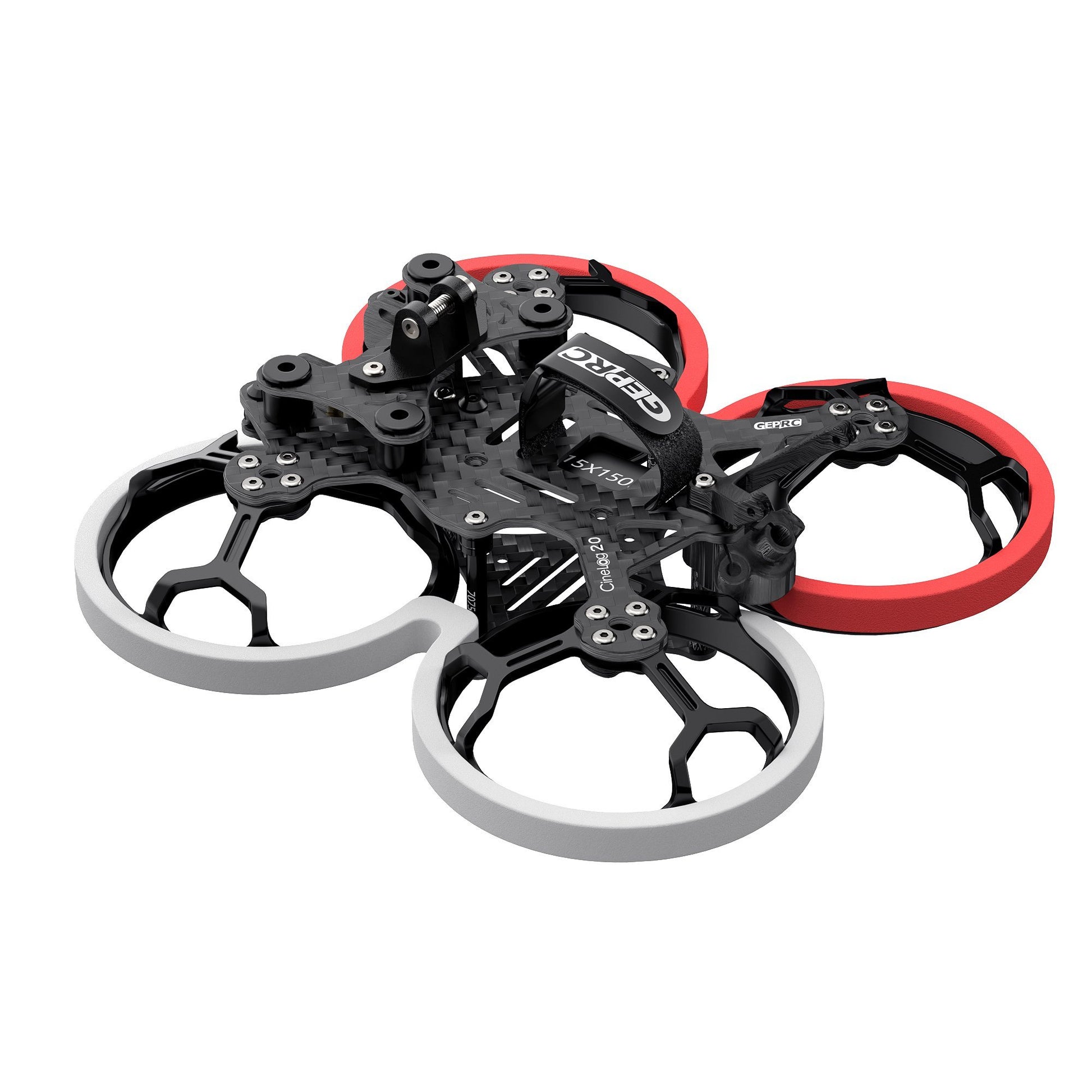

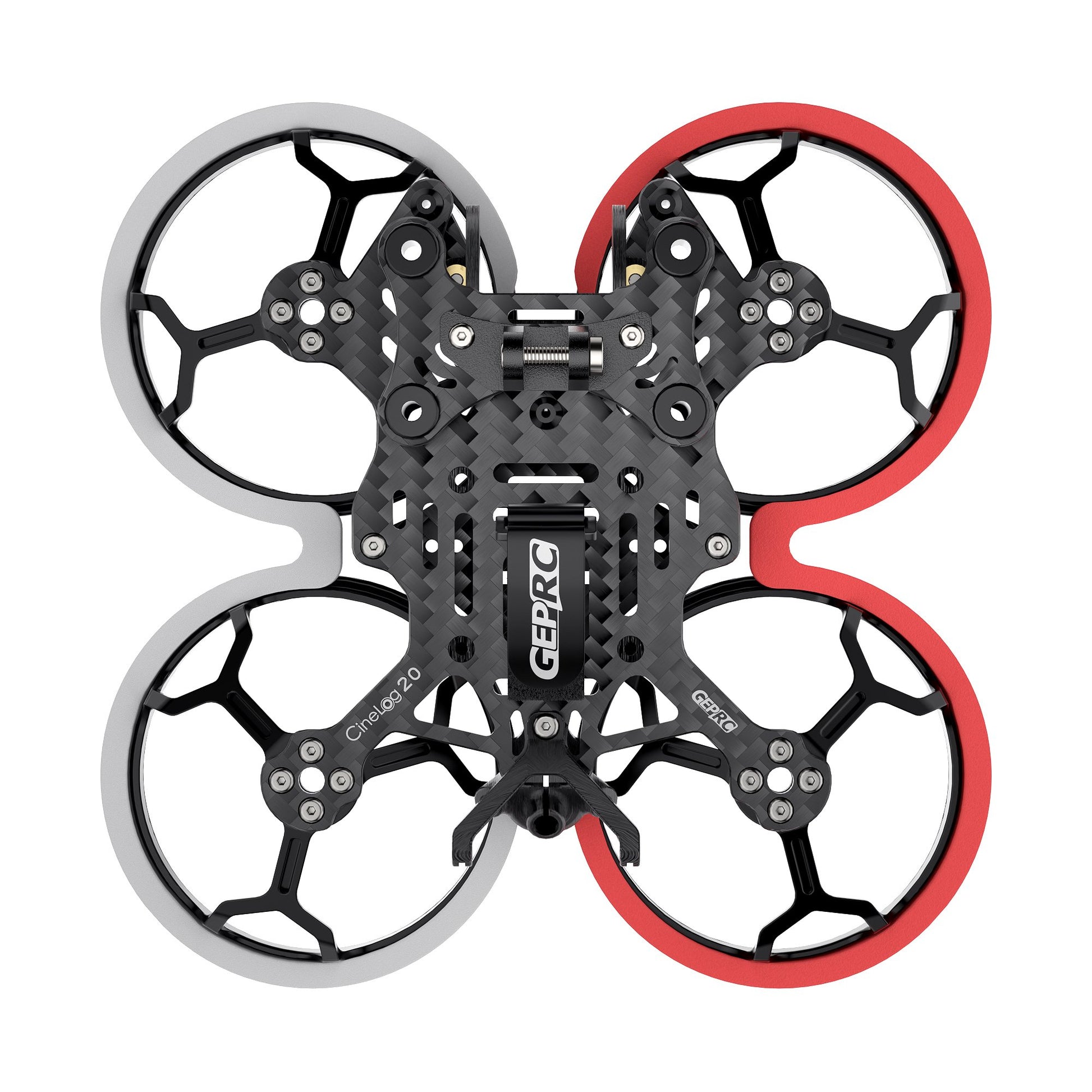

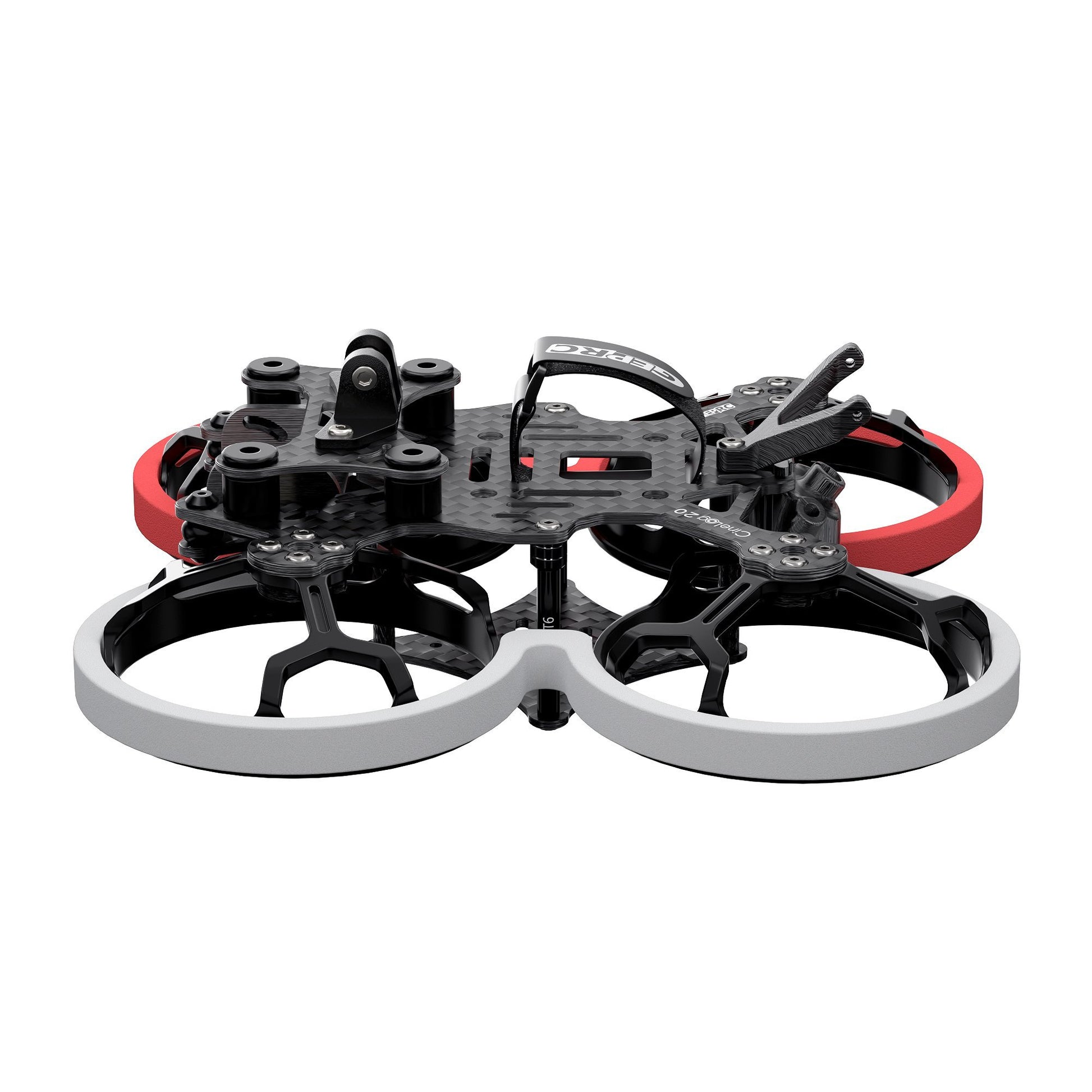

GEP-CL20 frame
The 2-inch frame can be moved in a narrow space and can be adapted to the O3 VTX, and it can also shoot shocking effects in a narrow space. Resigned camera gimbal can easily eliminate high frequency vibration and jello problems. The gimbal camera connection soft damping design can also be mounted with GP naked camera base, which supports the installation of Naked camera GP8/910/11, Insta360 Go2 and DJI Action2.
The pitch of the mounting holes of the flight controller is 25.5mm * 25.5mm, which is compatible with various VTX holes in the market with 20mm * 20mm / 25.5mm * 25.5mm. The 9mm*9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight safer.
Specifications
Model: GEP-CL20

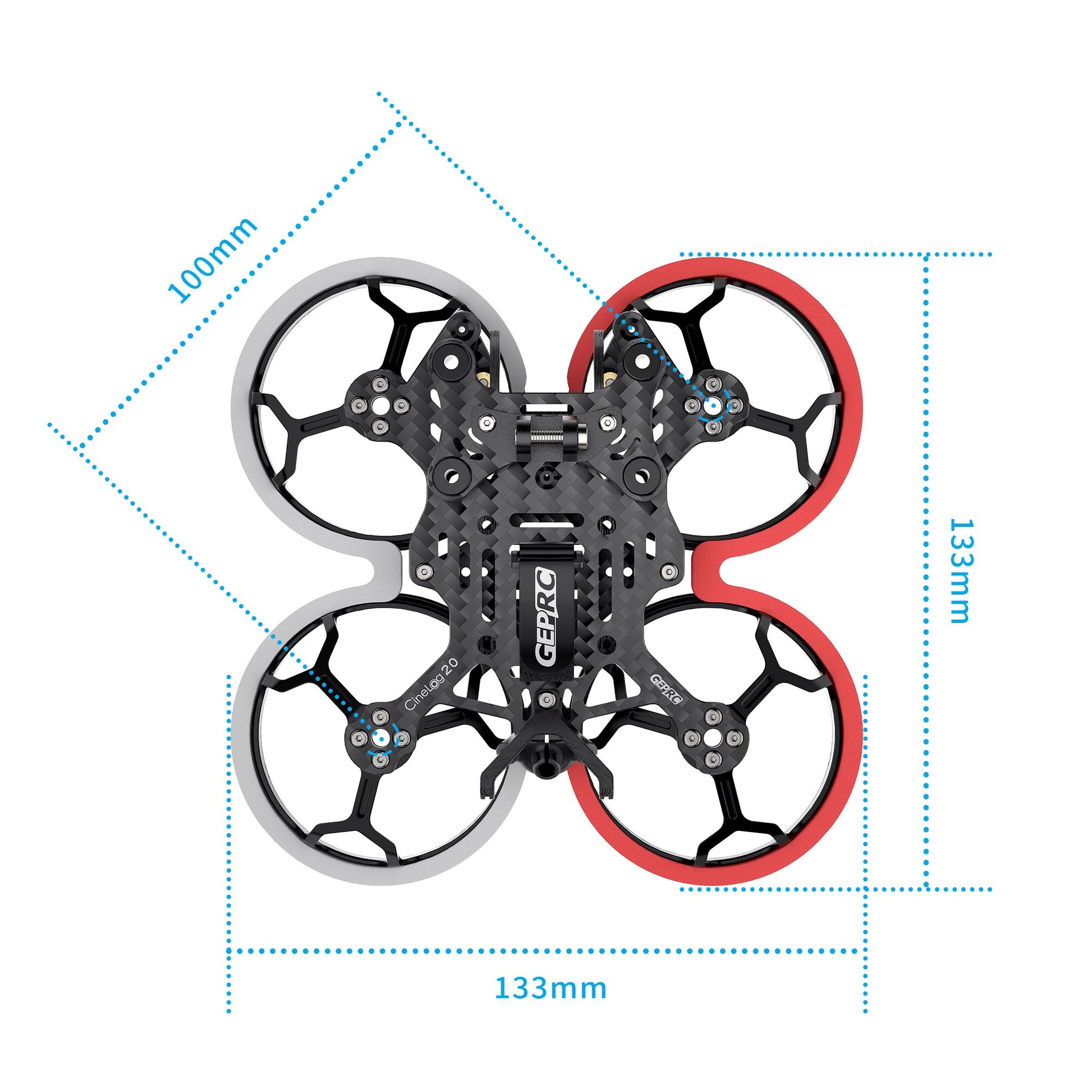

Wheelbase: 100 mm
Main plate: 2.5 mm
Bottom plate: 1.5 mm
Camera gimbal plate: 2.0mm
Engine plate seal: 2.0mm
FC mounting holes: 25.5mm x 25.5mm
VTX Mounting Holes: 20mm x 20mm / 25.5mm x 25.5mm
Motor mounting holes: 9mm x 9mm
Spacing of FPV cameras: 20 mm
Suitable propeller size: 2-inch propeller
Weight: 53.4g
Flight Controller: GEP-F4-35A AIO (Mounting Holes: 25.5mm × 25.5mm)
Motor: 1303.5 (mounting holes: 9mm × 9mm)
ESC: 35A
Propeller: 2 inches
Features
1. Combining aesthetics and engineering for a compact design
2. Designed to mount a shock-absorbing gimbal under an independent FPV camera to reduce the image fogging of the FPV Goggles.
3. 2-inch pusher design, small size and light weight, more suitable for flight shooting in complex and narrow environments.
4. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers accelerates flight shooting.
5. Design the outer EVA cushioning ring to effectively reduce the impact force.
