    Code: JH60651

    Frame Diatone Roma F7

    Frame Diatone Roma F7

    Brand: Diatone

    €80,00
    €80,00 €80,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

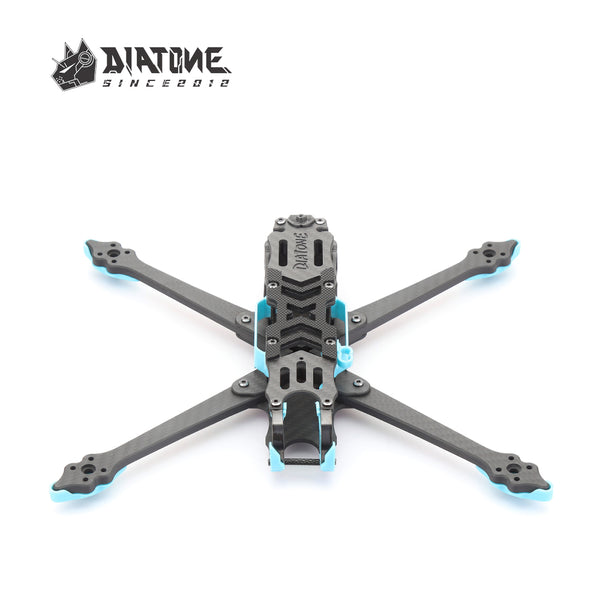

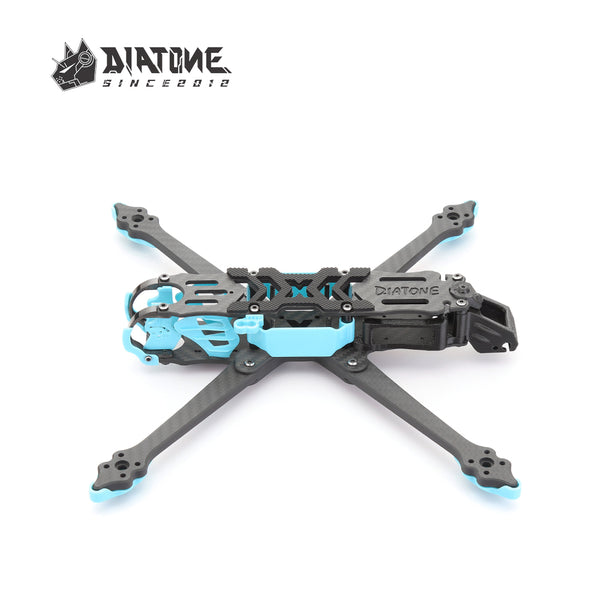

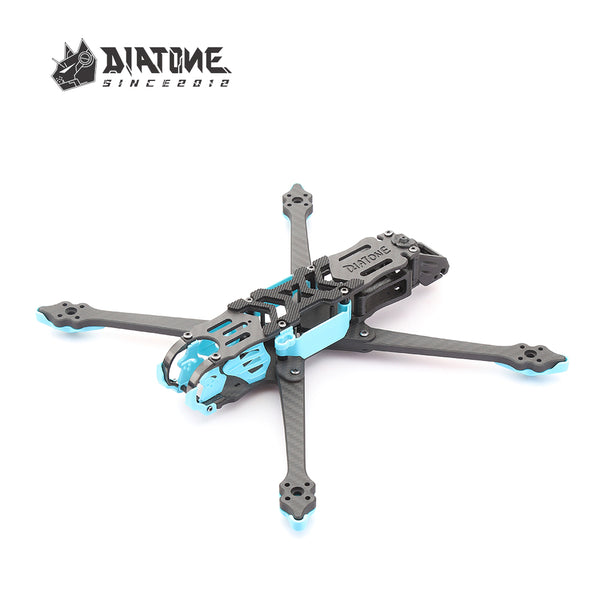

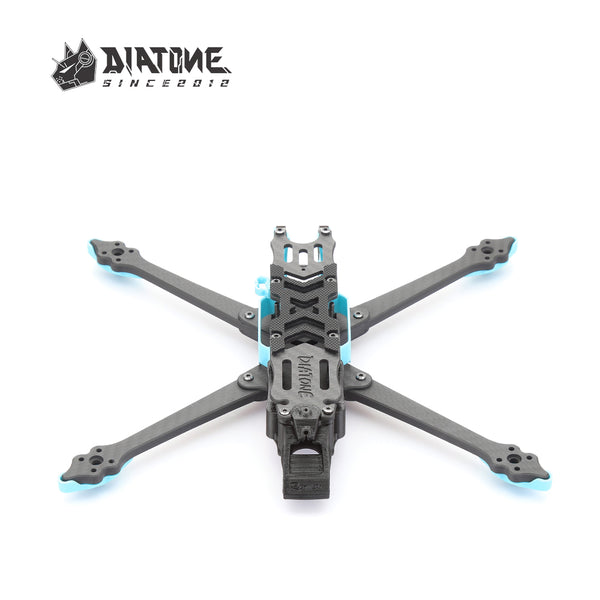

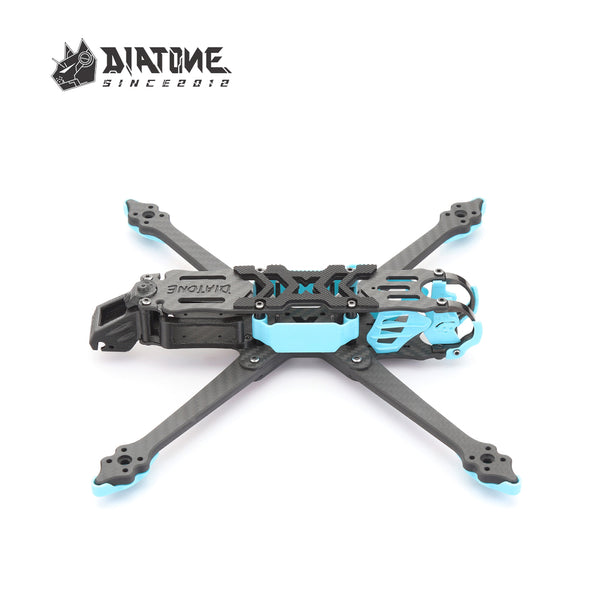

    Roma F7 frameset

The DIATONE Roma F7 frameset is carefully designed for high-performance FPV racing and freestyle applications. Built with precision and durability in mind, this frameset offers a solid foundation for building a powerful and agile drone.

The stock painted blue injection molded parts include an aluminum head guard, camera mount, shoulder guard, general GOPRO rigid base and Stack side plate.

Printing parts:
1x M8PLUS GPS/SMA analog antenna base
1x M22 GPS/DJI dual antenna holder

Specifications:

Name: Roma F7 Frame Kit
Prop Size: 7 inches
FC mounting: 30.5x30.5 (M3) & 20x20 mm (M2)
Motor Mount: 16mm (M3)
Recommended motor size: 28 series motor
Top plate: 2.5mm
Middle plate: 2 mm
Bottom plate: 3.5 mm
ARM thickness: 6 mm
Maximum stack height: 23 mm
Rated voltage (recommended): 4-6S
Recommended Lipo Size: 6S 1600-1800 mAh
Drone nose metal parts: SUS304
Carbon fiber: T300 3K
Wheelbase: 290 mm
Weight: 200g
