Frame BETAFPV Pavo360
Frame BETAFPV Pavo360
Brand: BETAFPV
Regular price
€54,99
Regular price
€54,99
Sale price
€54,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

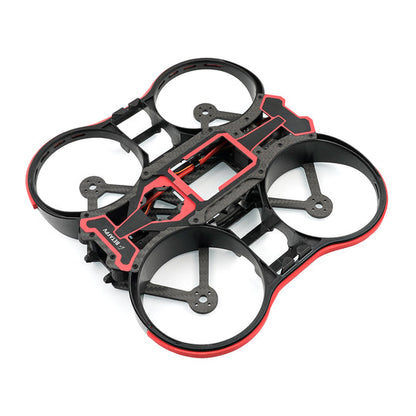

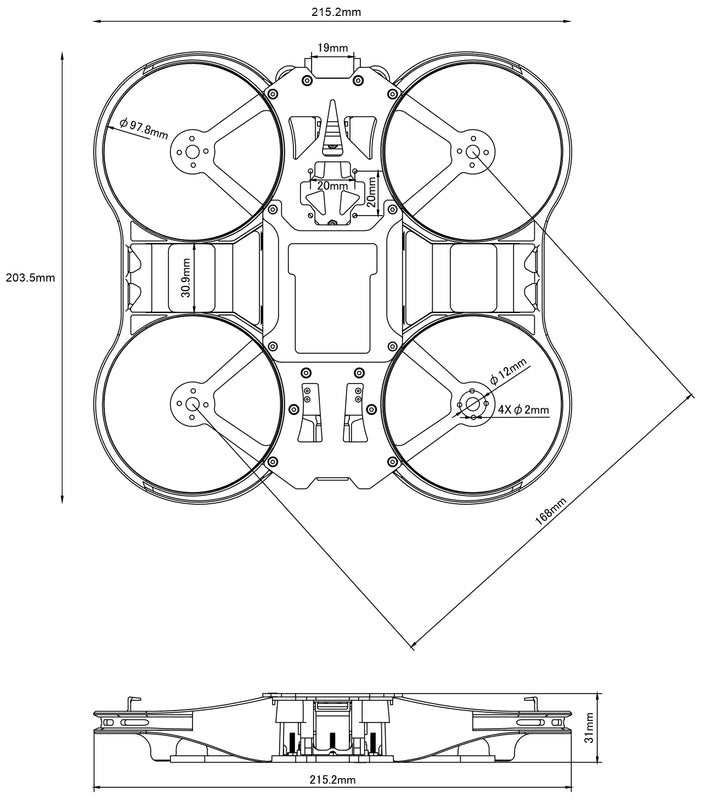

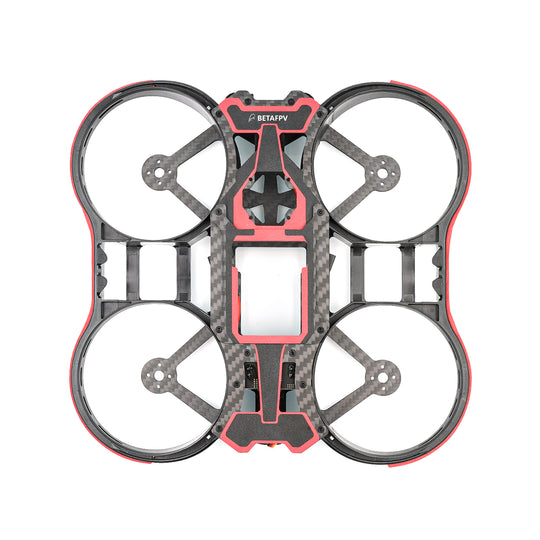

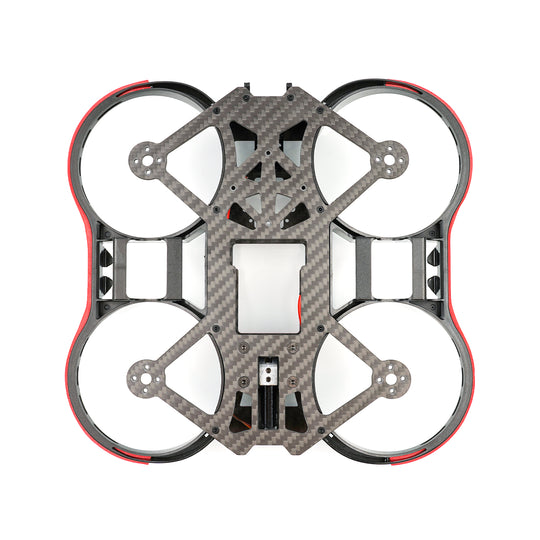

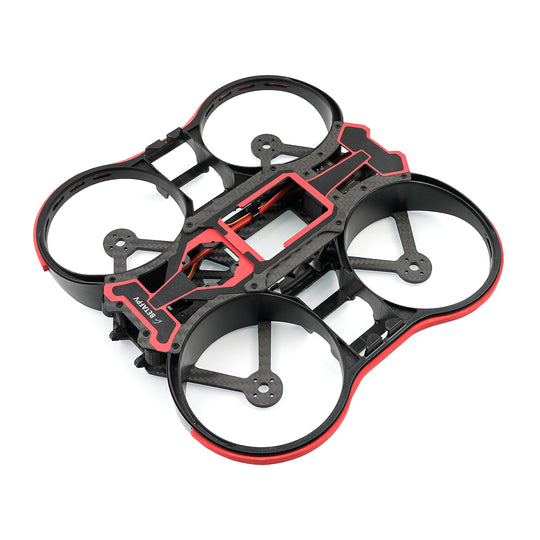

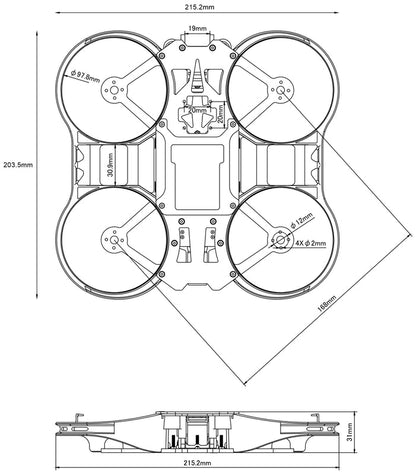

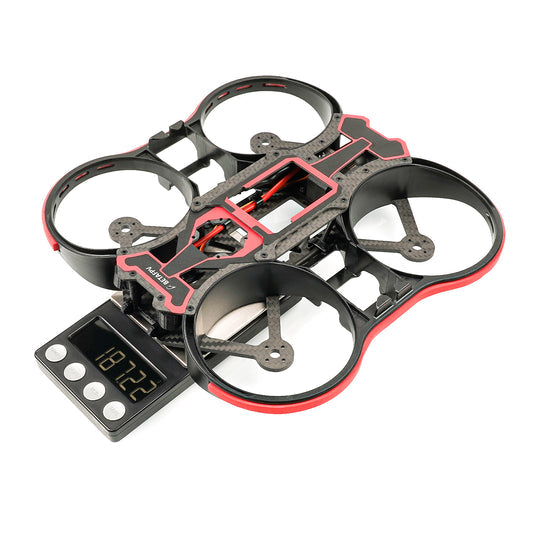

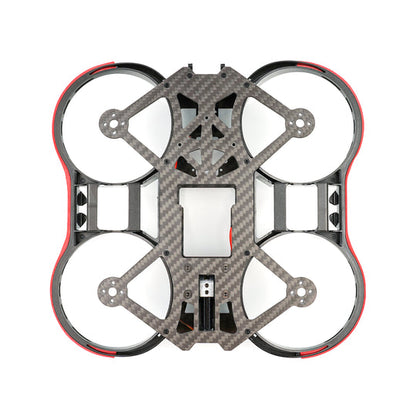

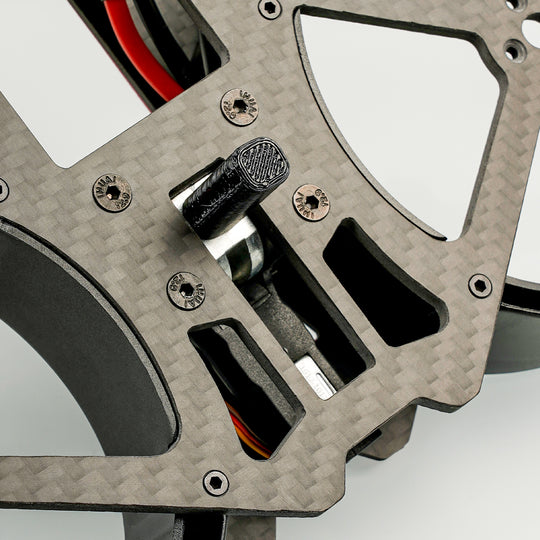

Pavo360 Frame Kit The Pavo360 Frame Kit is a new ultra-thin and flat design tailored for the Pavo360 that ensures perfect invisibility when shooting video. The frame is made of high-quality carbon fiber and strikes a balance between durability and lightweight construction. It boasts a fast response with the F722 AIO Brushless FC 35A (BLHeli_S). The recommended configuration includes 3-inch 5-blade propellers and a 2204-2400KV motor, creating an optimal setup for a 168mm wheelbase frame. Note: The Pavo360 frame kit is for the SMO 360 panoramic camera. The Insta360 ONE R camera is not compatible with this frame. Specifications: Item: Pavo360 Frame Kit Wheelbase: 168 mm Black color Material: PA12 Weight: 187.22 g Recommended motor: 2204-2400KV motor Recommend FC: Toothpick F722 2-6S AIO Brushless Flight Controller 35A (BLHeli_S) Recommended camera: SMO 360 Recommended Battery: 850mAh 3S 75C Lipo Battery (2PCS) x 2 Propellers: Gemfan D76 5-blade propellers Package: 1 x Pavo360 frame set 1 x top plate 1 x bottom plate 1 x Camera Mounting Plate 1 x landing part 1 x Battery Removal Circuit (BEC) 2 x aluminum posts 2x holder for 3D printing 2 x capacitors 2 x battery cable 2 x wires 1 x Pack of Bolts and Nuts
