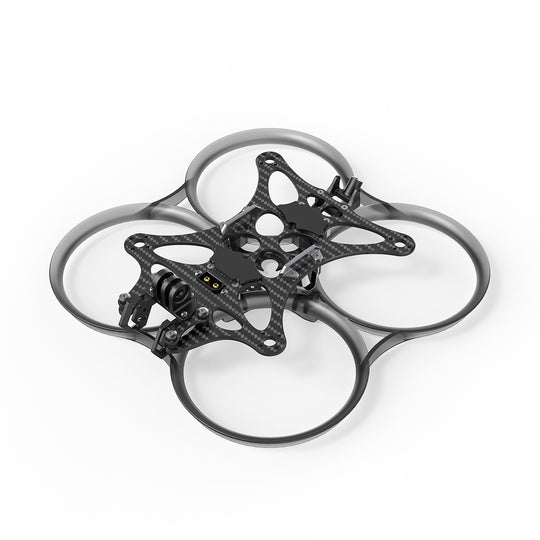

BETAFPV Pavo35 Brushless Whoop frame
This is a lightweight and durable replacement frame for the BETAFPV Pavo35 brushless drone.
Specifications:
Item: Pavo35 Brushless Whoop Frame

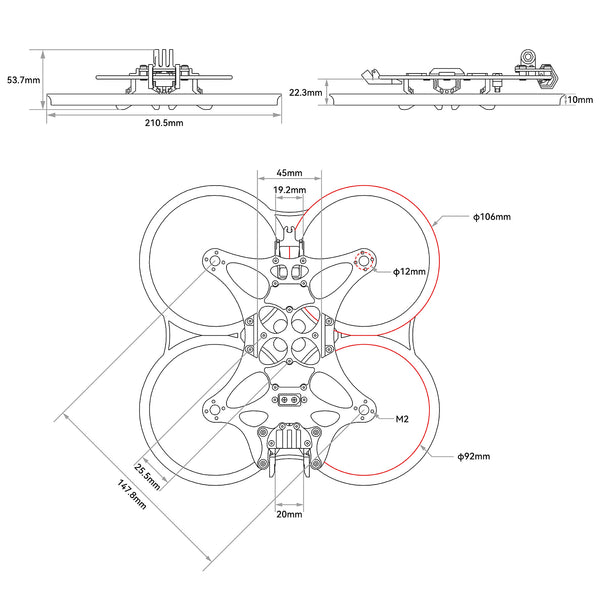

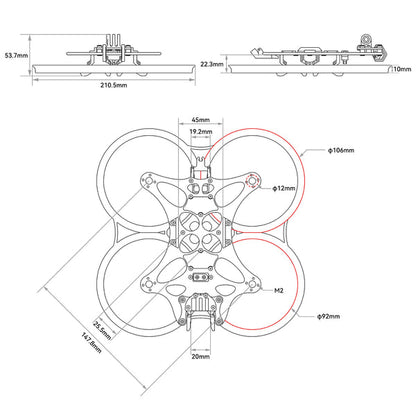

Wheelbase: 148 mm
Top plate: 3mm T700 carbon fiber
Base plate: 1.5mm T700 carbon fiber
Carbon plate: 2mm T700 carbon fiber
Column: CNC aluminum alloy 7075
Battery holder: CNC 7075 aluminum alloy
Whoop Duct: PC Injected Translucent Grey
Pipe diameter: 92 mm
Battery Connector: Fixed XT60
Camera installation size: 20mm (compatible with 19mm)
HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
HD VTX antenna mounting hole size: 4mm
Flight controller mounting hole size: 25.5 x 25.5mm
Motor mounting hole size: 4*M2 EQS ø12mm

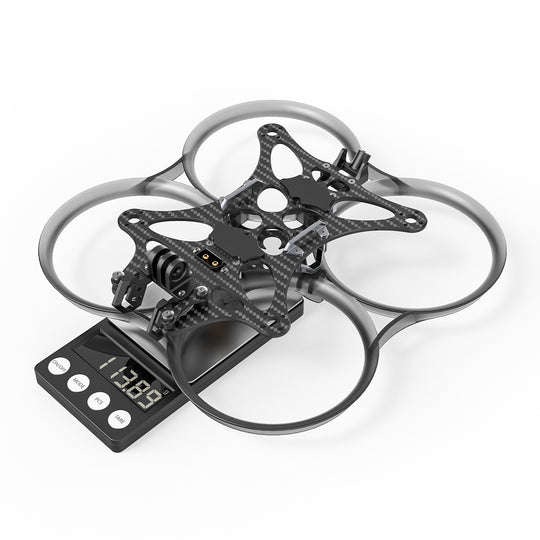

Weight: 113.9g
Recommend parts
FC: F722 35A AIO V2
Motor: LAVA 2006 series AC motors
Propeller: GemFan D90S 3-blade propeller (1.5mm shaft)
Battery: LAVA Series 6S 1100mAh LiPo battery
Battery strap: Pavo series battery strap (2 pcs)
Filter: BETAFPV ND Filter for DJI O3 camera
VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog

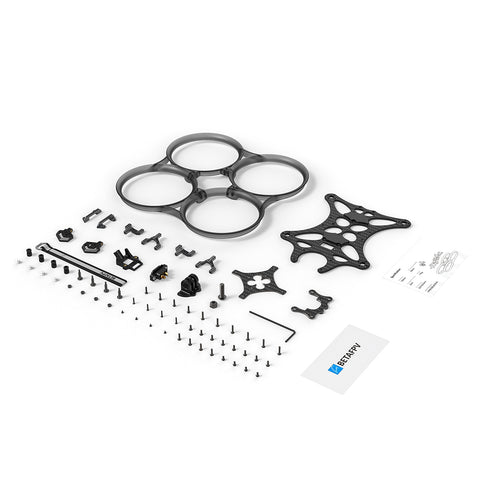

The package includes:
1x Top plate
1x Gimbal Carbon Plate
1x Motherboard
2x battery holder
4x Y-shaped aluminum alloy bracket
1x Hoop channel
1x Receiver holder
1x Amass XT60EW-M socket (black)
2x Battery Anti-slip mat
1x battery loop
4x Flight Controller Amping Ball
4x Pan/Tilt balls for vibration reduction
4x Pan/Tilt screws
2x internal hexagon screw with flat head M2.5*5
10x M2*6 flat head hexagon socket head screw
4x M2*8 flat head hexagon socket head screw
4x M2*10 flat head hexagon socket head screw
4x Nylon nut M2
1x Accessory pack
1x Service card
1x Frame manual
