  • Frame BETAFPV Pavo20 Pro Whoop O4 Pro Transparent Grey
    1 3

    Code: 01090027_11

    Frame BETAFPV Pavo20 Pro Whoop O4 Pro Transparent Grey

    Frame BETAFPV Pavo20 Pro Whoop O4 Pro Transparent Grey

    Brand: BETAFPV

    €11,90
    €11,90 €11,90
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

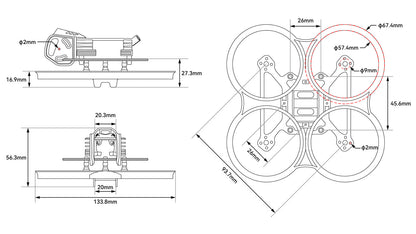

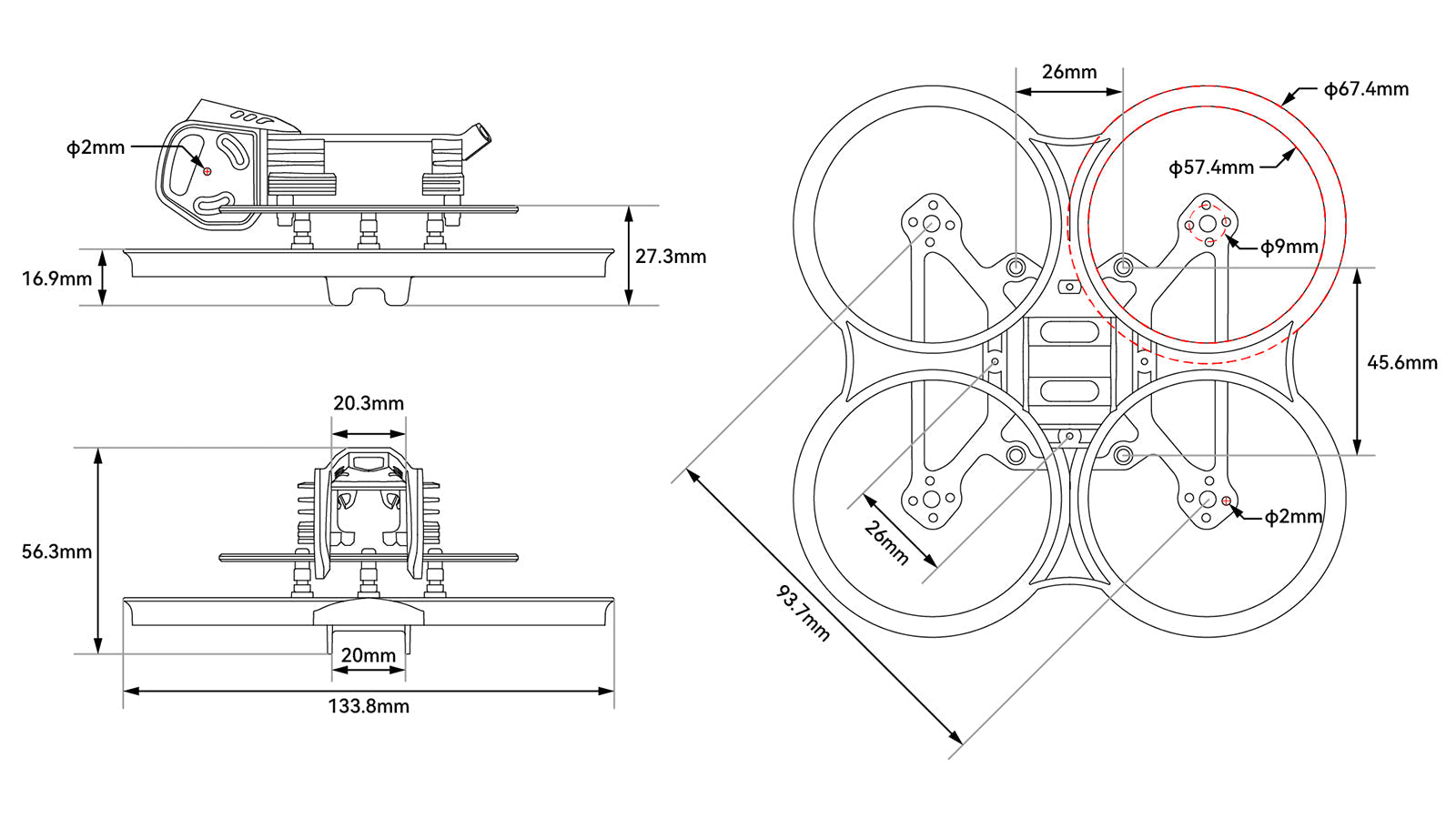

    BetaFPV Pavo20 frame for Brushless WHOOP O4 for transparent gray The Pavo20 for the Brusless WHOOP is designed specifically for Cinewhoop Pavo20 Pro with 2.2 ″ propellers. It now offers extended compatibility with the DJI O3 Air Unit, Caddx Vista, RunCam Link and the latest DJI O4 Air Unit Pro — seamlessly combined with the O4 Pro mount for greater stability and versatility. With a 93.7mm wheelbase and impact-resistant PA12 construction with reinforced whoop channels, the frame combines durability with aerodynamic efficiency, delivering an 8-11% increase in drag. Combined with a strong 3S drive system, it provides exceptional performance for freestyle and film flights. The frame also includes dual mounting holes for DJI O3 and O4 Pro cameras for wide-angle shooting and a proven rubber shock absorber system that guarantees smooth, vibration-free HD footage. Specifications: Wheelbase: 93.7 mm Material: PA12/PP Thickness of the top plate: 2 mm Frame weight: 35.7g (with O4 Air Unit Pro mount) Weight of Whoop Channels: 17.8g Bracket weight: 7.2g (O4 Air Unit Pro bracket) Color: Transparent gray Camera mounting pitch: 19 mm / 20 mm Size of mounting holes for FC: 26x26 mm Motor mounting size: 4-M2-φ9 mm Battery slot width: 20mm Camera Filter: Supported The package contains: 1 x Pavo20 Pro Brushless Whoop frame 1 x Bracket for O4 Air Unit Pro 6 x rubber damper 6 x M2*10 screws 6 x M2*4 screws
