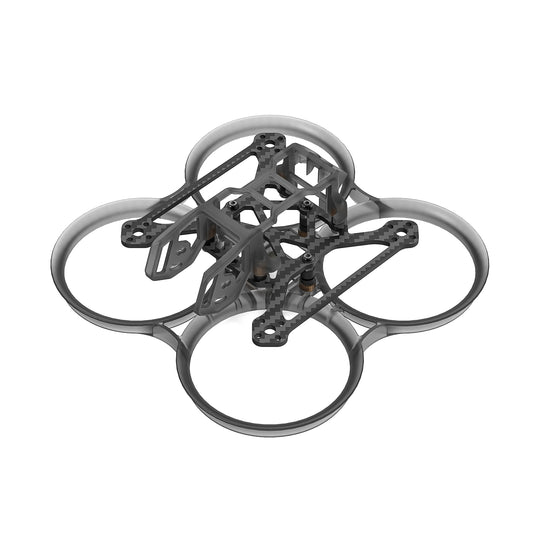

BETAFPV Pavo20 Brusless Whoop frame
- Integrated HD VTX injection mounting bracket eliminates the hassle of adjusting bolt tightness and hassle-free installation. The original broadcast antenna can be mounted directly on the frame kit.
- Made of impact-resistant reinforced PA12 channel. Its reinforced cross-sectional design increases strength and blast resistance, utilizes the principles of aerodynamics, and works flawlessly with an improved power system.
- The camera's side panel and 4-point fixation design effectively protects the lens while allowing easy installation of ND filters, eliminating any concerns about angle deviation after intensive flights.
- Open battery loop slot including side limiting slots ensures a secure and stable battery placement that accommodates a wide range of batteries. Supports 2~4S batteries.
Specifications:
Item: Pavo20 Brushless Whoop Frame

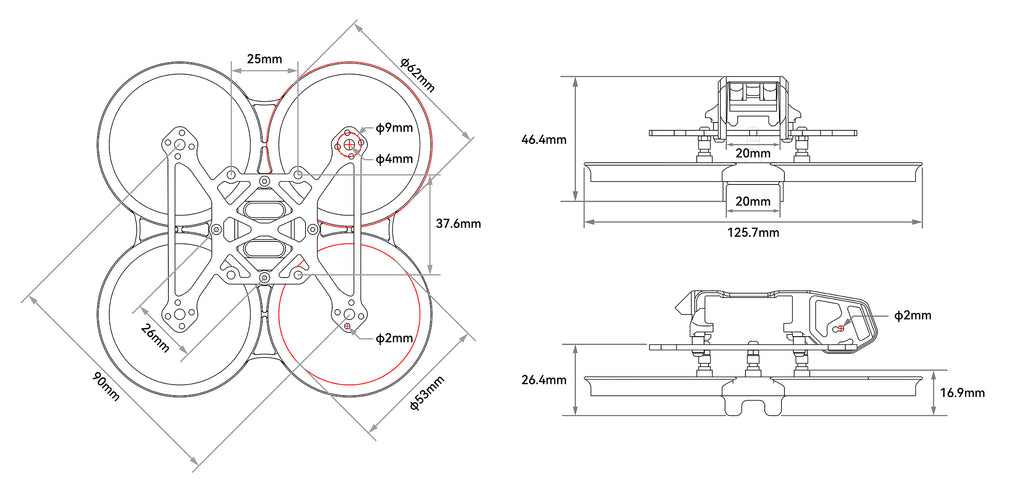

Wheelbase: 90 mm

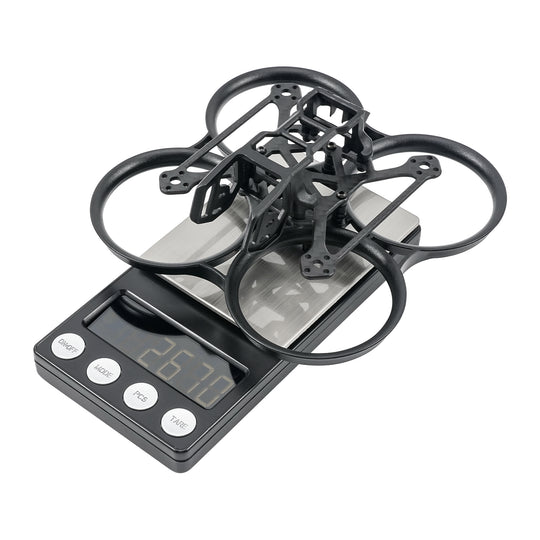

Weight: 26.7g (with HD VTX mount), 13.8g (Whoop Duct), 4.1g (HD VTX mount only)
Color: Transparent gray
Thickness of the top plate: 2 mm
Camera: 19mm/20mm
Camera Filter: Support
FC Mount: 26x26mm, suitable for conventional whoop FC
Motor mounting: 4-M2-φ9mm
Battery slot width: 20mm
Recommend parts:
FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
Engine: 1103 | 8000kv/8500kv/11000kv
Propellers: GF 2015-2B, GF 2020-4B
Battery: 2S~4S 450mAh~650mAh
VTX: DJI O3, Caddx Vista, RunCam Link
The package includes:
1x Pavo20 top plate
1x 20*20mm VTX mounting plate
1x channel Pavo20 Whoop
1x Pavo20 VTX holder
1x 130mm battery strap
2x Battery non-slip mat
2x 5.8g antenna
8x M2 nuts
10x Rubber damper
6x M2*10 screws
6x M2*3 screws
4x M2*14 screws
4x M2*15 screws
