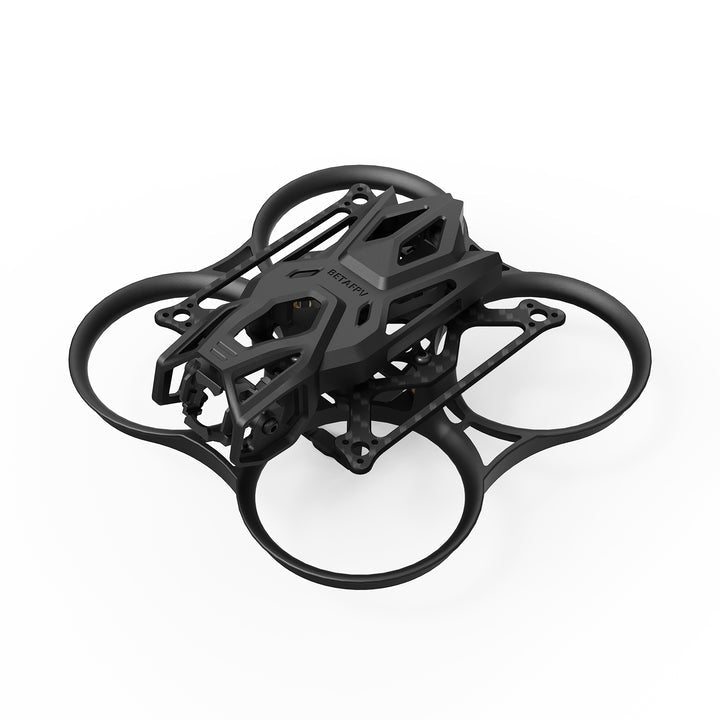

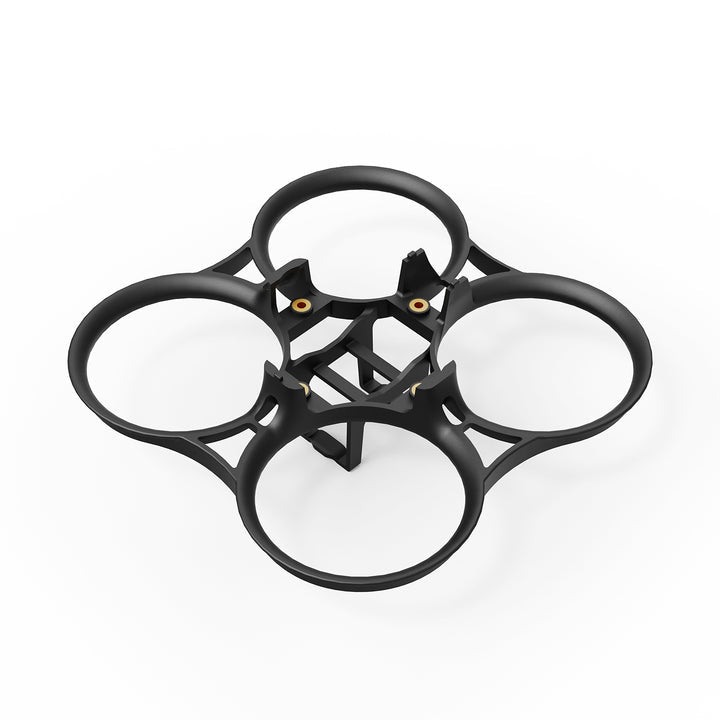

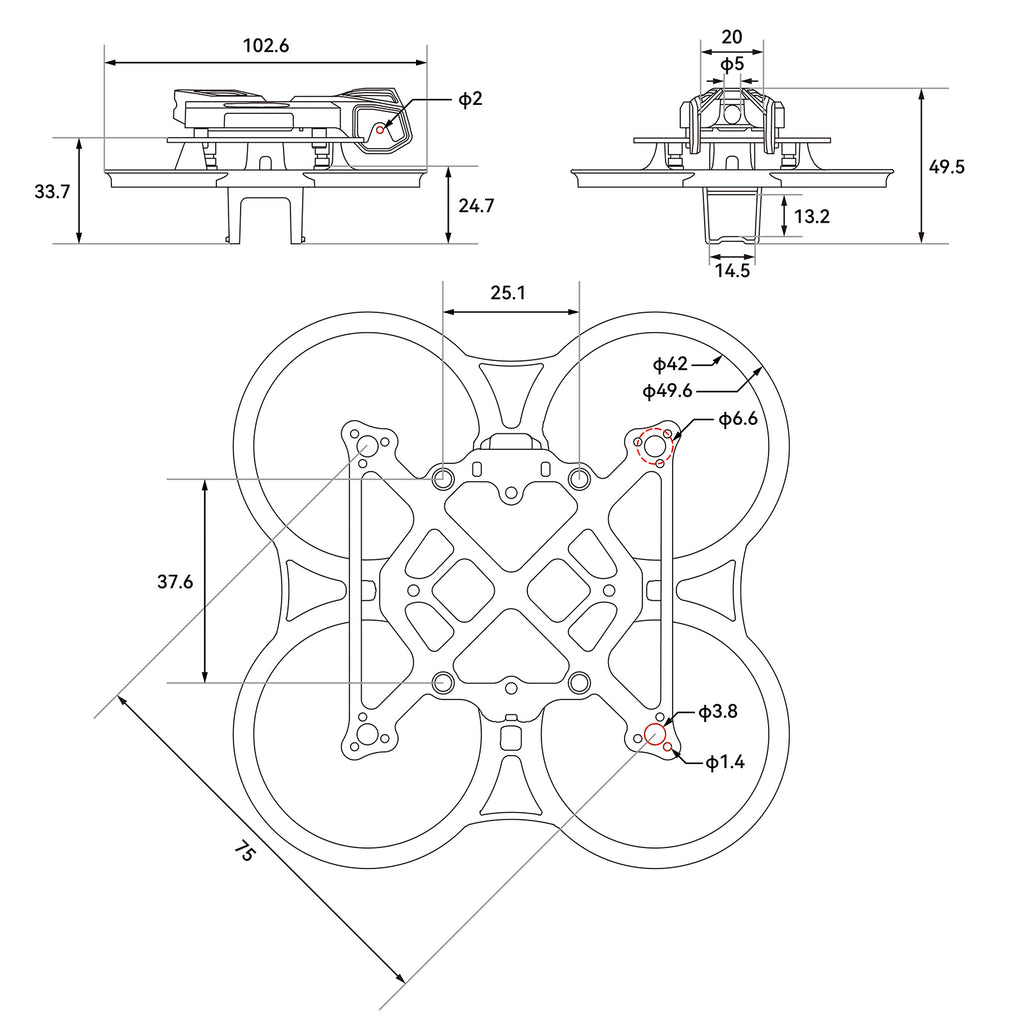

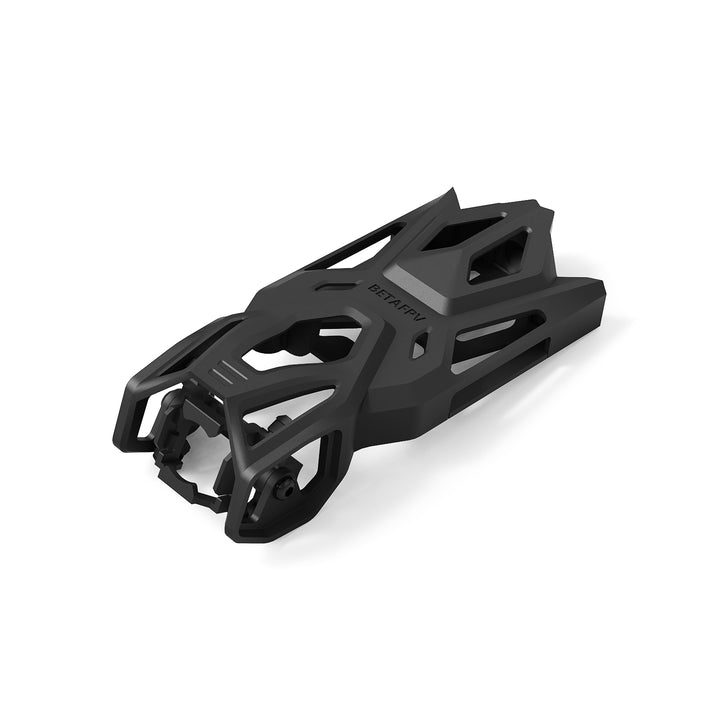

Frame BETAFPV Pavo Femto Brushless Whoop Black Designed with performance and durability in mind, the Pavo Femto Brushless Whoop Frame offers 4% more thrust in a compact design. It features improved joints between the whoop channel and the carbon fiber plate with added supports and restraints for a secure fit. It is optimized for the DJI O4 aerial unit and includes a reinforced protective structure for the printed circuit board. In addition, the O4 Air Unit Bracket is compatible with Pavo Femto, Pavo Pico and Pavo20, which suits various FPV setups. Features: - Improved mounting: Improved connection between the whoop channel and the carbon fiber plate with added supports for a secure and trouble-free mounting. - Increased thrust: The smaller pipe design increases thrust by approximately 4%. - Improved durability: Reinforced protection of the PCB of the DJI O4 Air unit. - Wide compatibility: O4 Air Unit Bracket works without problems with Pavo Femto, Pavo Pico and Pavo20. Specifications: - Wheelbase: 75 mm - Carbon fiber plate thickness: 2mm - Air duct material: PA12 - Pipe Weight: 8.64g - Frame weight: 22.16 g - Mounting hole size for flight controller: 25.5mm * 25.5mm - Motor mounting hole size: 3*M1.4 EQS ø6.6 - O4 air unit bracket material: PA - O4 air unit holder weight: 6.05g - Spacing for camera mounting: 20 mm The package contains: - 1 x Carbon Fiber Whoop Board - 1 x Whoop pipe - 1 x canopy for the O4 air unit holder - 1 x Bottom plate for O4 air unit holder - 1 x DJI O4 camera holder - 1 x Shockproof holder for DJI O4 camera - 1 x 5.8G VTX antenna - 6 х Shock-absorbing balls for the flight controller (8 mm) - 6 х Shock-absorbing balls for O4 air unit holder (6.6 mm) - 6 x Shock-absorbing pads for the O4 air unit - 6 x Shock-absorbing balls for the O4 camera - 6 x M2*10 cylindrical head screws - 4 x M2*14 flat head screws - 4 x M2*4 flat head screws - 6 x M1.4*5 Phillips screws with flat washer and threaded head
