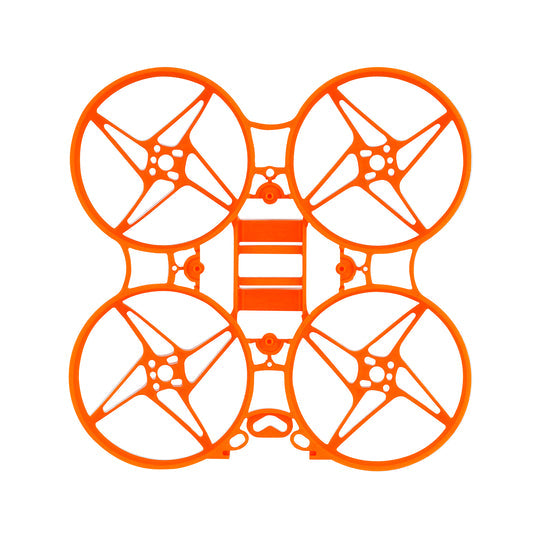

Meteor75 Brushless Micro Frame (Orange) Brand new lightweight 75mm 1S brushless frame for the Meteor75 quadcopter. Function: - Optimized frame height: Adjusting the frame height ensures that the lowest point is the engine position, providing battery protection during landing. - Improved Propeller Protection: Increased frame loop height increases propeller protection for safer flying. - Universal Motor Mounting: Designed with two motor mounting hole options that support 0603, 0802 and 1102 brushless motors. - Compatibility: For Meteor75 Lite and Meteor75 Advanced Kit drones. Specifications: Item: Meteor75 frame Material: Plastic Size: 75 mm Weight: 5.68/pc Orange color Motor mounting hole: 0603, 1102 and 0802 series motors FC mounting hole: 26 x 26mm, fully compatible with whoop-style FC board mounting pattern Recommended parts: Propeller: 40mm 4-blade props (1.5mm shaft hole) Motors: 0603 and 0802 series brushless motors / 1102 series motors Battery: BT2.0 450mAh 1S battery, BT2.0 550mAh 1S battery Screws: Meteor series motor mounting screw set (40pcs) FC: F4 AIO 1S Brushless FC/ 1-2S AIO Brushless FC Package: 1 x Meteor75 Micro Brushless Wiop Frame
