The new improved Meteor75 Air Brushless Whoop Frame achieves a remarkable minimum weight of only 4.45 grams. It maintains exceptional strength and durability while introducing a new fixed motor groove and motor seal and optimizing the low-profile design.
Function:
- Lower frame height effectively concentrates the lowered profile and provides a better flying experience.
- The engine seal enables seamless pairing with engines of various brands and effectively prevents propeller impacts. It is compatible with 07-08 series engines and 40mm propellers.

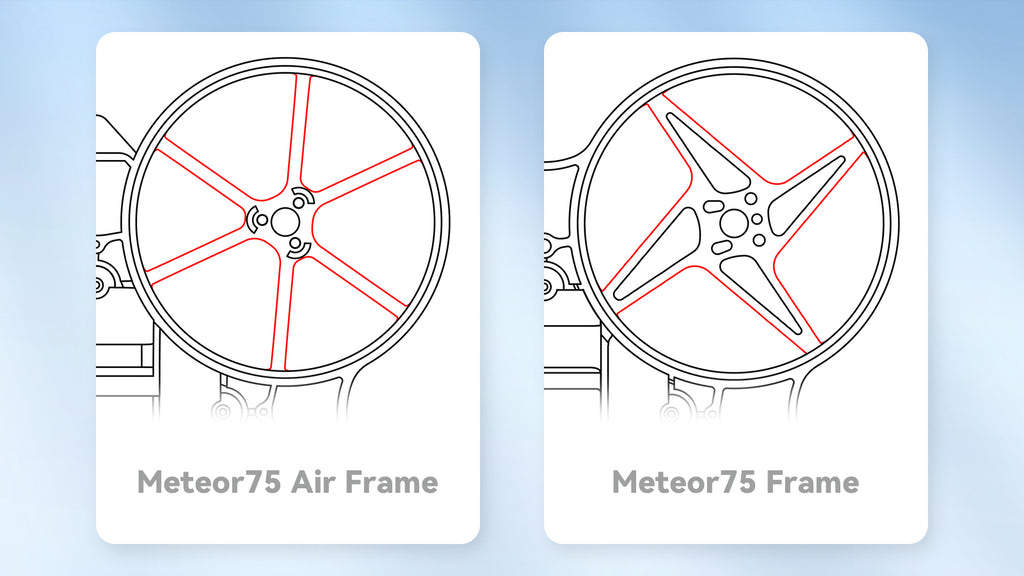

- The outer radial shape requires less material and a smaller planar area compared to the spiral channel, which is beneficial for weight reduction and wind resistance.

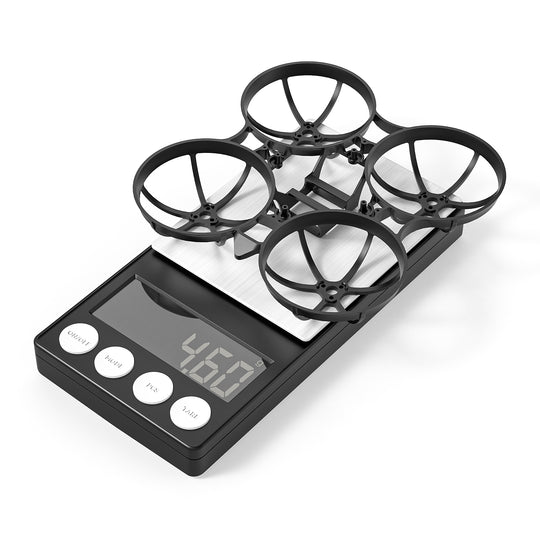

- The weight is reduced from 5.6g to 4.45g, making the flight more flexible, which demonstrates the exceptional ultra-light structure of the 75mm hup drone. Both frames have the same materials and durability.
- The Meteor75 Air Brushless Whoop Frame has motor fixed slots, which facilitates a more efficient and stable motor installation process. Proper shaft alignment ensures smooth and efficient power transfer from the engine to the flight control unit, reducing mechanical stress and minimizing wasted energy.

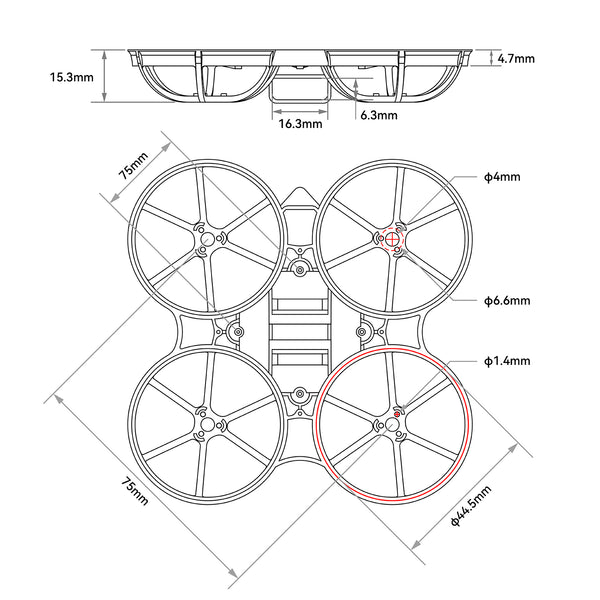

Specifications:

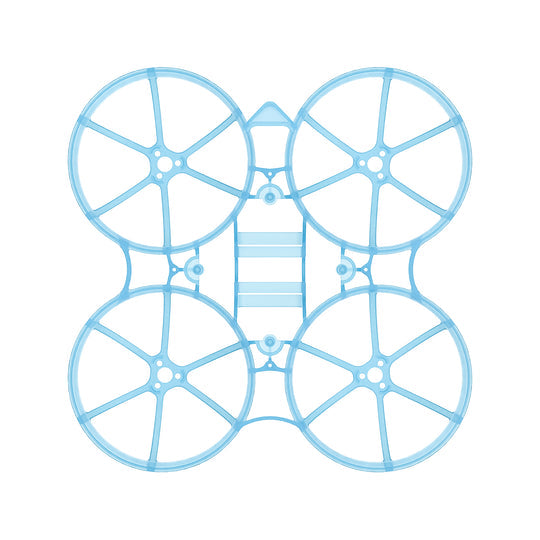

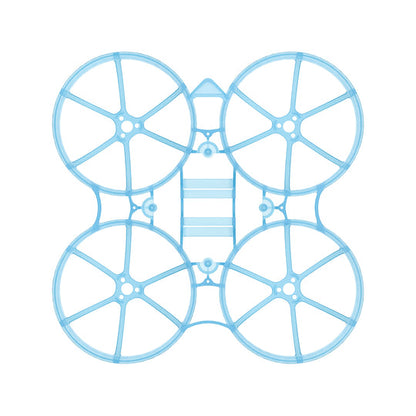

Item: Meteor75 Air Brushless Whoop Frame
Material: PP
Weight: 4.45g
Wheelbase: 75 mm
Motor mount: 3-M1.4-6.6mm
Flight control installation hole: 26 × 26 mm
Battery slot size: 16.3 x 6.3mm
Color: Transparent Blue
Recommended parts
Canopy: Micro Air Canopy, Canopy for Micro Camera 2022, Micro Canopy Lite
FC: F4 1S 5A AIO Brushless Flight Controller
Motors: AC motors 0702/0702SE, AC motors 0802SE, Brushless motors 1102
Propellers: GF 1610 2-blade propeller, GF 1635 3-blade propeller
Battery: BT2.0 450mAh 30C, BT2.0 550mAh 30C, LAVA 1S 450mAh 75C, LAVA 1S 550mAh 75C
Bolts: Meteor series motor mounting bolt kit (40 pcs)
Package:
Item: Meteor75 Air Brushless Whoop Frame
1 * Meteor75 Air Brushless Wiop Frame
4 * Engine gasket
