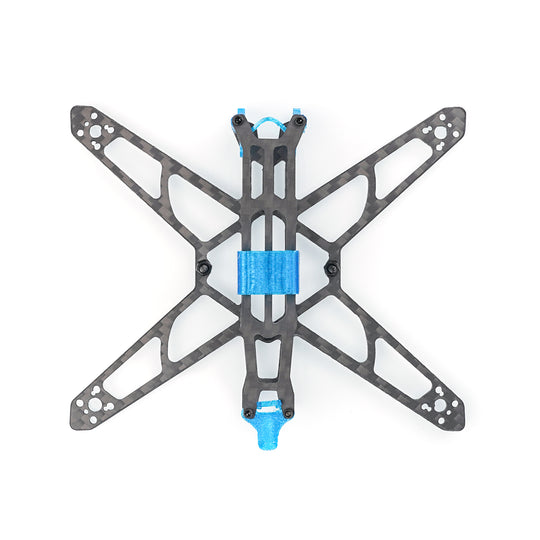

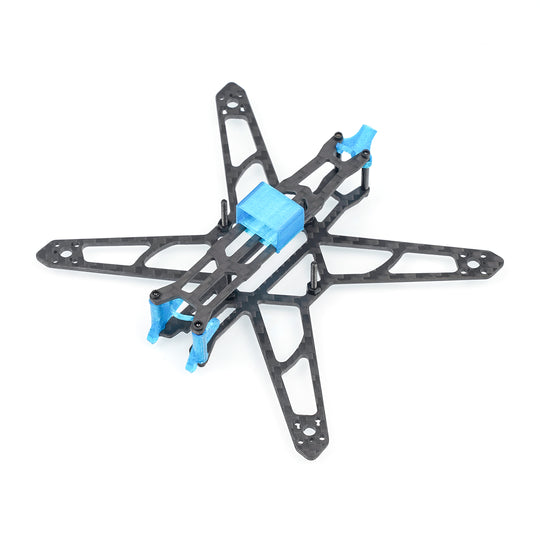

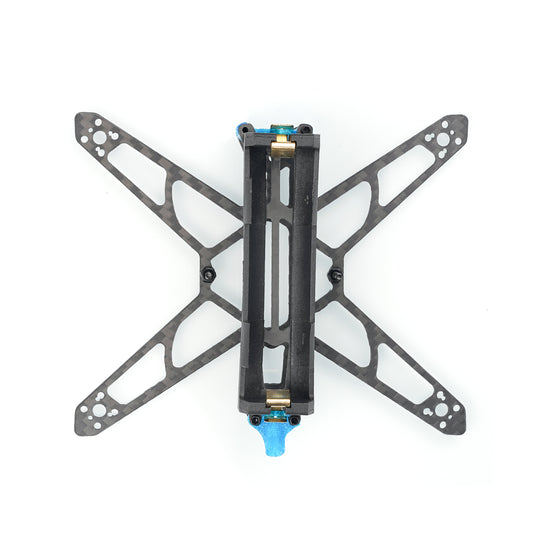

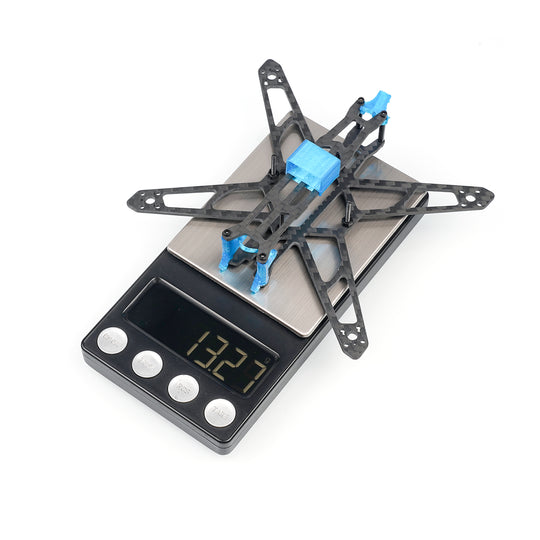

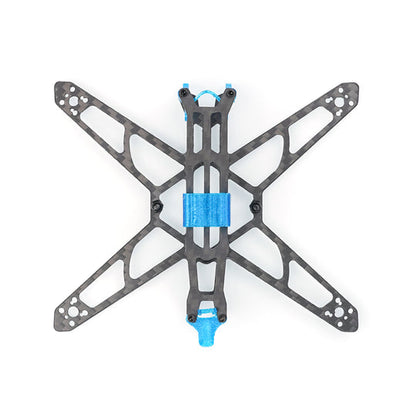

HX115 LR frame This is the HX115 LR drone frame kit. It is designed for ultralight 3" long range 1S drone with integrated ExpressLRS receiver on 12A 1S FC board. Specifications Material: T700 Carbon Fiber Wheelbase: 126 mm Weight: 14g Thickness of the top plate: 1.5 mm Bottom plate thickness: 2.0 mm Motor mounting hole (4 hole pattern): 9x9mm Motor mounting hole (3 holes): 6.6 x 6.6mm FC mounting hole: 26.5x26.5mm Recommend parts: Recommended for drones like HX115 SE Toothpick Drone / HX115 LR Toothpick Drone Battery: BT2.0 450mAh 1S 30C Battery Camera: Caddx ANT camera Motor: 1102 18000KV motor Propeller: HQ3020 2-blade props Package 1 x HX115 LR frame 4 x aluminum distance post 15 mm 8 x M1.6 screw 3 x TPU 3D printed parts
