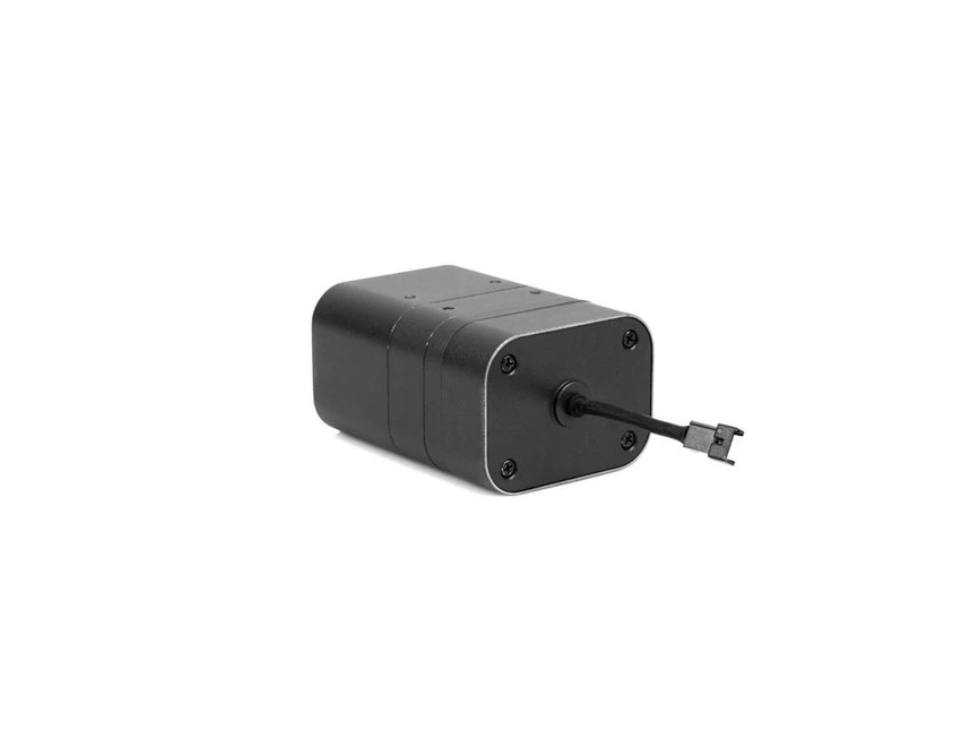

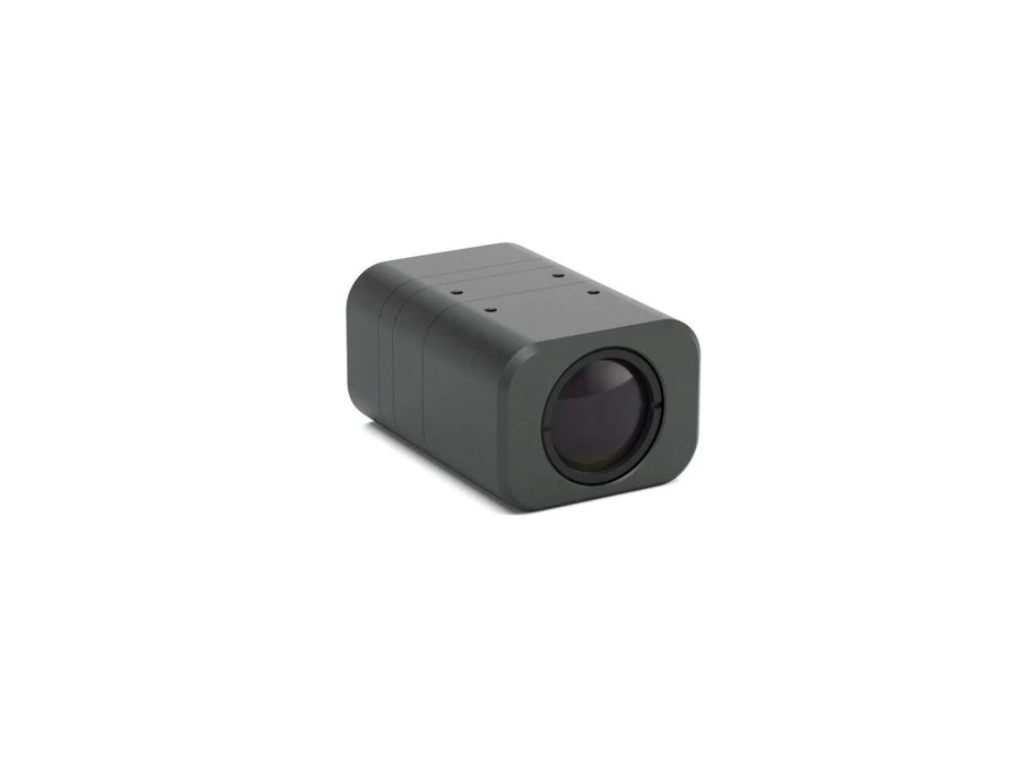

    FPV thermal camera CADDXFPV Y0483

The CADDXFPV Y0483 is a lightweight, high-performance thermal imaging camera designed for FPV drones, search and rescue operations, and inspection missions. It is built on an uncooled vanadium oxide sensor with a resolution of 384×288 and provides real-time thermal images in the wide infrared spectrum of 7-14 μm.

Its 4mm F1.0 lens provides an ultra-wide field of view of 65.5° (H) to ensure a wide overview of the surroundings, while <20ms latency and 50fps frame rate make it ideal for fast applications such as FPV flying or real-time monitoring.

Specifications:

Model: Y0483
Sensor: Uncooled vanadium oxide
Resolution: 384 × 288
Wavelength: 7000 nm – 14000 nm
Lens aperture: F1.0
Focal length: 4 mm
Field of View (FOV): 65.5° (H) × 49.0° (V) × 115° (D)
Instant Field of View (IFOV): 2.93
Frame rate: 50 fps
Delay: < 20ms
Power consumption: < 1.5 W
Video output: PAL
Supply voltage: 9V ~ 24V
Operating temperature: -20 °C ~ 60 °C
Weight: 74 g

The package contains:

1x thermal FPV camera CADDXFPV Y0483
