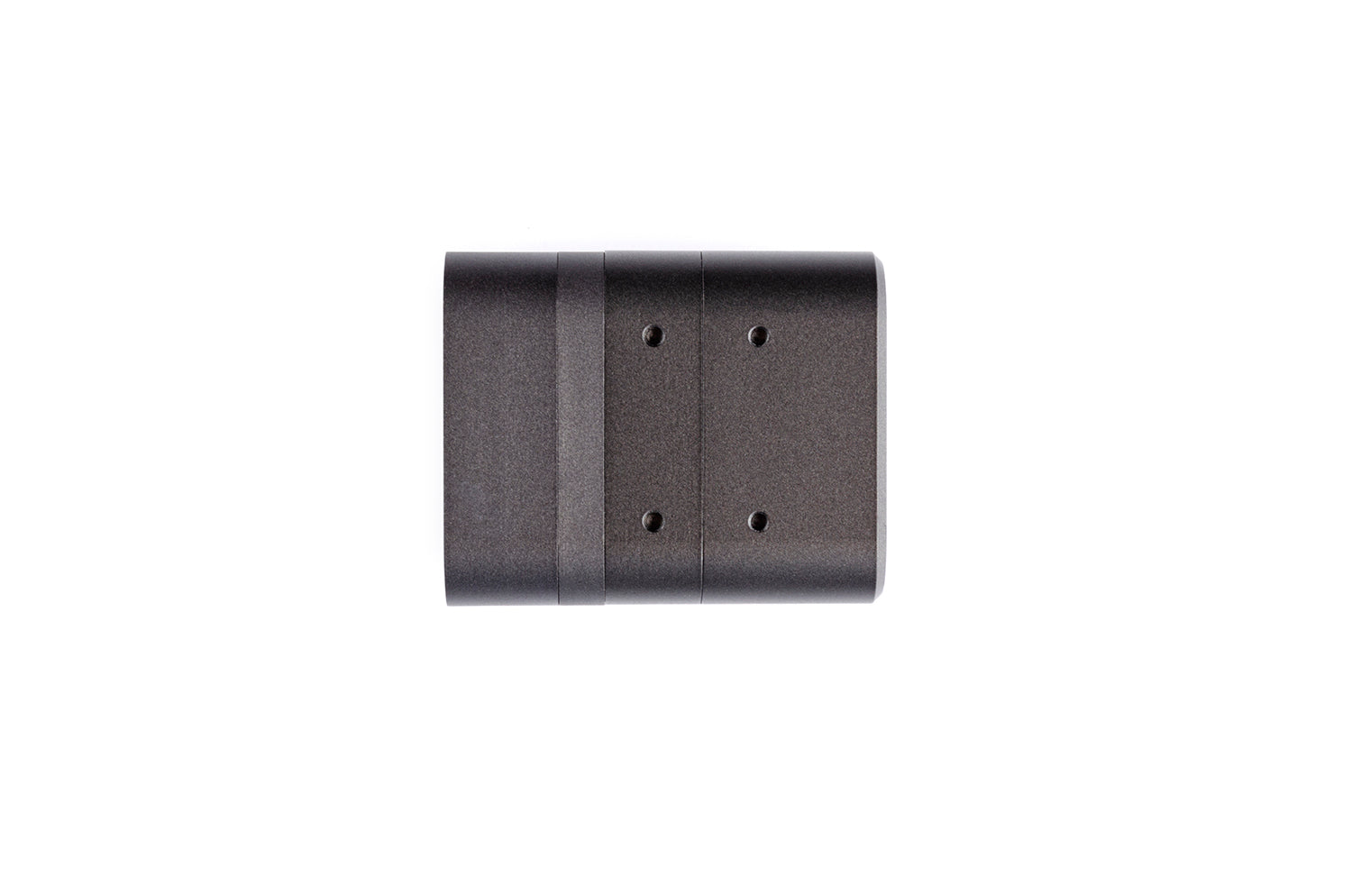

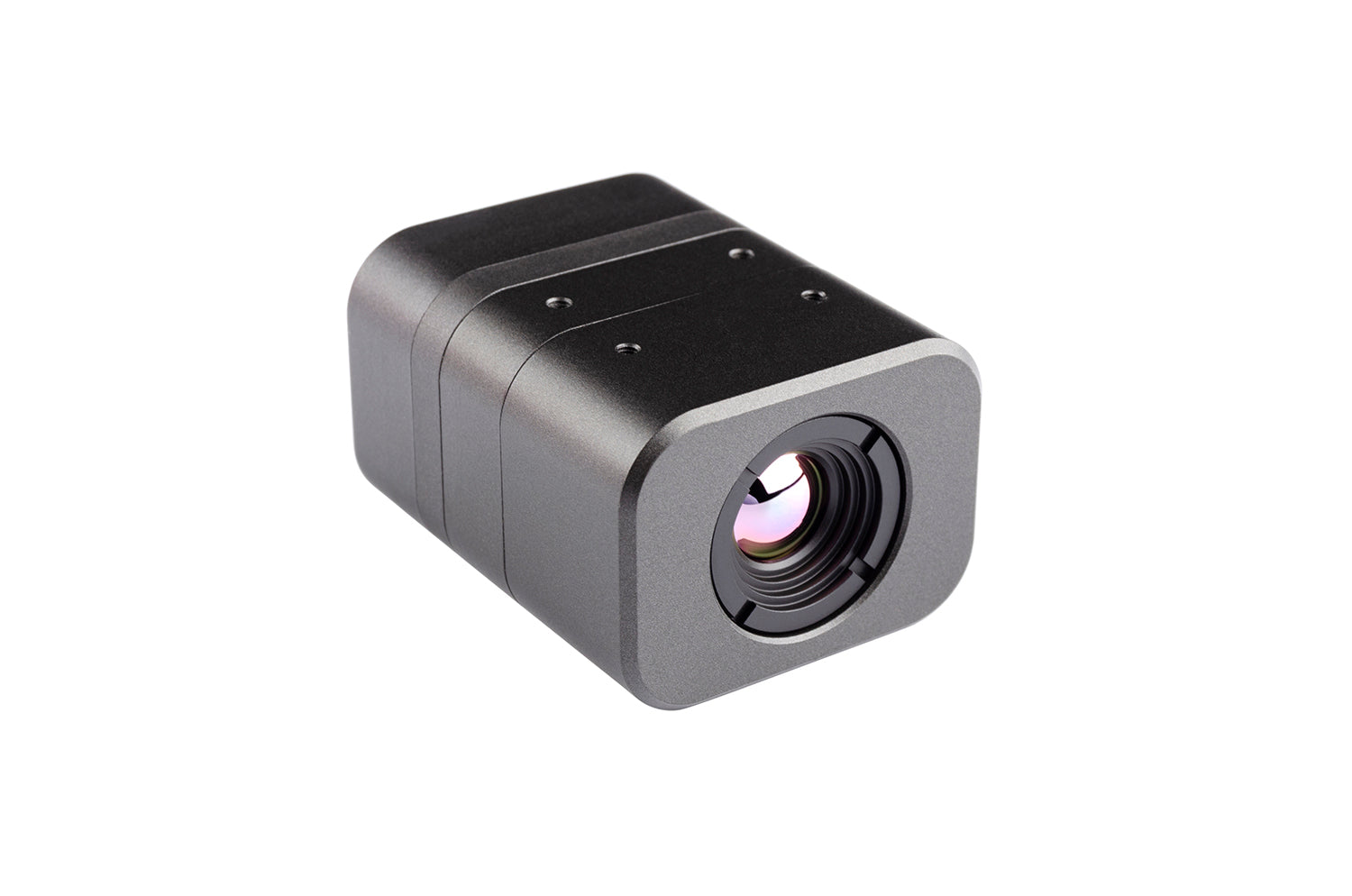

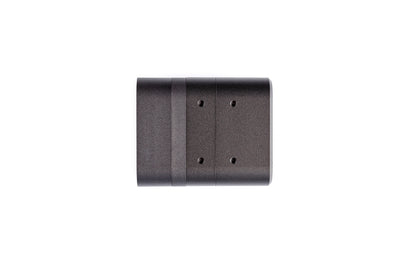

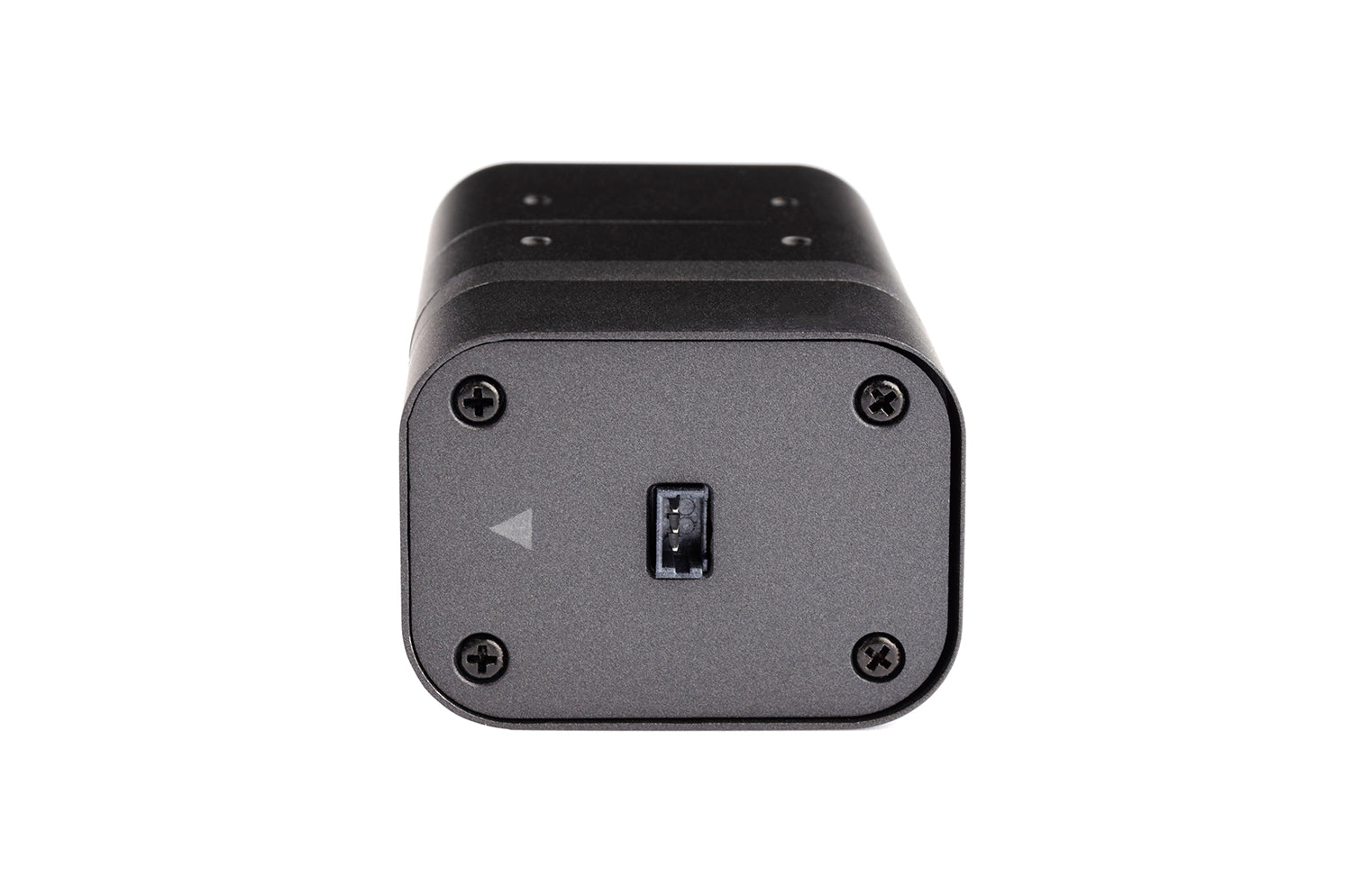

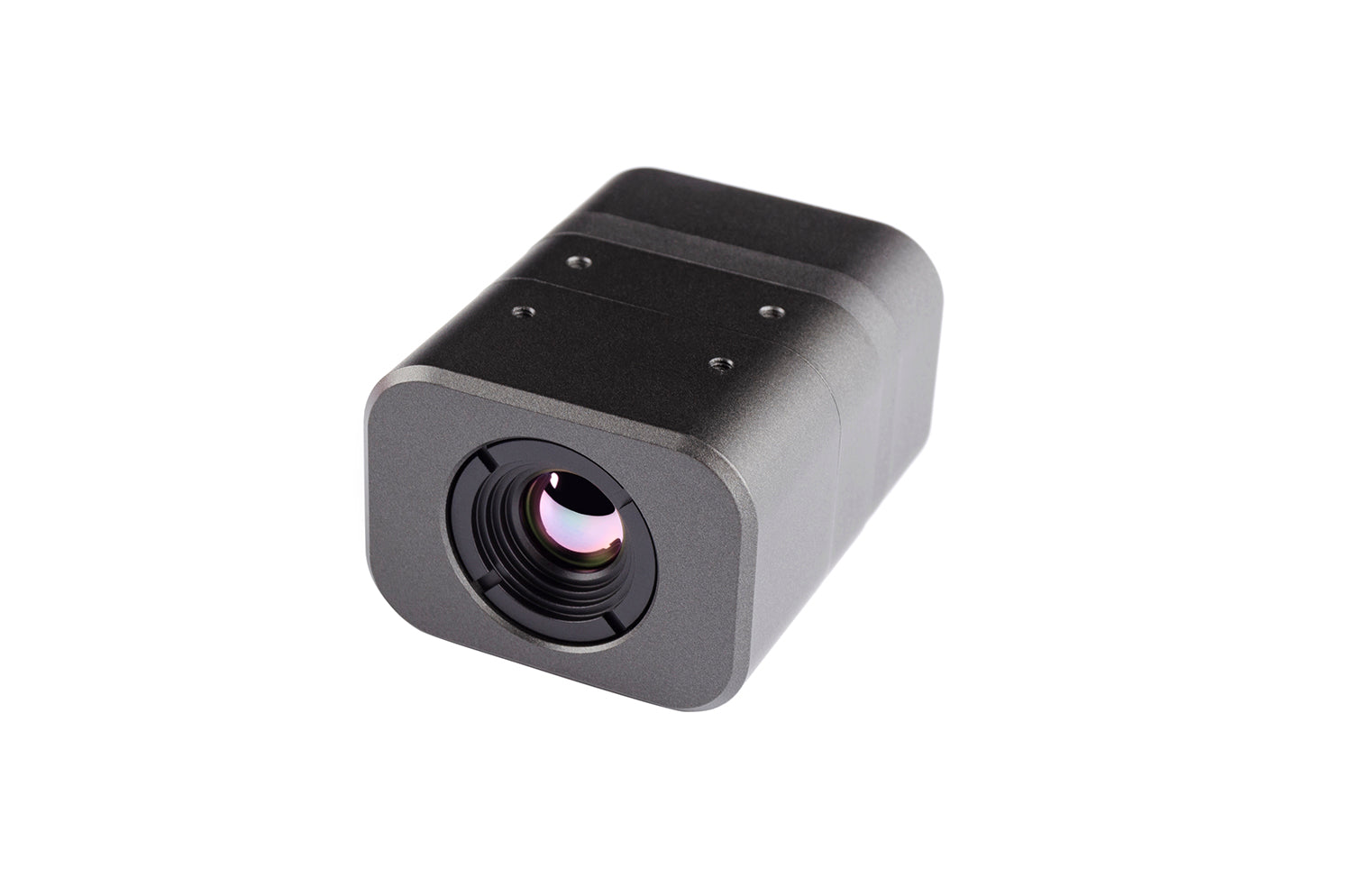

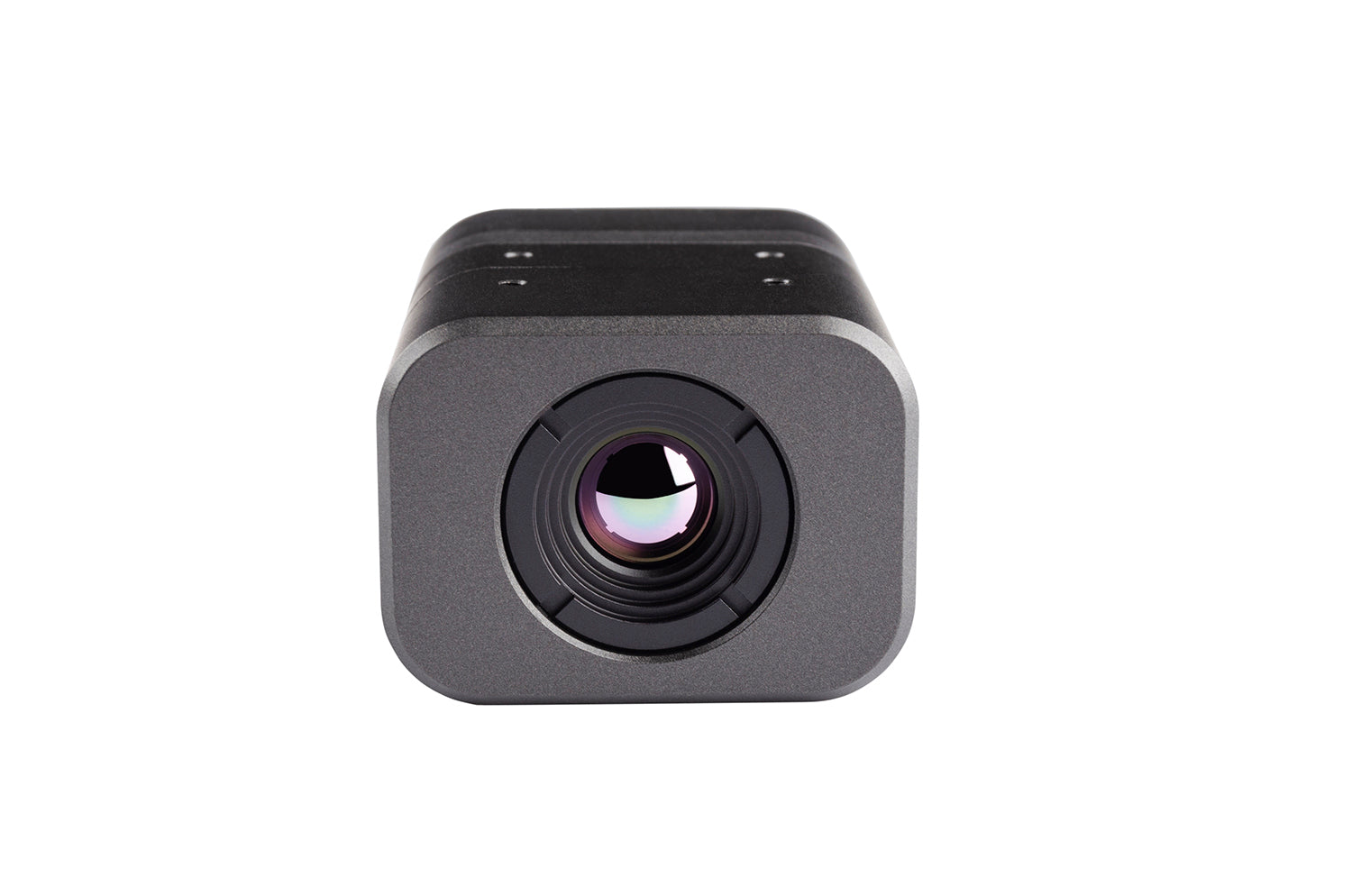

FPV Thermal camera CADDXFPV Y0046 CADDXFPV Y0046 is a compact and lightweight thermal camera designed for FPV drones and industrial applications. Thanks to the high resolution 640×512 vanadium oxide sensor and the wide spectral range of 7-14 µm, it provides a clear and accurate thermal image in real time. With a high frame rate of 50 fps and minimal latency (<20 ms), the Y0046 is ideal for dynamic FPV use, allowing operators to detect heat traces and monitor the environment even in total darkness. The 9.1mm diameter lens offers a wide 48° horizontal field of view to ensure wide scene coverage, while the PAL video output ensures compatibility with standard analog FPV systems. Specifications: Model: Y0046 Sensor: uncooled vanadium oxide Resolution: 640 × 512 Wavelength: 7000 nm – 14000 nm Lens aperture: F1.0 Focal length: 9.1 mm Field of View (FOV): 48.0° (H) × 38.4° (V) × 64.9° (D) Instantaneous Field of View (IFOV): 1.3 Frame rate: 50 fps Delay: < 20ms Power consumption: < 1.5 W Video output: PAL Supply voltage: 9V ~ 24V Operating temperature: -20 °C ~ 60 °C Weight: 61 g The package contains: 1x thermal FPV camera CADDXFPV Y0046
