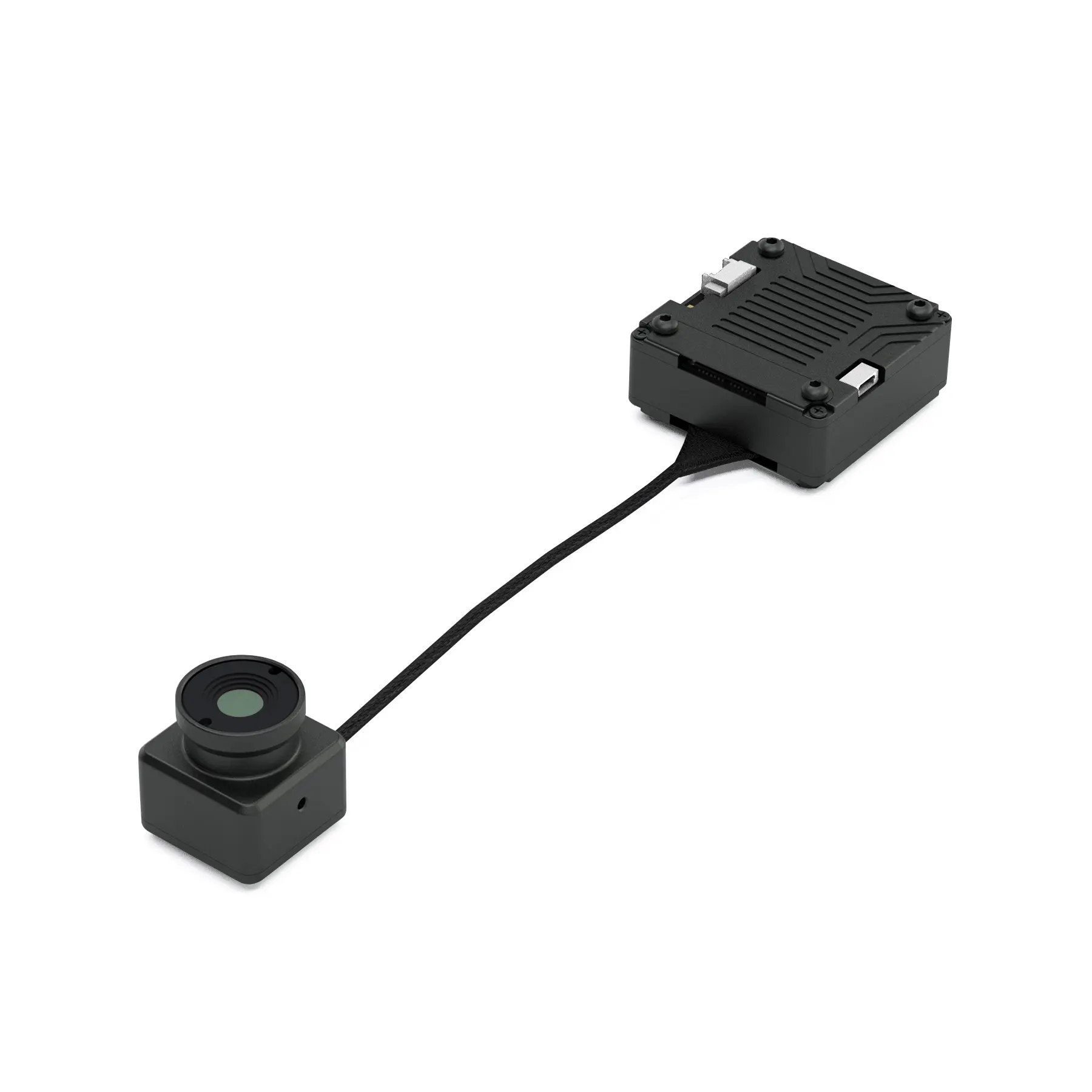

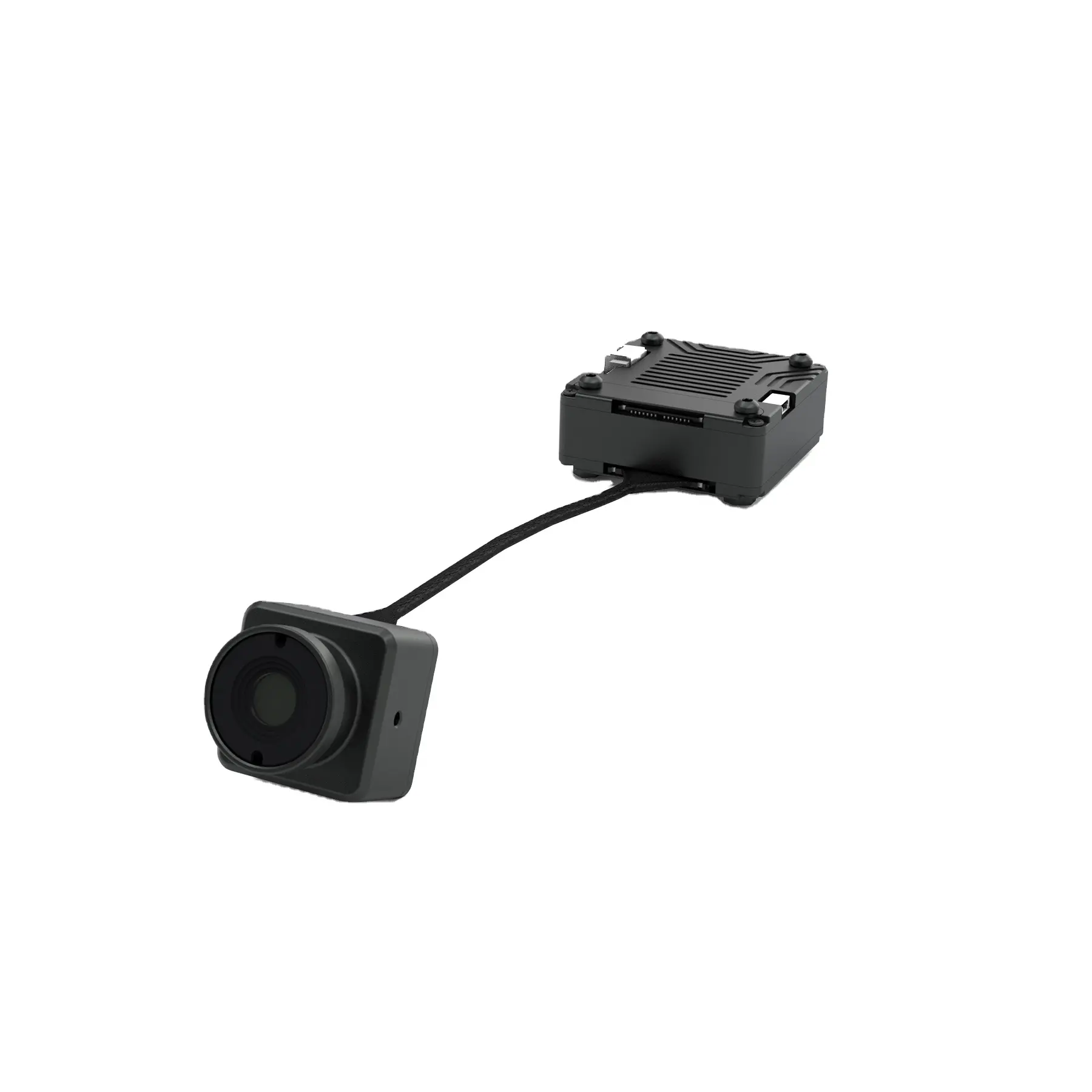

FPV thermal camera CADDXFPV IRC-256SL

The CADDXFPV IRC-256SL FPV Thermal Camera is an advanced thermal imaging solution designed specifically for FPV drones.

The IRC-256SL camera with its thermal sensor provides clear and detailed thermal images with a resolution of 256x192 pixels. This allows pilots to accurately detect thermal manifestations and temperature changes, which is particularly useful for applications such as search and rescue, wildlife monitoring and infrastructure inspections.

The CADDXFPV IRC-256SL thermal camera is designed to be lightweight and compact to ensure minimal impact on the overall performance and flight characteristics of the drone. Its low-latency video transmission ensures pilots receive thermal images in real-time, enabling instant decision-making and in-flight action.

Specifications:
Model Name: CADDXFPV IRC-256SL
Detector type: Uncooled VoX
Resolution: 256*192@12μm
Wavelength range: 8~14μm
NETD: ≤40mk @ F1 25℃
Frame rate: 50Hz
Video interface: 1*PAL
Supply voltage: 5V~20V
Typical power consumption: <1.5w
Focal length: 4 mm
F.NO: 1.0
FOV: 50°(H)x37.2°(H)x62.3°(D)
Operating temperature -20℃~60℃

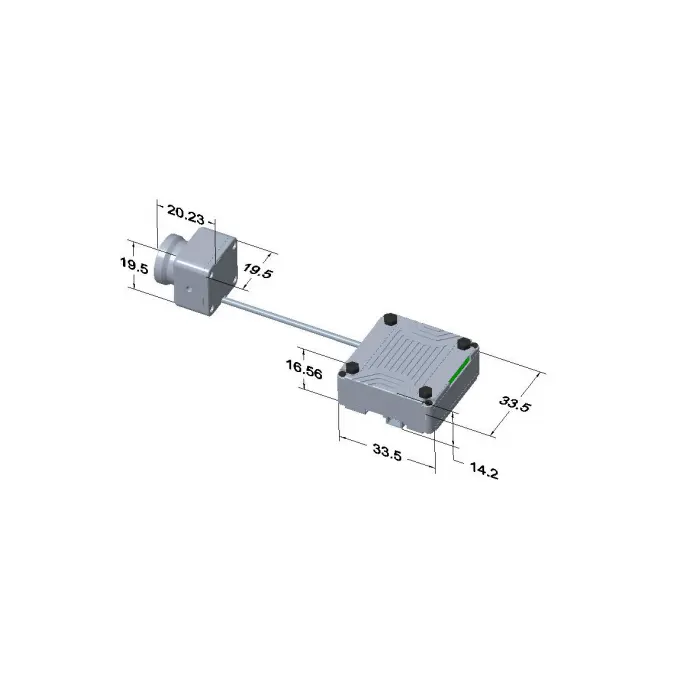

Camera size: 19.5 x 19.5 x 20.23 mm
Base plate size: 33.5x33.5x16.56

The package includes:
1x CADDXFPV IRC-256SL FPV thermal camera
