    Code: FN-FT652

    FPV Thermal camera CADDXFPV FT652

    FPV Thermal camera CADDXFPV FT652

    Brand: CaddxFPV

    €365,00
    €365,00 €365,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

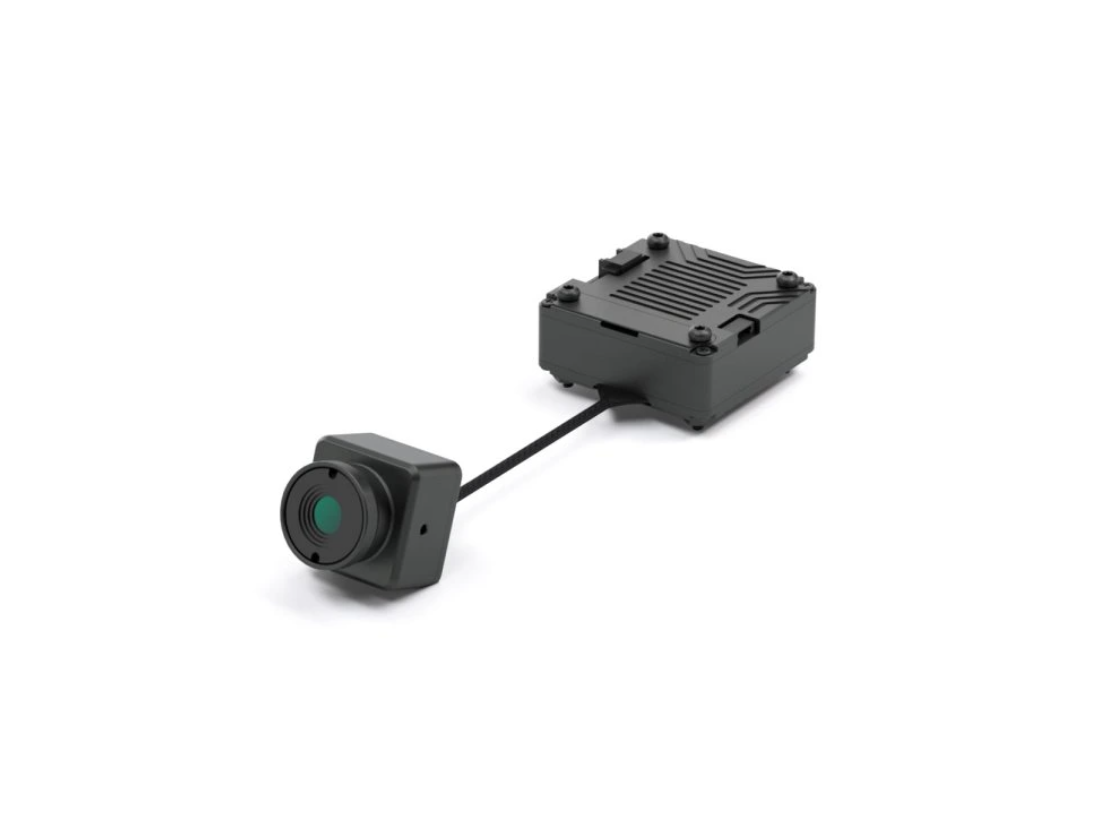

    FPV Thermal camera CADDXFPV FT652

The CADDXFPV FT652 is a lightweight and affordable thermal imaging camera designed for FPV drones, mobile surveillance and short-range industrial applications. It is equipped with an uncooled vanadium oxide sensor with a resolution of 256×192, which provides real-time thermal images via a CVBS analog interface.

With a 4mm F1.0 lens and a wide horizontal field of view of 50°, this compact unit efficiently captures thermal data in a variety of environments. With an average latency of only 20 ms, a smooth frame rate of 50 fps and Allmage Enhancement processing, the FT652 ensures a clear and responsive image in real time.

Specifications:

Model: FT652
Sensor: uncooled vanadium oxide
Resolution: 256x192
LENS: F1.0/4mm
Field of view: 50°(H)*37.2°(V)*62.3°(D)
IFOV: 3.43
Frame rate: 50 fps
Power consumption: <1.5W
Output: PAL
Supply voltage: 9V~24V
Temperature: -20°C~60°C
Interface: Analog interface: CVBS
Latency: Average latency 20ms
Image quality: Image enhancement

The package contains:

1x FPV thermal camera CADDXFPV FT652
