Holybro S500 V2 Kit is an affordable, lightweight, simple and easy-to-assemble kit that requires no soldering. This is a complete kit that includes almost everything you need to fly. All you will need is a battery and an RC system (optional). The kit is fully compatible with various Holybro flight controllers such as Pixhawk4, Pixhawk4 Mini, Pix32 v5 and Durandal.
The frame of the S500 is made from a combination of materials. The arms are made of a high-strength, ultra-resistant polyamide-nylon composite, which is reinforced with a carbon rod inside. The chassis consists of 16 mm and 10 mm diameter carbon tubes, connected by plastic couplings, which have been strengthened and improved compared to the previous version.

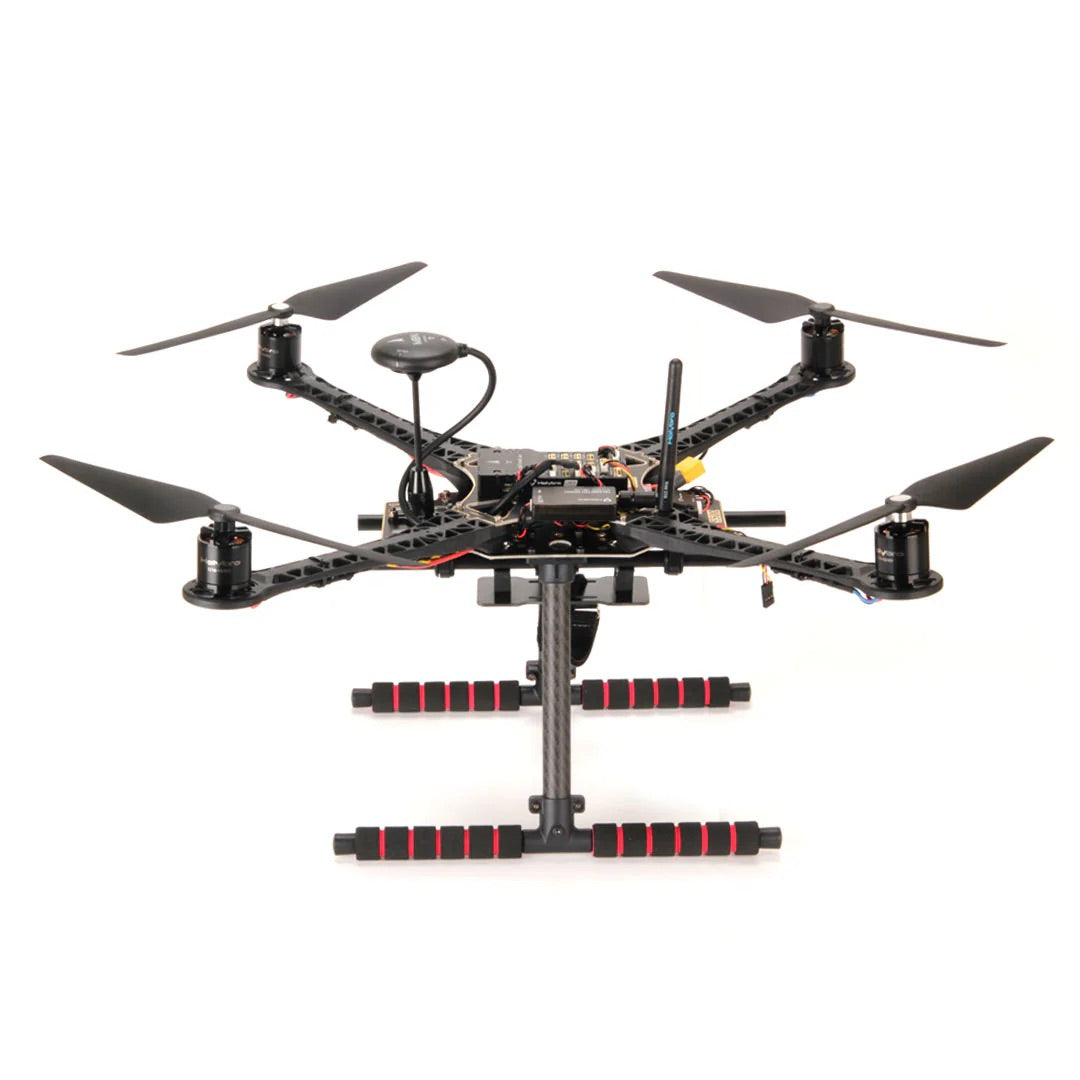

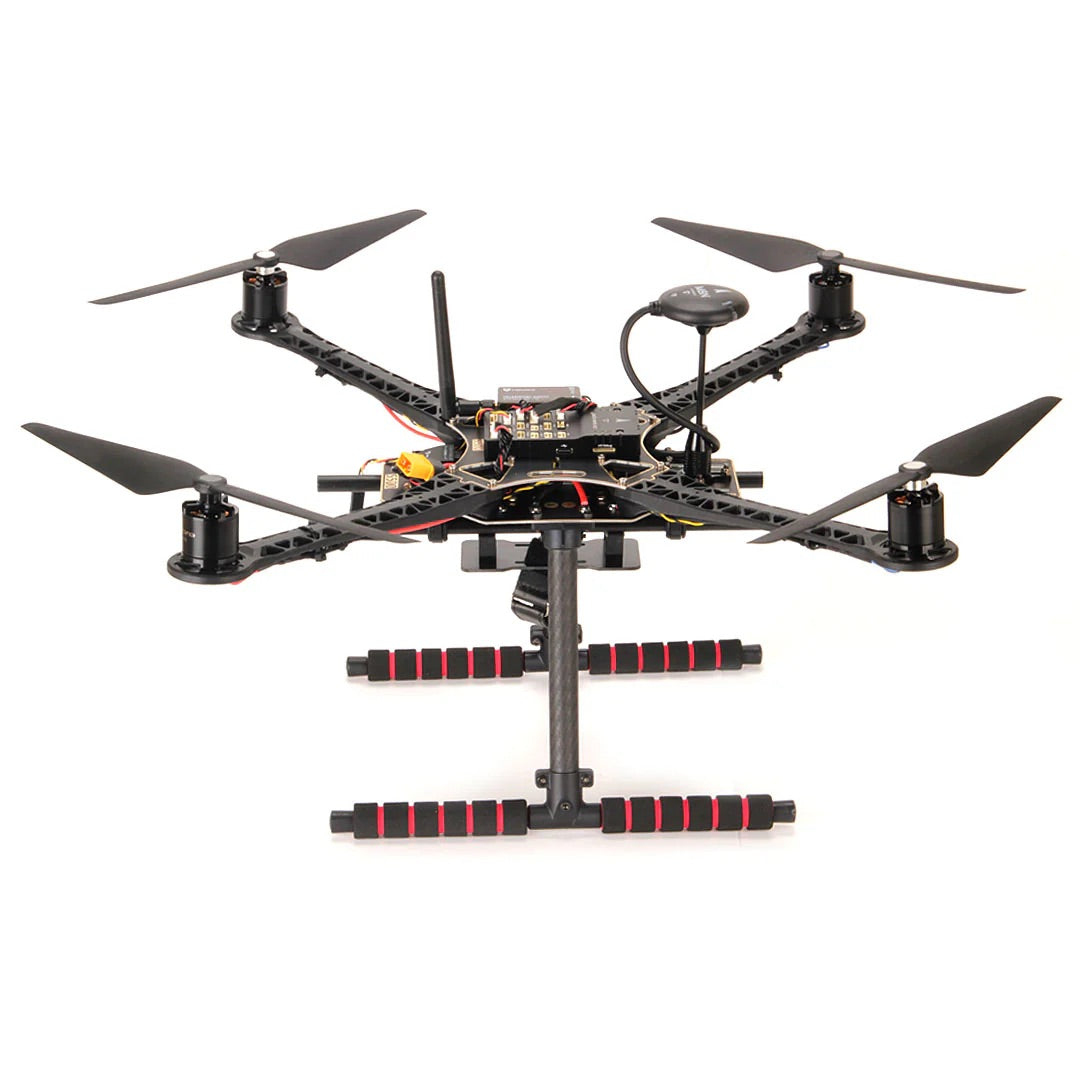

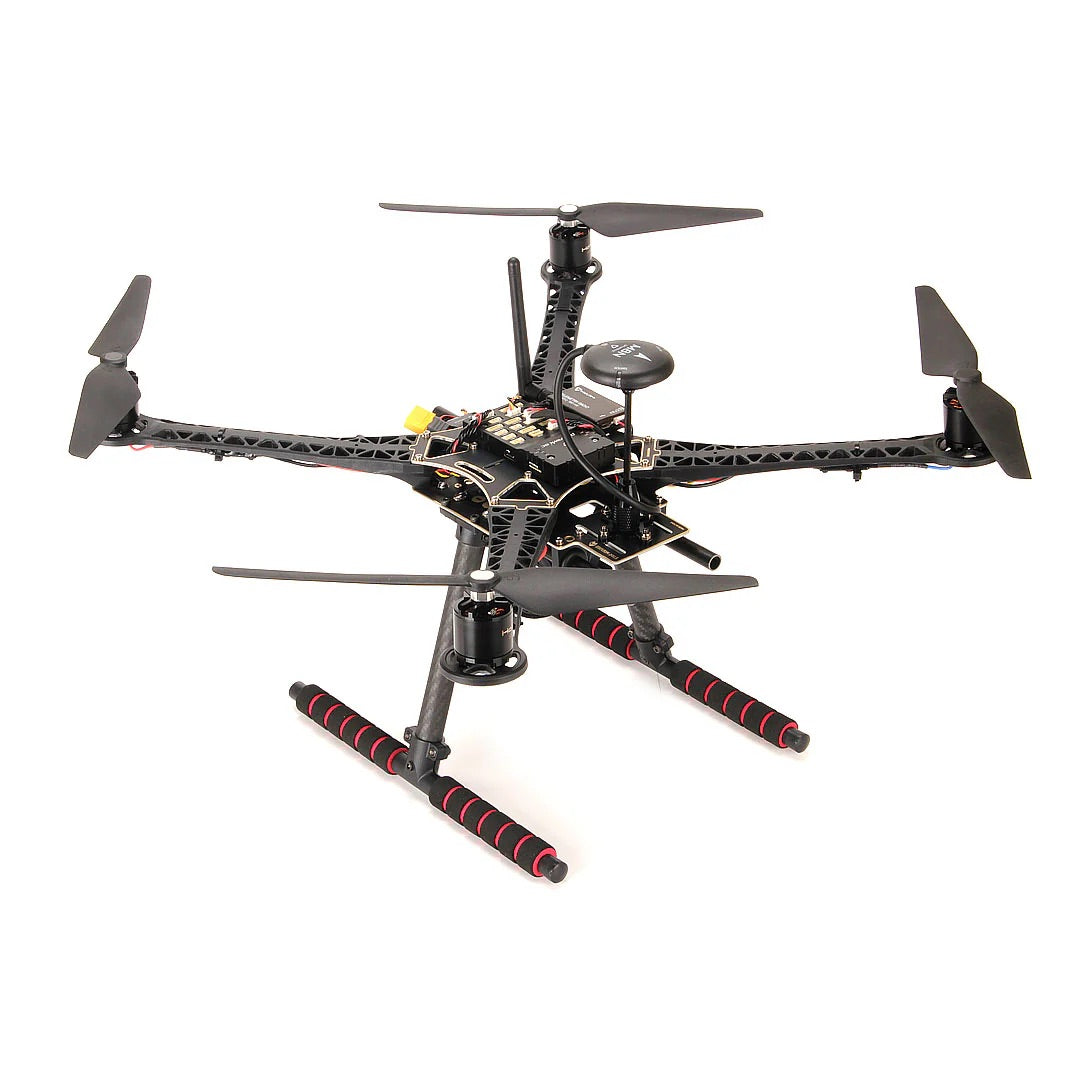

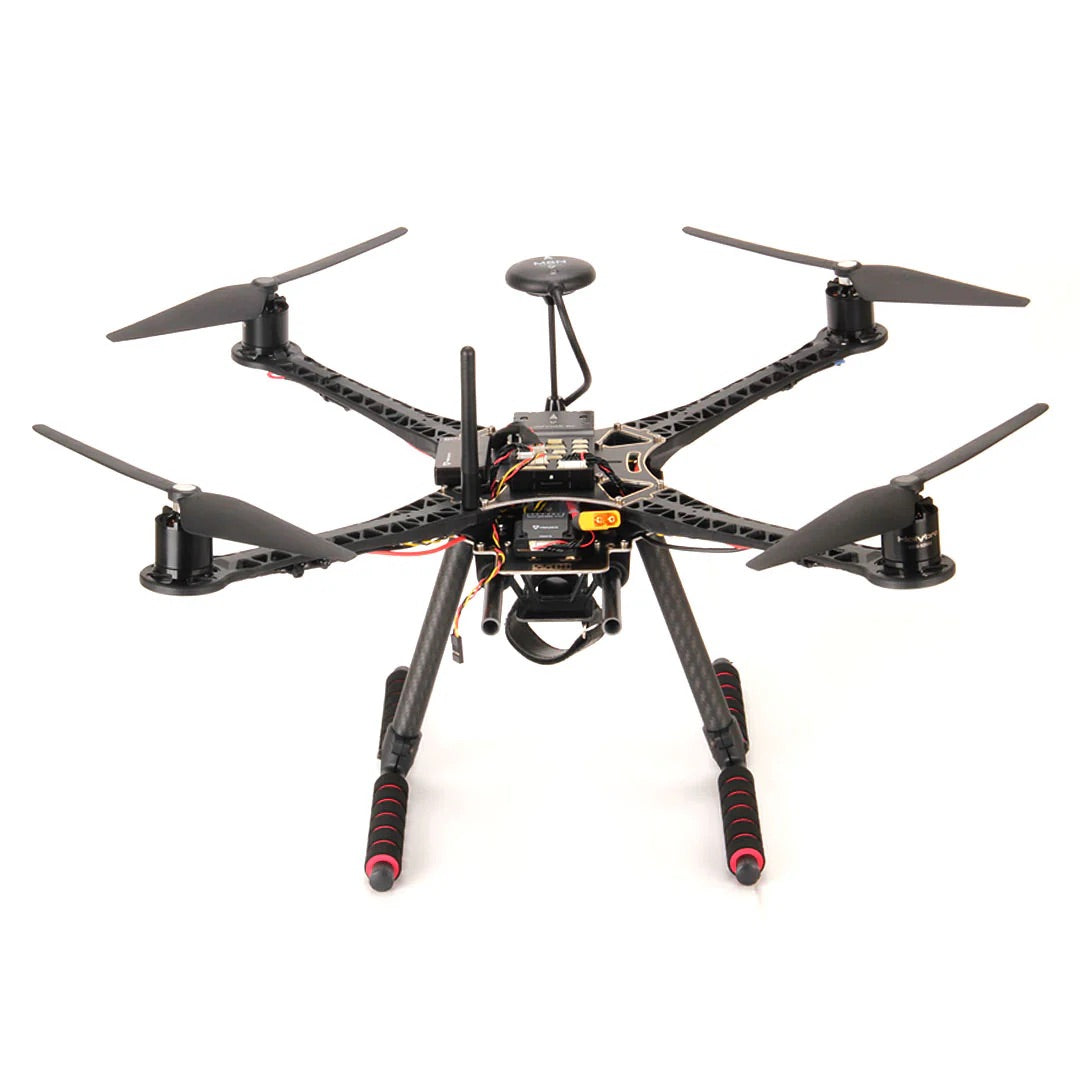

This is an excellent, strong and light quadcopter frame with landing gear and 1.5mm top and bottom plate. The bottom plate has a built-in distribution board (PDB) for clear and easy cable connection. There is also an adjustable battery holder that allows for perfect weight distribution. The bottom frame is ready to mount a variety of camera mounts and stabilizers, making it ideal for a wide range of applications.
Installation of this frame is extremely easy with pre-threaded sockets for all frame bolts, so no lock nuts are required. Only one type of screw is used for the entire build, which means you only need one type of Allen key.
Firmware support for M10 GPS: PX4 1.14 and ArduPilot 4.3 or later required.

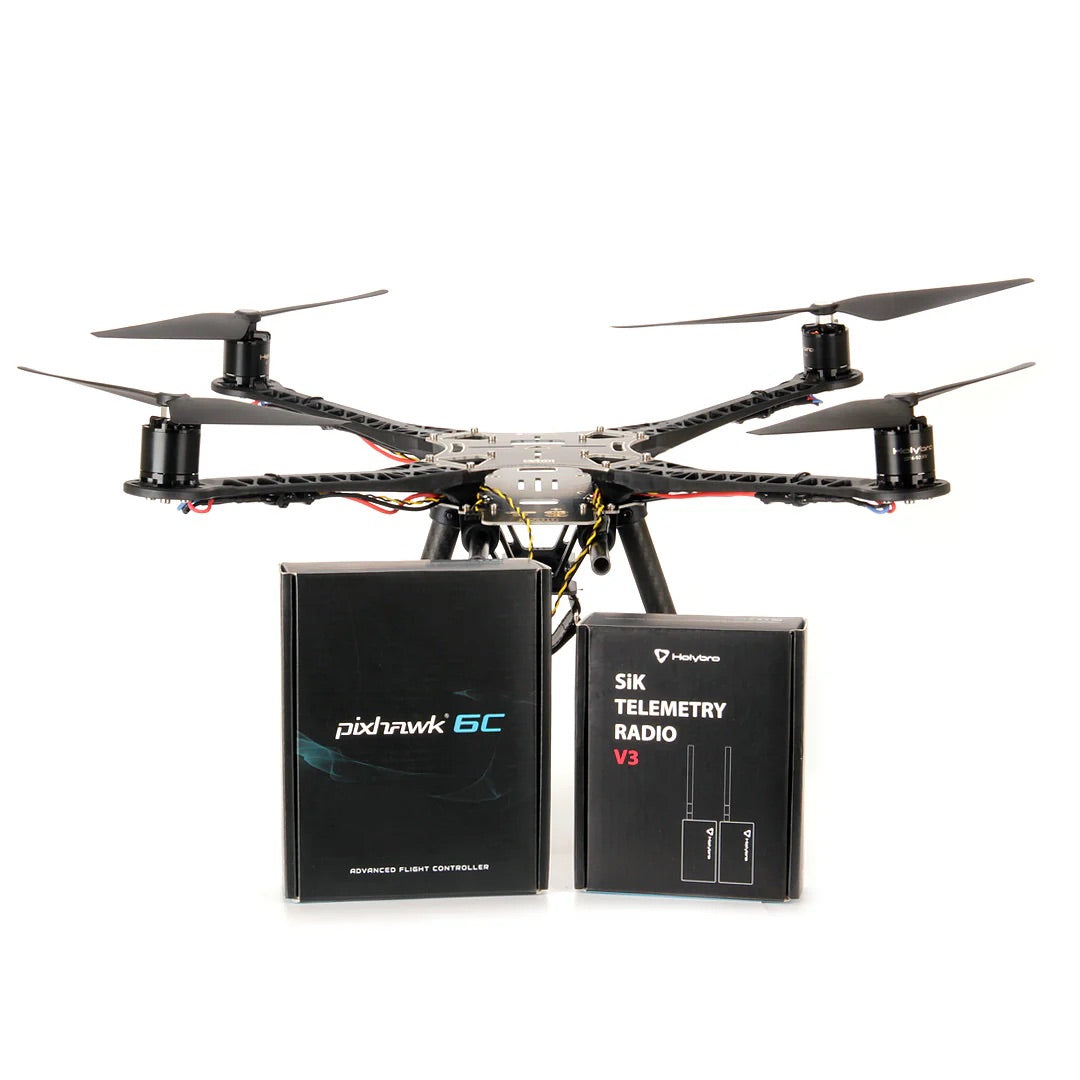

S500 V2 Development Kit - Pixhawk 6C (433/915MHz Telemetry Radio) Includes:

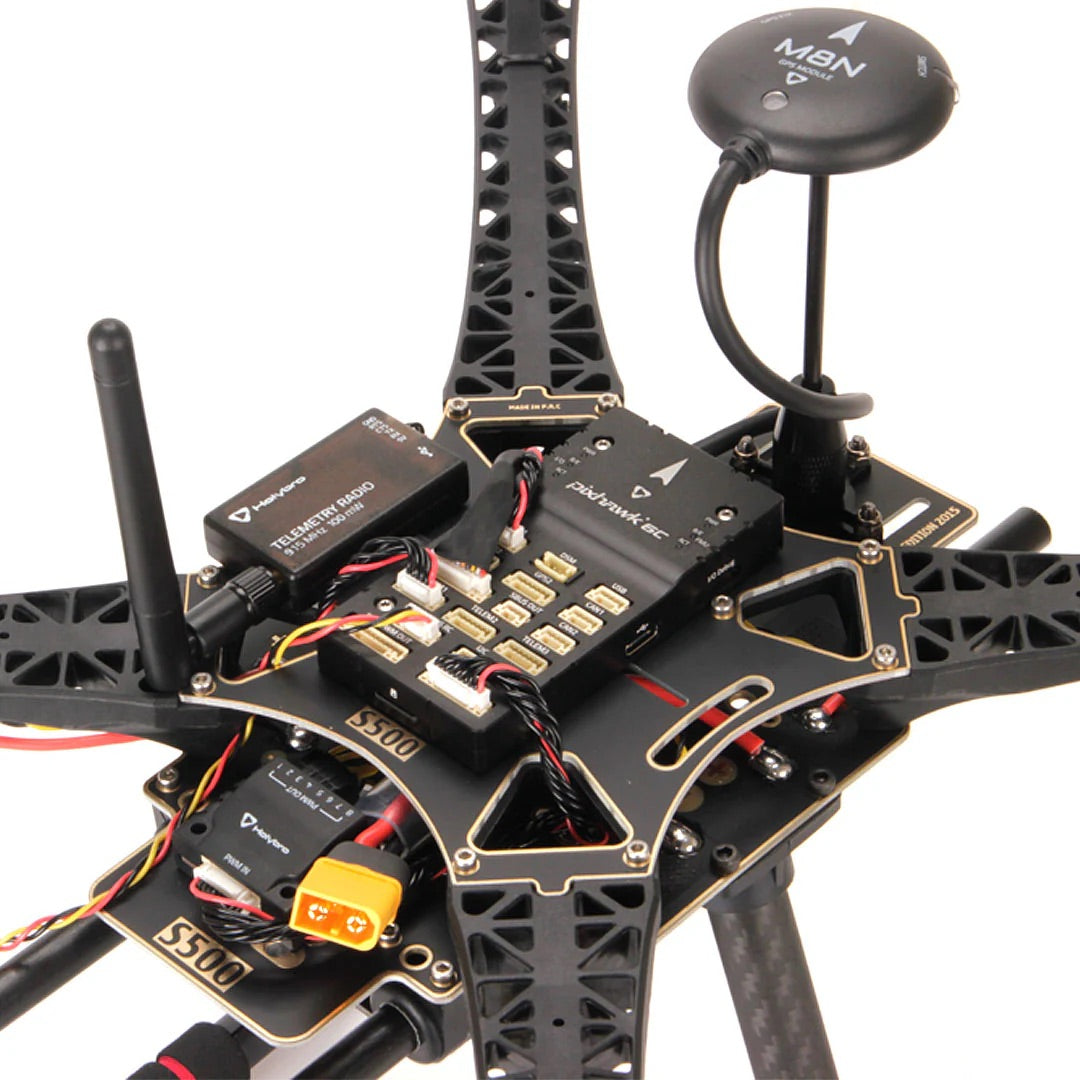

- Pixhawk 6C flight controller (plastic case)
- PM02 V3-12S power module
- GPS module M10
- SiK Telemetry Radio V3 433/915MHz
- S500 V2 frame

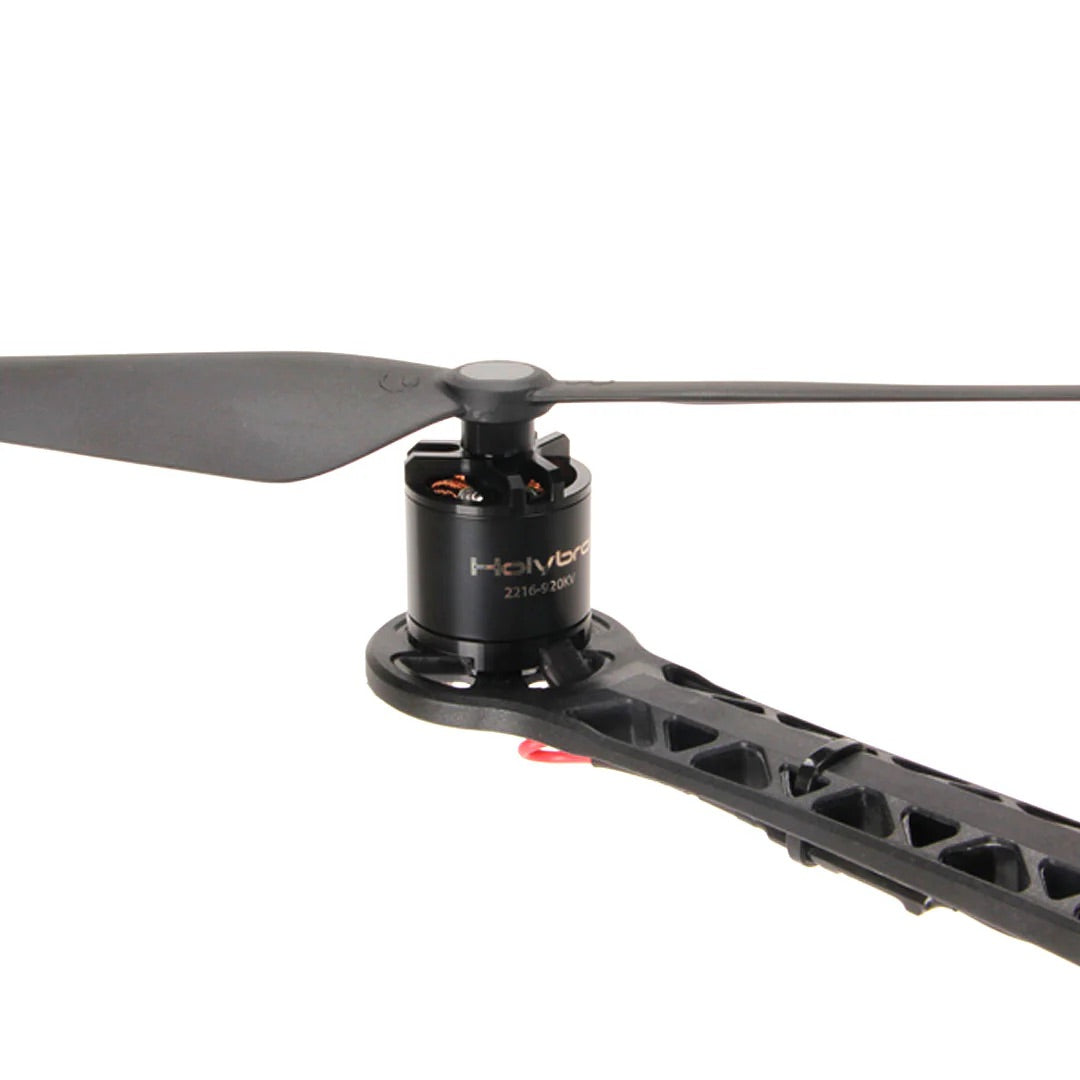

- Engines - Holybro 2216 KV920 engine (4 pcs)
- ESC regulators - BLHeli S ESC 20A (4 pcs)
- Propeller 1045 (4 pcs)
- Recommended battery: 4S 3000-5000mAh 20C+ with XT60 Lipo battery (not included)
- Load capacity: 1500 g (without battery, at 70% gas)
- Flight time: ~18 minutes of hovering without additional load. Tested with 5000mAh battery.
