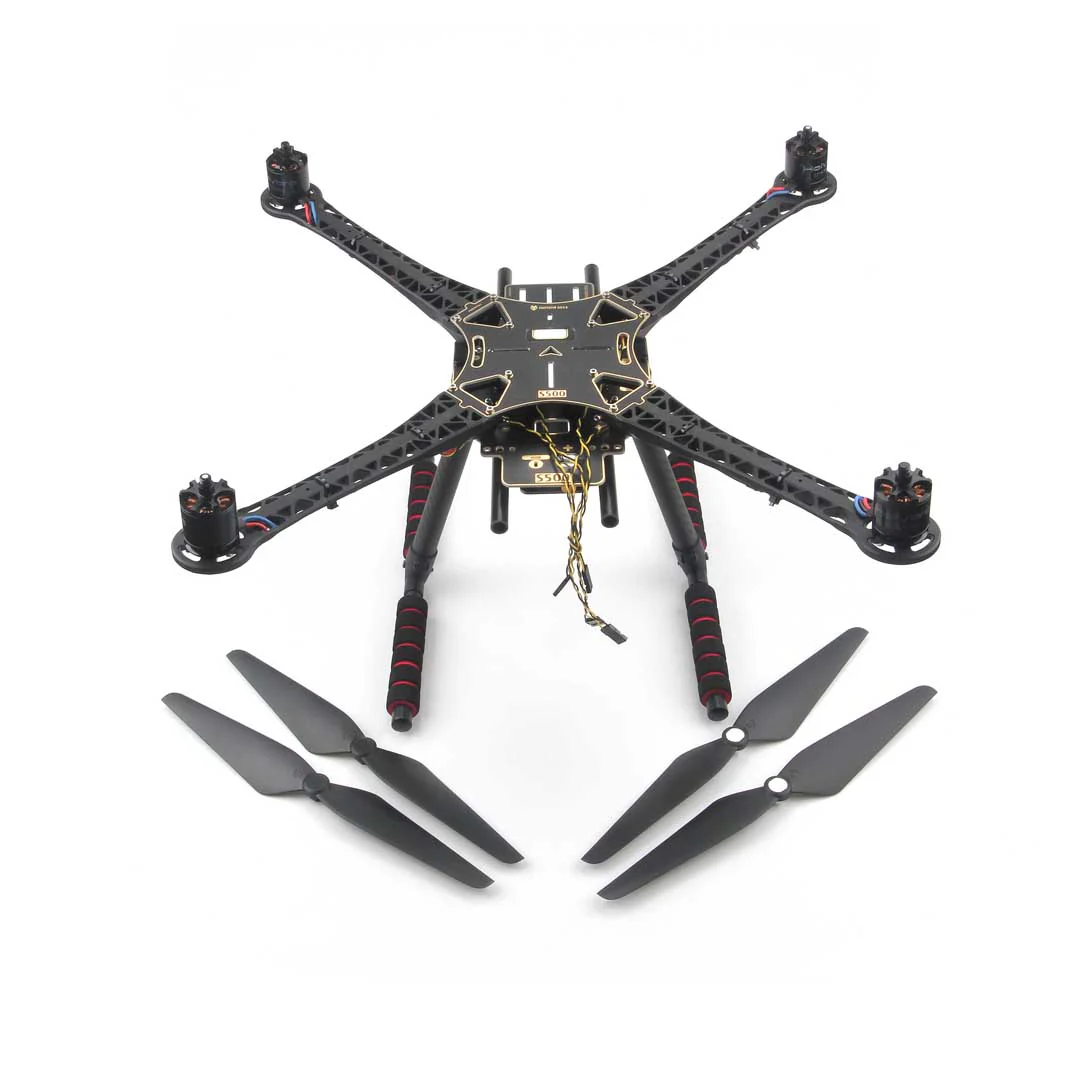

Holybro S500 V2 Kit is an affordable, lightweight, simple and easy-to-assemble kit that requires no soldering. This is a complete kit that includes almost everything you need to fly. All you will need is a battery and an RC system (optional). The kit is fully compatible with various Holybro flight controllers such as Pixhawk6C, Pix32 v6 etc.

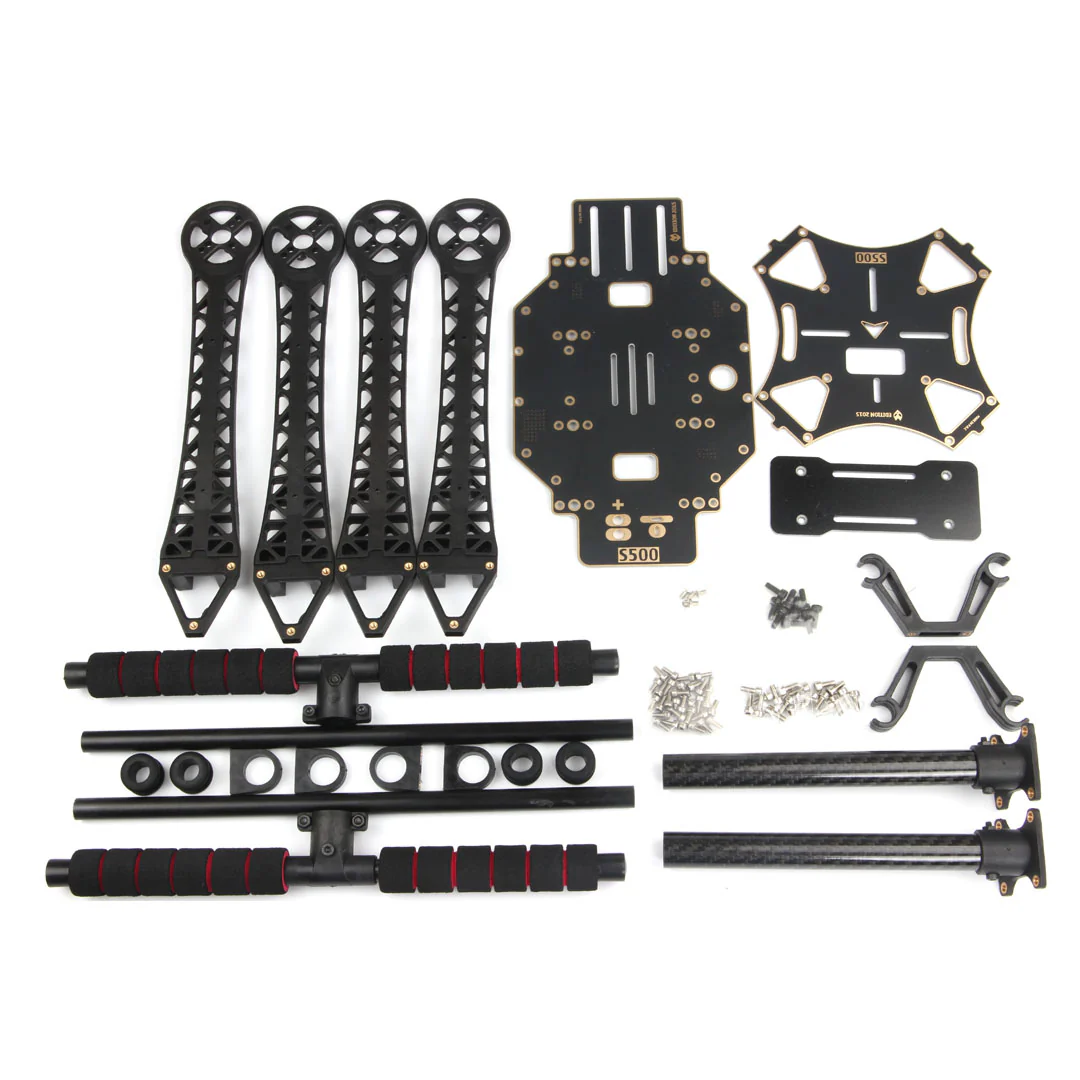

The frame of the S500 is made from a combination of materials. The arms are made of a high-strength, ultra-durable polyamide-nylon composite, which is reinforced with a carbon rod inside. The chassis consists of 16 mm and 10 mm diameter carbon tubes, connected by plastic couplings, which have been strengthened and improved compared to the previous version.
This is an excellent, strong and light quadcopter frame with landing gear and 1.5mm top and bottom plate. The bottom plate has a built-in distribution board (PDB) for clear and easy cable connection. There is also an adjustable battery holder that allows for perfect weight distribution. The bottom frame is ready to mount a variety of camera mounts and stabilizers, making it ideal for a wide range of applications.
Installation of this frame is extremely easy with pre-threaded sockets for all frame bolts, so no lock nuts are required. Only one type of screw is used for the entire build, which means you only need one type of Allen key.
S500 V2 ARF Kit Contents:
- High-strength plastic arms

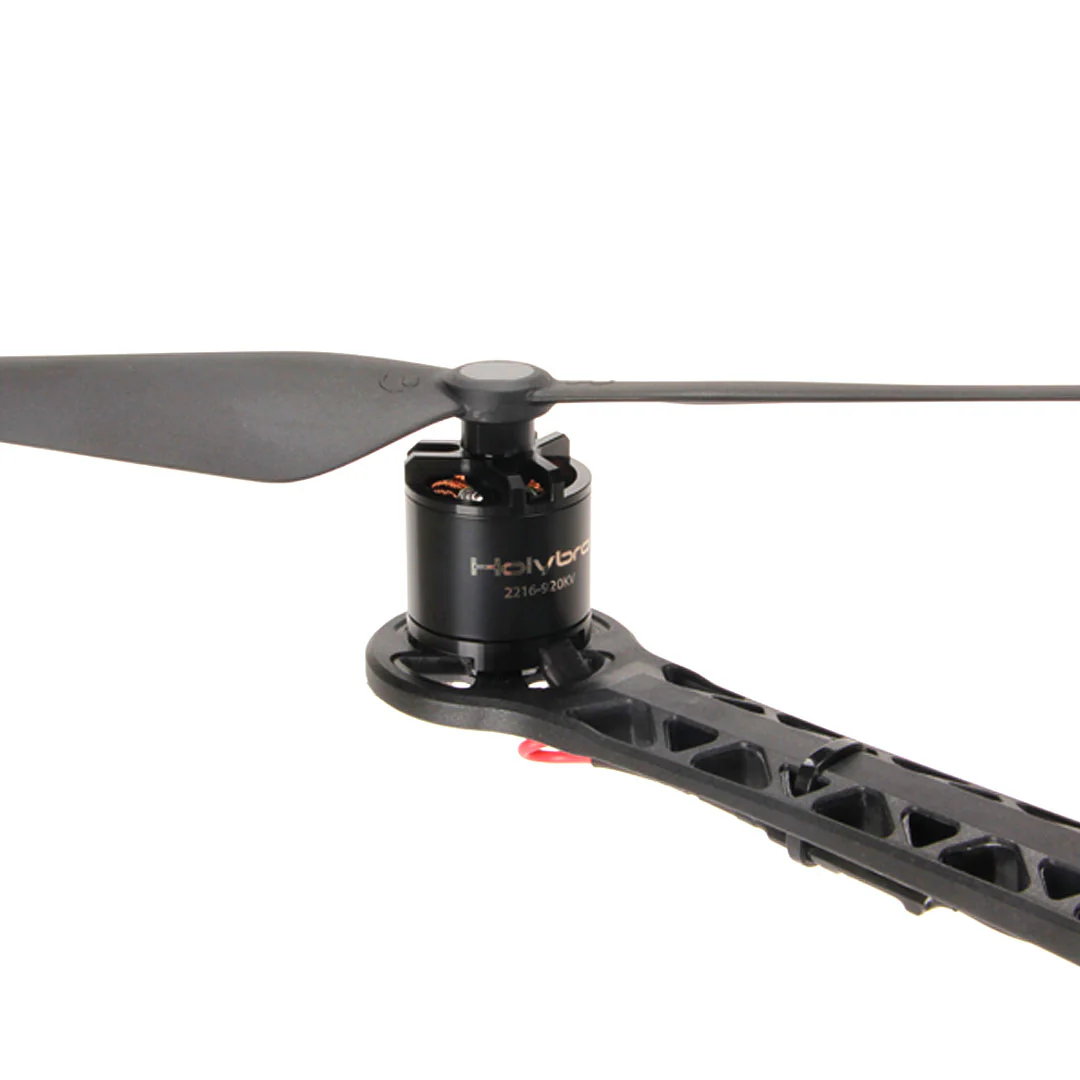

- Engines - 2216 KV920 (update V2)
- BLHeli S ESC 20A
- Built-in PDB (continuous: 60A, peak: 100A)
- Propeller 1045 (update V2)
- Battery Straps
- Dimensions: 383 × 385 × 240 mm
- Wheelbase: 480 mm
- Weight: 782g
